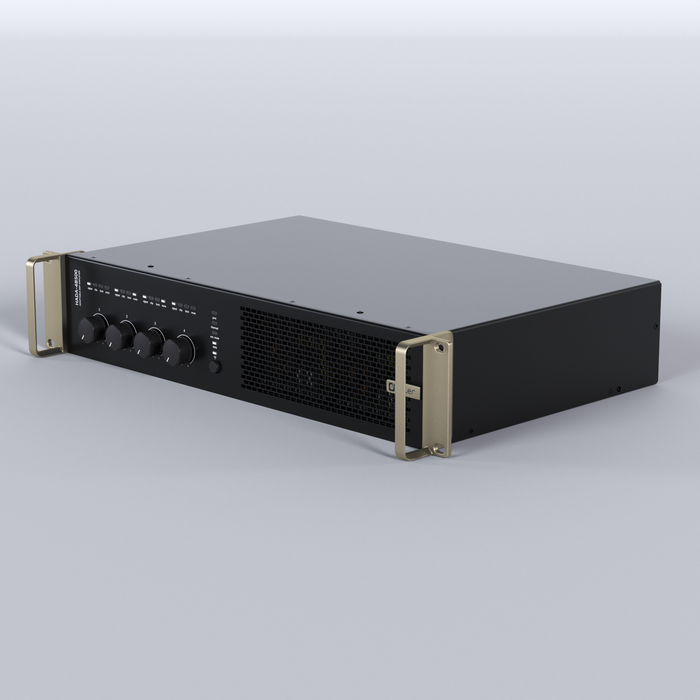

Ecler HADA-4B500 4-Channel 4 x 500W Networkable DSP Power Amplifier
DETAILS
The Ecler HADA-4B500 is a 4-Channel 4 x 500W Networkable Class D DSP Power Amplifier supporting low and high impedance loads, with a 4x4 digital matrix mixer, comprehensive onboard signal processing and full TCP/IP network contro.
Delivering 1000W bridged output for the most powerful and demanding fixed installation audio systems.
The Ecler HADA-4B500 is a high-powered amplifier within Ecler's HADA series of professional networkable DSP amplifiers, delivering four channels of 500W Class D amplification for large-scale and highly demanding fixed installation audio systems. Building on the same proven platform as the rest of the HADA series, the HADA-4B500 steps up to a significantly higher output power level whilst retaining the same comprehensive digital signal processing, matrix mixing, network control and protection capabilities that make the HADA series a trusted choice for professional installers and system designers.
Whether deployed across large sports facilities, entertainment venues, educational campuses, corporate headquarters, hospitality environments or large public buildings, the HADA-4B500 provides exceptional amplifier headroom, broad impedance flexibility and the reliability that the most ambitious installation projects demand — all within the same compact 2RU 19" rack chassis as the rest of the HADA series.
500W Per Channel with 1000W Bridged Output
The HADA-4B500 delivers 500W per channel into 4 Ohm loads and 250W into 8 Ohm loads, with a further operating point of 360W at 2.7 Ohm for lower-impedance speaker configurations. In bridge mode, channel pairs deliver an exceptional 1000W into high-impedance 100V or 70V distributed speaker systems, as well as 1000W at both 4 Ohm and 8 Ohm bridge — making the HADA-4B500 a highly capable choice for the most power-hungry low-impedance speaker arrays and large-scale 100V line distributed audio installations. Output mode selection per channel or channel pair is handled via the HADA DSP Manager software for precise and flexible system configuration.
Advanced Onboard DSP via HADA DSP Manager
The HADA-4B500 shares the same advanced DSP engine as the rest of the HADA series, built around a dual-core 64-bit processor with 96kHz/24-bit audio conversion and 113dB dynamic range. Per-channel processing includes parametric EQ, delay, limiter and multiband compressor on both input and output paths, with a 4x4 digital matrix mixer allowing any input to be routed to any output combination for maximum system design flexibility. All configurations can be saved as presets for rapid system recall and deployment. Signal processing latency is an extremely low 500 microseconds from analogue input to analogue output. The HADA DSP Manager application — accessible via Ethernet (100Mbps, CAT5 up to 100m) and an embedded web application — provides a comprehensive and intuitive interface for all device configuration, monitoring and control from a networked computer or control system.
Multiple Control Options

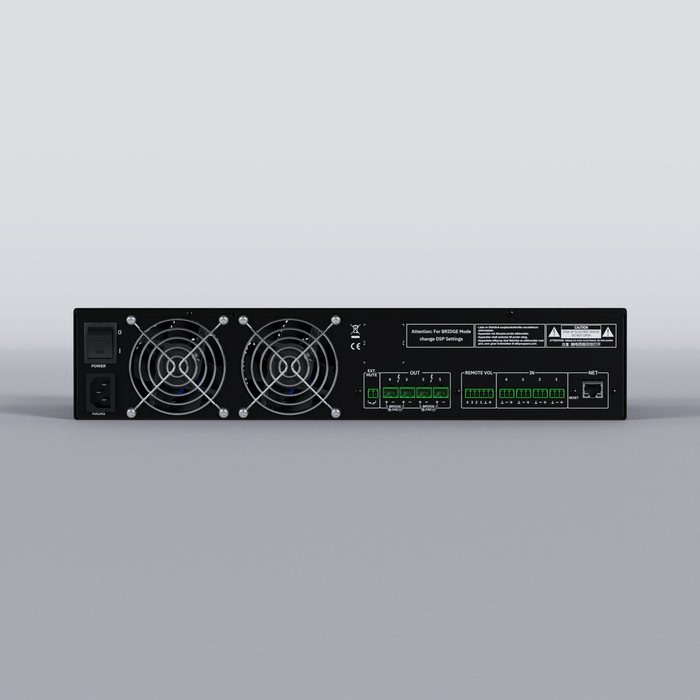

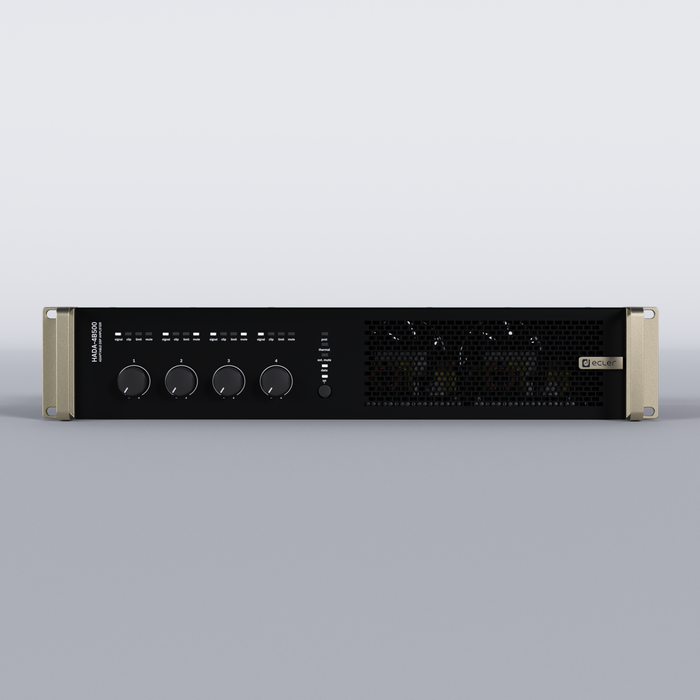

The HADA-4B500 offers the same generous range of control options as the rest of the HADA series. Front panel rotary attenuators provide direct local level control for each output channel. Four rear panel GPI inputs (0–3.3V) enable remote volume control from external control devices, whilst an external MUTE input via dry contact closure allows system-wide muting from fire detection systems and other safety or control devices. Third-party control system integration is supported via TCP/IP, making the HADA-4B500 compatible with a wide range of building management and AV control platforms. A front panel RUN/SLEEP button enables standby mode for energy-efficient operation during periods of inactivity.
Comprehensive Protection & Monitoring

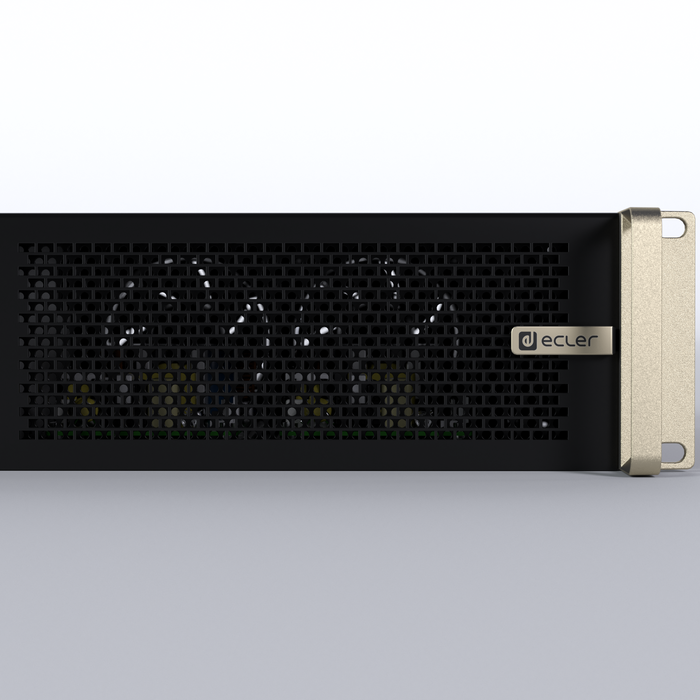

The HADA-4B500 is equipped with the same full suite of protection circuits as the rest of the HADA series, providing total reliability in continuous professional operation at high output levels. DC protection, HF protection, short-circuit protection and thermal protection — with automatic output power reduction at 90°C and full mute at 100°C — safeguard both the amplifier and connected loudspeakers at all times. Per-channel front panel LED monitoring covers signal present, clip, limit, mute and protection status, with additional unit-level indicators for power on, data activity, thermal status and external mute. The temperature-controlled variable speed fan with front-to-back airflow ensures efficient thermal management throughout sustained high-power operation.
Ecler HADA-4B500 Key Features:
- 4 x 500W @ 4Ω / 2 x 1000W Bridge @ 100V/70V: High-power output delivering exceptional headroom for the most demanding large-scale fixed installation audio systems.
- 1000W Bridged at Both 4Ω and 8Ω: Exceptional bridge mode flexibility for both low and high impedance speaker configurations.
- Class D Amplification: Efficient, high-performance Class D amplifier technology for reliable, low-heat continuous operation at high output levels.
- Advanced Onboard DSP: Dual-core 64-bit processor with parametric EQ, multiband compressor, limiter and delay on all inputs and outputs via HADA DSP Manager.
- 4x4 Digital Matrix Mixer: Route any input to any output combination for flexible system design and signal distribution.
- 96kHz / 24-bit Audio Conversion: High-resolution audio processing with 113dB dynamic range and 500 microsecond analogue-to-analogue latency.
- Crosstalk > 80dB at 1kHz: Superior channel separation for demanding multi-zone installations.
- HADA DSP Manager Software: Full device configuration, preset management and monitoring via Ethernet and embedded web application.
- TCP/IP Third-Party Control: Compatible with a wide range of building management and AV control platforms via network.
- 4 x GPI Inputs: Remote volume control from external control devices via rear panel GPI (0–3.3V).
- External MUTE Input: Dry contact closure for integration with fire detection and other safety systems.
- Front Panel Attenuators: Direct local level control per output channel.
- Preset Management: Save and recall complete system configurations for rapid deployment and system recall.
- Comprehensive Protection: DC, HF, short-circuit and thermal protection for total reliability in any installation environment.
- Per-Channel LED Monitoring: Signal present, clip, limit, mute and protection status LEDs per channel.
- Temperature-Controlled Fan Cooling: Variable speed front-to-back airflow for efficient thermal management during sustained high-power operation.
- Universal SMPS with PFC: 100–240V AC, power factor correction > 0.92 for efficient mains power usage.
- Compact 2RU Format: 482.6 x 88 x 281.5mm for efficient use of rack space despite high output power.
-
Desktop & Rack Mountable: Includes desktop feet and 19" rack installation hardware as standard.
SPECS & DOWNLOADS
Ecler HADA-4B500 Specifications:
Download the PDF Data Sheet HERE >
Channels & Configuration
- Output Channels: 4
- Input Channels: 4 analogue
- Input Connection: 3-pin Euroblock (balanced), pitch 3.5mm
- Output Connection: 2-pin Euroblock
- Input Configuration: 4x4 digital matrix mixer
- Output Configuration: Lo-Z/Hi-Z, 70V/100V (bridge), 4Ω/8Ω (software selectable per channel/pair)
Output Power
- Max Output Power @ 8Ω: 250W (all channels driven, 1% THD)
- Max Output Power @ 4Ω: 500W (all channels driven, 1% THD)
- Max Output Power @ 2.7Ω: 360W (all channels driven, 1% THD)
- Max Output Power @ 4Ω Bridge: 1000W (all channels driven, 1% THD)
- Max Output Power @ 8Ω Bridge: 1000W (all channels driven, 1% THD)
- Max Output Power @ 100V: 1000W bridge (all channels driven, 1% THD)
- Max Output Power @ 70V: 1000W bridge (all channels driven, 1% THD)
Signal
- Voltage Gain: 31–37 dBV (33.2–39.2 dBu)
- Input Sensitivity: -12 to +12 dBV (-9.8 to +14.2 dBu)
- Input Impedance: 21kΩ (balanced)
- Max Input Level: 22 dBV (24.2 dBu)
- Frequency Response: 20Hz–20kHz (-3dB, 1W any load)
- THD+Noise: < 0.01% (0.015% typical @ 1kHz, 0.1W to full power)
- Crosstalk: > 80dB at 1kHz
DSP
- Processor: Dual-core 64-bit
- Sampling Rate: 96kHz
- Resolution: 24-bit
- Dynamic Range: 113dB
- Latency: 500 microseconds (analogue in to analogue out)
- Input Processing: Parametric EQ, delay, limiter, multiband compressor
- Output Processing: Parametric EQ, delay, limiter, multiband compressor
- Matrix Mixer: 4x4
- Preset Management: Yes, via HADA DSP Manager
Control & Connectivity
- Network: Ethernet 100Mbps (CAT5, up to 100m)
- Software: HADA DSP Manager (embedded web application)
- Third-Party Control: TCP/IP
- GPI Inputs: 4 x (0–3.3V), 5-pin Euroblock
- External MUTE: Dry contact, 2-pin Euroblock
- Front Panel Controls: 4 x attenuator knobs, RUN/SLEEP button
- Power ON/OFF: Rear panel switch
Monitoring (LED)
- Per Channel: Signal present (SP), clip, limit, mute, protect
- Per Unit: Power on, data, thermal, external mute
Protection
- DC Protection: Yes
- HF Protection: Yes
- Short-Circuit Protection: Yes (auto reset)
- Thermal Protection: Power reduction at 90°C, full mute at 100°C
Electrical
- Amplifier Class: Class D
- Power Supply: Universal SMPS with PFC (> 0.92)
- Mains Input: 100–240V AC, 50–60Hz (±10%)
- Mains Connector: IEC C14
- Power Consumption (Idle): 25.5W
- Power Consumption (Standby): 20W
- Cooling: Temperature-controlled variable speed fan, front-to-back airflow
- Maximum Fan Noise: 46dB at 1m
Physical
- Installation Format: 19" rack (2RU) or desktop
- Dimensions (W x H x D): 482.6 x 88 x 281.5mm
- Weight: 5.6kg
- Operating Temperature: 0°C to +40°C
- Operating Humidity: 5–80% RH, non-condensing
- Included Accessories: EU mains cord, Euroblock connectors, desktop feet, 19" rack installation hardware
