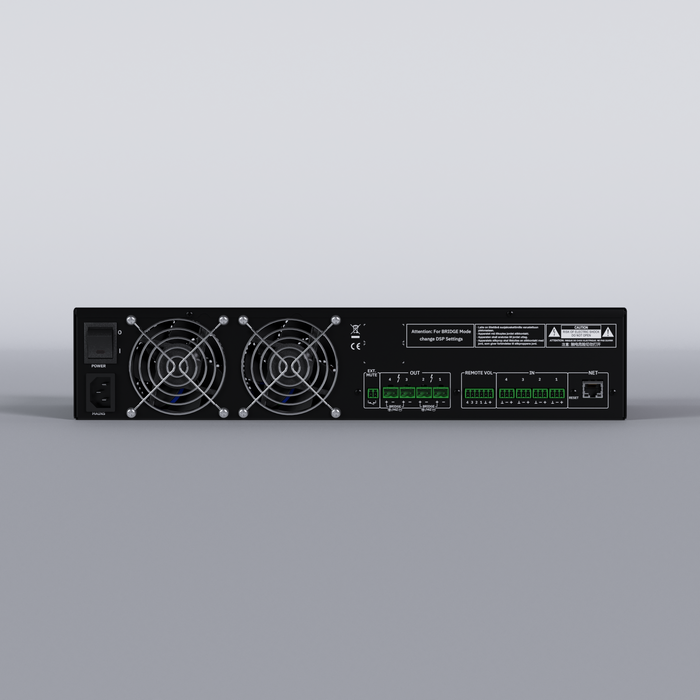

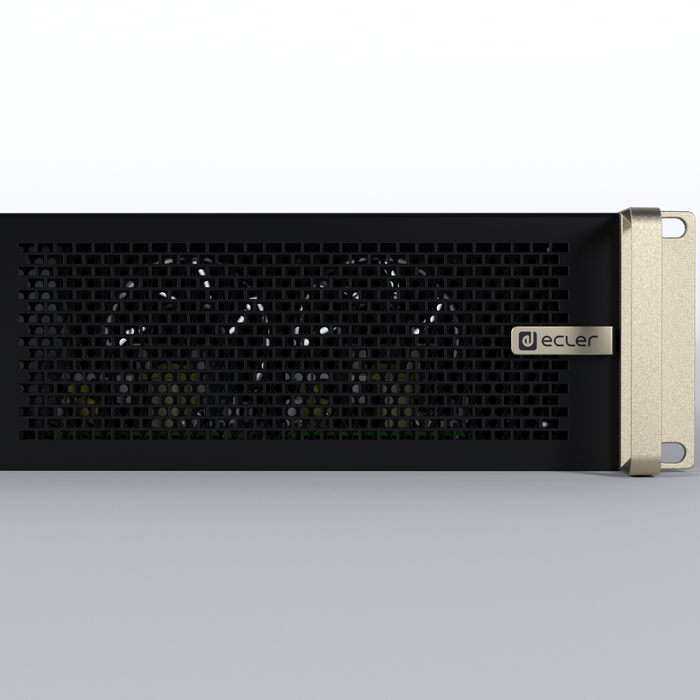

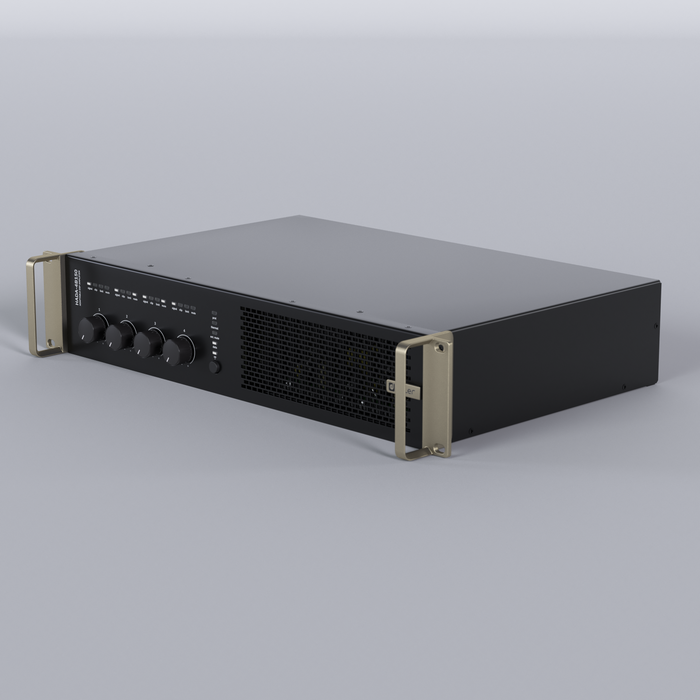

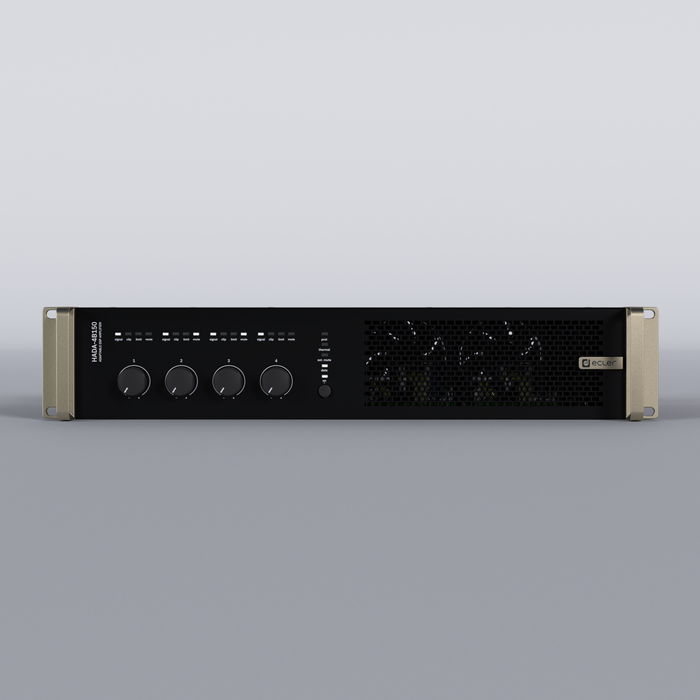

Ecler HADA-4B150 4-Channel 4 x 125W Networkable DSP Power Amplifier

Name: Ecler HADA-4B150 4-Channel 4 x 125W Networkable DSP Power Amplifier
Brand: Ecler
SKU: HADA-4B150
Price: 1299.0 GBP
Availability: InStock

by Ecler

SKU HADA-4B150

Save 4%

£1,355.00 (inc. VAT)

£1,355.00 (inc. VAT) - £1,355.00 (inc. VAT)

£1,355.00 (inc. VAT)

£1,299.00 (inc. VAT)

£1,299.00 (inc. VAT) - £1,299.00 (inc. VAT)

£1,299.00 (inc. VAT)

DETAILS

The Ecler HADA-4B150 is a 4-Channel 4 x 125W Networkable Class D DSP Power Amplifier supporting low and high impedance loads, with a 4x4 digital matrix mixer, comprehensive onboard signal processing and full TCP/IP network control.

A professional, flexible and future-proof amplification solution for demanding fixed installation environments.

The Ecler HADA-4B150 is part of Ecler's HADA series of professional networkable DSP amplifiers, designed to deliver reliable, high-performance amplification with comprehensive digital signal processing and network control capabilities for the most demanding fixed installation applications.

Whether deployed in retail, education, corporate, hospitality, sports and wellness or public venue environments, the HADA-4B150 provides four channels of 125W Class D amplification in a compact 2RU 19" rack chassis — with the flexibility, processing power and control options to adapt to virtually any installation audio system design.

Flexible Output Configuration for Low & High Impedance Systems

The HADA-4B150 has been engineered to support a wide range of speaker system configurations from a single amplifier. In standard stereo mode, all four channels deliver 125W into 4 Ohm or 8 Ohm low-impedance loads. In bridge mode, channel pairs can be configured to deliver 250W into high-impedance 100V or 70V distributed speaker systems — making the HADA-4B150 equally capable as a direct-drive low-impedance amplifier or as a high-impedance 100V line amplifier for distributed audio installations. Output mode selection per channel or channel pair is handled via the HADA DSP Manager software, providing precise and flexible system configuration.

Advanced Onboard DSP via HADA DSP Manager

The HADA-4B150's integrated DSP engine — built around a dual-core 64-bit processor with 96kHz/24-bit audio conversion and 113dB dynamic range — provides a comprehensive suite of signal processing tools for both inputs and outputs. Per-channel processing includes parametric EQ, delay, limiter and multiband compressor on both input and output paths, with a 4x4 digital matrix mixer allowing any input to be routed to any output combination. All configurations can be saved as presets for rapid system recall. Signal processing latency is an extremely low 500 microseconds from analogue input to analogue output. The HADA DSP Manager application — accessible via Ethernet (100Mbps, CAT5 up to 100m) and an embedded web application — provides a comprehensive and intuitive interface for all device configuration, monitoring and control from a networked computer or control system.

Multiple Control Options

The HADA-4B150 offers a generous range of control options to suit different installation requirements and control system preferences. Front panel rotary attenuators provide direct local level control for each output channel. Four rear panel GPI inputs (0–3.3V) enable remote volume control from external control devices, whilst an external MUTE input via dry contact closure allows system-wide muting from external safety or control systems — including fire detection systems. Third-party control system integration is supported via TCP/IP, making the HADA-4B150 compatible with a wide range of building management and AV control platforms. A front panel RUN/SLEEP button enables standby mode for energy saving during periods of inactivity.

Comprehensive Protection & Monitoring

The HADA-4B150 is equipped with a full suite of protection circuits ensuring total reliability in continuous professional operation. DC protection, HF protection, short-circuit protection and thermal protection — with automatic output power reduction at 90°C and full mute at 100°C — safeguard both the amplifier and connected loudspeakers at all times. Per-channel front panel LED monitoring covers signal present, clip, limit, mute, protection and thermal status, with additional unit-level indicators for power on, data activity and external mute status. Temperature-controlled variable speed fan cooling with front-to-back airflow keeps operating temperatures in check throughout sustained high-power use, with a maximum fan noise of 46dB at 1m.

Ecler HADA-4B150 Key Features:

4 x 125W @ 4Ω / 2 x 250W Bridge @ 100V/70V: Flexible low and high impedance output configuration supporting both direct-drive and 100V line distributed speaker systems.
Class D Amplification: Efficient, high-performance Class D amplifier technology for reliable, low-heat continuous operation.
Advanced Onboard DSP: Dual-core 64-bit processor with parametric EQ, multiband compressor, limiter and delay on all inputs and outputs via HADA DSP Manager.
4x4 Digital Matrix Mixer: Route any input to any output combination for flexible system design and signal distribution.
96kHz / 24-bit Audio Conversion: High-resolution audio processing with 113dB dynamic range and 500 microsecond analogue-to-analogue latency.
HADA DSP Manager Software: Full device configuration, preset management and monitoring via Ethernet and embedded web application.
TCP/IP Third-Party Control: Compatible with a wide range of building management and AV control platforms via network.
4 x GPI Inputs: Remote volume control from external control devices via rear panel GPI (0–3.3V).
External MUTE Input: Dry contact closure for integration with fire detection and other safety systems.
Front Panel Attenuators: Direct local level control per output channel.
Preset Management: Save and recall complete system configurations for rapid deployment and system recall.
Comprehensive Protection: DC, HF, short-circuit and thermal protection for total reliability in any installation environment.
Per-Channel LED Monitoring: Signal present, clip, limit, mute and protection status LEDs per channel.
Temperature-Controlled Fan Cooling: Variable speed front-to-back airflow for efficient thermal management during sustained high-power operation.
Universal SMPS with PFC: 100–240V AC, power factor correction > 0.92 for efficient mains power usage.
Standby/Sleep Mode: 8.5W standby power consumption for energy-efficient operation during periods of inactivity.
Compact 2RU Format: 482.6 x 88 x 281.5mm for efficient use of rack space.
Desktop & Rack Mountable: Includes desktop feet and 19" rack installation hardware as standard.

SPECS & DOWNLOADS

Ecler HADA-4B150 Specifications:

Download the PDF Data Sheet HERE >

Channels & Configuration

Output Channels: 4
Input Channels: 4 analogue
Input Connection: 3-pin Euroblock (balanced), pitch 3.5mm
Output Connection: 2-pin Euroblock
Input Configuration: 4x4 digital matrix mixer
Output Configuration: Lo-Z/Hi-Z, 70V/100V (bridge), 4Ω/8Ω (software selectable per channel/pair)

Output Power

Max Output Power @ 8Ω: 125W (all channels driven, 1% THD)
Max Output Power @ 4Ω: 125W (all channels driven, 1% THD)
Max Output Power @ 8Ω Bridge: 250W (all channels driven, 1% THD)
Max Output Power @ 100V: 250W bridge (all channels driven, 1% THD)
Max Output Power @ 70V: 250W bridge (all channels driven, 1% THD)

Signal

Voltage Gain: 27–37 dBV (29.2–39.2 dBu)
Input Sensitivity: -12 to +12 dBV (-9.8 to +14.2 dBu)
Input Impedance: 21kΩ (balanced)
Max Input Level: 22 dBV (24.2 dBu)
Frequency Response: 20Hz–20kHz (-3dB, 1W any load)
THD+Noise: < 0.01% (0.015% typical @ 1kHz, 0.1W to full power)
Crosstalk: > 60dB at 1kHz

DSP

Processor: Dual-core 64-bit
Sampling Rate: 96kHz
Resolution: 24-bit
Dynamic Range: 113dB
Latency: 500 microseconds (analogue in to analogue out)
Input Processing: Parametric EQ, delay, limiter, multiband compressor
Output Processing: Parametric EQ, delay, limiter, multiband compressor
Matrix Mixer: 4x4
Preset Management: Yes, via HADA DSP Manager

Control & Connectivity

Network: Ethernet 100Mbps (CAT5, up to 100m)
Software: HADA DSP Manager (embedded web application)
Third-Party Control: TCP/IP
GPI Inputs: 4 x (0–3.3V), 5-pin Euroblock
External MUTE: Dry contact, 2-pin Euroblock
Front Panel Controls: 4 x attenuator knobs, RUN/SLEEP button
Power ON/OFF: Rear panel switch

Monitoring (LED)

Per Channel: Signal present (SP), clip, limit, mute, protect
Per Unit: Power on, data, thermal, external mute

Protection

DC Protection: Yes
HF Protection: Yes
Short-Circuit Protection: Yes (auto reset)
Thermal Protection: Power reduction at 90°C, full mute at 100°C

Electrical

Amplifier Class: Class D
Power Supply: Universal SMPS with PFC (> 0.92)
Mains Input: 100–240V AC, 50–60Hz (±10%)
Mains Connector: IEC C14
Power Consumption (Idle): 14.5W
Power Consumption (Standby): 8.5W
Cooling: Temperature-controlled variable speed fan, front-to-back airflow
Maximum Fan Noise: 46dB at 1m

Physical

Installation Format: 19" rack (2RU) or desktop
Dimensions (W x H x D): 482.6 x 88 x 281.5mm
Weight: 4.7kg
Operating Temperature: 0°C to +40°C
Operating Humidity: 5–80% RH, non-condensing
Included Accessories: EU mains cord, Euroblock connectors, desktop feet, 19" rack installation hardware

}
