DETAILS

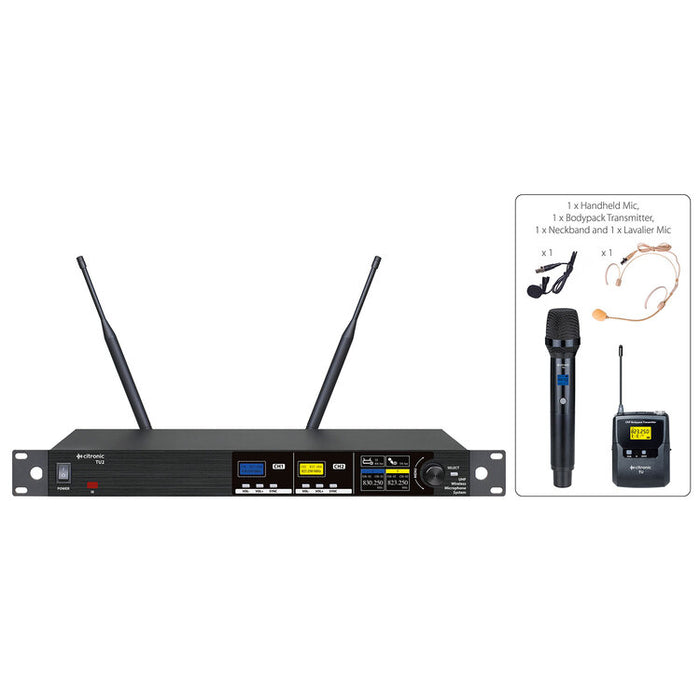

The Citronic TU2-C is a PLL Tuneable Dual Channel UHF True Diversity Wireless Microphone System supplied with one handheld microphone transmitter and one bodypack transmitter with neckband and lavalier microphones.

Delivering the ultimate in versatility for performers and presenters requiring two simultaneous wireless microphone feeds of different types.

The Citronic TU2-C is the most versatile configuration in the TU-series dual wireless range, combining one handheld microphone transmitter and one bodypack transmitter in a single system — giving performers and event hosts the flexibility of both a traditional handheld microphone and a hands-free headset or lavalier microphone operating simultaneously from a single 1U rack-mount receiver.

Whether you need a vocalist on handheld whilst a presenter uses a lavalier, a performer switching between singing and hosting duties, or any other application requiring two different microphone types working simultaneously, the TU2-C provides a complete, professional and ready-to-use solution straight out of the box.

Intelligent Channel Management

At the heart of the TU-series is a sophisticated channel management system that sets it apart from simpler wireless alternatives. The full-colour TFT display and rotary encoder on the receiver's front panel allow complete programming of carrier frequency, EQ settings, transmission power and even the display backlight colour for easy identification of each channel — particularly useful when managing two different transmitter types simultaneously. Each channel wirelessly syncs to its paired transmitter via an IR connection, automatically configuring the transmitter to match the receiver settings — avoiding the complication of having to manually adjust multiple controls on each transmitter separately. An auto frequency sweep function identifies and locks onto the clearest available frequencies for reliable, drop-out free operation across both channels simultaneously.

Handheld & Bodypack Transmitters

The TU2-C is supplied with one handheld microphone transmitter housed in a robust full metal body and fitted with a high-quality dynamic capsule for clear, natural vocal reproduction on stage and in spoken word applications. The compact and lightweight bodypack transmitter — weighing just 74g without batteries — is supplied with both a neckband microphone and a lavalier microphone, giving the bodypack user the flexibility to choose the most suitable option for their specific application. All microphone connections feature fully balanced signal connections for clean, interference-free audio. A wireless range of up to 60 metres provides ample freedom of movement for both transmitters. Two AA batteries are supplied per transmitter.

Flexible Connectivity & Tuning

Each channel of the TU2-C receiver features an independent 7-band EQ for precise tonal shaping to suit different voices, microphone types and acoustic environments. Individual XLR outputs per channel allow direct connection to mixing desks and PA systems, whilst a single mixed jack output provides a convenient alternative for simpler setups. Twin BNC antennas with true diversity reception and internal antenna distribution can be connected at the rear of the receiver or repositioned to the front panel when rack-mounted using the supplied BNC extension cables. The system operates licence-free within the 863–865MHz UHF band in the UK and EU, with additional channel 65 frequencies (823–832MHz) also available with a PMSE licence.

Citronic TU2-C Key Features:

• Mixed Transmitter Configuration: One handheld and one bodypack transmitter for the ultimate in dual wireless flexibility — ideal for mixed performance and presentation applications.
• Dual Channel True Diversity UHF Reception: Two independently managed channels with dual antenna true diversity and internal distribution for reliable, interference-free wireless performance up to 60 metres.
• Full 1U Rack-Mount Chassis: 482mm wide receiver fits neatly into any standard 19" rack enclosure.
• PLL Tuneable Channels: Each channel individually tuneable across 8 groups of 8–16 carrier frequencies within the licence-free UHF and regulated duplex gap bands.
• Full-Colour TFT Display: Front panel display with rotary encoder for easy programming of frequency, EQ, transmission power and backlight colour identification per channel.
• Wireless IR Transmitter Sync: Receiver wirelessly syncs each channel's settings to the paired transmitter via IR connection for effortless setup.
• Independent 7-Band EQ Per Channel: Precise tonal control for each channel to suit different voices and microphone types.
• Auto Frequency Sweep: Automatically identifies and locks onto the clearest available frequencies for drop-out free operation.
• Premium Full Metal Handheld Transmitter: Robust metal housing with high-quality dynamic capsule for clear, natural vocal reproduction.
• Compact Lightweight Bodypack: Weighing just 74g without batteries, comfortable for extended wear.

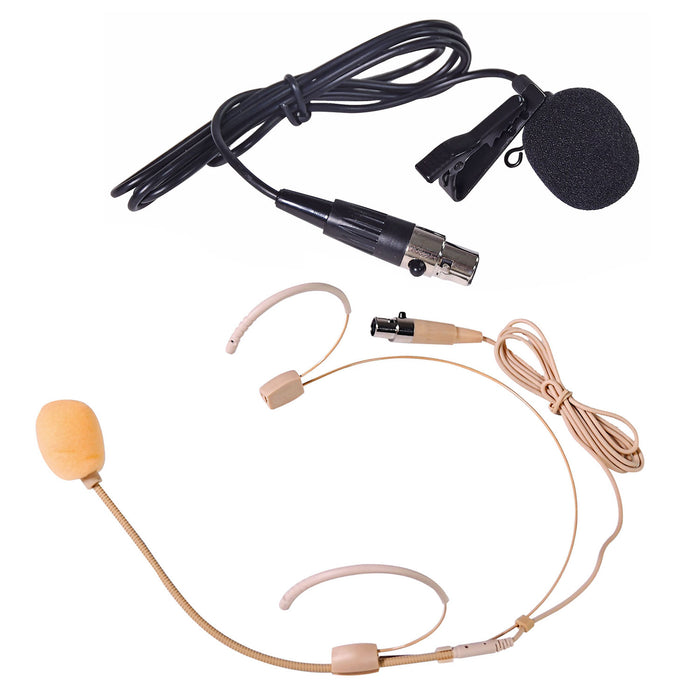

• Neckband & Lavalier Microphones Included: Both microphone options supplied with the bodypack for maximum versatility.
• Fully Balanced Microphone Connections: All supplied microphones feature fully balanced signal connections.
• Individual XLR Outputs & Mix Jack Output: Flexible output options for mixing desks, PA systems and simpler setups.
• Licence-Free UK & EU Operation: 863–865MHz licence-free, with PMSE-licensed 823–832MHz also available.
• Front or Rear BNC Antenna Connection: Supplied extension cables for flexible rack-mounted or desktop use.
• Batteries Included: 2 x AA batteries supplied per transmitter.
• Mains Adaptor Included: 12–18V DC, 1000mA power supply supplied.

SPECS & DOWNLOADS

Download the PDF User Manual Here >

Citronic TU2-C Specifications:

Receiver

• System Type: True diversity UHF PLL tuneable, dual channel
• Carrier Frequencies: 823–832MHz (PMSE licence required) / 863–865MHz (licence-free)
• Channel Groups: 8 groups of 8–16 frequencies
• Outputs: Individual XLR per channel, single mix jack output
• Antenna Connection: 2 x BNC (rear or front panel via supplied extension cables)
• Display: Full-colour TFT with rotary encoder
• EQ: Independent 7-band per channel
• Power Supply: 12–18V DC, 1000mA (mains adaptor included)
• Dimensions: 482 x 185 x 44mm (1U)
• Weight: 1.500kg

Handheld Transmitter (x1)

• Capsule Type: High-quality dynamic
• Housing: Full metal
• Wireless Range: Up to 60 metres
• Batteries: 2 x AA (included)
• Dimensions: 258 x 47mm Ø
• Weight: 354g (without batteries)

Bodypack Transmitter (x1)

• Wireless Range: Up to 60 metres
• Connector: 4-pin mini XLR
• Batteries: 2 x AA (included)
• Dimensions: 90 x 60 x 25mm
• Weight: 74g (without batteries)

Neckband Microphone (x1)

• Connection: Fully balanced
• Dimensions: 180 x 140 x 60mm
• Weight: 28g

Lavalier Microphone (x1)

• Connection: Fully balanced
• Dimensions: 27 x 12mm Ø
• Weight: 23g

In the Box

• 1 x 1U rack-mountable receiver
• 1 x handheld transmitter
• 1 x bodypack transmitter
• 1 x neckband microphone
• 1 x lavalier microphone
• 2 x UHF antennas (BNC)
• 2 x BNC extension leads
• 12V DC power adaptor
• 2 x AA batteries per transmitter
