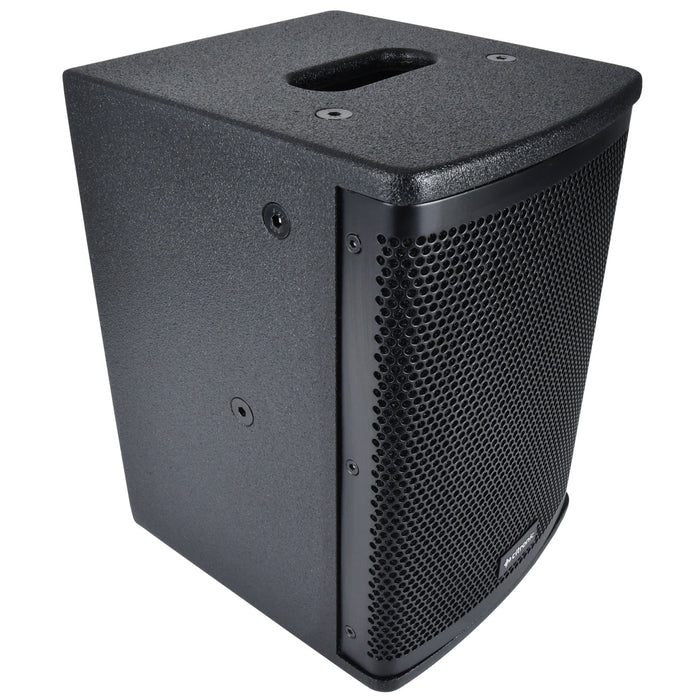

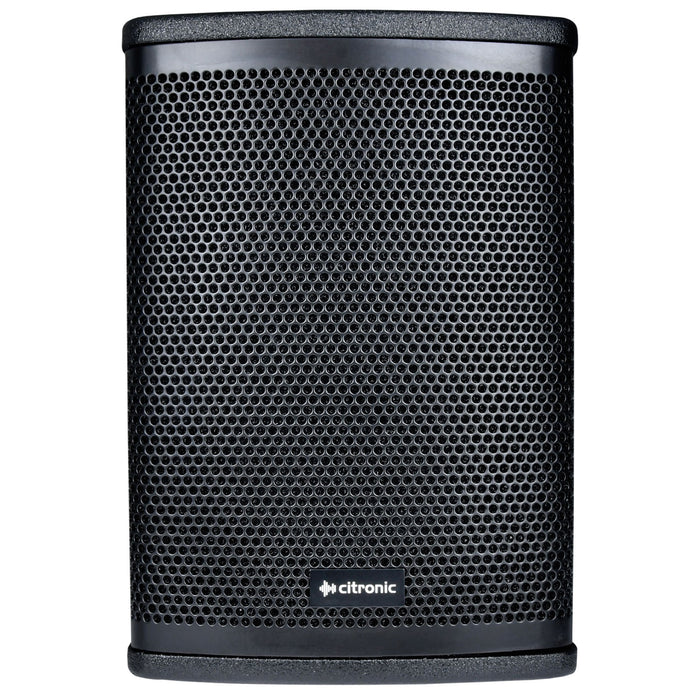

Citronic CUBA-6A 6.5" 100W Full-Range Active PA Speaker with DSP & Bluetooth - Black
DETAILS
The Citronic CUBA-6A is a compact 6.5" 100W Full-Range Active PA Speaker with 5-preset DSP and Bluetooth, delivering clean, high-energy sound in a lightweight, versatile cabinet — ideal for foreground music, small venues and fixed installations where space is at a premium.
The Citronic CUBA-6A is the most compact model in the CUBA active speaker range, but don't let its size fool you. Combining a 165mm (6.5") main driver with a 25mm (1") silk dome tweeter, a 100W RMS Class D bi-amplifier and a 5-preset DSP section, the CUBA-6A punches well above its compact dimensions — delivering a maximum SPL of 115dB and a frequency response of 80Hz to 18.5kHz with wide 100° x 100° HF dispersion for even, consistent coverage across the listening area. Whether deployed in a bar, café, retail space, gym or small venue, or used as a compact stage monitor, the CUBA-6A provides the clean, high-energy full-range output that foreground music and live sound applications demand.
5-Preset DSP for Optimised Sound
At the heart of the CUBA-6A's audio performance is a 5-profile Digital Signal Processing (DSP) section that gives the user precise control over the speaker's sonic character to suit different applications and environments. Five onboard presets — Normal, DJ, Voice, Live and Flat — allow quick and easy optimisation of the sound without the need for an external processor or equaliser. DSP (Digital Signal Processing) works by manipulating the audio signal digitally to control parameters such as EQ, frequency response shaping and driver protection, resulting in a cleaner, more controlled and more consistent output across all volume levels.
Flexible Connectivity

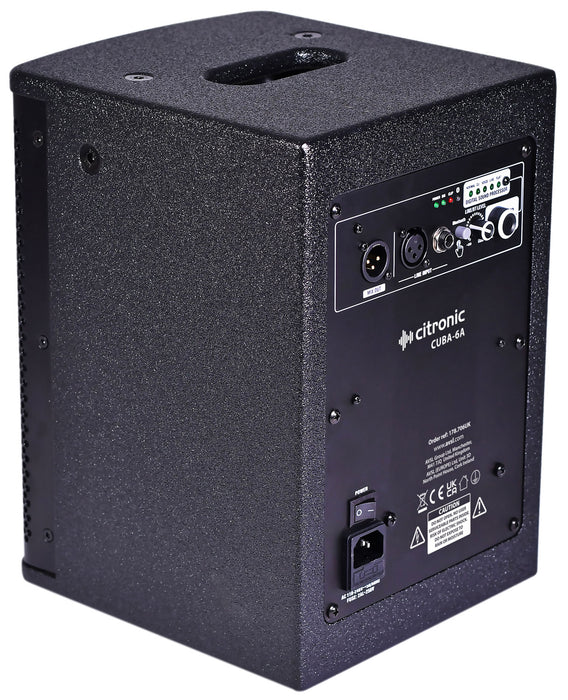

The CUBA-6A offers a comprehensive range of input options to accommodate virtually any audio source. A switchable mic/line input accepts both XLR and jack connections for microphones and line-level sources, whilst a dedicated line input accommodates RCA, XLR and jack connections for music playback devices, mixers and other line-level sources. Built-in Bluetooth connectivity allows wireless audio streaming directly from a smartphone or tablet without the need for cables. An XLR line output allows the audio signal to be fed to additional CUBA speakers for expanded coverage, making it easy to build a multi-speaker system around the CUBA-6A as a primary source.
Versatile Deployment Options
The CUBA-6A has been designed to accommodate a wide range of deployment scenarios. The polyurea-coated MDF cabinet with powder-coated steel grille is robust enough for regular portable use, whilst a 35mm pole-mount socket allows stand mounting for optimal coverage in live sound and foreground music applications. M8 flying points enable safe suspension from a ceiling or wall for fixed installation use, and the cabinet can also be positioned on the floor as a stage wedge or monitor. The CUBA-6A is the only model in this range to include a mounting bracket as standard, making it an especially practical choice for permanent wall or ceiling installation.
Citronic CUBA-6A Key Features:
- 100W RMS / 200W Peak Class D Bi-Amplifier: Efficient, lightweight amplification delivering up to 115dB maximum SPL from a compact 6.5" cabinet.
- 6.5" Main Driver & 1" Silk Dome Tweeter: 165mm woofer with 38mm voice coil and 25mm silk dome HF driver for full-range performance from 80Hz to 18.5kHz.
- Wide 100° x 100° HF Dispersion: Even, consistent coverage across the horizontal and vertical listening area.
- 5-Preset DSP Section: Normal, DJ, Voice, Live and Flat presets for quick sound optimisation to suit different applications and environments.
- Bluetooth Connectivity: Wireless audio streaming from smartphones and tablets.
- Switchable Mic/Line Input: XLR and jack connections for microphones and line-level sources.
- Line Input: RCA, XLR and jack connections for music playback devices and mixers.
- XLR Line Output: Feed the audio signal to additional CUBA speakers for expanded system coverage.

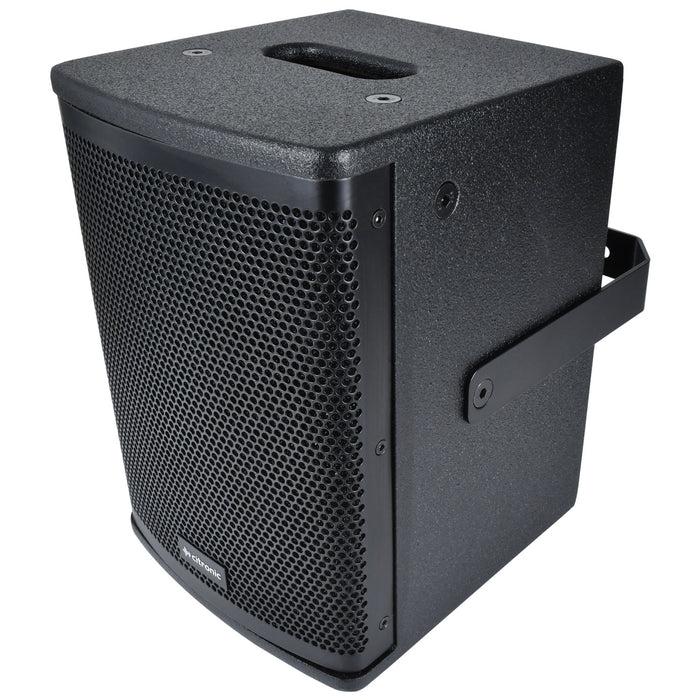

- Mounting Bracket Included: Wall or ceiling mounting bracket supplied as standard — exclusive to the CUBA-6A within this range.
- 35mm Pole-Mount Socket: Stand mounting for optimal coverage in live sound and foreground music applications.
- M8 Flying Points: Secure suspension from ceiling or wall for fixed installation use.
- Floor Monitor Capable: Cabinet can be positioned on the floor as a stage wedge or monitor.
- Durable Polyurea-Coated MDF Cabinet: Hard-wearing construction with powder-coated steel grille for long-term reliability in portable and fixed applications.
SPECS & DOWNLOADS
Download the PDF User Manual HERE >
Citronic CUBA-6A Specifications
- Main Driver: 165mm Ø (6.5"), 38mm Ø (1.5") voice coil
- HF Driver: 25mm (1") silk dome tweeter
- Output Power (RMS): 100W
- Output Power (Max): 200W
- Amplifier: Class D bi-amplifier
- Frequency Response: 80Hz – 18.5kHz
- Sensitivity: 92dB
- Maximum SPL: 115dB
- HF Dispersion: 100° x 100°
- DSP Presets: Normal, DJ, Voice, Live, Flat
- Inputs: Mic/line (XLR/jack), Line (RCA/XLR/jack), Bluetooth
- Line Output: XLR
- Construction: Polyurea-coated MDF, powder-coated steel grille
- Power Supply: 230V AC, 50Hz (IEC)
- Dimensions: 325 x 235 x 210mm
- Weight: 6.1kg
- Colour: Black
-
Included Accessories: Mounting bracket
