Bose Veritas 2160BH 2x160W 100V Line Amplifier with Bluetooth
DETAILS
The Bose Professional Veritas 2160BH is a high-power, DSP-equipped amplifier designed for 70V/100V distributed audio systems.
The Veritas 2160BH delivers reliable output for demanding 70V/100V installations. With 2 × 160 W of clean power, it efficiently drives multiple loudspeakers across zones while maintaining clarity and balance. It’s ideal for hotels, event venues, and multi-room commercial spaces requiring uniform coverage.
Effortless Connectivity and Setup
Bluetooth 5.0 and RCA inputs make connection quick and simple. The OLED front panel includes a QR code for guided setup, allowing you to get the system running in minutes. The 2160BH also supports remote level control through Bose Professional or third-party wall controllers, giving flexible installation options.
Precision DSP and EQ Control
Integrated 24-bit DSP ensures precise tonal balance and system tuning. Choose from up to 30 EQ presets tailored for Bose loudspeakers, or use Dynamic EQ for full, rich sound at any volume. Opti-Voice paging enhances speech intelligibility, making the system equally effective for background music and announcements.
Reliable Cooling and Build Quality
Designed for professional use, the 2160BH uses an active fan cooling system with left-to-right airflow for stable operation. Built with durable components and smart protection circuitry, it’s engineered for continuous use in commercial environments.
Bose Veritas 2160BH Key Features:
- Premium amplifier with advanced DSP processing
- Bluetooth 5.0 and RCA connectivity—no complex wiring
- OLED front panel with quick-start QR code
- Supports 70V/100V distributed systems
- Remote level control compatibility
- Dynamic EQ for full sound at low volume
- 30 selectable EQ presets for Bose loudspeakers
- Opti-Voice paging for clear announcements
- Multi-zone flexibility for dual output control
- Active cooling system for reliable long-term use
SPECS & DOWNLOADS
Bose Veritas 2160BH Specifications
-
Channel Separation (Crosstalk): ≤ -58 dBu below rated power, 1 kHz
-
Dynamic Range: 88 dB
-
Frequency Response: 20 Hz – 20 kHz (+0/-3 dB @ 1 W, 1 kHz reference)
-
Rated Power: 2 × 160 W at 70/100V
-
THD+N: ≤ 0.5% at rated power
-
Adjustment Range: 0 dB to -30 dB (line), 0 dB to +50 dB (page)
-
Input Channels: (2) balanced line, (2) unbalanced line, (1) balanced mic/line
-
Connectors: (2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock
-
Input Impedance: 20 kΩ (line), 2 kΩ (page)
-
Input Range: -8 dBu to +22 dBu (line), -58 dBu to +12 dBu (page)
-
Maximum Input Level: 22 dBu (line), 12 dBu (page)
-
Nominal Input Level: 4 dBu (line), -38 dBu (page)
-
Sensitivity: -8 dBu (line), -58 dBV (page)
-
Audio Outputs: (2) loudspeaker, (1) unbalanced line
-
Output Connectors: (2) 2-pin Euroblock, (1) RCA stereo pair
-
Nominal Output Level: 2 × 160 W at 70/100V (loudspeaker), 2 dBu (auxiliary)
-
Mains Connector: IEC C14 inlet
-
Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
-
Protections: High temperature, output short circuit, low/high AC voltage
-
AC Power Consumption: 13.6 W standby, 500 W maximum
-

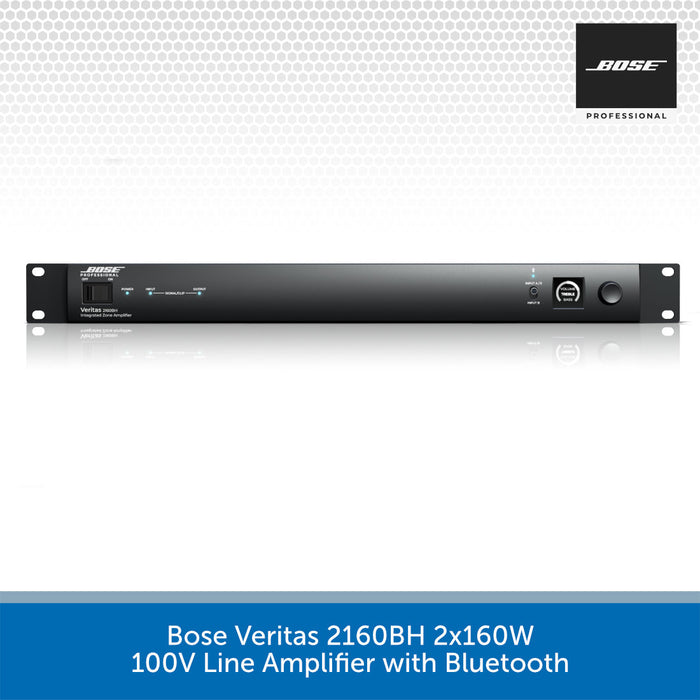

Front Controls: Power switch, input select, rotary encoder

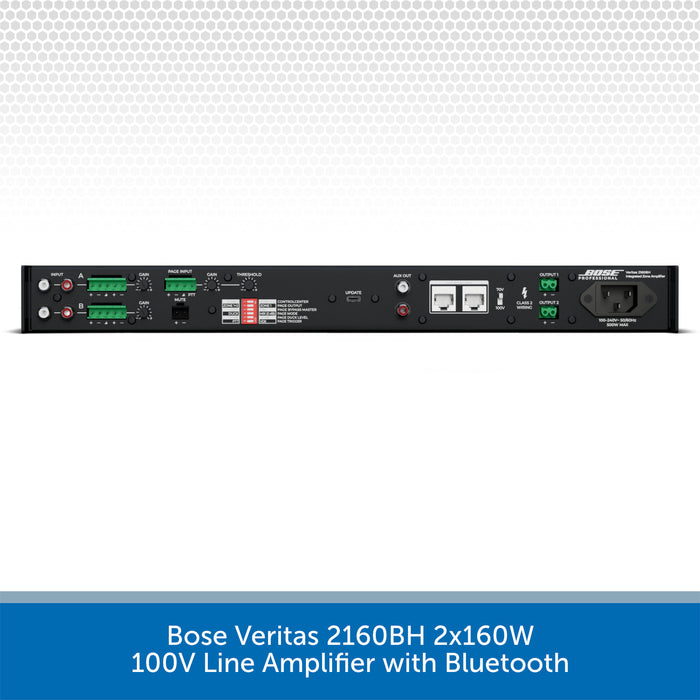

- Rear Controls: Mode DIP switches, input gain knobs, page threshold, mute connector, ControlCenter ports
-
Converters: 48 kHz / 24-bit A/D and D/A
-
Audio Latency: 10.4 ms
-
Presets: 70 Hz HPF, 80 Hz HPF, AMU105, AMU108, DesignMax, EdgeMax, FreeSpace FS, subwoofer
-
Processing: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
-
Cooling System: Fan, left-to-right airflow
-

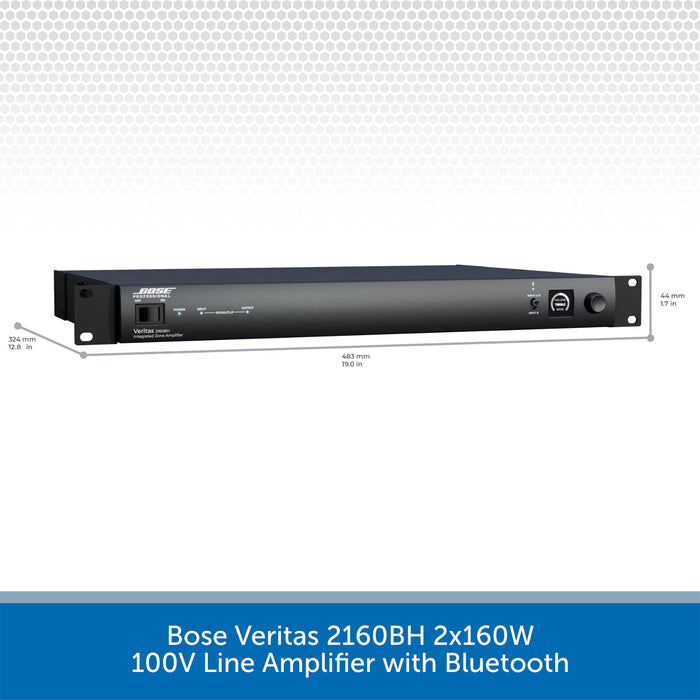

Dimensions (H × W × D): 44 × 483 × 324 mm
-
Net Weight: 4.4 kg
- Shipping Weight: 5.8 kg
