Bose Veritas 1100BH 100W 100V Line Amplifier with Bluetooth
DETAILS
The Bose Professional Veritas 1100BH is a compact, high-performance digital amplifier with Bluetooth 5.0.
The Veritas 1100BH combines advanced DSP and high-efficiency amplification in a compact half-rack chassis. Designed for background and foreground music, paging, and multimedia use, it offers reliability and clarity across small venues and installations.
Flexible Connectivity and Control
Equipped with Bluetooth 5.0 and RCA inputs, the 1100BH enables fast connection without complex wiring. The intuitive front-panel OLED screen includes a quick-start QR code for simplified setup. Remote level control is supported via Bose Professional or third-party wall controllers.
Superior Sound and Performance
Dynamic EQ maintains full, balanced sound at any volume, while up to 30 selectable EQ presets optimise performance for various Bose loudspeakers. The Opti-Voice paging function ensures crystal-clear speech for paging systems and announcements.
Quiet and Efficient Operation
Convection cooling allows fanless, silent operation—ideal for offices, hospitality areas, and conference rooms. With 100 W of power at 70V/100V, the Veritas 1100BH provides broad, reliable coverage with minimal heat output and low power consumption.
Bose Veritas 1100BH Key Features:
- Premium digital amplifier with advanced DSP
- Bluetooth 5.0 and RCA inputs—no wire splicing
- Intuitive OLED screen with embedded QR code for setup
- Compact half-rack design with mounting accessories
- Dynamic EQ for full sound even at low volumes
- 30 selectable EQ presets for Bose loudspeakers
- Opti-Voice paging for clear speech intelligibility
- Convection cooling for silent operation
- Remote level control compatibility
- Supports 70V/100V distributed systems
SPECS & DOWNLOADS
Bose Veritas 1100BH Specifications
- Dynamic Range: 88 dB
- Frequency Response: 70 Hz – 18 kHz (+0/-4 dB @ 1 W, 1 kHz reference)
- Rated Power: 1 × 100 W at 70V/100V
- THD+N: ≤0.3% (at full rated power)
- Input Channels: (2) unbalanced line, (2) balanced mic/line
- Connectors: (2) RCA stereo pairs, (1) XLR/¼-inch, (1) 4-pin Euroblock
- Input Impedance: 20 kΩ (line), 2.4 kΩ (page)
- Input Range: -10 dBV to +10 dBV (line), -60 dBV to +10 dBV (page)
- Maximum Input Level: +10 dBV (line), +10 dBV (page)
- Nominal Input Level: 0 dBV (line), -40 dBV (page)
- Sensitivity: -10 dBV (line), -58 dBV (page)
- Audio Outputs: (2) loudspeaker, (1) unbalanced line
- Output Connectors: (1) 3-pin Euroblock, (1) RCA stereo pair
- Nominal Output Level: 1 × 100 W at 70V/100V (loudspeaker), 0 dBV max (auxiliary)
- Mains Connector: IEC C14 inlet
- Mains Voltage: 100–240 VAC (±10%), 50/60 Hz
- Protections: High temperature, output short
- AC Power Consumption: 15 W idle, 200 W maximum

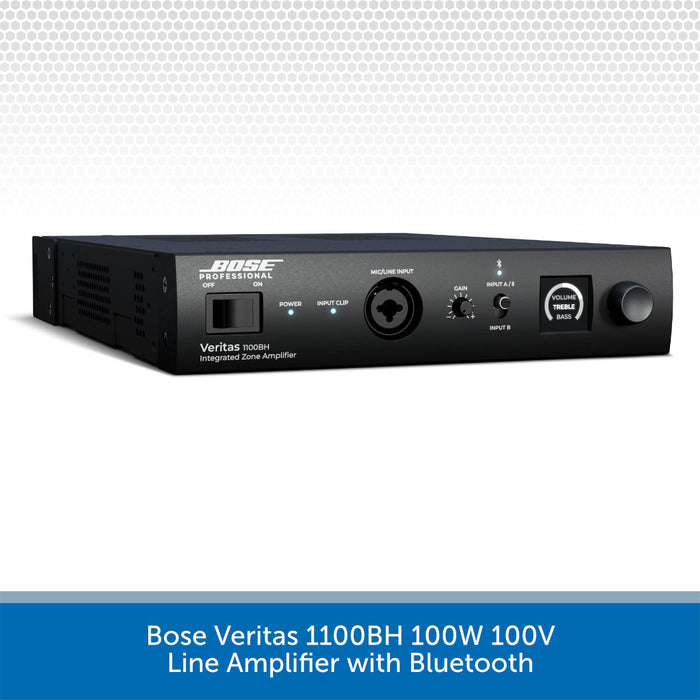

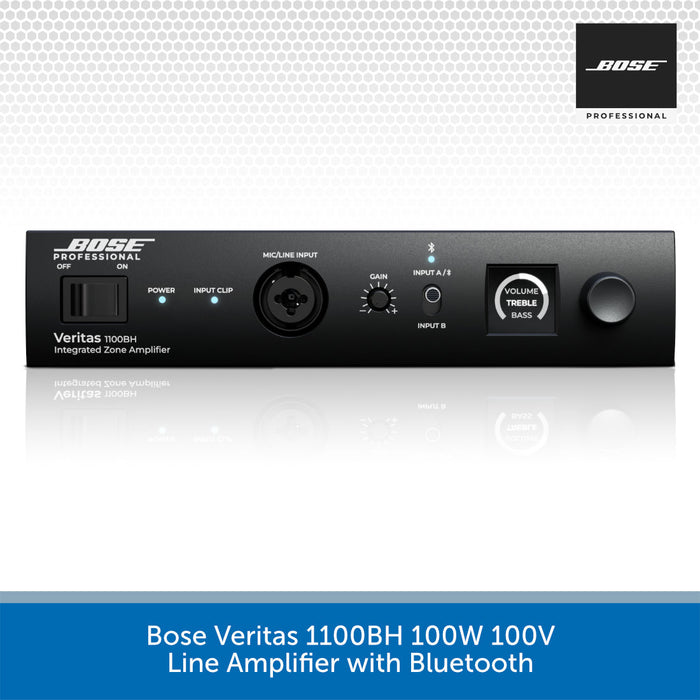

- Controls (Front): Power, input select, input gain, rotary encoder

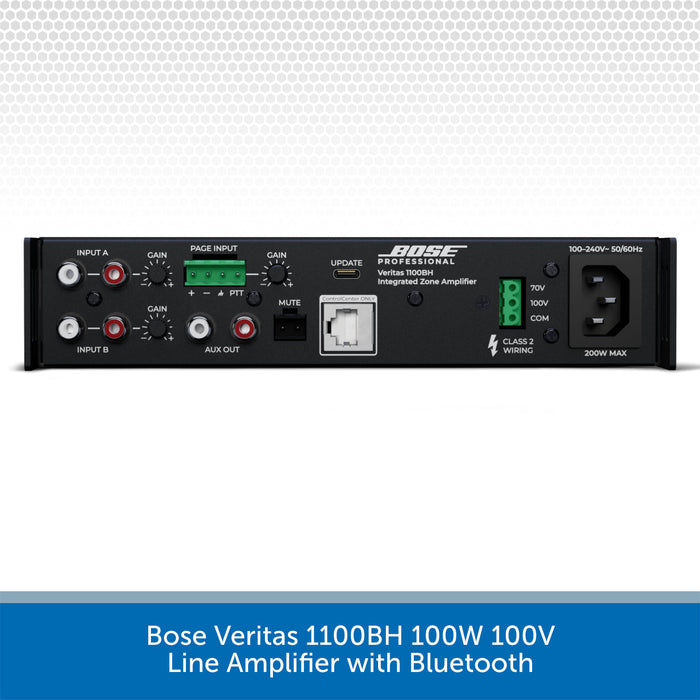

- Controls (Rear): Input gain knobs, mute connector, ControlCenter port
- Converters: 48 kHz / 24-bit A/D and D/A
- Audio Latency: 10.4 ms
- Presets: 70 Hz and 80 Hz HPF, AMU, DesignMax, EdgeMax, FreeSpace FS, subwoofer
- Processing: Loudspeaker EQ, Opti-Voice paging, Dynamic EQ
- Cooling System: Natural convection

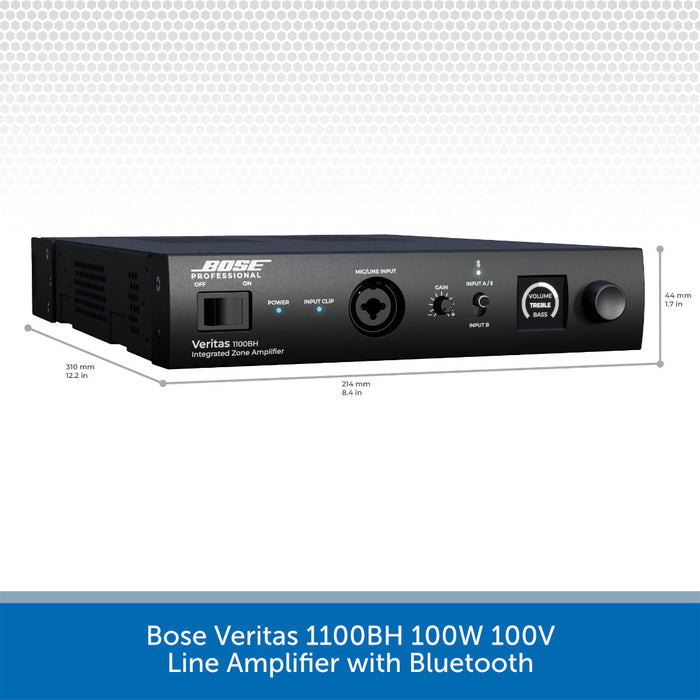

- Dimensions (H × W × D): 44 × 214 × 310 mm
- Net Weight: 3.2 kg
