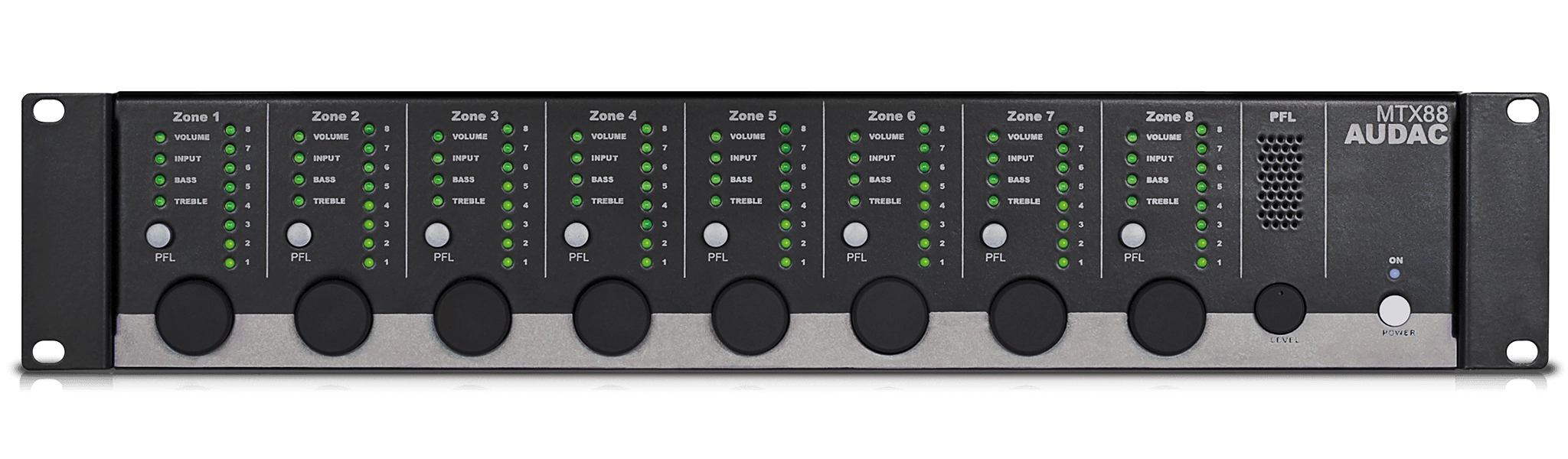

Audac MTX88 8-Zone Audio Matrix
DETAILS
The Audac MTX88 delivers flexible, full-featured audio routing across eight independent zones.
The Audac MTX88 is an advanced 8-zone audio matrix designed for commercial environments requiring flexible routing, reliable control, and high-quality audio performance. Suitable for schools, hospitality venues, places of worship, offices, and multi-room public buildings, it provides extensive input options and intuitive control across eight fully independent zones.
This unit includes two balanced microphone inputs with priority functions, phantom power, and three-band EQ—ideal for announcements or paging. Four stereo line inputs allow connection of music sources such as media players, tuners, or streaming devices, while eight wall-panel inputs offer additional flexibility for local zone control.
The MTX88 can be managed using Audac Touch™, TCP/IP, RS232, front panel controls, or optional wall panels, making it easy to integrate into both modern networked systems and traditional AV installations. A built-in PFL loudspeaker on the front panel enables quick pre-listening without headphones, assisting installers and operators during setup.

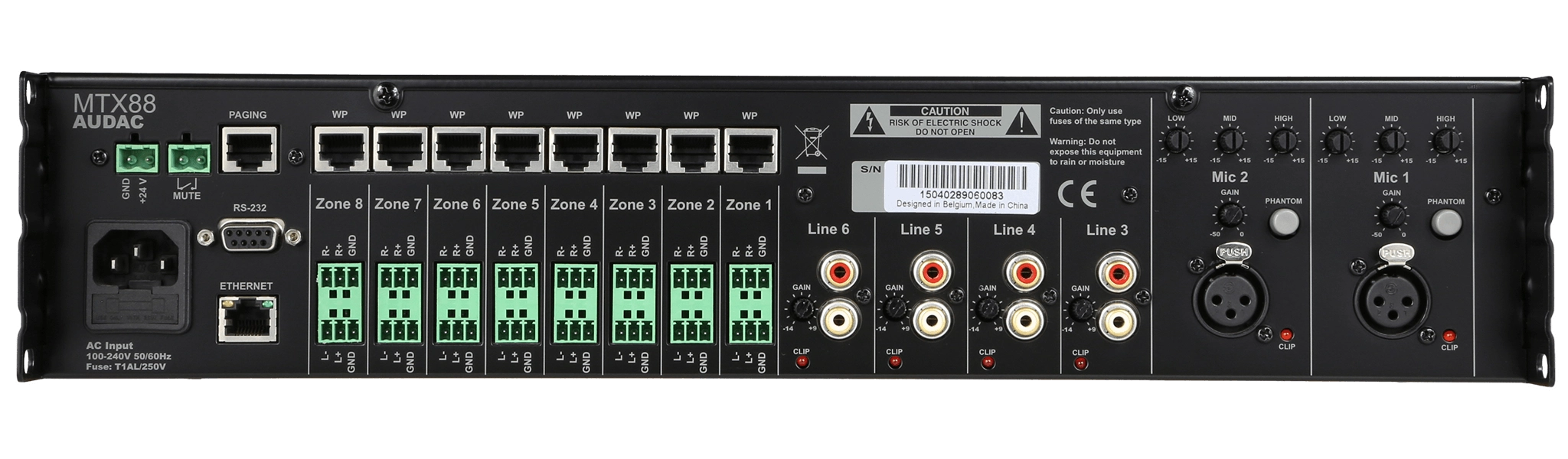

Each zone features a balanced line output on Phoenix/Euroblock connectors, accompanied by an RJ45 port for connecting compatible control panels. Its 24V emergency power input allows continued operation during mains interruptions—ideal for safety-critical or evacuation systems.
Audac MTX88 Key Features:
- 8-Zone Matrix : Independent routing and control for eight separate audio zones.
- Balanced Microphone Inputs : Two mic inputs with priority, phantom power, and 3-band EQ.
- Multiple Music Inputs : Four unbalanced stereo line inputs for external audio sources.
- Wall Panel Integration : Eight RJ45 wall-panel inputs for local zone control.
- Built-In PFL Speaker : Onboard loudspeaker for quick pre-listening of any channel.
- Flexible Control Options : Front panel, RS232, TCP/IP, RS-485 wall panels, and Audac Touch™.
- Emergency Power Ready : 24V DC input ensures continued operation during mains failure.
- Plug-and-Play Connectivity : Balanced line-level zone outputs via 3-pin Euroblock connectors.
- Full System Integration : Compatible with home and industrial automation via RS232.
-
AUDAC Touch™ Supported : Total system control via smart devices.
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
Audac MTX88 Specifications:
- Microphone Inputs : 2 x balanced XLR
- Mic Sensitivity : 0 dBV ~ -50 dBV
- Phantom Power : 15 V DC
- Mic S/N Ratio : > 80 dB
- Mic THD+N : < 0.05 dB (@ 1 kHz)
- Mic EQ : ±15 dB (High 12.5 kHz, Mid 2.5 kHz, Low 80 Hz)
- Line Inputs : 4 x stereo RCA unbalanced
- Line Sensitivity : -14 dB ~ +9 dB
- Line S/N Ratio : > 100 dB
- Line THD+N : < 0.01 dB (@ 1 kHz)
- Wall Panel Inputs : 8 x RJ45
- Priority Contact : 1 x mute contact
- Zone Outputs : 8 x balanced stereo on 3-pin Euroblock (3.81 mm)
- Output Impedance : 51 Ω
- Output Level : -70 dB ~ 0 dB
- Output EQ : Bass ±14 dB (100 Hz), Treble ±14 dB (2.5–20 kHz)
- Frequency Response : 20 Hz – 20 kHz (±3 dB)
- Crosstalk : -85 dB (@ 1 kHz)
- Control Interfaces : Front panel, RS232, TCP/IP (RJ45), RS-485 wall panels, Audac Touch™
- Power Supply : 100–240 V AC, 50/60 Hz or 24 V DC (emergency)
- Power Consumption : 12 W
- Dimensions : 482 x 88 x 335 mm
- Weight : 4.84 kg
- Rack Height : 2U
-
Accessories (Optional) : WP2xx Universal Wall Panel
