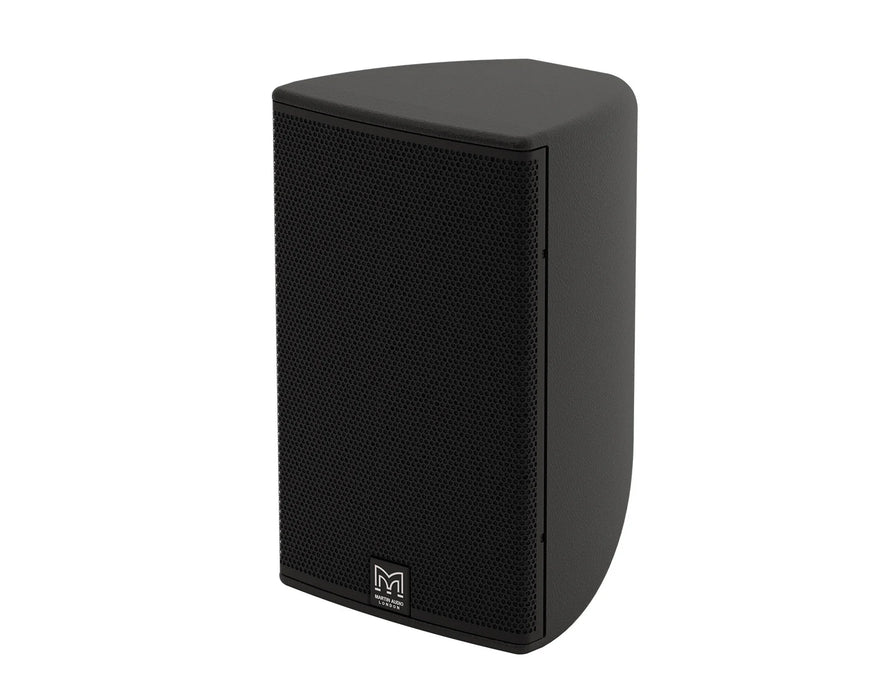

Martin Audio CDD8-WR 8" High-Performance Outdoor Wall Speaker, 200W 8 Ohm (Single)

SKU MAUCDD8BWR
Save 12% Save 12%
Original price £1,020.00 (inc. VAT)
Original price £1,020.00 (inc. VAT) - Original price £1,020.00 (inc. VAT)
Original price £1,020.00 (inc. VAT)
Current price £899.00 (inc. VAT)
£899.00 (inc. VAT) - £899.00 (inc. VAT)
Current price £899.00 (inc. VAT)
Colour: Black
DETAILS

Martin Audio CDD8-WR is a compact weatherised wall speaker for high-performance low-impedance outdoor installations.

The Martin Audio CDD8-WR is an ultra-compact two-way passive loudspeaker designed for outdoor applications where changing environmental conditions are present, but direct exposure to the elements is avoided. Operating at 8 ohms, it is intended for use with conventional low-impedance amplifiers and is ideal for standalone systems or as part of larger distributed audio installations using multiple loudspeakers.

Despite its small enclosure, the CDD8-WR delivers impressive output and clarity, making it well suited for foreground music and speech reinforcement in outdoor hospitality areas, transport hubs, concourses and themed environments. It can also be used effectively as an infill or delay loudspeaker alongside larger models such as the CDD12-WR and CDD15-WR, providing consistent tonal balance across multi-zone systems.

Using Coaxial Differential Dispersion technology, the CDD8-WR delivers even front-to-back audience coverage, projecting more output towards the rear of the listening area while maintaining wide near-field horizontal dispersion. This point-source design ensures consistent frequency response and improved intelligibility across wide or irregular spaces.

The visually distinctive composite enclosure can be installed in either horizontal (landscape) or vertical (portrait) orientation, with the coaxial driver easily rotated by removing the screw-free protective grille. The curved cabinet design allows surface mounting close to a wall or ceiling using optional weatherised brackets, offering flexible installation in architectural environments.

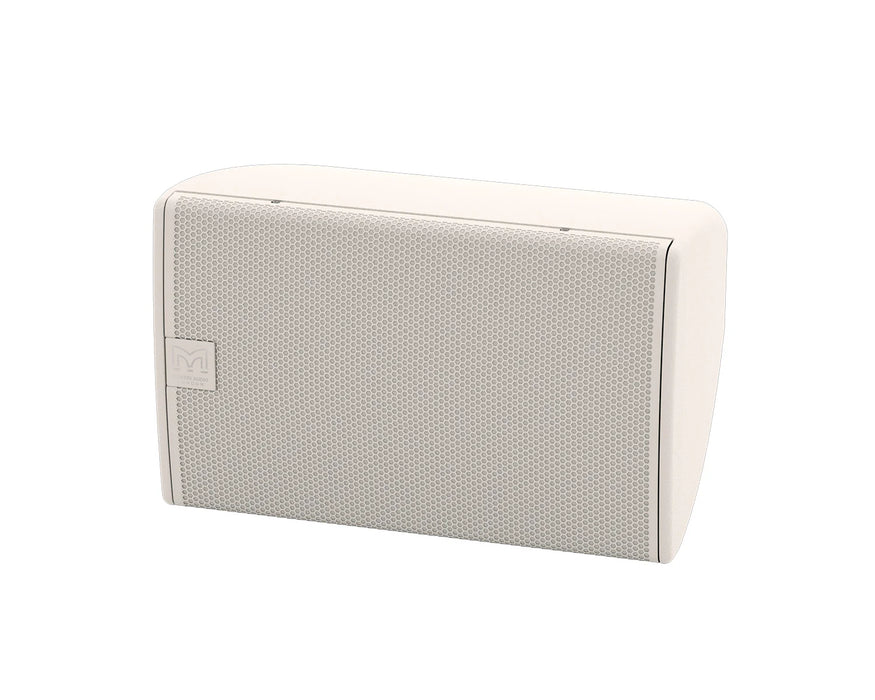

The enclosure is environmentally tested to IP54 and suitable for operating temperatures between -20°C and +70°C. A zinc-plated mild steel grille with powder-coated finish provides protection against water and particles, ensuring reliable long-term performance in sheltered outdoor conditions. The CDD8-WR is finished in black (RAL9005) or white (RAL9016) as standard, with custom RAL colours available to suit specific design requirements.

Martin Audio CDD8-WR Key Features:

  • Ultra-compact two-way system: High-performance loudspeaker for low-impedance outdoor use.
  • Coaxial Differential Dispersion technology: Provides consistent front-to-back sound coverage.
  • 8 ohm operation: Suitable for conventional low-impedance amplifiers.
  • Weatherised enclosure: Composite cabinet rated to IP54 for sheltered outdoor applications.
  • Wide operating temperature range: Suitable for environments from -20°C to +70°C.
  • High output capability: Ideal for foreground music and speech reinforcement.
  • User-rotatable coaxial driver: Allows horizontal or vertical mounting orientation.
  • Screw-free protective grille: Water and particle resistant steel grille.
  • Discreet mounting accessories: Optional weatherised wall and ceiling brackets.
  • Colour options: Black or white as standard, custom RAL colours available.
    SPECS & DOWNLOADS

    Martin Audio CDD8-WR Specifications:

    • Type: Ultra-Compact, Coaxial Differential Dispersion passive two-way system
    • Frequency Response: 70Hz – 20kHz ±3dB, -10dB @ 55Hz
    • Driver:
      • LF: 8" (200mm) / 2" (50mm) voice coil, long excursion
      • HF: 1" (25mm) exit / 1.4" (38mm) voice coil compression driver
    • Rated Power: 200W AES, 800W peak
    • Sensitivity: 94dB
    • Maximum SPL: 117dB continuous, 123dB peak
    • Nominal Impedance:
    • Dispersion: 110°–80° horizontal, 60° vertical (user-rotatable)
    • Crossover: 2.3kHz passive
    • Enclosure: 14 litre composite material
    • Finish: Black or white as standard (custom RAL available)
    • Protective Grille: Zinc-plated mild steel with powder-coated finish
    • Environmental Rating: IP54
    • Connectors: Low profile 13A push-lock, weatherproof input panel
    • Pin Connections: Input+, Input -, Link -, Link +
    • Fittings: 6 x M6 inserts for wall/ceiling brackets
    • Dimensions: (W) 256mm x (H) 410mm x (D) 252mm
    • Weight: 9.8kg
    }
