KEF Ci130.2QR 5.25" High-Performance In-Ceiling Speaker (Single) - IP64 Rated

DETAILS
High-performance KEF Ci130.2QR in-ceiling speaker with Uni-Q® technology and IP64 weather resistance for indoor and outdoor installations.

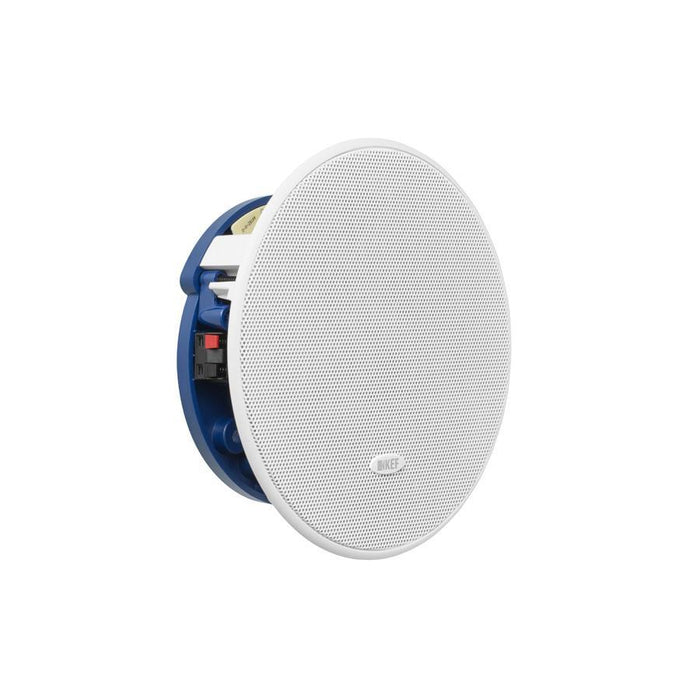

The KEF Ci130.2QR is a shallow-mount, high-performance in-ceiling loudspeaker designed for discreet flush installation in a wide range of environments.

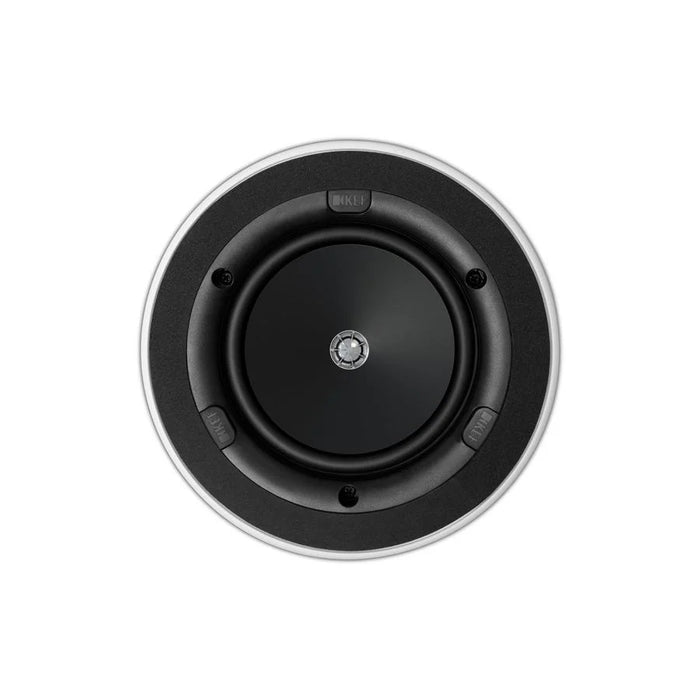

Featuring KEF’s renowned Uni-Q® driver array, the 16mm aluminium dome tweeter is mounted at the acoustic centre of the 130mm low-frequency woofer. This coincident point source design ensures smooth, consistent sound dispersion across a wide listening area, eliminating many of the acoustic issues found in traditional speaker designs.
Engineered for reliability, the Ci130.2QR uses weather-resistant components and features an Ultra-Thin Bezel with a UV-protected, paintable magnetic grille, making it suitable for both indoor and sheltered outdoor use. The Tangerine Waveguide enhances high-frequency dispersion to provide coverage up to 140 degrees, ensuring clear, balanced sound for background music, foreground listening, and paging applications in spaces such as hotels, corridors, classrooms, and retail areas.

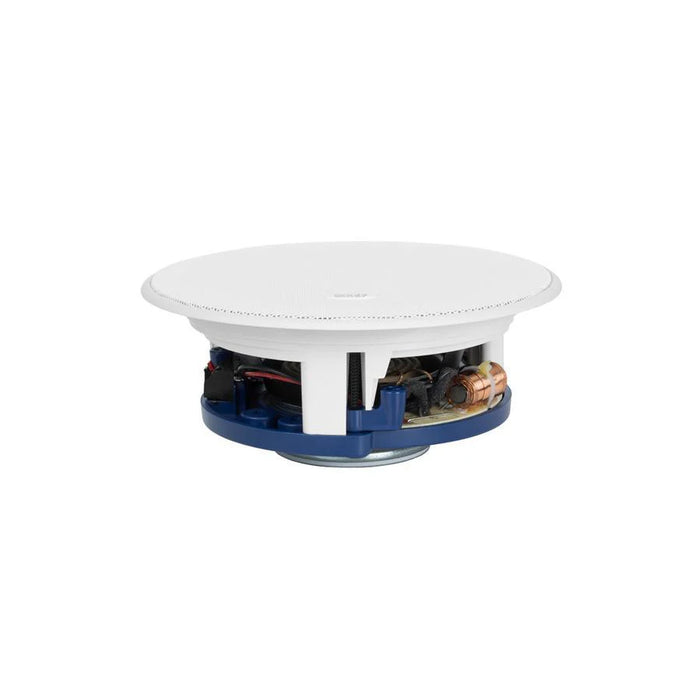

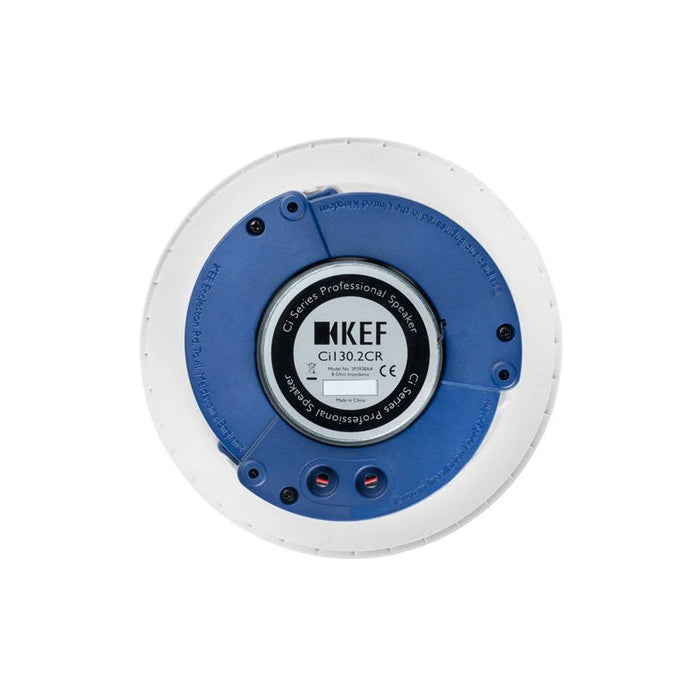

The speaker’s covered crossover circuit protects internal components while adding rigidity to the frame, and the universal cut-out design allows for straightforward installation alongside other KEF in-ceiling models. Optional rear enclosures and rough-in frames are available to suit different installation requirements.
KEF Ci130.2QR Key Features:
- Uni-Q® Driver Technology: Tweeter positioned at the centre of the woofer for wide, even sound dispersion.
- Tangerine Waveguide: Improves high-frequency coverage up to 140 degrees.
- Weather Resistant: IP64 rated with UV-protected grille for indoor or outdoor use.
- Ultra-Thin Bezel: Minimal visual impact with paintable finish.

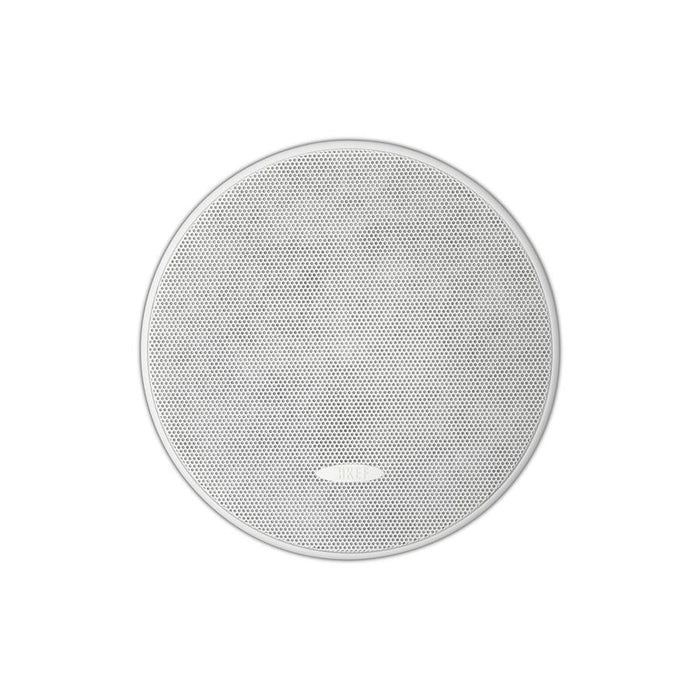

- Magnetic Grille: Secure, easy-to-fit design that can be colour-matched to surroundings.
- Covered Crossover: Adds rigidity and protects components.
-
Universal Cut-Out: Same diameter as other KEF 130mm in-ceiling speakers for flexibility.
Watch the KEF Ci Series product video below...
SPECS & DOWNLOADS
KEF Ci130.2QR Specifications
Download the PDF Spec Sheet HERE >
- Nominal Impedance: 8 Ohms
- Sensitivity: 87dB (2.83V/1m)
- Frequency Response: 52Hz–20kHz (+/-6dB) open-backed
- Crossover Frequency: 2.5kHz
- LF Driver: 130mm (5.25") Uni-Q
- HF Driver: 16mm (0.6") aluminium dome
- Recommended Amplifier Power: 10–80W
- External Diameter: 193.4mm (7.61")
- Depth: 82.3mm (3.24")
- Cut-Out Diameter: 158mm (6.22")
- Ceiling Thickness (Max): 33mm (1.30")
- Ceiling Thickness (Min): 6mm (0.24")
- Mounting Depth: 77.7mm (3.06")
- Optional Accessories: RIF130R rough-in frame, RNC130R rear enclosure
- Net Weight: 1.3kg (2.8lbs)
-
Unit Measurement: Single speaker
