JBL PRX ONE Portable Column PA System With Bluetooth & 7-Channel DSP Mixer
DETAILS
Experience Powerful JBL PRX ONE Sound With Built-In Mixer, DSP, And Bluetooth.

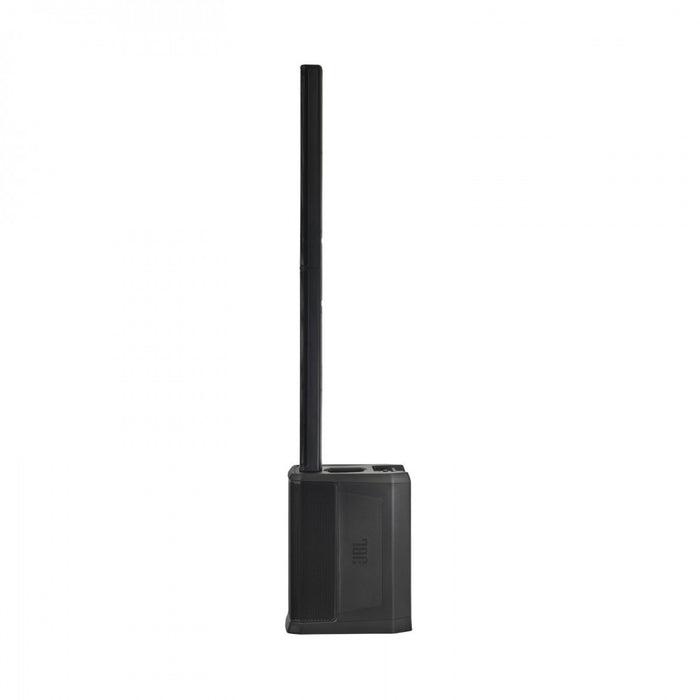

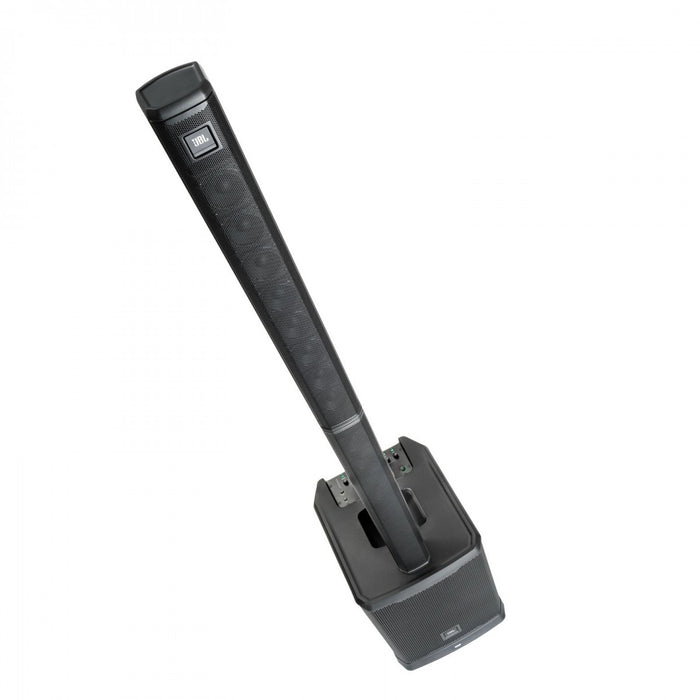

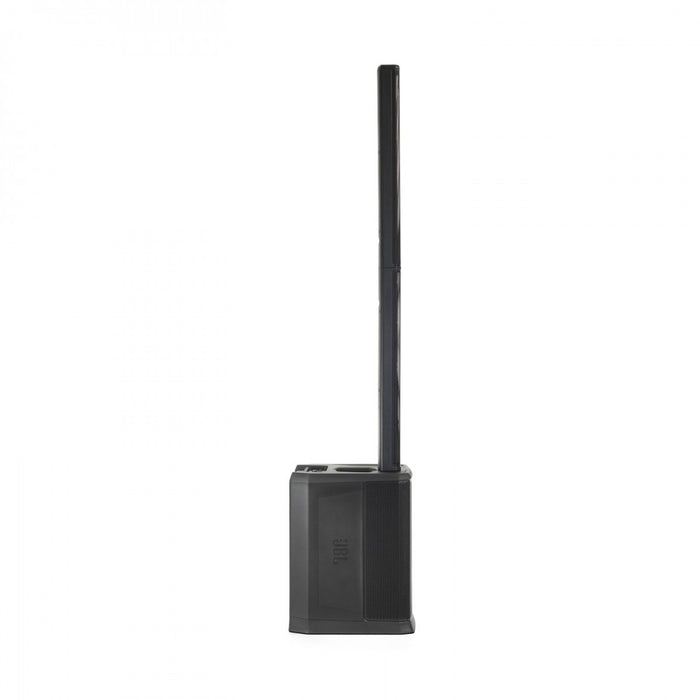

The JBL PRX ONE is a premium all-in-one powered column PA system, delivering professional-grade sound, advanced DSP, and full connectivity in a sleek, portable package.
Its acoustically optimised 12-tweeter column array features JBL AIM (Array Inumbration Mechanics) technology, providing consistent front-to-back coverage and even sound across every seat in the room. The integrated 12-inch bass-reflex woofer and fully bridged 2,000-watt Class D amplifier ensure a stunning 130 dB SPL, with clear, full-bandwidth audio even at high volumes.

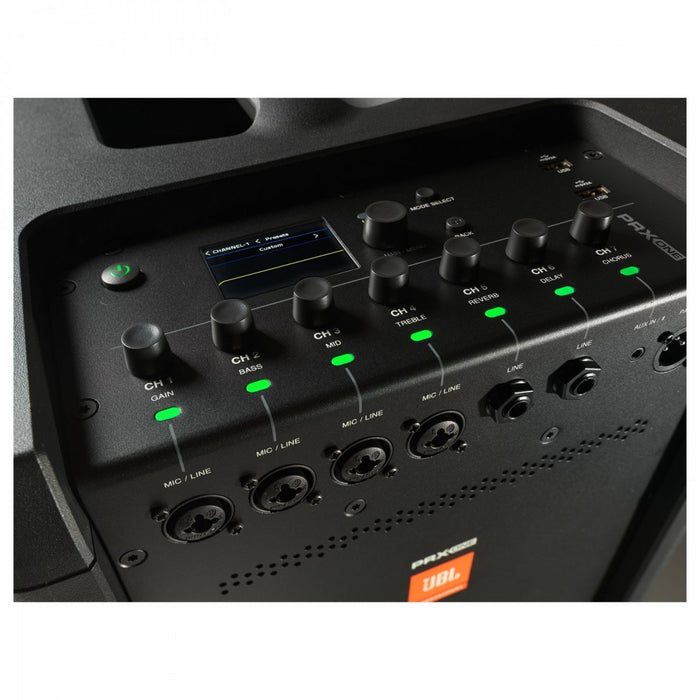

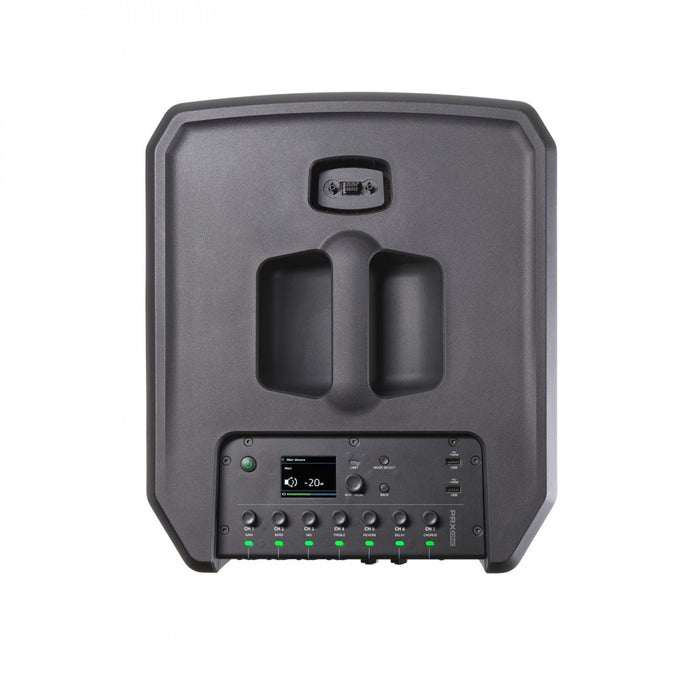

PRX ONE includes a 7-channel Soundcraft-designed digital mixer with dual operating modes. Channel Strip Mode provides hardware control of gain, EQ, and effects sends for individual channels, while Mix Mode allows full control over the 7-channel mixer. Users can sculpt their signature sound using the integrated suite of Lexicon and dbx effects, including reverb, delay, chorus, compression, limiting, and gating. The system also features dbx DriveRack Inside technology with AFS Pro Automatic Feedback Suppression, ensuring clear, feedback-free sound in live applications.
Connectivity options are extensive, including four XLR combo jacks, two Hi-Z inputs, one 1/8-inch summed input, two channels of true +48V phantom power, and onboard USB ports capable of charging external devices or powering compatible AKG wireless systems. Bluetooth 5.0 functionality allows audio streaming and remote control of up to ten units via the JBL Pro Connect app, which also provides access to advanced app-only features like speaker grouping, delay tap tempo, and full speaker snapshots.

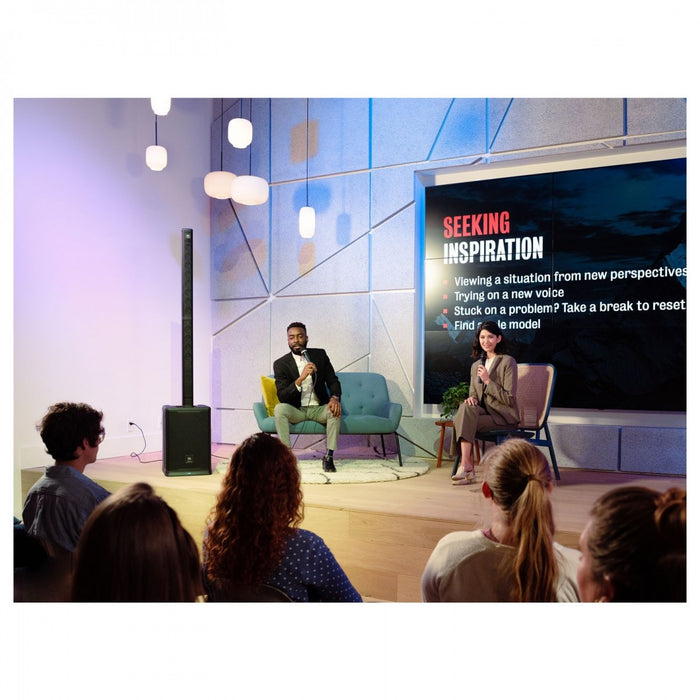

Built for both portable and installed applications, PRX ONE arrays can be detached from the subwoofer for flexible mounting, while the rugged, road-tested enclosure ensures durability in demanding environments. This system is ideal for DJs, musicians, corporate presenters, houses of worship, and entertainment venues, offering unmatched power, control, and sonic performance wherever it is used.
JBL PRX ONE Key Features:

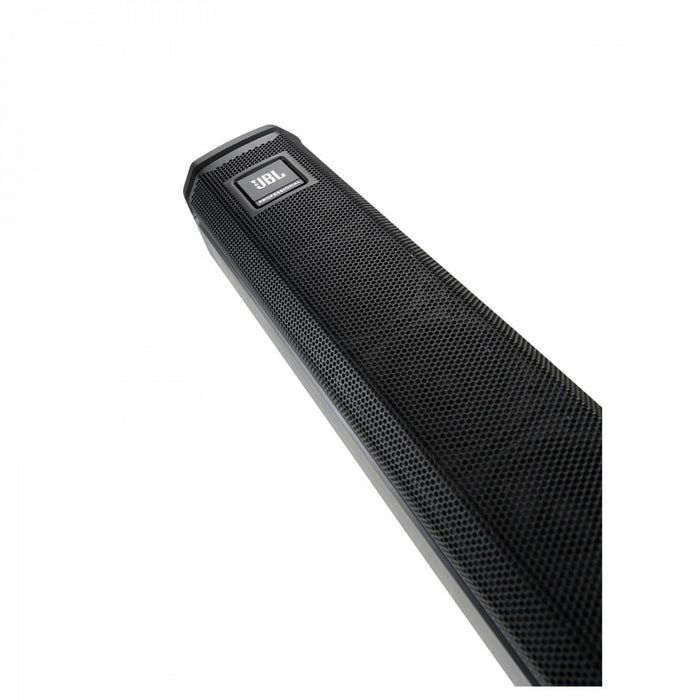

- Acoustically Optimised Column Array: 12 custom-engineered tweeters with JBL AIM technology for consistent front-to-back coverage.

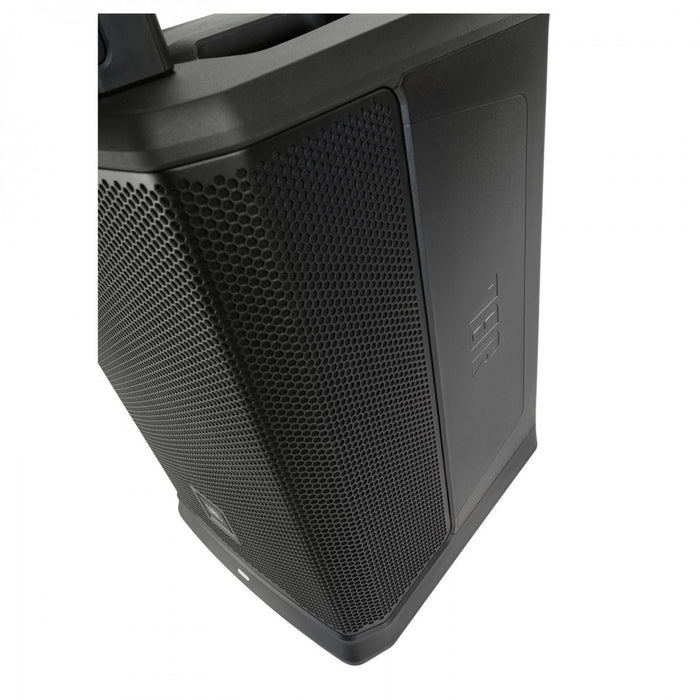

- Powerful Woofer and Amplification: 12-inch bass-reflex woofer with fully bridged 2,000W Class D amplifier, delivering up to 130 dB SPL.
- Integrated 7-Channel Mixer: Dual-mode operation with Channel Strip or full Mix Mode control.
- Professional DSP Suite: Lexicon and dbx effects including reverb, delay, chorus, compression, limiting, and gating.
- dbx DriveRack Inside Technology: Includes AFS Pro Automatic Feedback Suppression, 8-band master EQ, system limiter, and channel gates/compressors.
- Versatile Connectivity: 4 x XLR combo jacks, 2 Hi-Z inputs, 1 1/8” summed input, 2 channels +48V phantom power, USB charging ports.
- Bluetooth 5.0 Control & Streaming: Stream audio and control up to 10 units via JBL Pro Connect app, including app-only features.

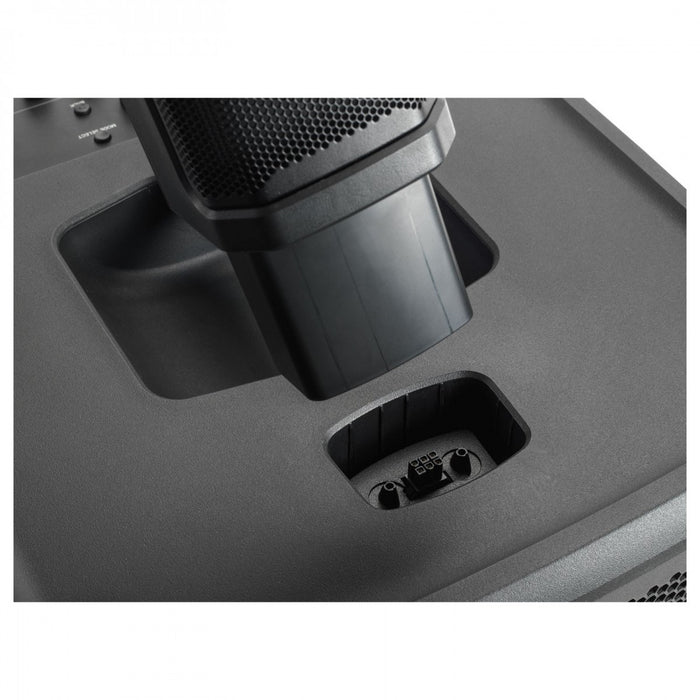

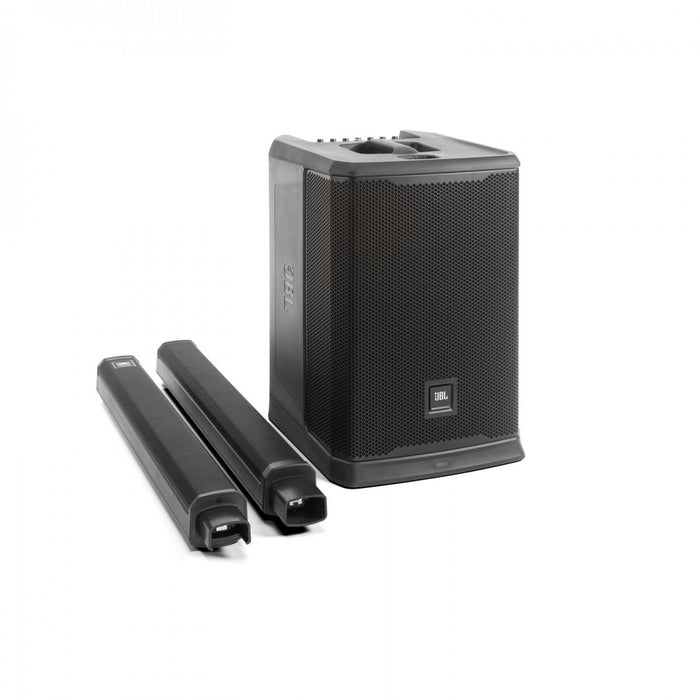

- Flexible Installation: Array can be detached and wall- or truss-mounted independently of the subwoofer.
- Durable, Road-Ready Enclosure: Tested with 100+ hours of stress testing for reliable performance.
-

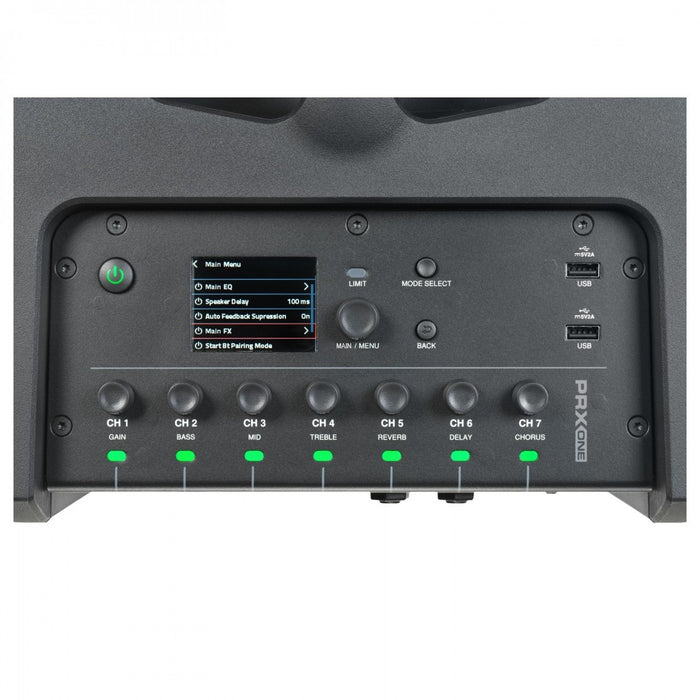

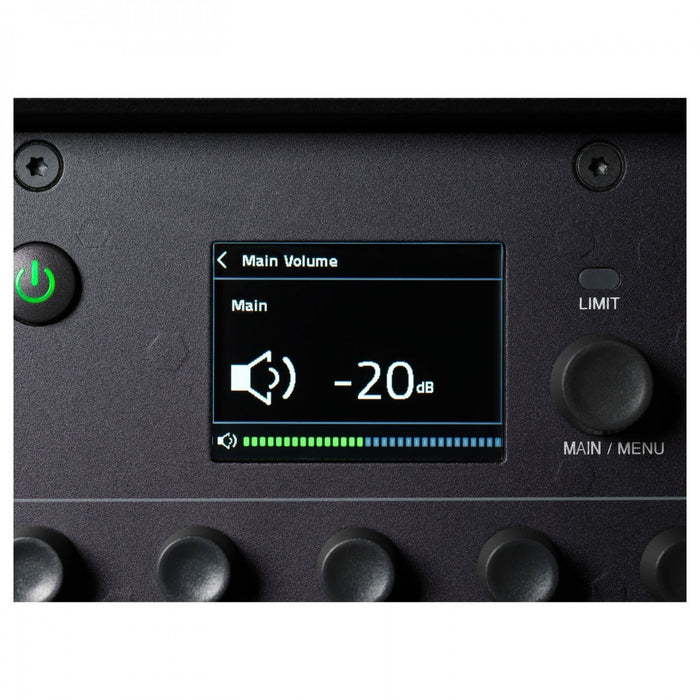

Intuitive Interface: Full-colour LCD screen, dynamic LED metering, and Setup Saver for easy recall of presets.
SPECS & DOWNLOADS
JBL PRX ONE Specifications:
Download the Product Data Sheet HERE >
- System Type: Powered column PA speaker
- Woofer: 12" bass-reflex
- Tweeters: 12 x 2.5" custom drivers
- Max SPL: 130 dB
- Frequency Range (-10dB): 35 Hz – 20 kHz
- Frequency Range (-3dB): 40 Hz – 20 kHz
- Dispersion: 130° (H) x 30° (V)
- Amplifier Power: 2000W peak / 1000W RMS
- Crossover Frequency: 260 Hz
- Inputs: 4 x XLR Combo, 2 x 1/4" Hi-Z, 1 x 3.5mm, Bluetooth
- Outputs: 1 x XLR pass-through
- Phantom Power: Two channels with +48V
- Power Consumption: 300W AC 100–230V, 50–60Hz
- Cabinet Material: Polypropylene
- Dimensions (H x W x D): 850 x 482 x 647 mm
-
Net Weight: 25.7 kg
