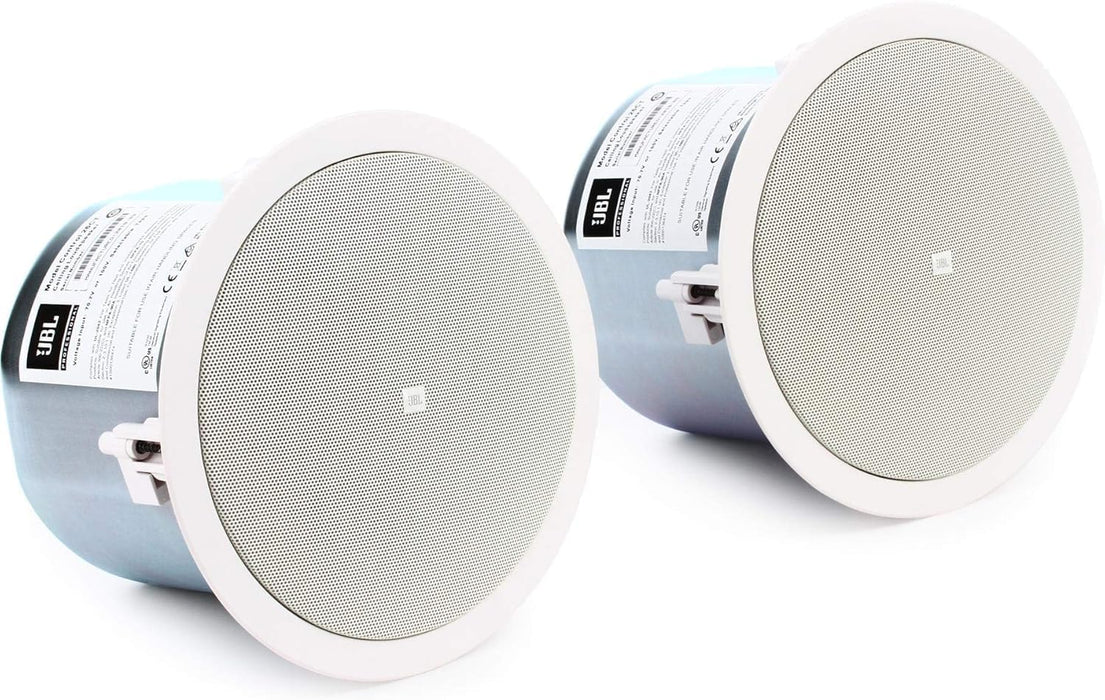

JBL Control 26CT 6.5" 2-Way Ceiling Speakers 100V/16Ω (Pair)
DETAILS
The JBL Control 26CT delivers premium 6.5" ceiling sound with wide coverage, high fidelity, and flexible 100V/16Ω operation.
The JBL Control 26CT is a pair of high-performance 6.5" ceiling loudspeakers designed for premium background and foreground music systems.
Offering powerful output, wide frequency response, and low distortion, they are perfectly suited for upscale restaurants, hotels, casinos, themed venues, offices, and retail environments where high-quality audio is essential.

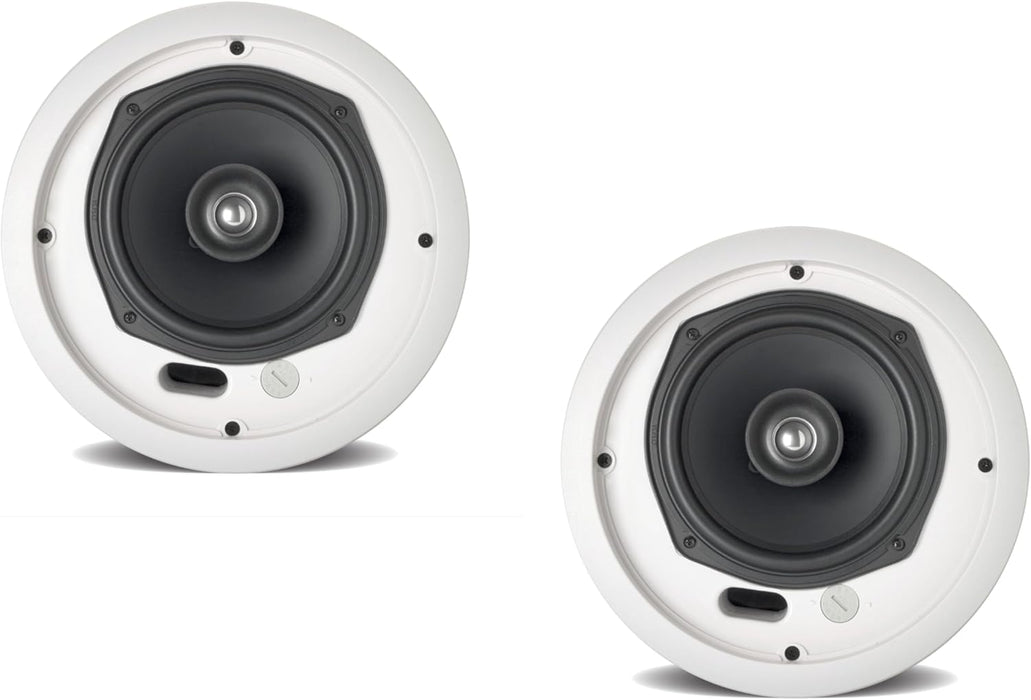

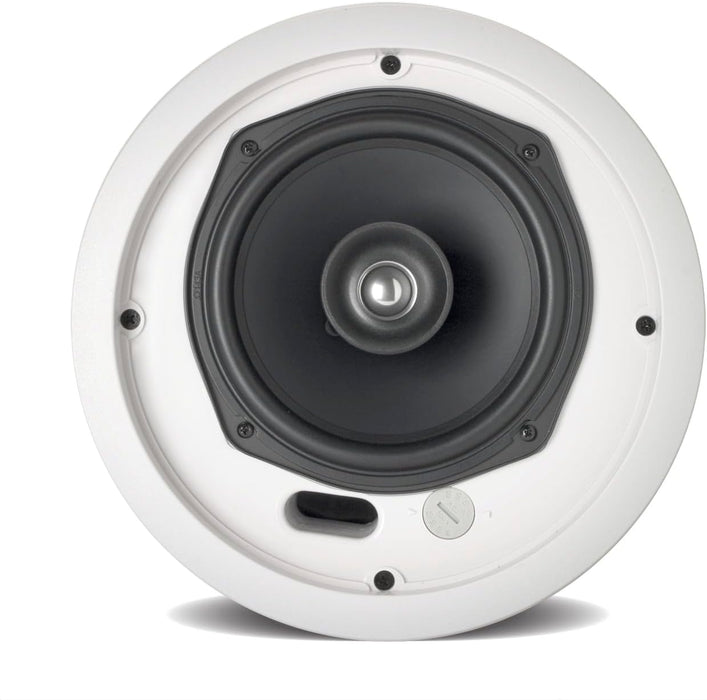

Each speaker features a coaxially mounted 6.5" woofer with a butyl rubber surround and a ¾" titanium-coated tweeter, delivering clear highs, smooth mids, and warm bass. With a wide 110° coverage pattern, fewer speakers are required to cover an area, reducing installation costs without sacrificing performance.
The Control 26CT includes a multitap transformer for use with 70V/100V distributed systems, while still offering 16Ω operation for direct low-impedance setups. JBL’s exclusive SonicGuard™ overload protection ensures reliable operation at higher output levels without affecting sound quality.
Installation is quick and efficient, with the package including grille, backcan, tile rails, support backing plate, and cutout template. The paintable baffle allows seamless integration with any interior décor, while the formed steel backcan ensures durability and compliance with safety standards, including suitability for use in air handling spaces.
JBL Control 26CT Key Features:
- High-Fidelity Sound: 6.5" woofer and ¾" titanium-coated tweeter deliver clear, natural audio.
- Flexible Operation: Supports both 100V/70V distributed systems and 16Ω direct operation.
- Wide Coverage: 110° conical dispersion reduces the number of speakers required.
- SonicGuard™ Protection: Ensures reliability and prevents overload damage.
- Powerful Output: Handles up to 150W program power with a maximum SPL of 107 dB.
- Durable Construction: Formed steel backcan and fire-rated baffle for long-term reliability.
- Easy Installation: Supplied with grille, backcan, tile rails, and cutout template.
-
Discreet Appearance: Paintable trim and baffle for seamless integration.
SPECS & DOWNLOADS
Download the Spec Sheet HERE >
JBL Control 26CT Specifications:
- Frequency Range (-10 dB): 75 Hz – 20 kHz
- Power Capacity: 150W program, 75W continuous pink noise
- Sensitivity: 89 dB SPL, 1W @ 1m
- Maximum SPL: 107 dB @ 1m
- Coverage Angle: 110° conical
- Impedance: 16Ω nominal (minimum 16.5Ω @ 290 Hz)
- Transformer Taps (100V): 60W, 30W, 15W
- Transformer Taps (70V): 60W, 30W, 15W, 7.5W
- LF Driver: 165 mm (6.5") polypropylene-coated woofer, 1" coil
- HF Driver: 19 mm (¾") titanium-coated tweeter
- Enclosure: Formed steel backcan, UL94V-0 rated baffle

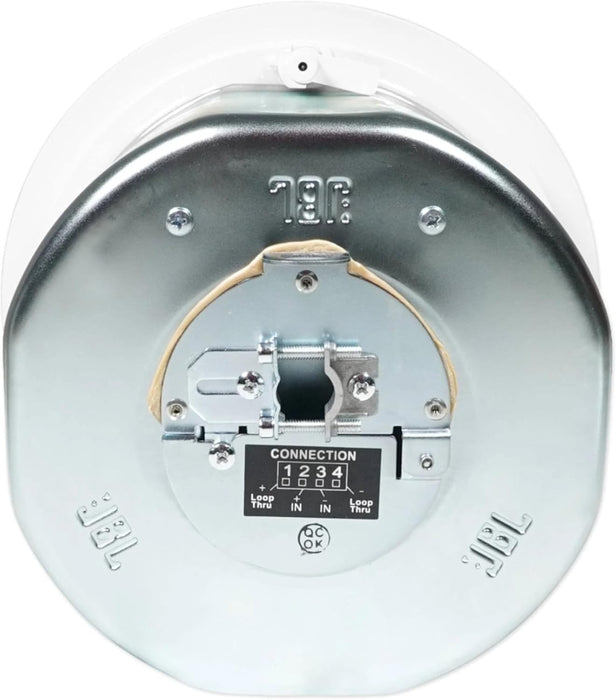

- Termination: Removable locking connector with loop-through terminals (max 12 AWG)
- Dimensions (HxDia): 210 x 252 mm
- Cutout Size: 220 mm
- Depth (Ceiling to Backcan): 190 mm
- Net Weight (Each): 4.2 kg
- Shipping Weight (Pair): 9.7 kg
-
Accessories Included: Grille, backcan, support backing plate, tile rails, cutout template, paint shield
