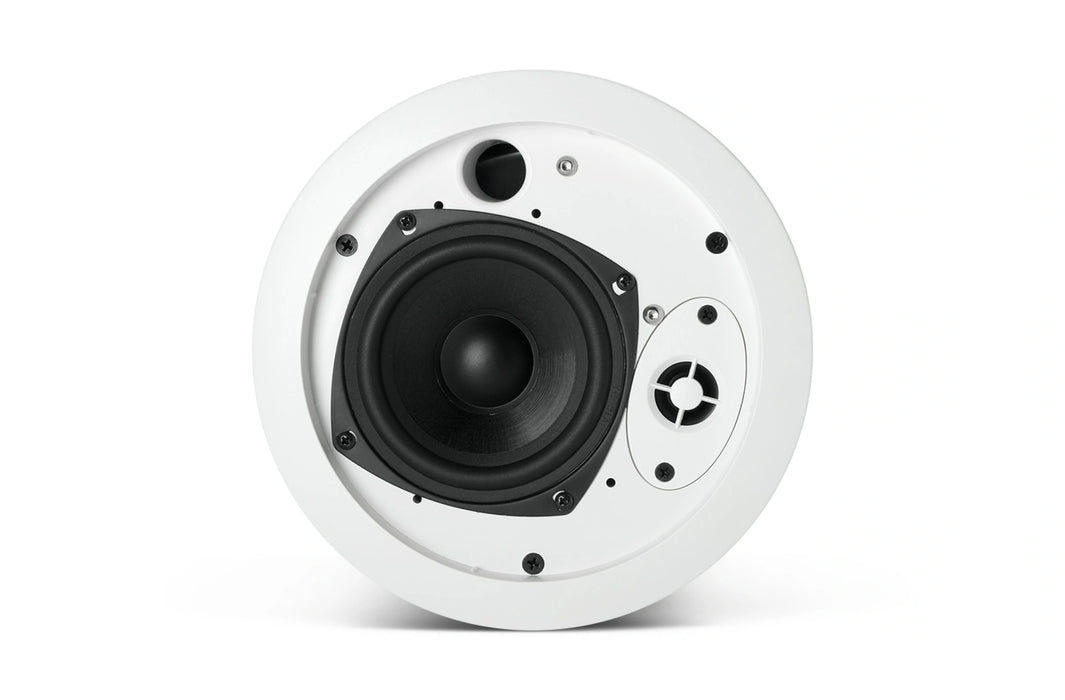

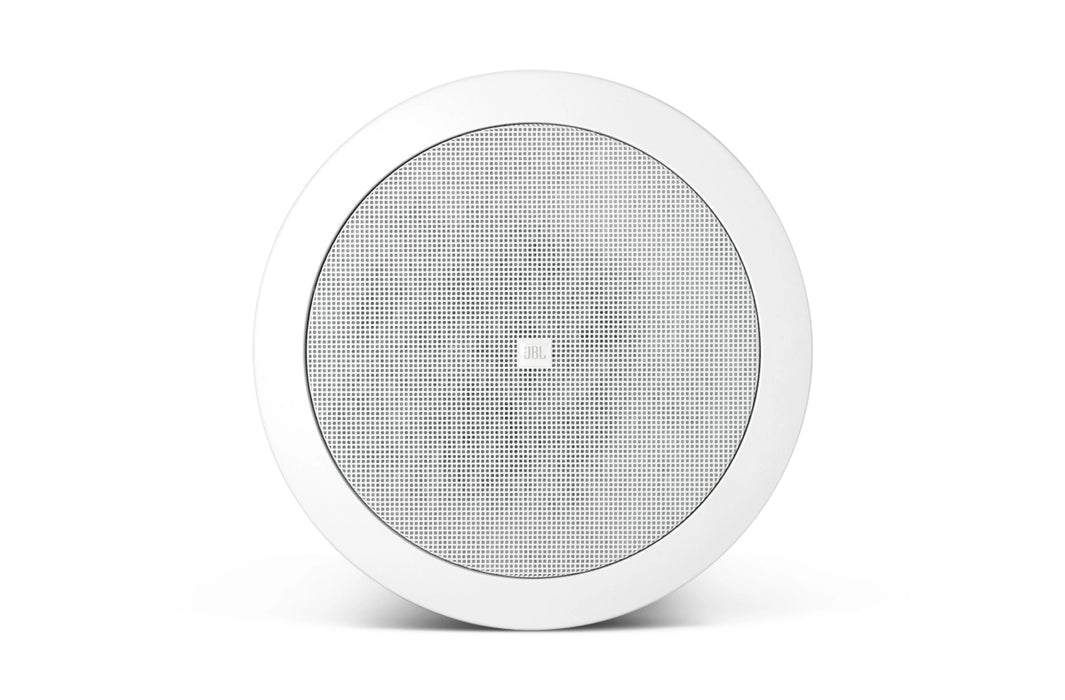

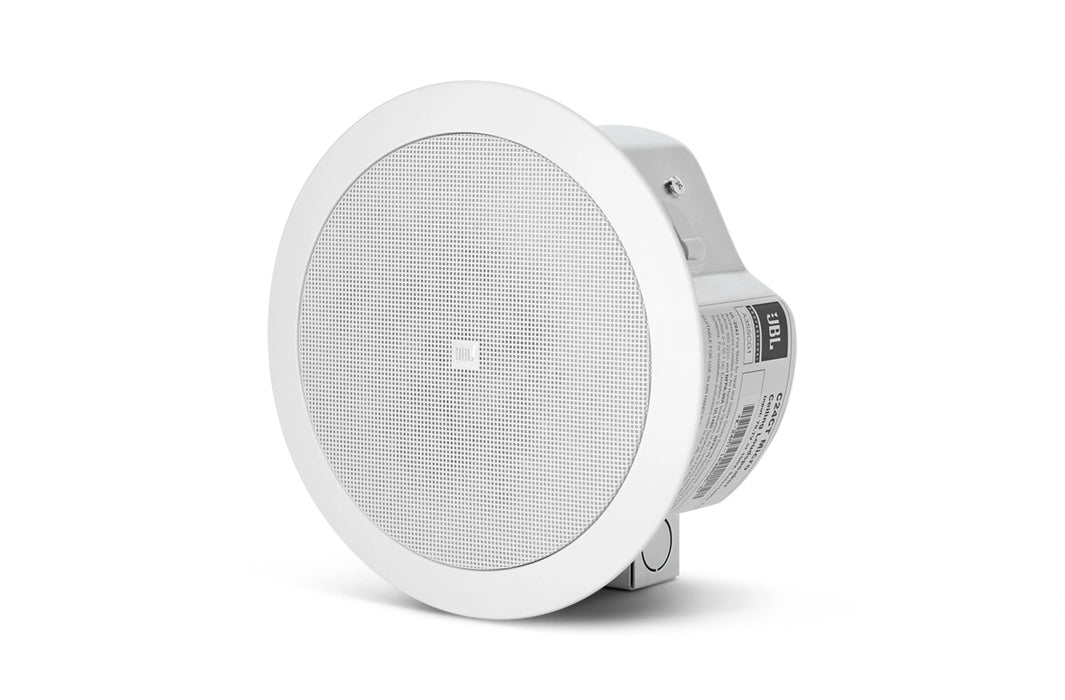

JBL Control 24CT Micro Plus 4.5" Shallow Ceiling Speaker 100V/25W (Single)

SKU JBLC24CTMP
Original price £145.00 (inc. VAT) - Original price £145.00 (inc. VAT)
Original price £145.00 (inc. VAT)
£145.00 (inc. VAT)
£145.00 (inc. VAT) - £145.00 (inc. VAT)
Current price £145.00 (inc. VAT)
DETAILS

The JBL Control 24CT MicroPlus delivers full, high-quality sound in a compact, shallow-depth ceiling speaker.

The JBL Control 24CT MicroPlus is a compact 4.5" in-ceiling loudspeaker designed for background music and paging applications in commercial environments.

Ideal for restaurants, retail stores, offices, airports, and other public spaces, it provides smooth, natural frequency response and low distortion, making it perfect for medium-volume installations.

This speaker features a 25W multi-tap transformer for use with 70V/100V systems, and its shallow 100mm (4") depth allows installation in areas with limited ceiling space. Its voicing matches other JBL Control Contractor models, allowing consistent sound quality across different zones.

Installation is quick and easy thanks to the included backcan, grille, tile rails, and support backing bracket. The paintable baffle and trim allow the speaker to blend seamlessly into any décor, while its UL2043 rating makes it suitable for use in air-handling spaces.

JBL Control 24CT Micro Plus Key Features:

  • Compact Design: Shallow 100 mm (4 in) depth for easy installation in tight ceiling spaces
  • Wide Coverage: Extremely wide 150° coverage for even sound distribution
  • High-Quality Components: 4.5" IMG woofer with butyl rubber surround and 0.5" polycarbonate tweeter
  • Smooth Response: Advanced crossover network provides consistent, natural sound
  • 70V/100V Compatibility: 25W multi-tap transformer with multiple power settings
  • Fast Installation: Supplied with grille, backcan, tile rails, and cutout template
  • Paintable Baffle: Easily blends with room décor
  • UL2043 Certified: Suitable for use in air-handling spaces
SPECS & DOWNLOADS

Download the Spec Sheet HERE >

JBL Control 24CT Micro Plus Specifications:

  • Frequency Range (-10 dB): 80 Hz – 25 kHz
  • Nominal Sensitivity: 85 dB SPL @ 1m
  • Maximum SPL: 99 dB @ 1m (25W tap)
  • Crossover: 3.5 kHz, 3rd order low-pass & high-pass
  • Transformer Taps (70V): 25W, 12W, 6W
  • Transformer Taps (100V): 25W, 12W
  • Low Frequency Driver: 115 mm (4.5") IMG woofer, 25 mm (1") voice coil
  • High Frequency Driver: 12 mm (0.5") polycarbonate tweeter
  • Enclosure: Formed steel backcan, UL94V-0 fire-rated baffle
  • Dimensions (H x Dia): 133 x 195 mm (5.3 x 7.7 in)
  • Cutout Size: 167 mm (6.6 in)
  • Net Weight: 2.5 kg (5.5 lb) each
  • Included Accessories: Backing plate, tile rails, cutout template
}
