JBL Control 24CT 4" 2-Way Ceiling Speakers 100V/16Ω (Pair)

SKU JBLCONTROL24CT
Save 33% Save 33%
Original price £599.00 (inc. VAT)
Original price £599.00 (inc. VAT) - Original price £599.00 (inc. VAT)
Original price £599.00 (inc. VAT)
Current price £399.00 (inc. VAT)
£399.00 (inc. VAT) - £399.00 (inc. VAT)
Current price £399.00 (inc. VAT)
DETAILS

The JBL Control 24CT is a compact 4" ceiling speaker pair offering wide 130° coverage, high-quality sound, and 100V/16Ω flexibility.

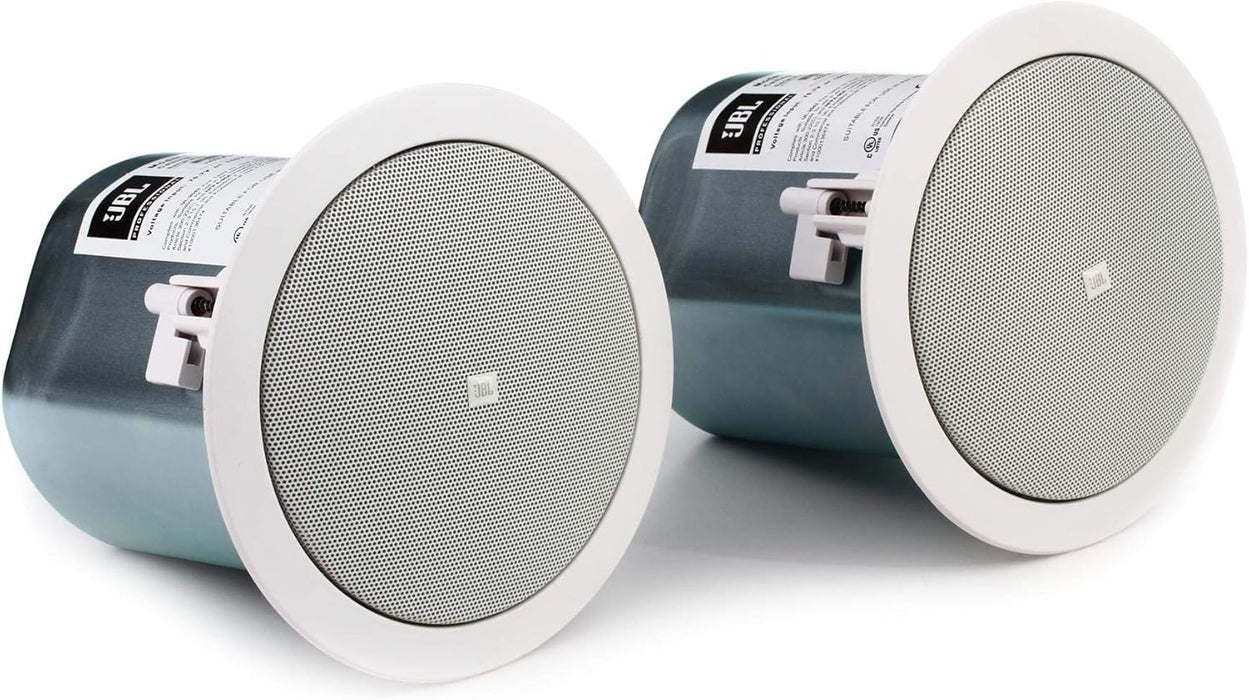

The JBL Control 24CT is a pair of premium 4" ceiling speakers designed for background music, paging, and foreground audio systems where superior sound quality is required.

Ideal for offices, restaurants, airports, retail spaces, and other commercial venues, these speakers deliver clear and balanced audio with smooth bass response and low distortion.

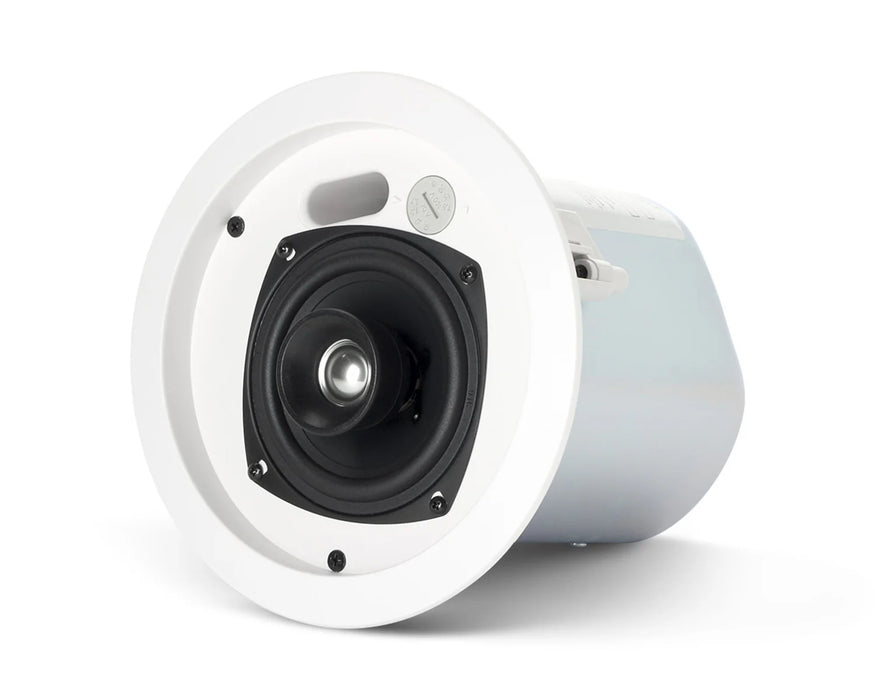

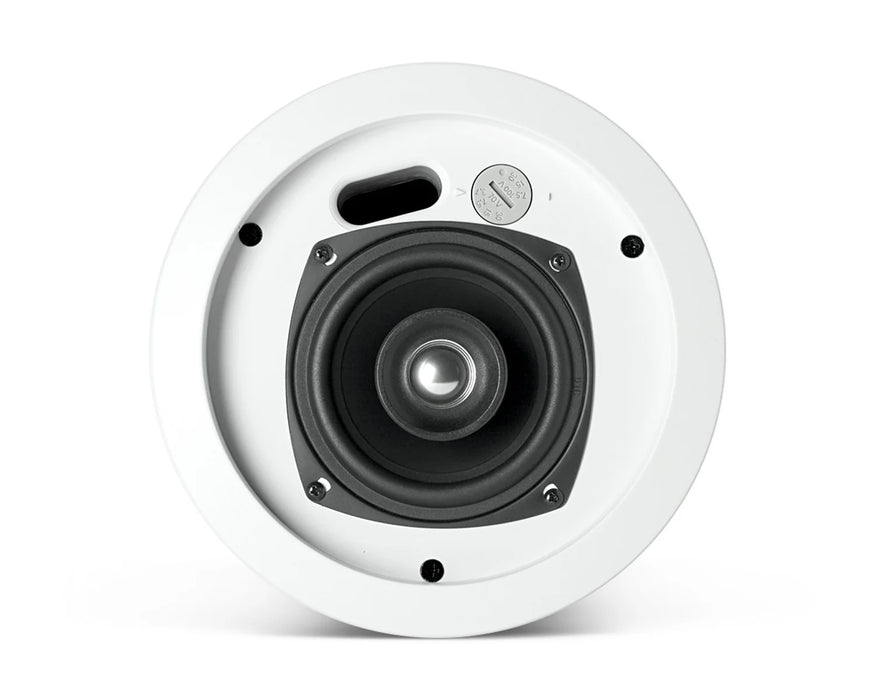

Each speaker features a coaxially mounted 4" woofer and a ¾" titanium-coated tweeter, providing crisp highs and warm lows for an enjoyable listening experience. With a wide 130° conical coverage pattern, fewer speakers are needed to cover a space, helping reduce installation costs without compromising performance.

The Control 24CT includes a multitap transformer for use with 70V/100V distributed audio systems, while also supporting 16Ω operation for direct low-impedance wiring. JBL’s exclusive SonicGuard™ overload protection (on 24C version) safeguards the drivers against damage while maintaining full-fidelity sound at higher output levels.

Installation is simple, with included grille, backcan, tile rails, and cutout template. The paintable baffle allows the speakers to blend seamlessly with any ceiling design, while the formed steel backcan ensures long-lasting reliability in demanding commercial environments.

JBL Control 24CT Key Features:

  • Compact Design: 4" ceiling speakers ideal for background music and paging.
  • Flexible Operation: Compatible with 100V/70V distributed systems and 16Ω direct wiring.
  • Wide Coverage: 130° conical dispersion reduces the number of speakers required.
  • High-Quality Audio: Smooth, natural sound with low distortion and warm bass.
  • SonicGuard™ Protection: Prevents overload damage for improved system reliability.
  • Durable Construction: Fire-rated baffle and formed steel backcan for safety and longevity.
  • Easy Installation: Supplied with grille, backcan, tile rails, and cutout template.

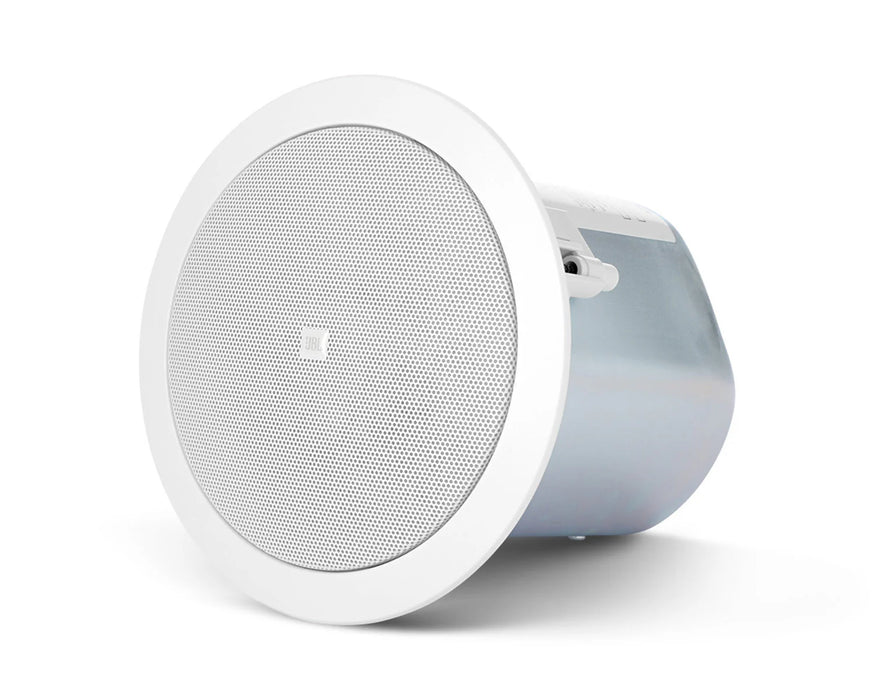

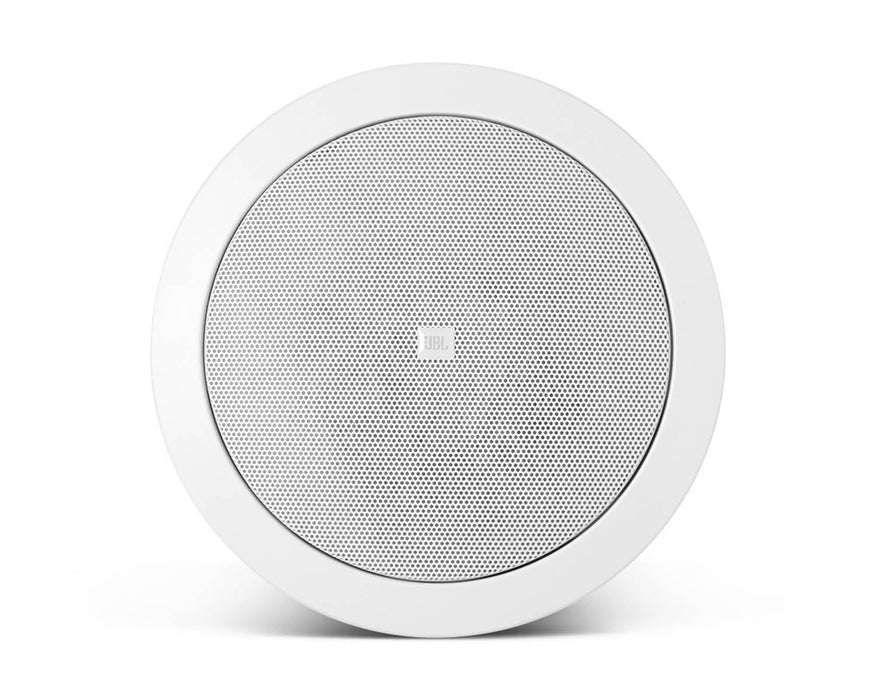

  • Discreet Appearance: Paintable baffle for a seamless ceiling finish.
SPECS & DOWNLOADS

Download the Spec Sheet HERE >

JBL Control 24CT Specifications:

  • Frequency Range (-10 dB): 80 Hz – 20 kHz
  • Power Capacity: 80W program, 40W continuous pink noise
  • Sensitivity: 86 dB SPL, 1W @ 1m
  • Maximum SPL: 102 dB @ 1m
  • Coverage Angle: 130° conical
  • Impedance: 16Ω nominal (minimum 16.1Ω @ 320 Hz)
  • Transformer Taps (100V): 30W, 15W, 7.5W
  • Transformer Taps (70V): 30W, 15W, 7.5W, 3.7W
  • LF Driver: 100 mm (4") polypropylene-coated woofer, 1" coil
  • HF Driver: 19 mm (¾") titanium-coated tweeter
  • Enclosure: Formed steel backcan, UL94V-0 fire-rated baffle
  • Termination: Removable locking connector with loop-through terminals (max 12 AWG)
  • Dimensions (HxDia): 200 x 195 mm
  • Cutout Size: 168 mm
  • Depth (Ceiling to Backcan): 184 mm
  • Net Weight (Each): 3.5 kg
  • Shipping Weight (Pair): 8.0 kg
  • Accessories Included: Grille, backcan, support backing plate, tile rails, cutout template, paint shield
}
