Q Acoustics E60 - Bluetooth In-Wall Amplifier Touch Panel (Black or White) No Speakers
DETAILS

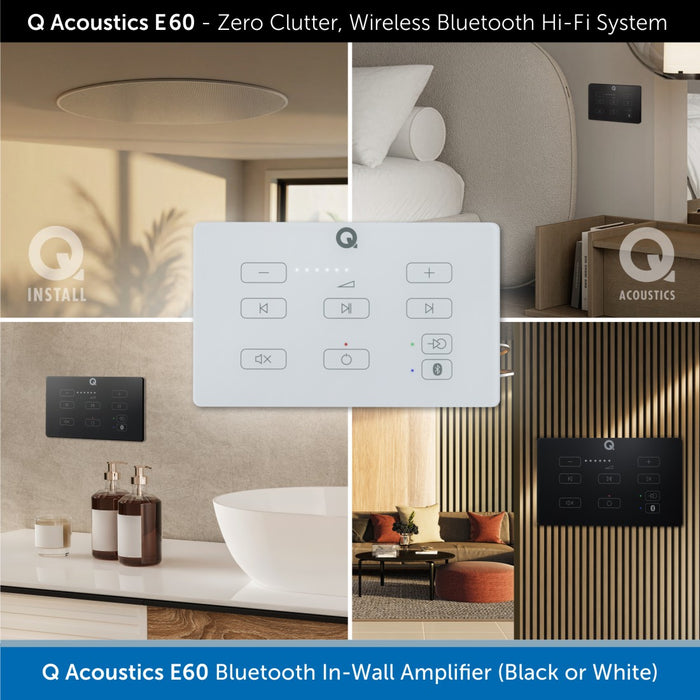

E60 Integrated HiFi Amplifier - a high-performance, easy-to-install audio system for any room in the home

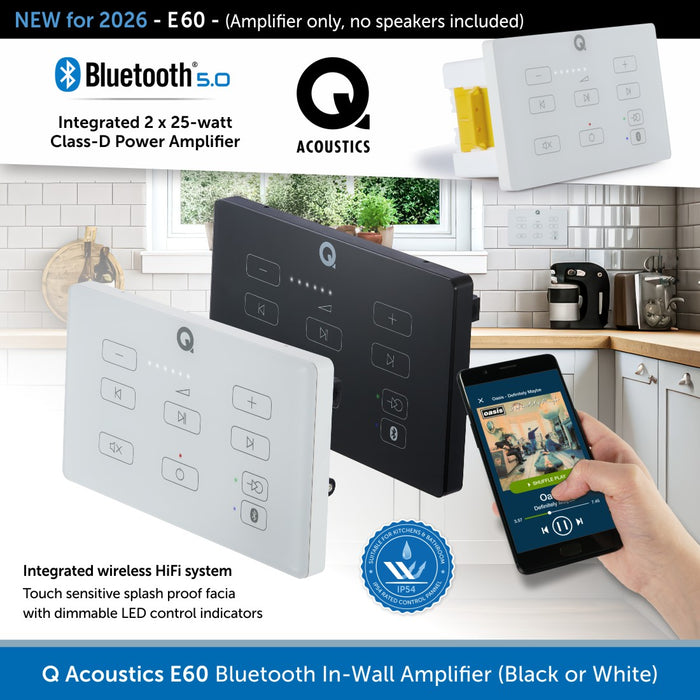

The Q Acoustics E60 is an elegant, easy to install in-wall audio system. Designed for seamless integration into any home, the E60 combines Bluetooth 5.0 wireless connectivity with a clean, screwless aesthetic and a 2 x 25-watt Class D amplifier capable of driving up to two pairs of speakers.
Design & Installation

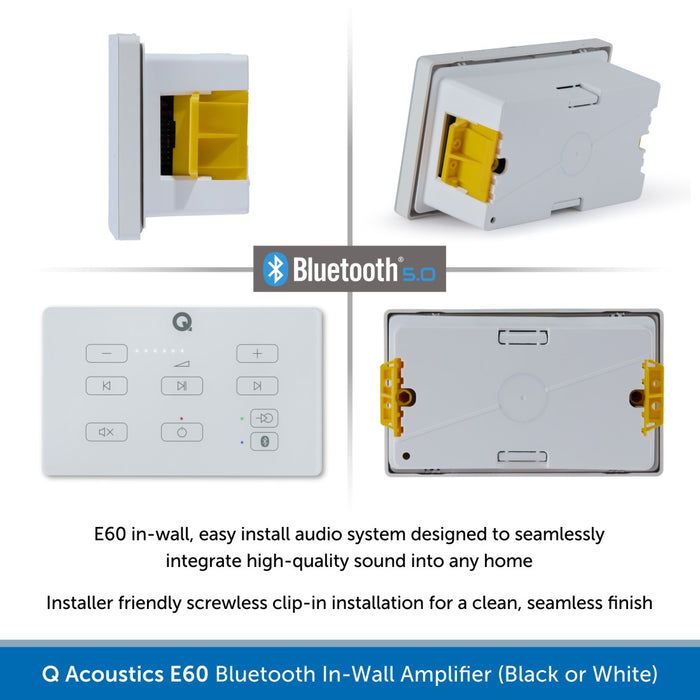

The E60 is IP54-rated & splash-proof straight out of the box, meaning no sealant required. This makes it ideal in bathrooms, kitchens, garden rooms and other humid environments. A screwless clip-in fixing system ensures fast installation and a clean, seamless finish, with deep black and warm white colour options that sit flush in any modern interior.
Controls & User Experience
Touch-sensitive controls work reliably with wet fingers, making them particularly well-suited to bathroom environments. Subtle LED indicators brighten during adjustments for clear visibility, then dim automatically in low light to keep things unobtrusive.
Audio Performance
The E60 features an integrated 2 x 25-watt Class D amplifier that drives up to two pairs of in-ceiling, in-wall or cabinet speakers with controlled, balanced and dynamic performance.
The system is optimised for use with Q Acoustics' own easy install speaker range while remaining fully compatible with third-party models such as our Audiokraft range.
The panel also includes a mono/stereo switch, allowing users to set the system accordingly depending on the environment.
For example:
- Stereo - Two speakers on either side of a TV or where stereo spread matters.
- Mono - Speakers in a bathroom/bedroom or where volume consistency matters over a stereo spread.
Connectivity & Expansion
Bluetooth 5.0 with two-way AVRCP control handles wireless audio streaming, while an optical TOSLINK input allows users to connect directly to a TV or compatible AVR receiver.
A fixed or variable analogue line output also allows users to connect an active subwoofer, further enhancing the system.

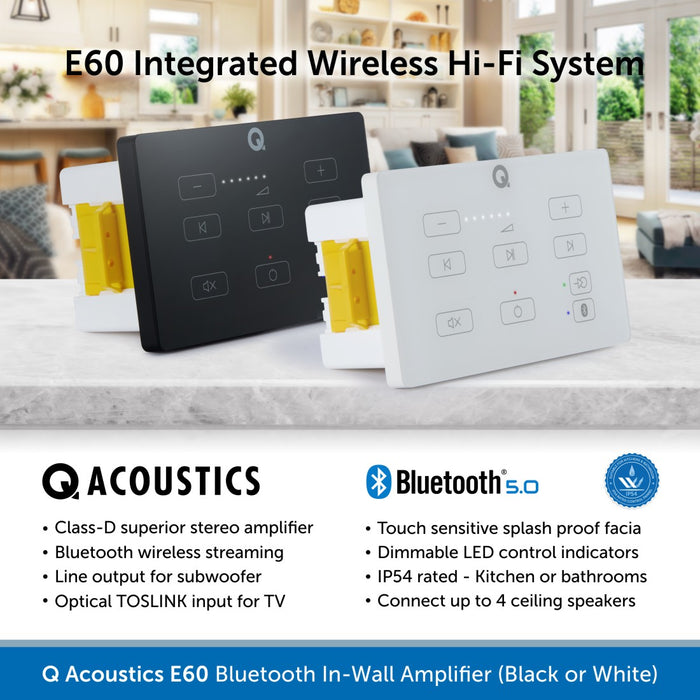

Key Features of the Q Acoustics E60
- 2 x 25W Class D amplifier for powerful, balanced sound
- Bluetooth 5.0 (A2DP) wireless streaming
- Optical TOSLINK input for TV and external sources
- Stereo or dual mono operation for flexible room coverage
- Drives up to two pairs of speakers
- Fixed or variable 3.5mm line output for subwoofer or amp expansion
- IP54-rated wall panel – ideal for bathrooms and kitchens
- Screwless clip-in installation for a clean, seamless finish
- Touch-sensitive controls with dimmable LED indicators
- Compatible with Q Acoustics and third-party install speakers
Q Acoustics Amplifier Comparison Chart
| Feature | E50 | E60 | E120 | E300A |
| Form Factor | In-wall panel | In-wall panel | In-wall panel | In-ceiling unit |
| Colours | Black, White | Black, White | Black, White | White |
| Amp Type | Class D | Class D | Class D | Class D |
| Power (RMS) | 2 × 18W @ 8Ω | 2 × 25W @ 6Ω | 2 × 25W @ 6Ω | 2 × 25W @ 6Ω |
| Bluetooth | BT 2.1 aptX | BT 5.0 | BT 5.0 | BT 5.2 |
| Wi-Fi | No | No | No | Yes |
| Ethernet (RJ45) | No | No | No | Yes |
| Touch Controls | Yes | Yes (with LED dim) | Yes | No |
| Gesture Control | Yes | No | No | No |
| Display | LED Only | LED Only | LCD | No |
| IP Rating | IP54 (white only) | IP54 | IP54 | No |
| Fire Rating | No | No | No | 60 Mins |
| IR Remote | No | No | Yes | Yes |
| Analogue Input | 3.5mm | 3.5mm | 3.5mm | 3.5mm |
| Optical Input | No | TOSLINK | Mini TOSLINK | Mini TOSLINK |
| Analogue Output | No | 3.5mm | 3.5mm | No |
| Spotify Connect | No | No | No | Yes |
| Apple AirPlay 2 | No | No | No | Yes |
| TIDAL Connect | No | No | No | Yes |
| Ambient Light Sensor | No | No | Yes | Yes |
| Alarm Function | No | No | Yes | No |
| Stereo/Mono | Stereo | Stereo & Mono | Stereo & Mono | Stereo |
What's Included with the Q Acoustics E60?
- Systemline E60 In-Wall Amplifier (Black or White)
- 14 Metres of Speaker Cable
- Power Supply (5M)
- 47mm 2 Gang Dry Lining Back Box
- Install Instruction Manual
- 1-Year Manufacturer's Warranty

View all of the full Q Acoustics range HERE
SPECS & DOWNLOADS
Audio Sources
Wireless
-
Bluetooth: BT 5.0, A2DP
Auxiliary Input
-
Optical (TOSLINK): 16-bit / 48kHz
Audio Outputs
Speaker Outputs
- Channels: Left & Right
- Modes: Stereo or Dual Mono
Analogue Line Output
- Connection: 3.5mm stereo
- Modes: Fixed or Variable
- Maximum Level: 670mV
Amplifier
- Type: Class D
- Continuous Power: 2 x 25W @ 6Ω
- THD: 0.07% @ 1W / 0.2% @ Rated Power
- Signal-to-Noise Ratio: >75dB @ Rated Power
- Frequency Response: 20Hz – 20kHz ±1dB
Ratings
-
Wall Panel Protection: IP54
Control
- Touch-Sensitive Buttons: 9
- Bluetooth AVRCP: v1.6 (Play, Pause, Skip, Track Control)
General
Power Supply
- Input: 100 – 240V AC, 50/60Hz
- Output: 22V DC, 1.5A
- Power Supply Dimensions (H x W x D): 30mm x 50mm x 115mm
Power Consumption
- Typical: 10W
- Standby: 2W
Wall Panel
- Net Weight: 1.3kg

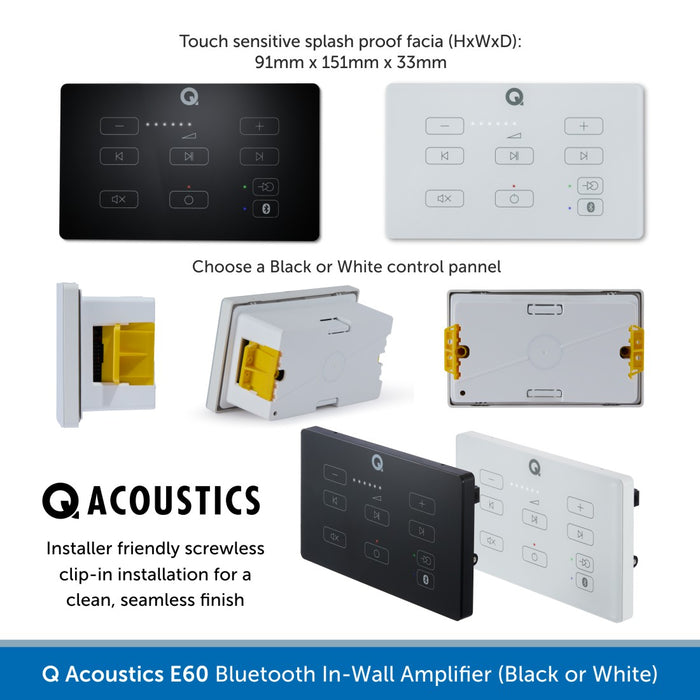

- Dimensions (H x W x D): 91mm x 151mm x 33mm
- Maximum Operating Ambient Temperature: 40°C
Cables Included
Speaker Cable
- Gauge: 19 AWG
- Lengths: 2 x 7m
DC Extension Cable
- Gauge: 16 AWG
- Length: 5m
- Connectors: 5.5mm x 2.5mm DC Male / 5.5mm x 2.5mm DC Female
