Q Acoustics E60 - Bluetooth In-Ceiling Speaker System with Q Install Speakers
DETAILS
E60 by Q Acoustics - a high-performance, easy-to-install audio system for any room in the home

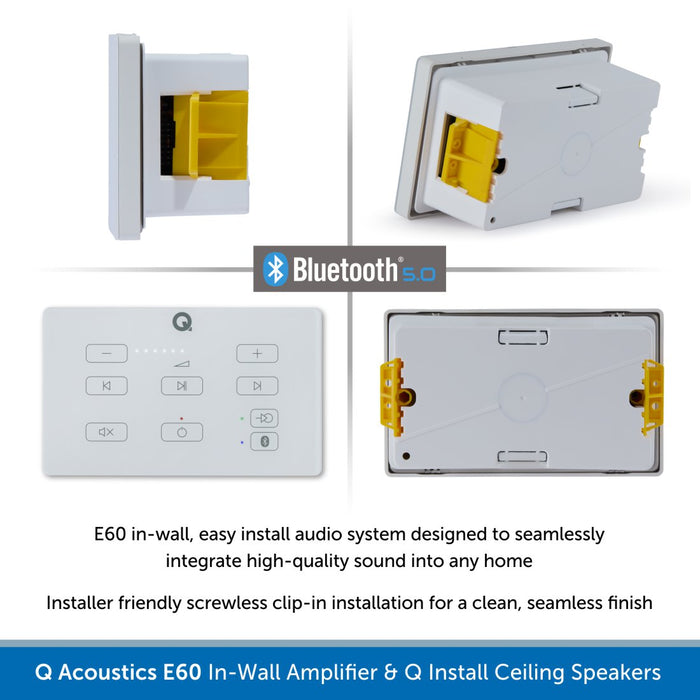

The Q Acoustics E60 is an elegant, easy-to-install in-wall audio system. Designed for seamless integration into any home, the E60 combines Bluetooth 5.0 wireless connectivity with a clean, screwless aesthetic and a 2 x 25-watt Class D amplifier.

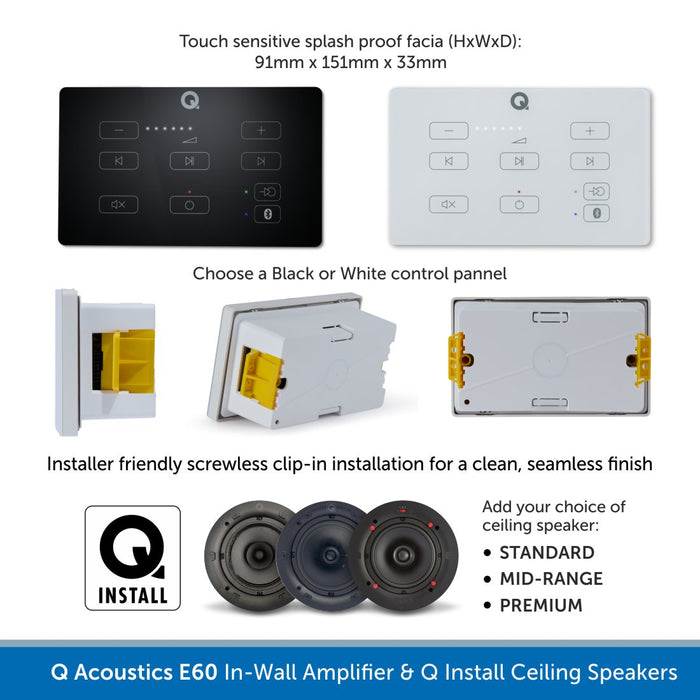

This complete kit features the Q Acoustics E60 In-Wall Amplifier in Black or White, and a choice of 2 or 4 Q Install in-ceiling speakers.
Design & Installation

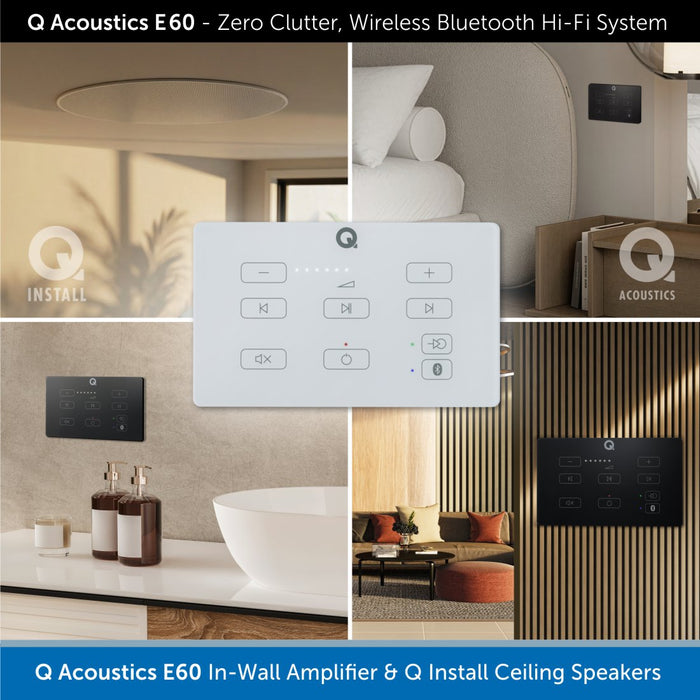

The E60 is IP54-rated & splash-proof straight out of the box, meaning no sealant required. This makes it ideal in bathrooms, kitchens, garden rooms and other humid environments. A screwless clip-in fixing system ensures fast installation and a clean, seamless finish, with deep black and warm white colour options that sit flush in any modern interior.
Controls & User Experience
Touch-sensitive controls work reliably with wet fingers, making them particularly well-suited to bathroom environments. Subtle LED indicators brighten during adjustments for clear visibility, then dim automatically in low light to keep things unobtrusive.
Audio Performance
The E60 features an integrated 2 x 25-watt Class D amplifier that drives up to two pairs of in-ceiling, in-wall or cabinet speakers with controlled, balanced and dynamic performance.
The system is perfectly paired with Q Acoustics speakers such as those in this kit, ensuring excellent, balanced sound quality.
The panel also includes a mono/stereo switch, allowing users to set the system accordingly depending on the environment.
For example:
- Stereo - Two speakers on either side of a TV or where stereo spread matters.
- Mono - Speakers in a bathroom/bedroom or where volume consistency matters over a stereo spread.
Connectivity & Expansion
Bluetooth 5.0 with two-way AVRCP control handles wireless audio streaming, while an optical TOSLINK input allows users to connect directly to a TV or compatible AVR receiver.
A fixed or variable analogue line output also allows users to connect an active subwoofer, further enhancing the system.

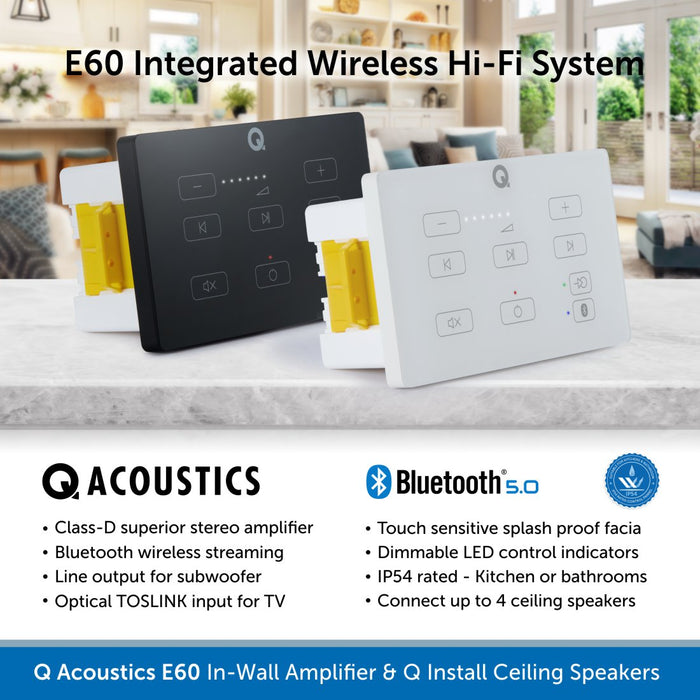

Key Features of the Q Acoustics E60
- 2 x 25W Class D amplifier for powerful, balanced sound
- Bluetooth 5.0 (A2DP) wireless streaming
- Optical TOSLINK input for TV and external sources
- Stereo or dual mono operation for flexible room coverage
- Drives up to two pairs of speakers
- Fixed or variable 3.5mm line output for subwoofer or amp expansion
- IP54-rated wall panel – ideal for bathrooms and kitchens
- Screwless clip-in installation for a clean, seamless finish
- Touch-sensitive controls with dimmable LED indicators
- Compatible with Q Acoustics and third-party install speakers
Q Acoustics Amplifier Comparison Chart
| Feature | E50 | E60 | E120 | E300A |
| Form Factor | In-wall panel | In-wall panel | In-wall panel | In-ceiling unit |
| Colours | Black, White | Black, White | Black, White | White |
| Amp Type | Class D | Class D | Class D | Class D |
| Power (RMS) | 2 × 18W @ 8Ω | 2 × 25W @ 6Ω | 2 × 25W @ 6Ω | 2 × 25W @ 6Ω |
| Bluetooth | BT 2.1 aptX | BT 5.0 | BT 5.0 | BT 5.2 |
| Wi-Fi | No | No | No | Yes |
| Ethernet (RJ45) | No | No | No | Yes |
| Touch Controls | Yes | Yes (with LED dim) | Yes | No |
| Gesture Control | Yes | No | No | No |
| Display | LED Only | LED Only | LCD | No |
| IP Rating | IP54 (white only) | IP54 | IP54 | No |
| Fire Rating | No | No | No | 60 Mins |
| IR Remote | No | No | Yes | Yes |
| Analogue Input | 3.5mm | 3.5mm | 3.5mm | 3.5mm |
| Optical Input | No | TOSLINK | Mini TOSLINK | Mini TOSLINK |
| Analogue Output | No | 3.5mm | 3.5mm | No |
| Spotify Connect | No | No | No | Yes |
| Apple AirPlay 2 | No | No | No | Yes |
| TIDAL Connect | No | No | No | Yes |
| Ambient Light Sensor | No | No | Yes | Yes |
| Alarm Function | No | No | Yes | No |
| Stereo/Mono | Stereo | Stereo & Mono | Stereo & Mono | Stereo |

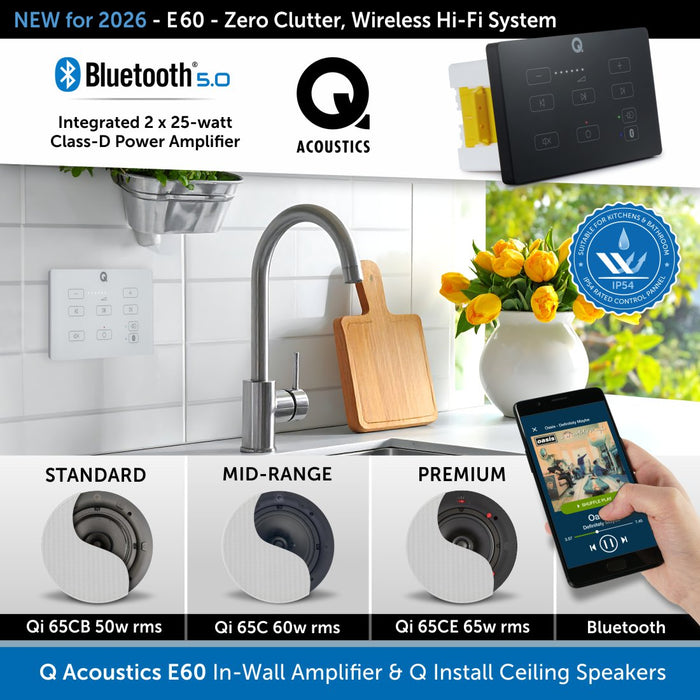

SPEAKER OPTIONS: Choose from Standard, Mid-range and Premium In-ceiling Speakers
Select an in-ceiling speaker package to suit your budget. All options sound great, and will fill your living space with crystal-clear audio.

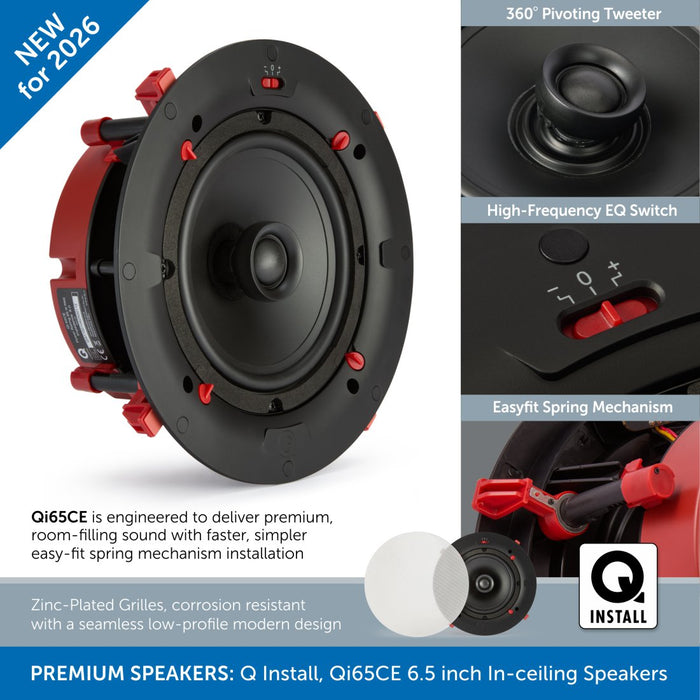

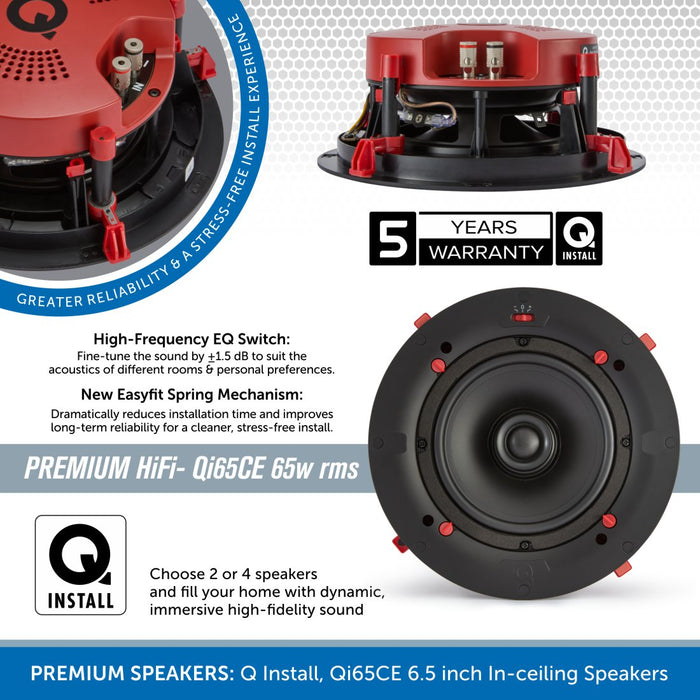

Premium HiFi Speakers - Q Install Qi65CE (65W rms)

Qi65CE - Great at loud volumes, films & video games
- Slimline magnetic grille
- Frameless, simple, unobtrusive design
- 65W RMS
- Easyfit Spring Installation
- Optimally Tuned for Q Acoustics Systems
- Front accessible environment EQ
- Zinc-Plated Metal Grille

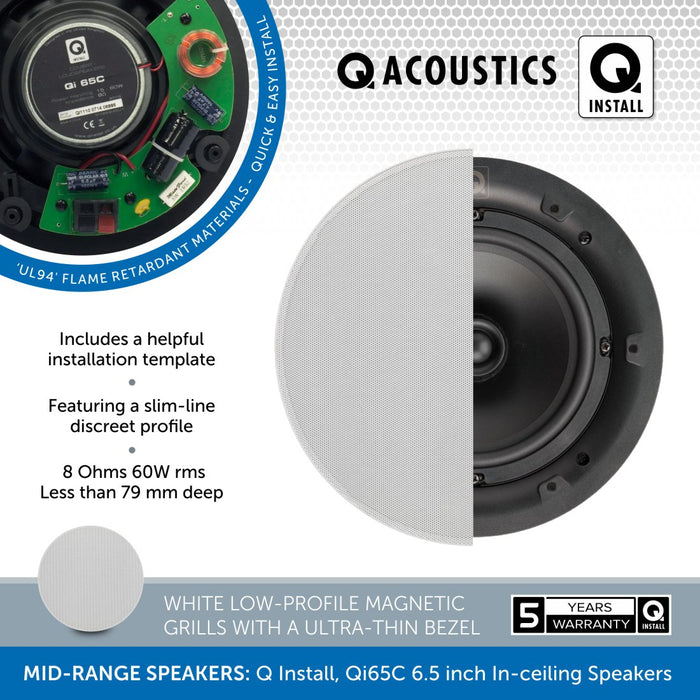

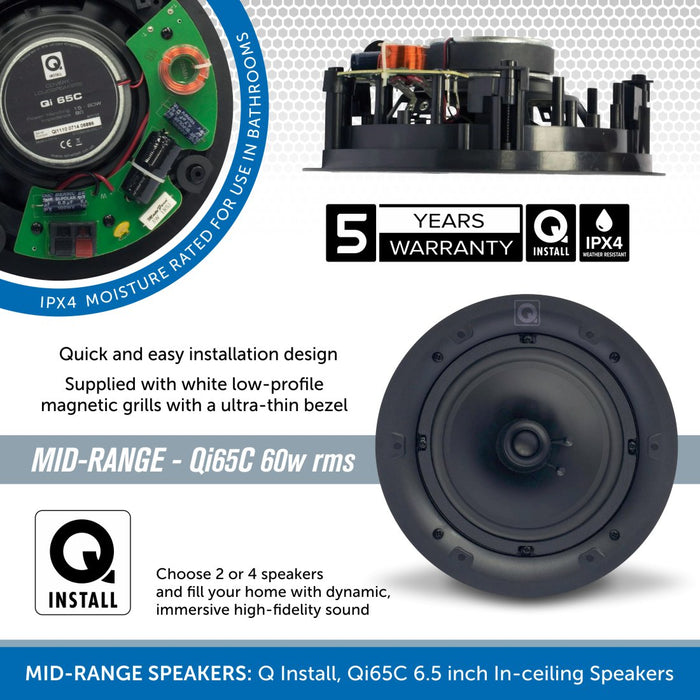

Mid-range Speakers - Q Install Qi65C (60W rms)

Qi65C - Great for music, TV & film
- Slimline magnetic grille
- Frameless, simple, unobtrusive design
- 60W RMS
- Quick 'Dog-leg' Installation
- Polypropylene Cone
- IPX4 Rated

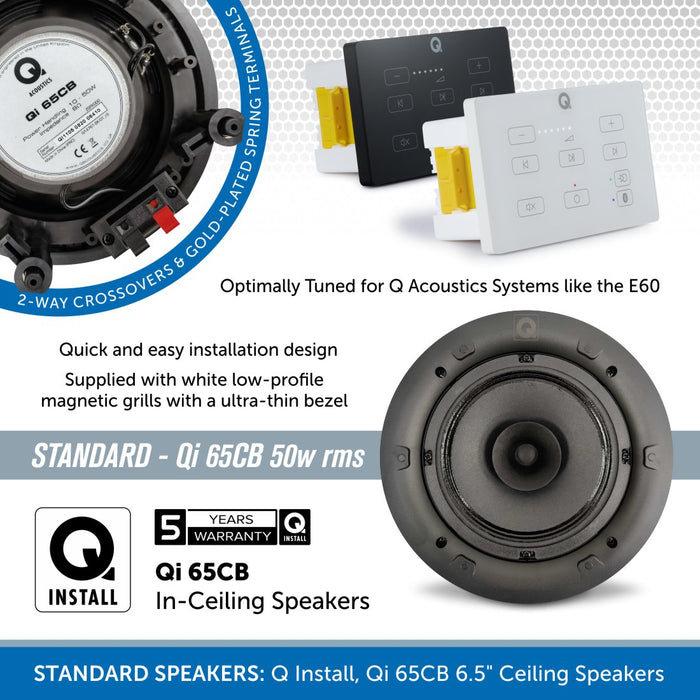

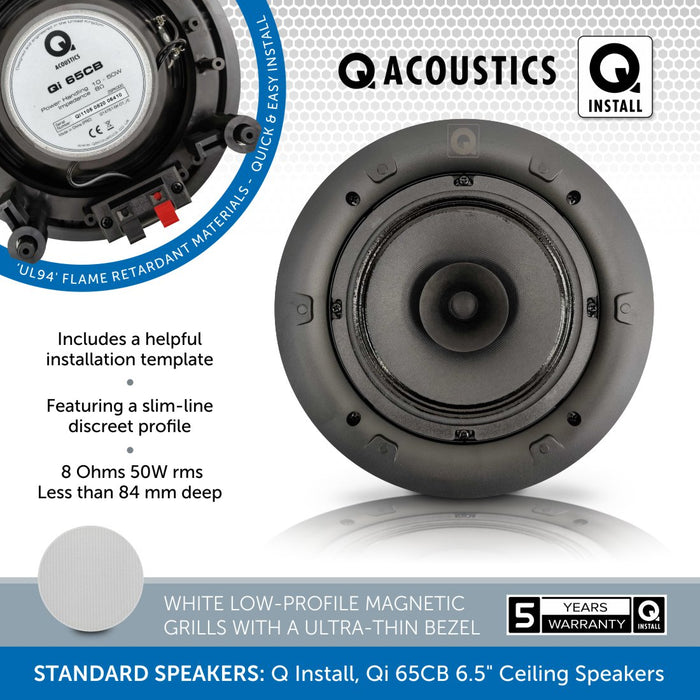

Standard Speakers - Q Install Qi65CB (50W rms)

QI65CB - Great for general listening
- Slimline magnetic grille
- Frameless, simple, unobtrusive design
- 50W RMS
- Quick and easy to install
- Less than 84 mm deep
What's Included in this Q Install Ceiling Speaker Kit?
- Systemline E60 In-Wall Amplifier (Black or White)
- 14 or 34 Metres of Speaker Cable Depending on Number of Speakers
- Power Supply (5M)
- 47mm 2 Gang Dry Lining Back Box
- Install Instruction Manual
- 1-Year Manufacturer's Warranty on pannel and 5 years on speakers
- 2 or 4 Speakers of Choice
View all of the full Systemline range HERE
SPECS & DOWNLOADS
Q Acoustics E60
Wireless
-
Bluetooth: BT 5.0, A2DP
Auxiliary Input
-
Optical (TOSLINK): 16-bit / 48kHz
Audio Outputs
Speaker Outputs
- Channels: Left & Right
- Modes: Stereo or Dual Mono
Analogue Line Output
- Connection: 3.5mm stereo
- Modes: Fixed or Variable
- Maximum Level: 670mV
Amplifier
- Type: Class D
- Continuous Power: 2 x 25W @ 6Ω
- THD: 0.07% @ 1W / 0.2% @ Rated Power
- Signal-to-Noise Ratio: >75dB @ Rated Power
- Frequency Response: 20Hz – 20kHz ±1dB
Ratings
-
Wall Panel Protection: IP54
Control
- Touch-Sensitive Buttons: 9
- Bluetooth AVRCP: v1.6 (Play, Pause, Skip, Track Control)
General
Power Supply
- Input: 100 – 240V AC, 50/60Hz
- Output: 22V DC, 1.5A
- Power Supply Dimensions (H x W x D): 30mm x 50mm x 115mm
Power Consumption
- Typical: 10W
- Standby: 2W
Wall Panel
- Net Weight: 1.3kg
- Dimensions (H x W x D): 91mm x 151mm x 33mm
- Maximum Operating Ambient Temperature: 40°C
Cables Included
Speaker Cable
- Gauge: 19 AWG
- Lengths: 2 x 7m
DC Extension Cable
- Gauge: 16 AWG
- Length: 5m
- Connectors: 5.5mm x 2.5mm DC Male / 5.5mm x 2.5mm DC Female
Q Install QI65CB Ceiling Speakers (Standard Speakers)
- Woofer diameter: 6.5"
- Power handling (program): 50W
- Impedance (nominal) ohms: 8ohm
- Sensitivity dB spl (2.83V, 1m): 93
- Response(Low freq.) -3dB Hz: 77-20'000
- Maximum rear depth: 79mm
- Size(Round grilles): 232mm dia
- Warranty: 5 Years
Q Install QI65CB Ceiling Speakers (Mid-range Speakers)
- Tweeter: Swivel
- Tweeter diameter: 0.75" (19mm)
- Woofer diameter: 6.5"
- Cutout Size: 203mm
- Power handling (program): 15-60W
- Impedance (nominal) ohms: 8ohm
- Sensitivity dB spl (2.83V, 1m): 89
- Response(Low freq.) -3dB Hz: 75
- Maximum rear depth: 79mm
- Size(Round grilles): 232mm dia
-
Warranty: 5 Years
Q Install Qi65CE Ceiling Speakers (Premium Speakers)
- Terminal: 2 x 4mm spring loaded
- Power rating: 65 W RMS
- Frequency response (-6 dB): 50 Hz - 34 kHz
- Nominal impedance: 8 Ohm
- Minimum impedance: 6 Ohm
- Sensitivity (1m, 2.83 Vrms @ 1 kHz): 88 dB
- Crossover frequency: 2.9 kHz
- Driver size: 165 mm (6.5 in)
- Tweeter size: 19 mm (0.75 in)
- Cut-out size: 212 mm (8.35 in)
- Maximum wall thickness: 30 mm (1.18 in)
- Weight (per speaker): 1.8 kg
-
Dimensions (HxWxD): 242 mm x 242 mm x 106 mm
