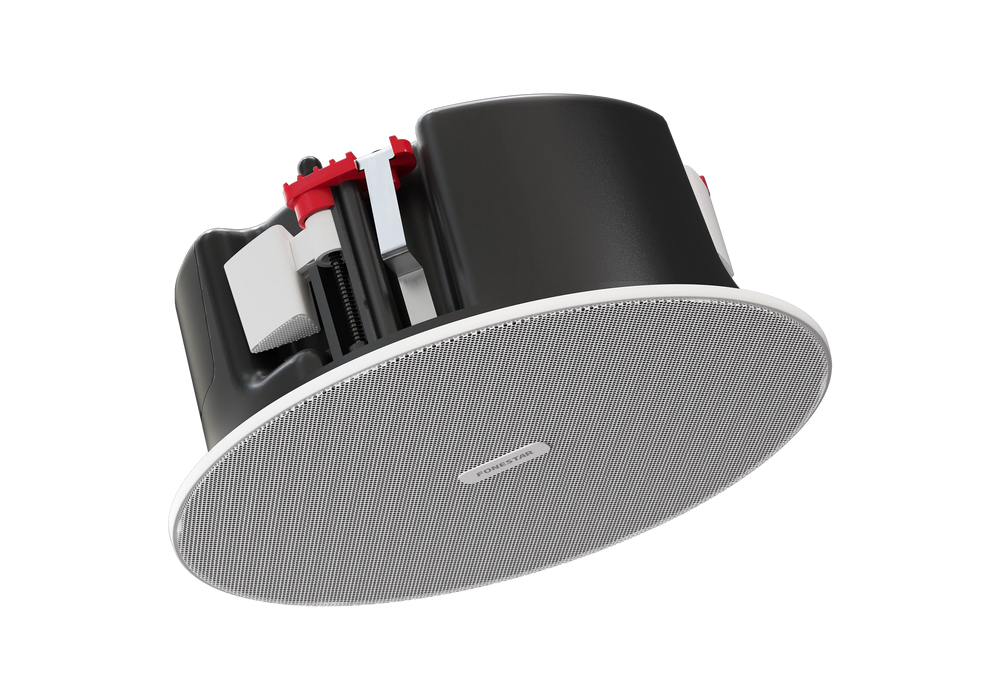

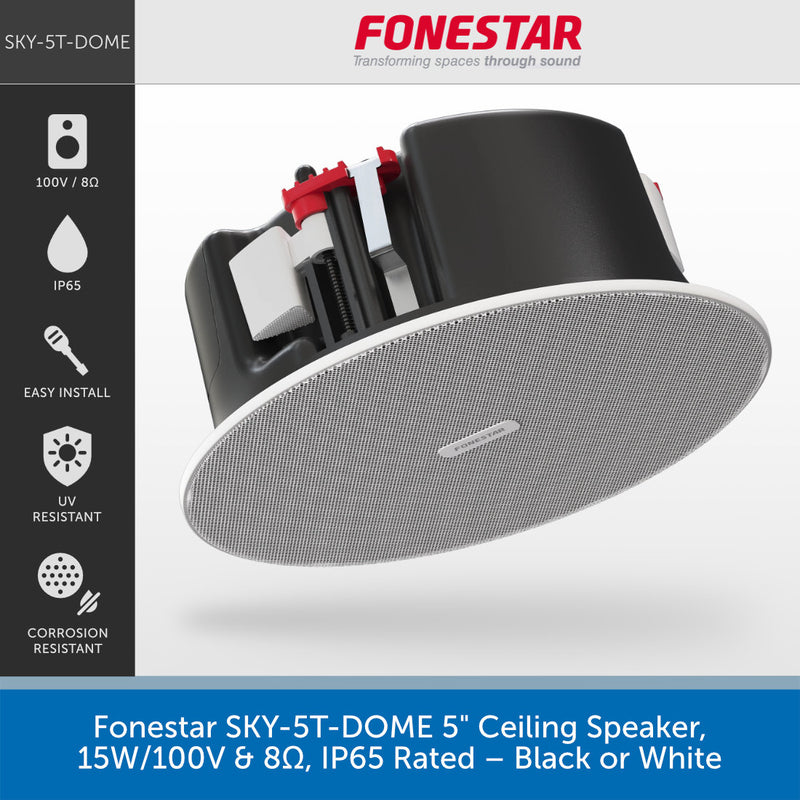

Fonestar SKY-5T-DOME 5" Ceiling Speaker, 15W/100V & 8Ω, IP65 Rated – Black or White
DETAILS
Low-Profile 5" Ceiling Speaker With Rear Dome Protection – Fonestar SKY-5T-DOME.

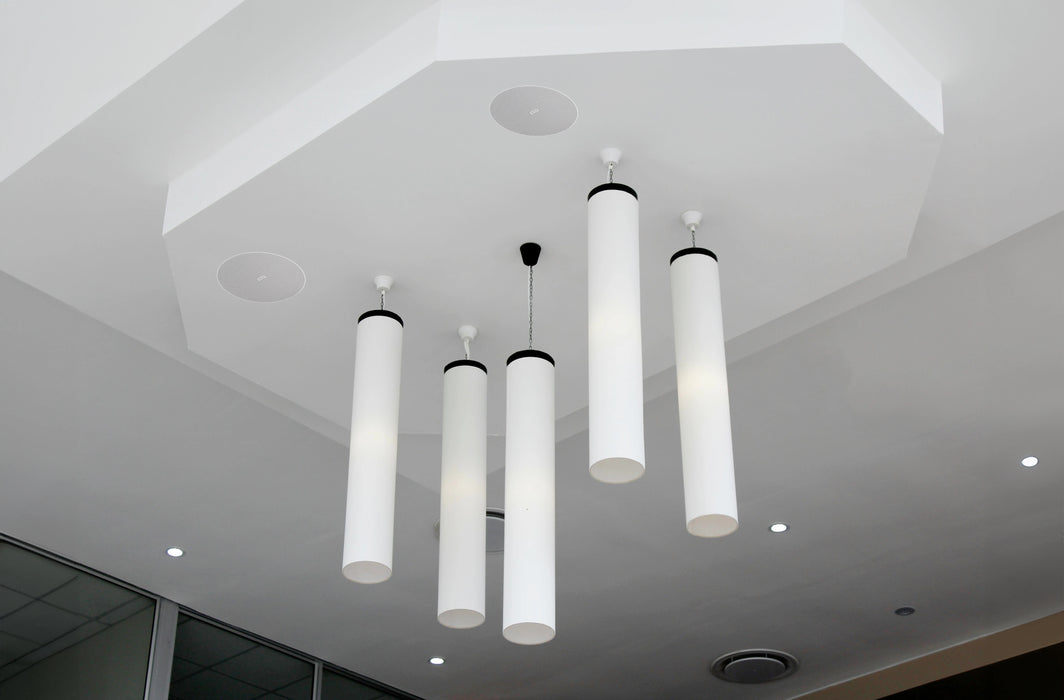

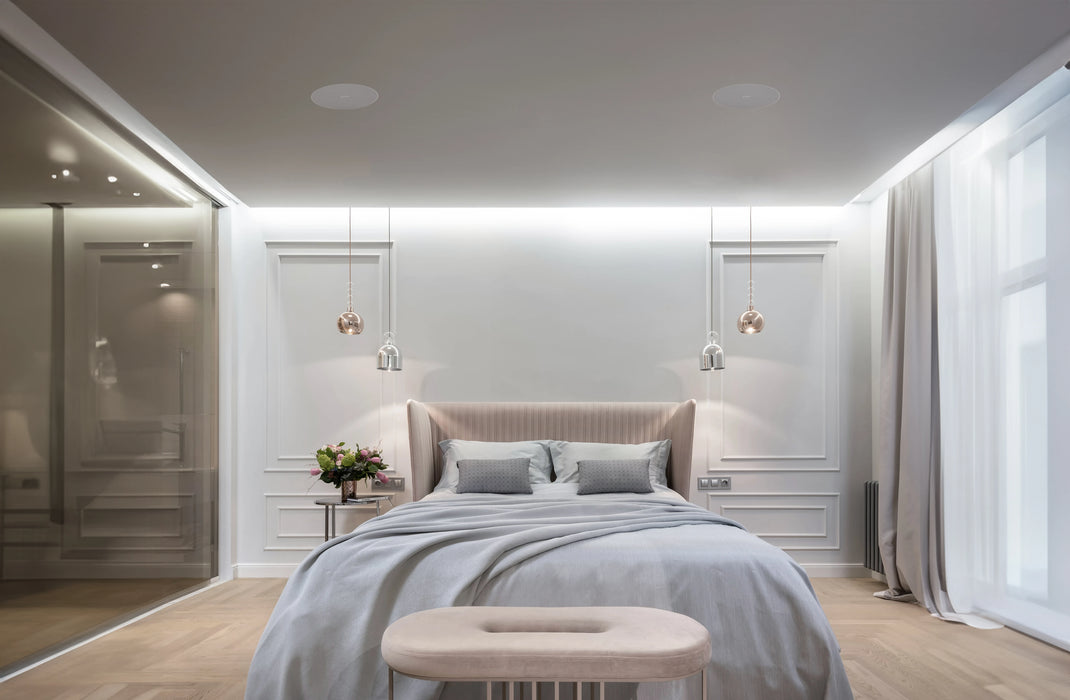

The Fonestar SKY-5T-DOME is a weather-resistant 5" coaxial ceiling loudspeaker featuring an integrated rear dome and frameless magnetic grille. Designed for humid, outdoor, or marine-prone areas, it’s ideal for environments such as spas, changing rooms, leisure centres, restaurants, and even boat cabins or coastal installations.
Constructed from UV-resistant ABS and fitted with a corrosion-proof liquid-painted aluminium grille, this model is fully IP65-rated, making it suitable for wet zones. Its EN ISO 9227:2006 salt mist resistance ensures longevity in coastal air. The speaker includes a high-efficiency polypropylene woofer and swivelling 1" tweeter for consistent full-range performance. A rotary selector on the front allows quick switching between 100V tappings and 8Ω use, with high-quality push-fit terminals housed in a sealed rear junction box.
Fonestar SKY-5T-DOME Key Features:
- 5" Coaxial Ceiling Speaker with swivelling 1" tweeter
- IP65 Rated for wet environments, bathrooms, and covered outdoor areas
- UV-Resistant ABS Enclosure for durability in sun-exposed locations
- Salt Mist Resistant (EN ISO 9227:2006) for marine or coastal applications
- Corrosion-Resistant Aluminium Grille with liquid paint coating

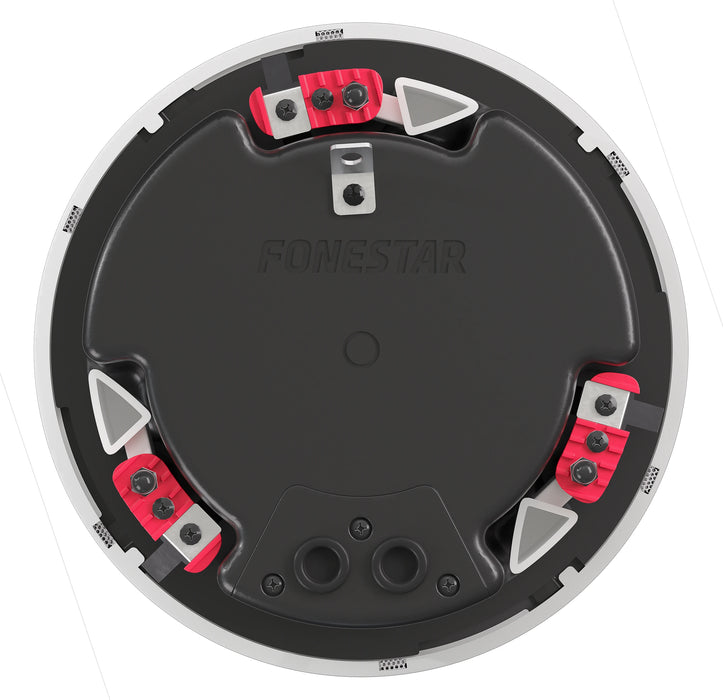

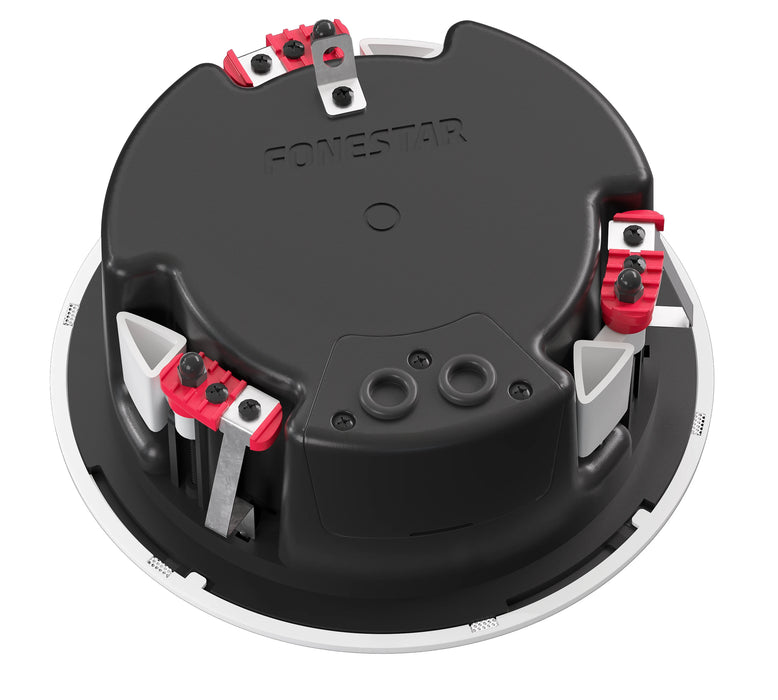

- Rear Dome Included, pre-fitted to prevent moisture or debris ingress
- Power Tappings: 15W / 10W / 5W / 2.5W (100V) and 8Ω option

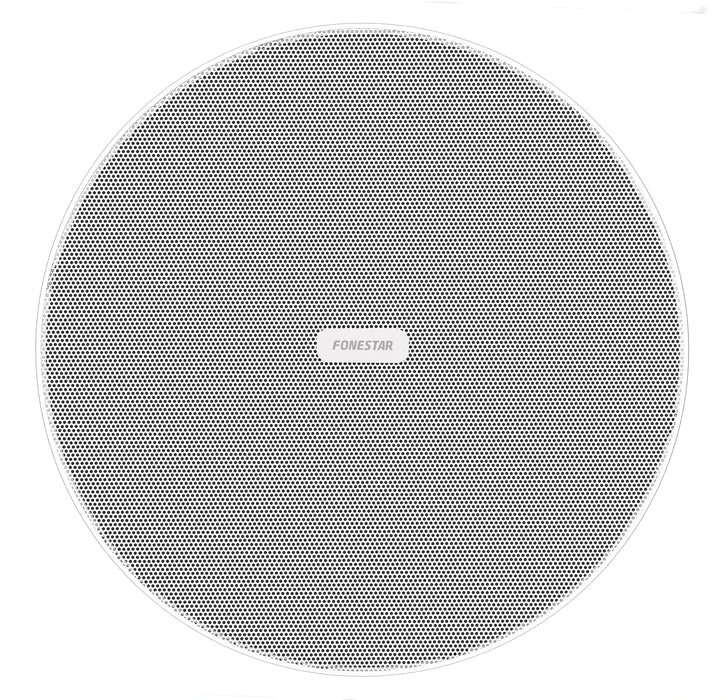

- Frameless Magnetic Grille in white, blends into ceilings
- Front-Facing Tap Selector Switch for ease during installation
- Push-Fit Terminals for quick, tool-free cable connection
-
Installation Template Included for simple ceiling cutting
SPECS & DOWNLOADS
Fonestar SKY-5T-DOME PDF Spec Sheet > DOWNLOAD HERE
Fonestar SKY-5T-DOME Specifications
- Power Handling: 15W RMS / 20W Max

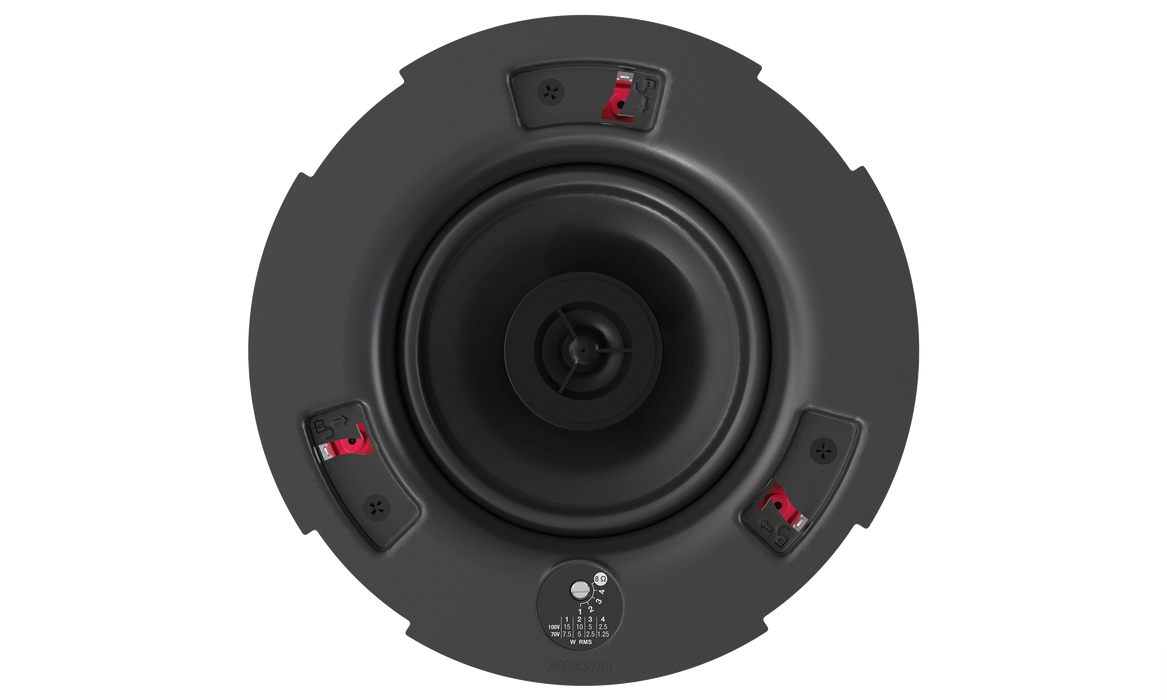

- Speaker Type: Coaxial 5" polypropylene woofer with 1" adjustable tweeter
- Frequency Response: 100–20,000 Hz (-10 dB), 120–20,000 Hz (-3 dB)
-
Impedance Settings:
- 100V: 15W (666Ω), 10W (1,000Ω), 5W (2,000Ω), 2.5W (4,000Ω)
- 70V: 10W (490Ω), 5W (980Ω), 2.5W (1,960Ω), 1.25W (3,920Ω)
- Low Z: 8Ω
- Sensitivity: 86 dB @ 1W/1m
- Max SPL: 98 dB continuous / 99 dB peak @ 1m
- Coverage Angle: 90º @ 1kHz (-6 dB)
- Ingress Protection: IP65 (IEC 60529)
- Salt Mist Resistance: EN ISO 9227:2006
- Material: UV-resistant ABS body with painted aluminium grille

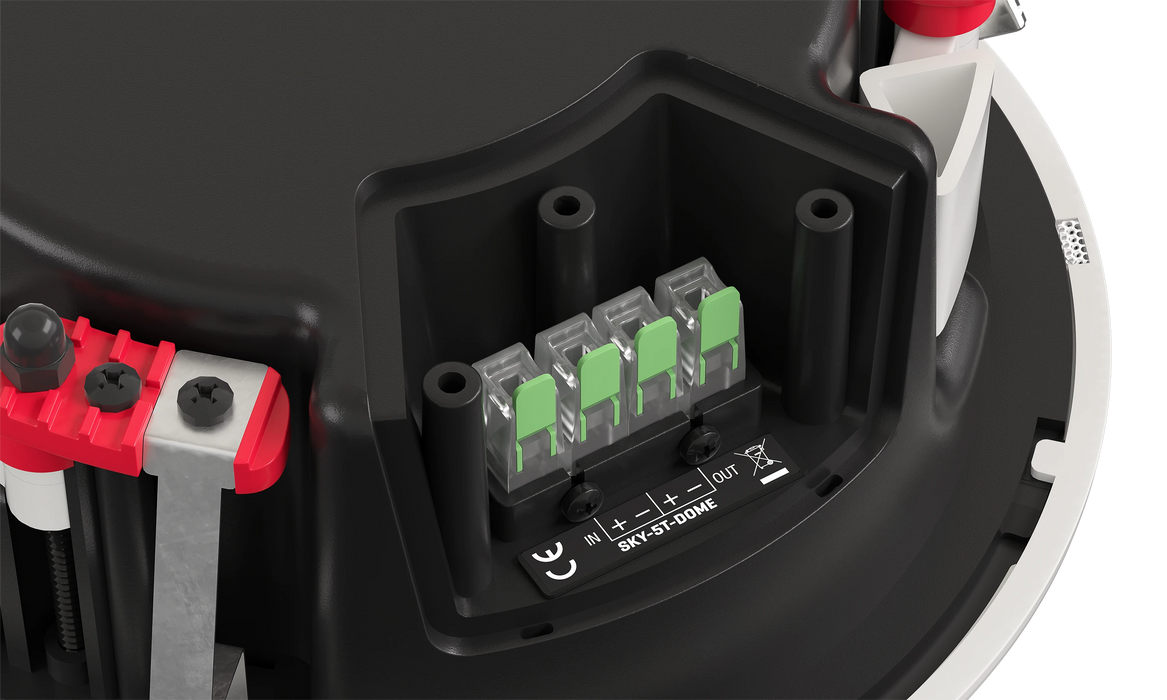

- Connectors: Quick-connect terminals (0.4–4 mm²), junction box with I/O
- Front Access Switch: Power tap and 8Ω selection
- Operating Temperature: -20°C to +70°C
- Storage Temperature: 10°C to 40°C
- Max Humidity: 95%
- Colour Options: White (RAL 9003) or Black
-
Dimensions:

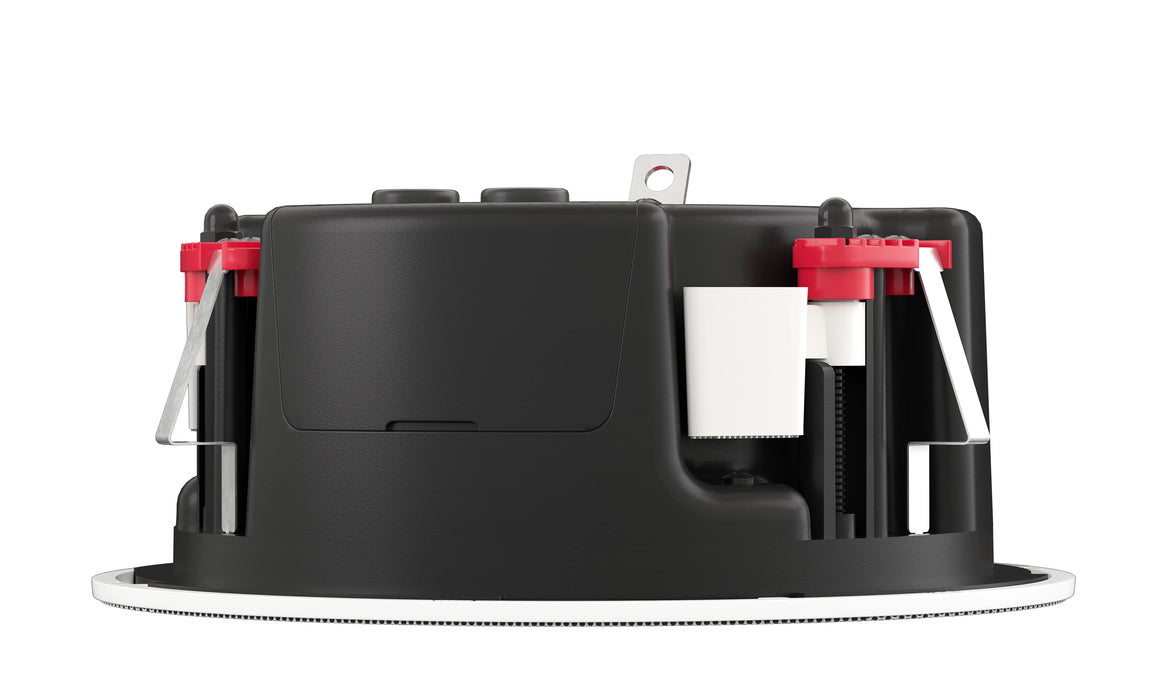

- Speaker: 214 mm Ø x 100 mm height
- Recessed Depth: 95 mm
- Grille Thickness: 5 mm
- Cut-Out Hole: 180 mm Ø
- Max Ceiling Thickness: 30 mm
- Weight: 1.3 kg
-
Accessories: Installation template included
