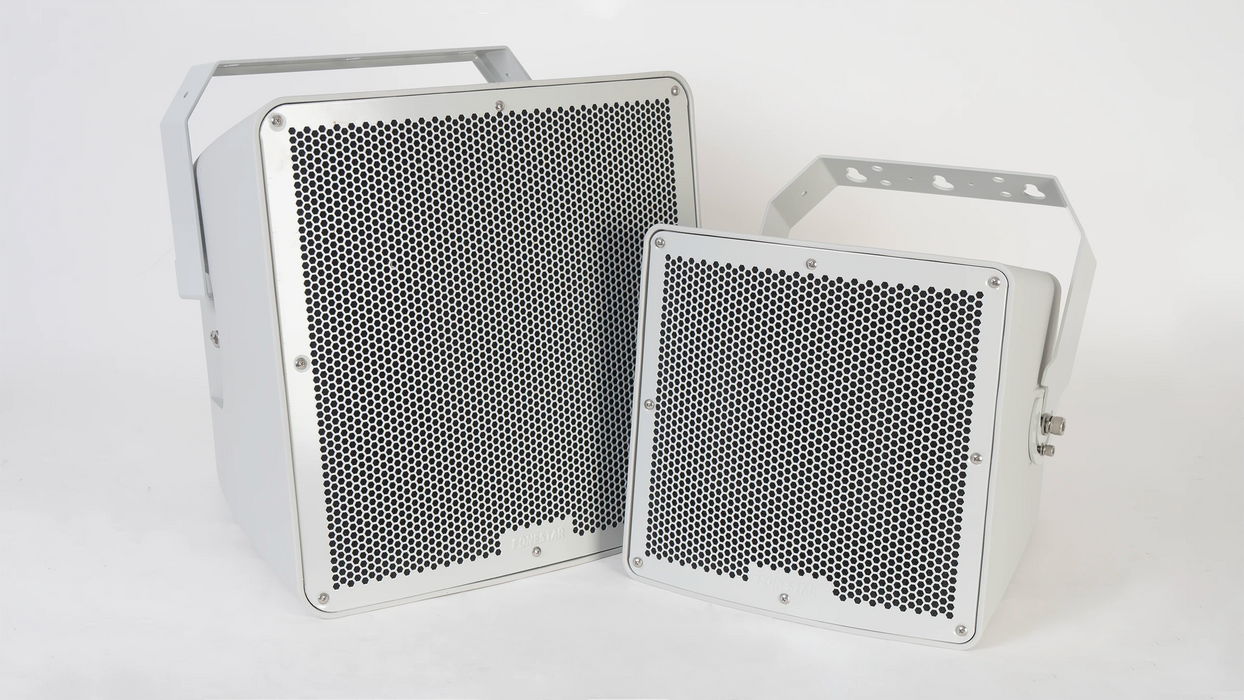

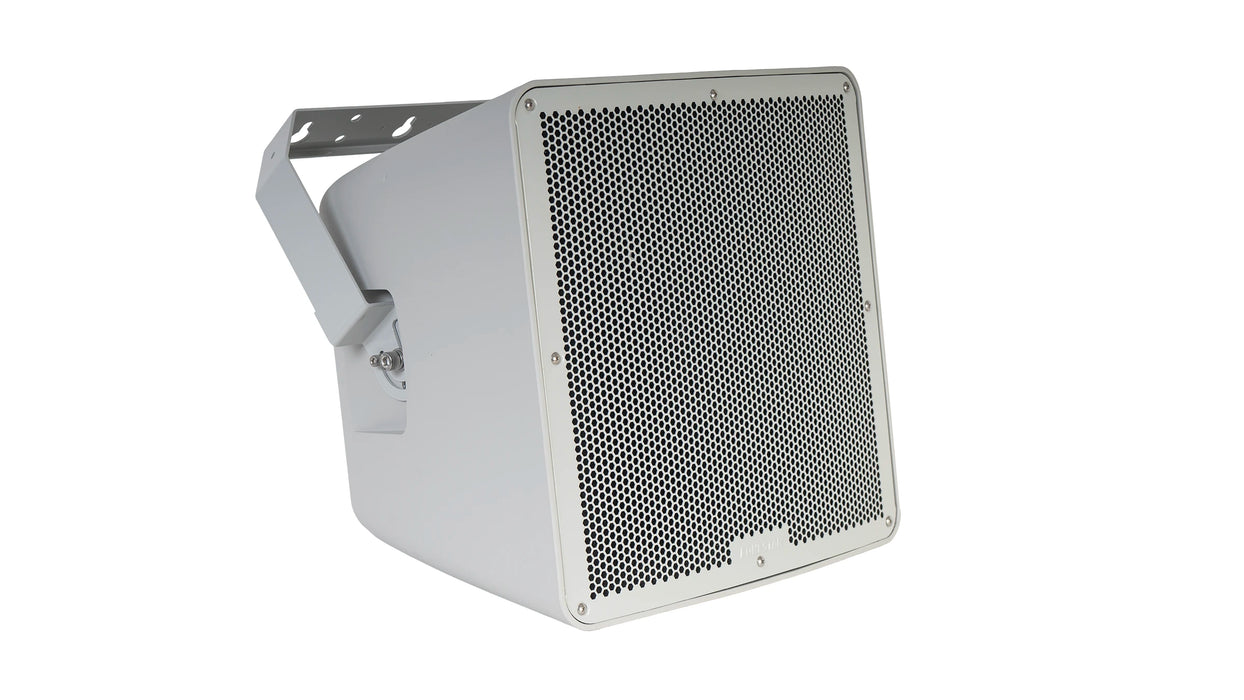

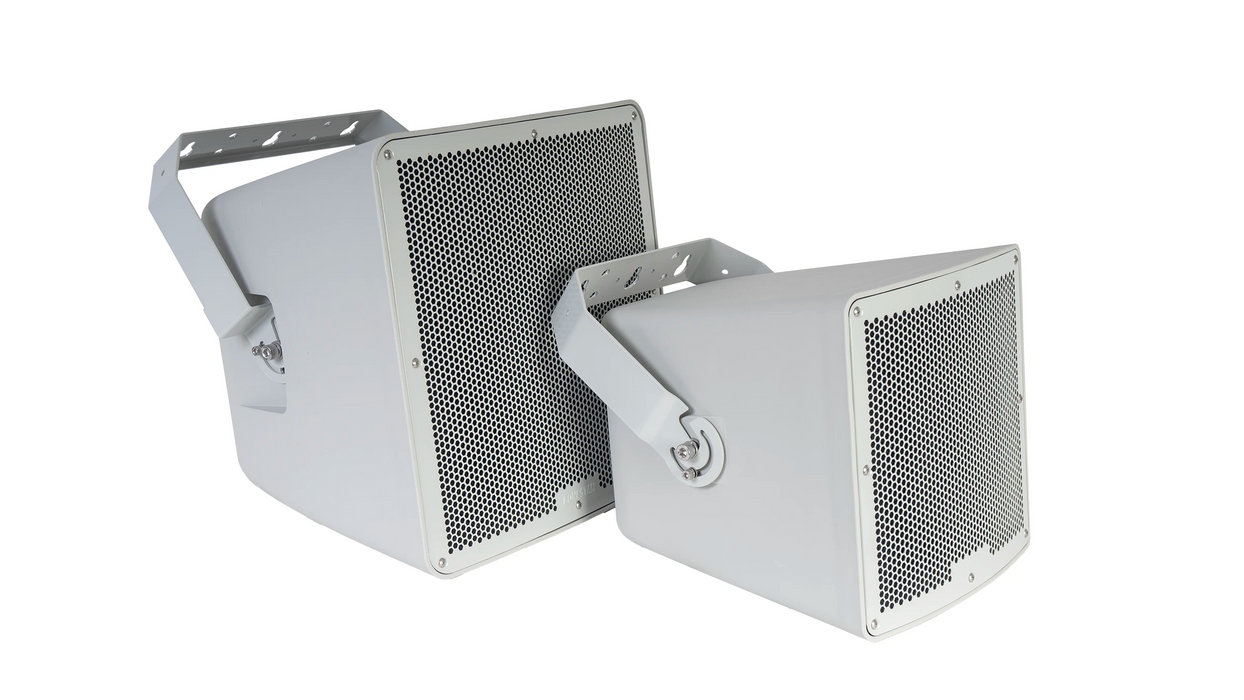

Fonestar AQUA-12TG 12" 300W High Power Loudspeaker, 100V/8Ω – IP66 Weatherproof Rated
DETAILS
The Fonestar AQUA-12TG is a robust and versatile 12-inch loudspeaker designed specifically for demanding outdoor public address and background music applications.
Featuring a powerful 300 W RMS output with a 100 V line transformer and low impedance operation, it delivers rich, clear, and distortion-free sound with enhanced bass response and wide coverage.
Built for long-term reliability in harsh environments, the AQUA-12TG features a durable ABS enclosure with UV resistance, a weatherproof steel grille, stainless steel fixings, and an IP66-rated enclosure tested against dust, heavy rain, and saline conditions. This makes it ideal for coastal locations and exposed outdoor venues.
Perfectly suited to large open spaces such as sports grounds, parks, cultural venues, community centres, and retail areas, this loudspeaker offers a powerful sound pressure level and excellent sound distribution over a broad 90º horizontal by 80º vertical coverage angle. The unit includes all necessary mounting accessories for quick, secure, and flexible installation, including an adjustable swivel bracket and steel safety cable.
Fonestar AQUA-12TG Key Features:
- High-power 12" woofer paired with a 1¾" compression driver for detailed, distortion-free sound reproduction with strong bass
- 100 V line transformer with low impedance 8 Ω operation for versatile system integration
- Wide coverage angle of 90° horizontal by 80° vertical at 1 kHz for excellent sound distribution in large outdoor areas
- Robust ABS housing with UV resistance for lasting outdoor durability

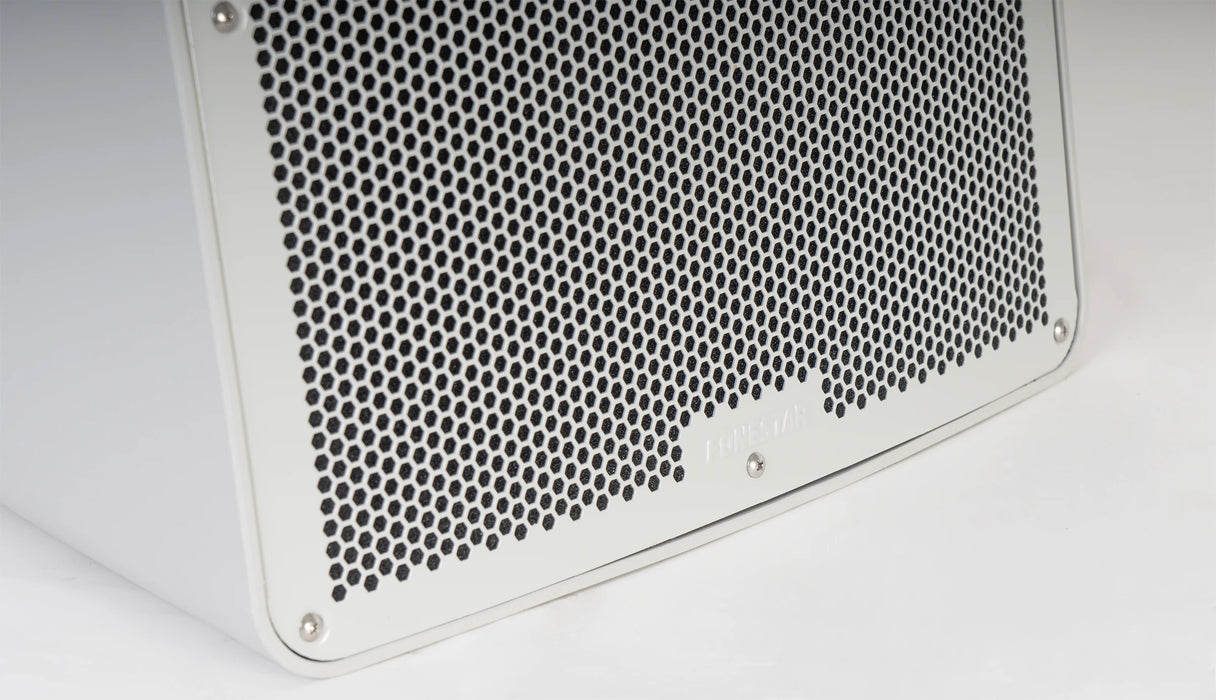

- Weatherproof steel grille and mounting bracket with corrosion-resistant stainless steel screws
- IP66-rated enclosure providing protection against dust, heavy rain, and saline environments (tested to IEC 60529 and IEC 60068-2-11-2021)

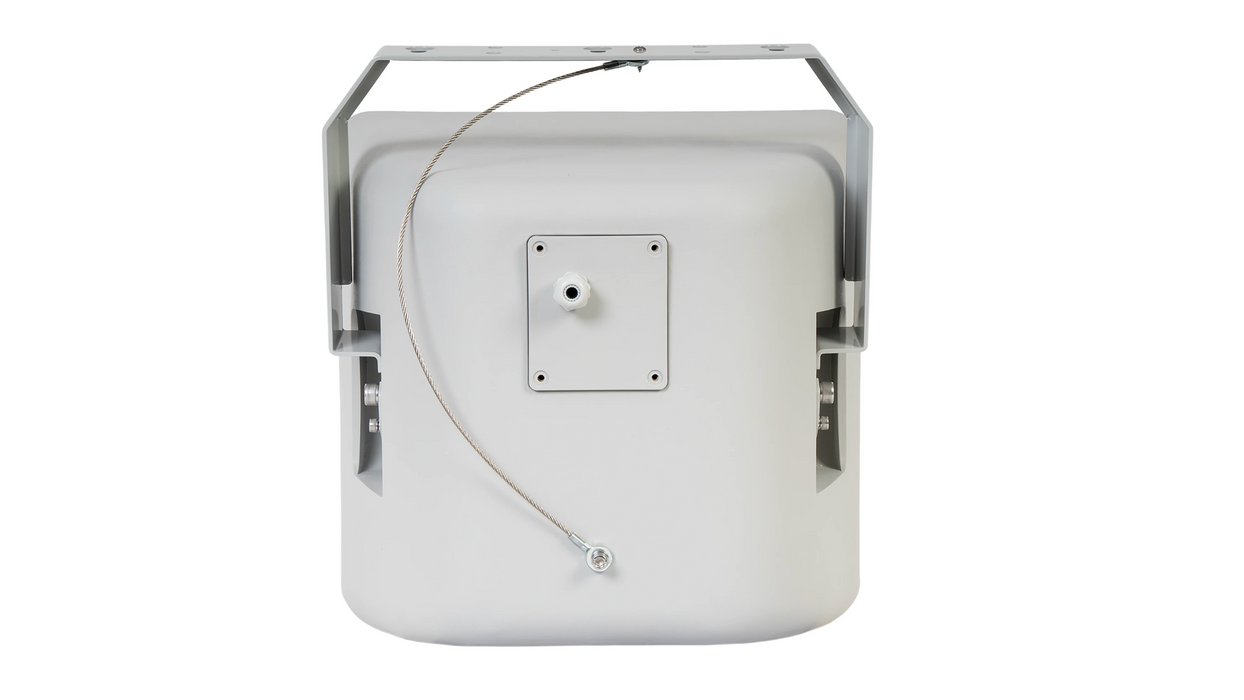

- Includes adjustable fixing mount and steel safety cable for safe, flexible installation
SPECS & DOWNLOADS
Fonestar AQUA-12TG Specifications
Download the PDF Spec Sheet HERE >
- Power Handling: 500W max / 300W RMS
-
Drivers:
• 1 x 12" woofer
• 1 x 1¾" compression driver - Frequency Response: 50-20,000 Hz (-10 dB)
-
Impedance & Transformer Taps:
• 300W RMS @ 8 Ω
• 300W RMS @ 100V / 70V (33 Ω / 16.5 Ω)
• 150W RMS @ 100V/70V (66 Ω/33 Ω)
• 75 W RMS @ 100 V/70 V (133 Ω/66 Ω)
• 37.5W RMS @ 70V (133 Ω) - Sensitivity: 99 dB @ 1W / 1m
- Max SPL: 124 dB @ max power, 1m
- Coverage Angle: 90º Horizontal x 580º Vertical (1 kHz, -6 dB)
- Crossover: 2-way passive, crossover frequency at 2,000 Hz
- Protection: IP66 rated, compliant with EN 60529; salt mist resistant (IEC 60068-2-11-2021)
- Material: UV-resistant ABS enclosure, weatherproof steel grille and mount, stainless steel screws
- Connectors: Screw terminals
- Operating Temperature: Suitable for extreme outdoor conditions
- Colour: Grey (RAL 7035)
- Dimensions: 427 x 419 x 397 mm (depth)
- Weight: 18.36 kg
- Included Accessories: Adjustable fixing mount, steel safety cable
