FBT Shadow 112CT All-Weather Full Range 600W Loudspeaker, 100V/8 Ohms
DETAILS
FBT Shadow 112CT is a high-power, weatherproof coaxial loudspeaker built for clear, detailed sound in large-scale indoor and outdoor installations.
The FBT Shadow 112CT is a premium-grade, weatherproof 2-way coaxial loudspeaker designed for professional voice and music reinforcement in demanding environments.
Featuring a powerful 12" woofer with a 2.5" voice coil and a 1" high-frequency driver with a 1.7" voice coil on a 90° conical horn, it delivers outstanding audio clarity, projection, and high sound pressure levels. Ideal applications include stadiums, arenas, sports facilities, theme parks, and transport terminals where reliability and performance are essential.

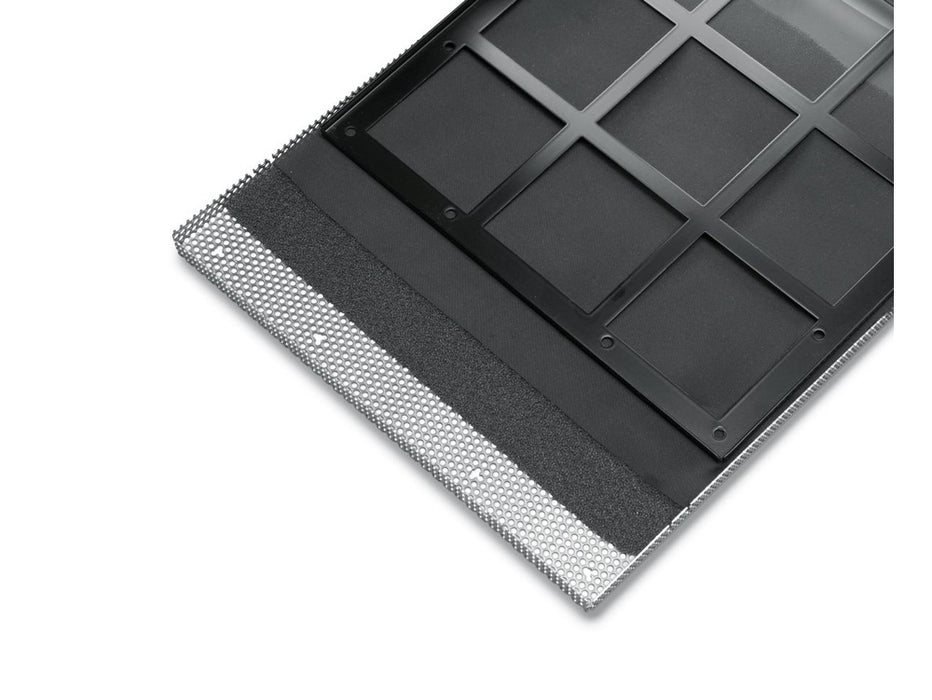

Constructed for long-term outdoor use, the Shadow 112CT is housed in a single-piece rotationally moulded polyethylene cabinet, fully UV protected for resistance against sun damage. A custom perforated stainless-steel grille with triple-layer water-stop protection ensures the drivers remain safeguarded from dust, moisture, and other environmental challenges. The IP55 rating guarantees dependable operation in harsh weather conditions.
The integrated 70V/100V line transformer with selectable 200W and 100W power tappings makes it simple to integrate into distributed audio systems, while 8 Ohm low-impedance operation is also supported. The included stainless steel U-bracket and rear safety anchoring point provide secure and flexible installation. Like all FBT Shadow speakers, the 112CT is designed and manufactured entirely in Italy for exceptional quality and durability.
FBT Shadow 112CT Key Features:
- Weatherproof Design: IP55-rated for year-round outdoor use in challenging conditions.
- High-Power Audio: 12" coaxial woofer with 2.5" voice coil and 1" HF driver with 1.7" voice coil for exceptional clarity and projection.
- Durable Build: UV-protected rotationally moulded polyethylene enclosure with stainless steel grille and triple-layer water-stop protection.

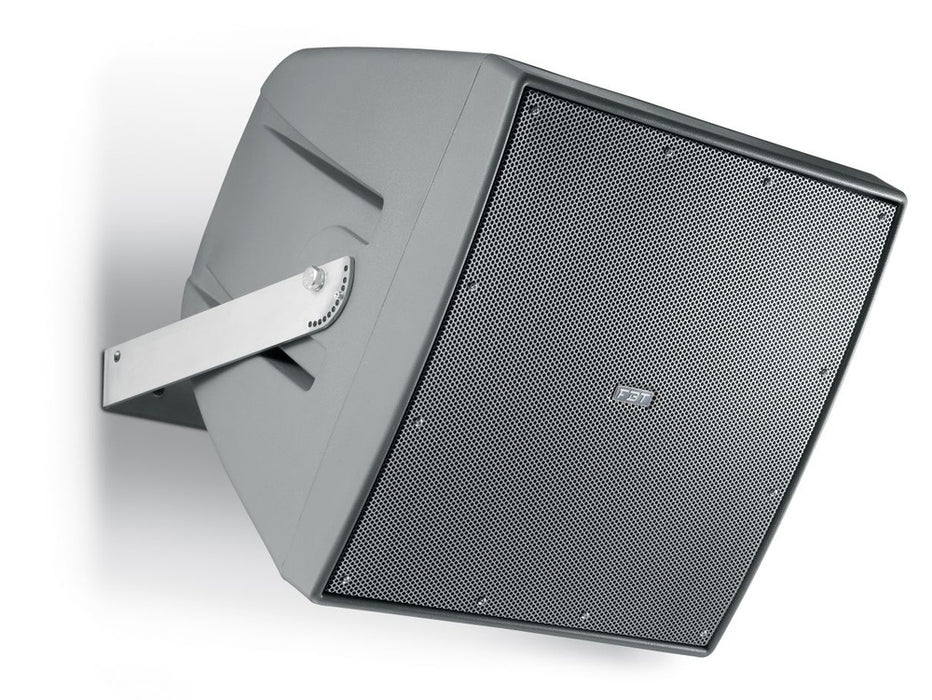

- Flexible Mounting: Supplied with stainless steel U-bracket and rear safety anchoring point for secure installation.
- Versatile Operation: 70V/100V line transformer with selectable power tappings or 8 Ohm low-impedance use.
- Italian Engineering: Designed and manufactured in Italy to the highest professional standards.
SPECS & DOWNLOADS
FBT Shadow 112CT Specifications
Download the PDF Data Sheet HERE >
- Configuration: 2-way coaxial
- Frequency Response: 70Hz – 20kHz
- Low Frequency Woofer: 12" with 2.5" voice coil
- High Frequency Driver: 1" with 1.7" voice coil
- Maximum SPL (Cont/Peak): 124dB / 128dB
- Dispersion: 90° (H x V)
- Input Impedance: 8 Ohm
- Transformer: 70V/100V
- Power Tappings: 200W, 100W
- Crossover Frequency: 1.6kHz
- Input Connector: 4-wire cable
- IP Rating: IP55
- Net Dimensions (W x H x D): 430 x 430 x 400mm (16.92" x 16.92" x 15.74")
- Net Weight: 33kg
- Transport Dimensions (W x H x D): 530 x 530 x 500mm (20.86" x 20.86" x 19.68")
-
Transport Weight: 37kg
