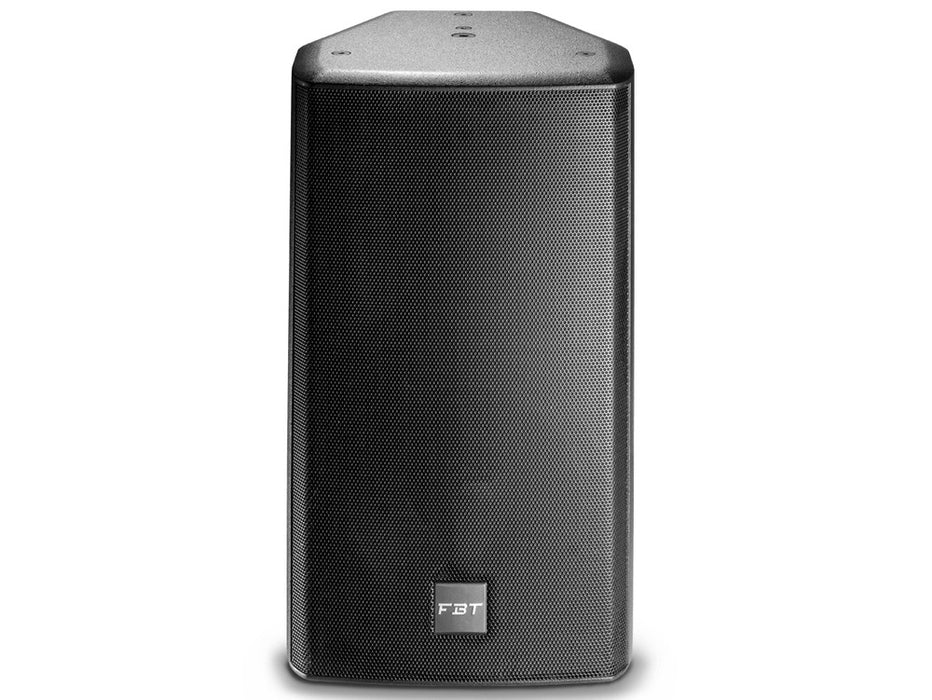

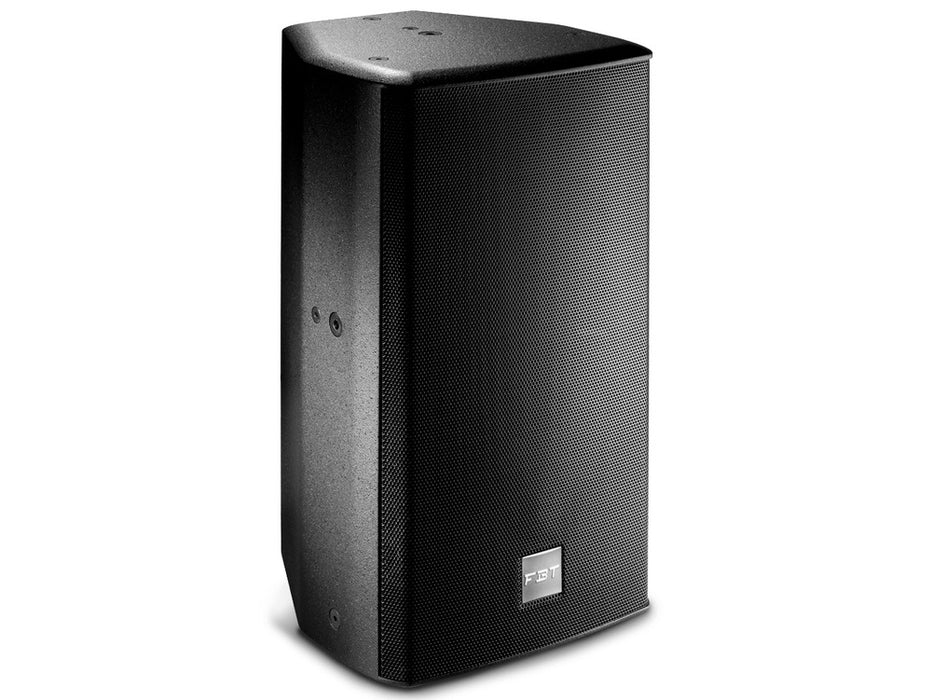

FBT Archon 112 12" Passive 2-Way Loudspeaker, 1000W/8Ω - Black or White

by FBT
SKU 36254
Original price £1,315.00 (inc. VAT) - Original price £1,315.00 (inc. VAT)
Original price £1,315.00 (inc. VAT)
£1,315.00 (inc. VAT)
£1,315.00 (inc. VAT) - £1,315.00 (inc. VAT)
Current price £1,315.00 (inc. VAT)
Colour: Black
DETAILS

Powerful large-format architectural speaker with premium B&C Italian drivers — the FBT Archon 112.

The FBT Archon 112 is a high-performance 2-way passive loudspeaker designed for installations demanding impressive SPL, pristine audio quality and architectural style.

Featuring premium B&C custom-made components — a high-excursion 12” LF woofer with 3” voice coil and a precise 1.4” HF compression driver — this versatile speaker delivers powerful, dynamic sound with exceptional clarity and low distortion, even at high output levels.

The Archon 112’s robust 15mm Baltic birch plywood cabinet comes finished in extra-textured black or white paint as standard, with the option for custom RAL colours and bespoke finishes on request. An acoustically transparent steel grille with protective anti-dust cloth protects the drivers while maintaining a clean, professional look.

For flexible installation, the Archon 112 features a rotatable 70° x 50° constant directivity horn and a repositionable FBT logo badge for consistent coverage whether mounted horizontally or vertically. Twelve M10 rigging points, metal flange threads for U brackets, a top-hat for speaker stands and a rear pocket handle make mounting, flying and positioning easy and secure.

Selectable full-range or bi-amp operation with built-in crossover protection provides system flexibility. For distributed audio systems, an optional 300W line transformer is available, and connection is simple with 2 x Neutrik NL-4 Speakon connectors plus Euroblock terminals.

Perfect for bars, clubs, restaurants, retail spaces, corporate venues and multi-purpose rooms that need a powerful architectural loudspeaker, the Archon 112 easily pairs with dedicated subwoofers such as the Archon 208S or Archon 215S for extended low-end performance.

FBT Archon 112 Key Features:

  • Premium B&C Italian Drivers: Custom high-excursion LF woofer and HF compression driver.
  • Architectural Cabinet: 15mm Baltic birch plywood in black or white, with custom finishes available.
  • Rotatable Horn: 70° x 50° constant directivity for precise coverage.
  • High SPL & Wide Bandwidth: 1000W RMS power handling and up to 133dB SPL peak.
  • Flexible Crossover: Full-range or bi-amp modes with built-in protection.
  • Versatile Mounting: 12 x M10 rigging points, U-bracket threads, speaker stand top hat and rear handle.
  • Professional Connectivity: 2 x NL-4 Speakon plus Euroblock terminals.
  • Optional Line Transformer: 300W transformer available for 100V/70V distributed systems.
  • Outdoor Ready: Optional weatherproof version for exterior installations.
SPECS & DOWNLOADS

FBT Archon 112 Specifications

Download the PDF Data Sheet HERE >

  • Configuration: 2-way passive loudspeaker
  • Recommended Amplifier: 1000W RMS
  • Long Term Power: 500W
  • Short Term Power: 2000W
  • Nominal Impedance: 8 Ohms
  • Frequency Response: 50Hz – 18kHz (-6dB)
  • Low Frequency Woofer: 12” (3” coil) B&C custom woofer
  • High Frequency Driver: 1.4” (2.5” coil) B&C compression driver
  • Sensitivity (@1W/1m): 99dB
  • Maximum SPL (Continuous/Peak): 129dB / 133dB
  • Dispersion (HxV): 70° x 50° rotatable horn
  • Crossover Frequency: 1.6kHz passive or active bi-amp
  • Recommended HP Filter: 40Hz – 24dB/oct
  • Recommended External Filter: Digital management with presets
  • Input Connectors: 2 x Speakon NL-4 (in & thru), 4 x Euroblock terminals
  • Net Dimensions (WxHxD): 365 x 660 x 380mm
  • Net Weight: 22kg (48.5lb)
}
