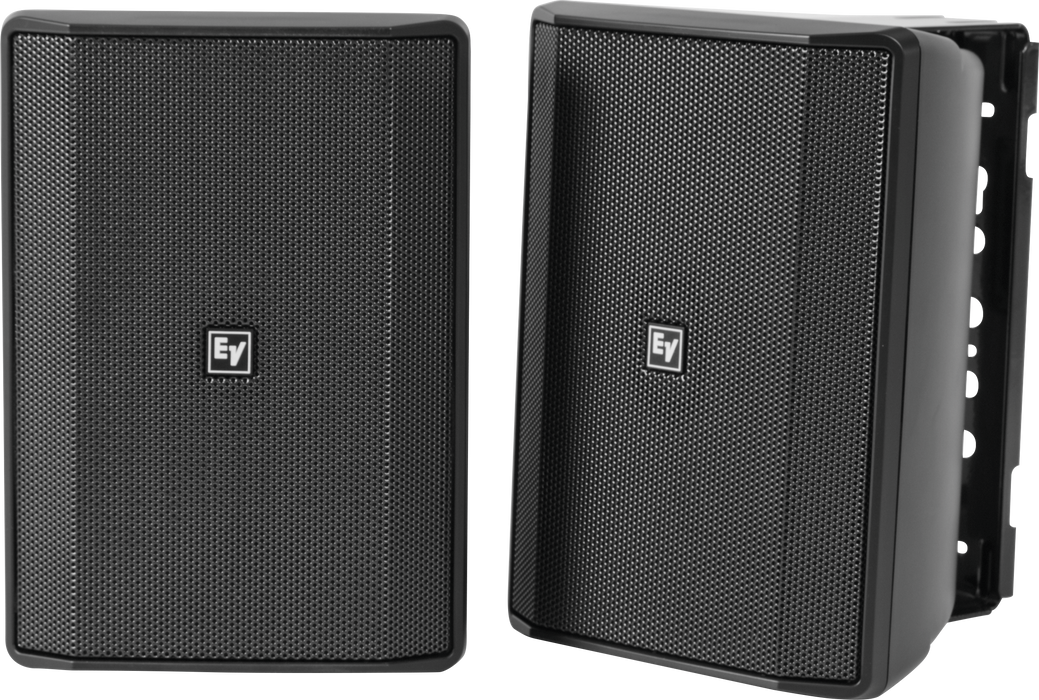

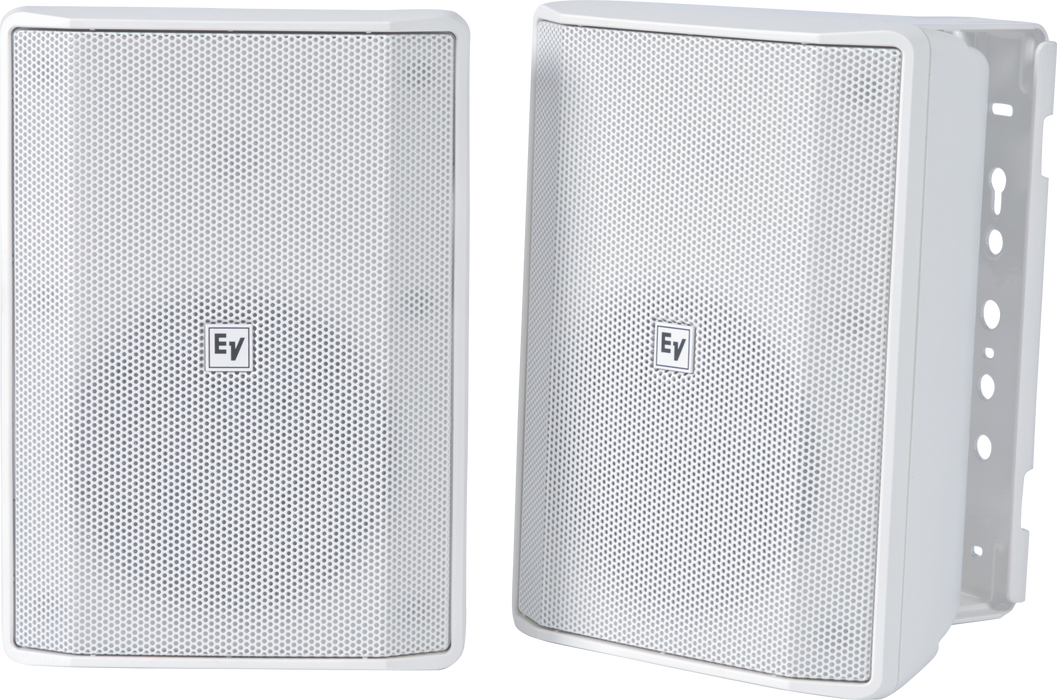

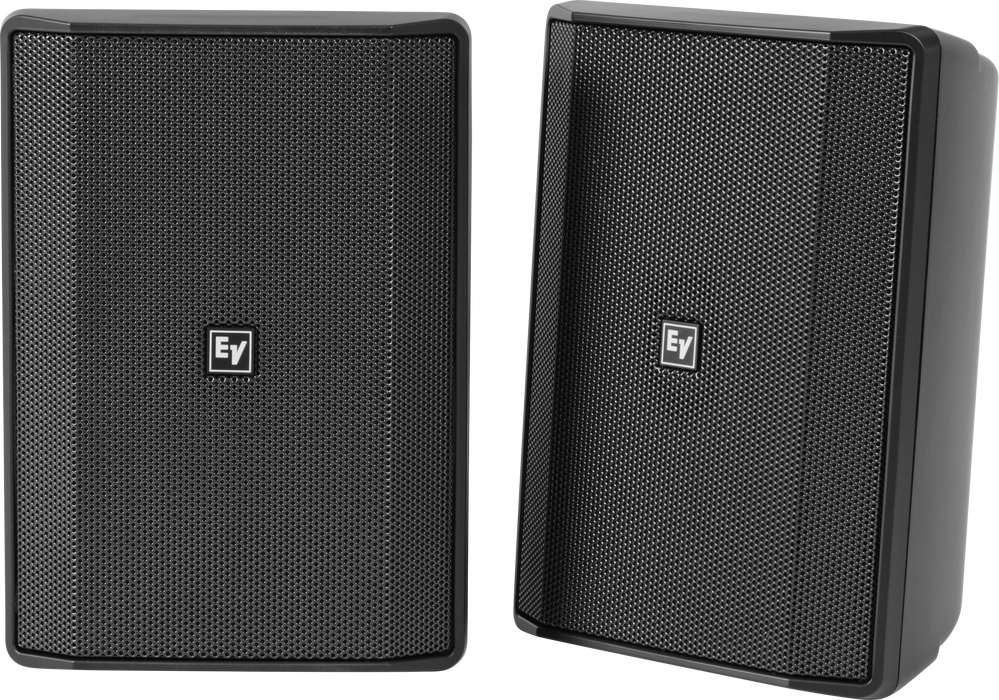

Electro-Voice EVID-S5.2X 5.25" Full-Range IP65 Marine-Grade Wall Speakers 100V/8Ω (Pair) – Black or White
DETAILS
Electro-Voice EVID-S5.2X delivers marine-grade durability and premium sound in black or white finishes.
The Electro-Voice EVID-S5.2X is a two-way, full-range, 5.25" surface-mount loudspeaker designed for professional installations requiring outstanding sound quality and extreme weather resistance. Suitable for both background and foreground music, voice evacuation, paging, and reinforcement, it is an excellent choice for coastal areas, swimming pools, leisure facilities, theme parks, and other challenging environments where performance cannot be compromised.
Engineered with an IP65 rating and a marine-grade aluminium grille, the EVID-S5.2X is built to withstand sun, salt, and moisture, ensuring long-lasting operation even in the harshest conditions. Its UL 94-5VB fire-rated ABS enclosure houses a long-throw woofer and 0.75" tweeter, delivering extended low-frequency response down to 55 Hz and a powerful maximum SPL of 108 dB.
The EVID-S5.2X comes equipped with a versatile U-Bracket, offering up to 80° of rotation for flexible installation on walls or ceilings. A 60W transformer is integrated, allowing selectable 70V/100V operation with taps at 7.5W, 15W, 30W, or 60W, along with an 8Ω bypass for low-impedance systems.
Available in black or white, and easily paintable to match any décor, the EVID-S5.2X integrates seamlessly with other EVID surface-mount, ceiling, and in-wall speakers, providing a complete system solution for distributed audio in both demanding outdoor and indoor applications.
Electro-Voice EVID-S5.2X Key Features:
- Extreme durability: IP65 weather rating with marine-grade aluminium grille.
- High-performance sound: Two-way, full-range 5.25" loudspeaker with uniform 90° x 90° coverage.
- Flexible operation: Built-in 60W transformer with 70V/100V taps and 8Ω bypass.
- Powerful output: 90W power handling and maximum SPL of 108 dB.
- Extended frequency response: Down to 55 Hz for rich, detailed audio.
- Versatile mounting: Supplied with U-Bracket offering up to 80° rotation.
-
Colour options: Available in black or white, with paintable enclosure.
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
Electro-Voice EVID-S5.2X Specifications:
- Frequency Range (-10 dB): 55 Hz – 20 kHz
- Frequency Response (-3 dB): 90 Hz – 20 kHz
- Coverage (H x V): 90° x 90°
- LF Transducer: 5.25" (133 mm) woofer
- HF Transducer: 0.75" (20 mm) tweeter
- Max SPL/1m (calc): 108 dB (114 dB peak)
- Power Handling: 90W (continuous)
- Transformer: 70V/100V (60W) with 7.5W, 15W, 30W, 60W taps + 8Ω bypass
- Sensitivity (1W/1m): 90 dB
- Nominal Impedance: 8Ω
- Minimum Impedance: 6Ω
- Recommended High-Pass Frequency: 60 Hz
- Weatherized: Yes (IP65 per IEC-60529)
- Connector Type: Removable locking 4-pin Euroblock (up to 12 AWG / 2.5 mm²)
- Enclosure Material: UL 94-5VB fire-rated ABS plastic
- Colour: Black or White (paintable)
- Dimensions (H x W x D): 255 x 180 x 148 mm
-
Weight (Net): 3.2 kg
