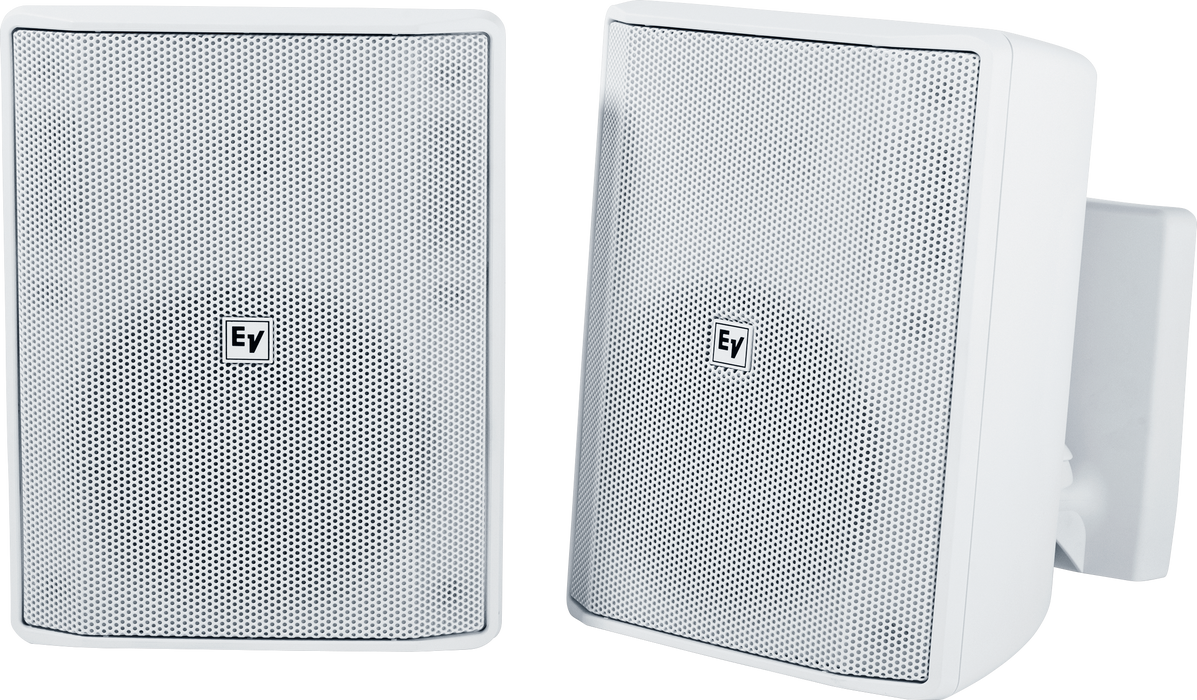

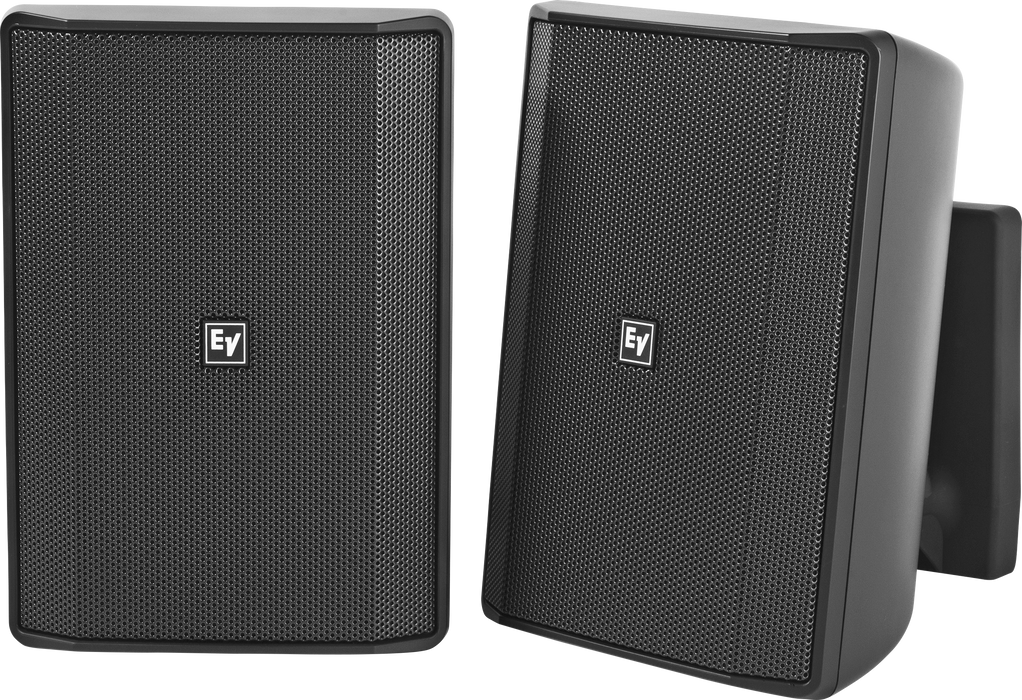

Electro-Voice EVID-S5.2T 5.25" Full-Range IP54 Wall Speakers 100V/8Ω (Pair) – Black or White
DETAILS
Electro-Voice EVID-S5.2T delivers high-performance sound with 100V/8Ω flexibility for indoor and outdoor installations.
The Electro-Voice EVID-S5.2T is a two-way, full-range, 5.25" surface-mount loudspeaker designed for background and foreground music, paging, and sound reinforcement. It offers wide and uniform coverage, making it suitable for a wide range of environments including restaurants, bars, retail spaces, hospitality venues, fitness clubs, leisure facilities, and theme parks.
Featuring a built-in 30W transformer, the EVID-S5.2T provides flexible operation with selectable power taps of 3.7W (70V only), 7.5W, 15W, or 30W on 70V/100V lines, plus an 8Ω bypass for low-impedance use. This versatility makes it an ideal choice for both distributed audio systems and standard low-impedance installations.
Electro-Voice’s innovative mounting system is included, allowing for quick, secure, and reliable installations. The bracket enables 90° horizontal and 45° vertical rotation, and comes pre-assembled for easy wall or ceiling mounting.
Engineered with weather-resistant materials and an IP54 rating, the EVID-S5.2T is built to perform reliably both indoors and outdoors, resisting sun, salt, and moisture. For extreme environments, the EVID-S5.2X offers an upgraded IP65 rating with a marine-grade grille for maximum protection.
Available in black or white, and paintable to blend with any décor, the EVID-S5.2T combines durability, performance, and installation ease to meet the demands of professional audio applications.
Electro-Voice EVID-S5.2T Key Features:
- High-performance design: Two-way, full-range 5.25" surface-mount speaker with uniform coverage.
- Flexible operation: Built-in 30W transformer with selectable 70V/100V taps or 8Ω bypass.
- Innovative mounting system: Pre-assembled bracket allows 90° horizontal and 45° vertical rotation.
- Weather-resistant construction: IP54 rated for reliable indoor and outdoor use.
- Powerful output: 75W power handling and maximum SPL of 109 dB.
-
Aesthetic versatility: Available in black or white, with paintable enclosures to suit any installation.
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
Electro-Voice EVID-S5.2 Specifications:
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Frequency Response (-3 dB): 85 Hz – 20 kHz
- Coverage (H x V): 90° x 90°
- LF Transducer: 5.25" (133 mm) woofer
- HF Transducer: 0.75" (20 mm) tweeter
- Max SPL/1m (calc): 109 dB
- Power Handling: 75W (continuous)
- Transformer: 70V/100V (30W) with 3.7W, 7.5W, 15W, 30W taps + 8Ω bypass
- Sensitivity (1W/1m): 90 dB
- Nominal Impedance: 8Ω
- Minimum Impedance: 6Ω
- Recommended High-Pass Frequency: 60 Hz
- Weatherized: Yes (IP54 per IEC-60529)
- Connector Type: Captive screws on wall bracket, removable locking 4-pin Euroblock (up to 12 AWG / 2.5 mm²)
- Enclosure Material: Fire-rated ABS plastic
- Colour Options: Black or White (paintable)
- Dimensions (H x W x D): 255 x 180 x 151 mm
-
Weight (Net): 3.2 kg
