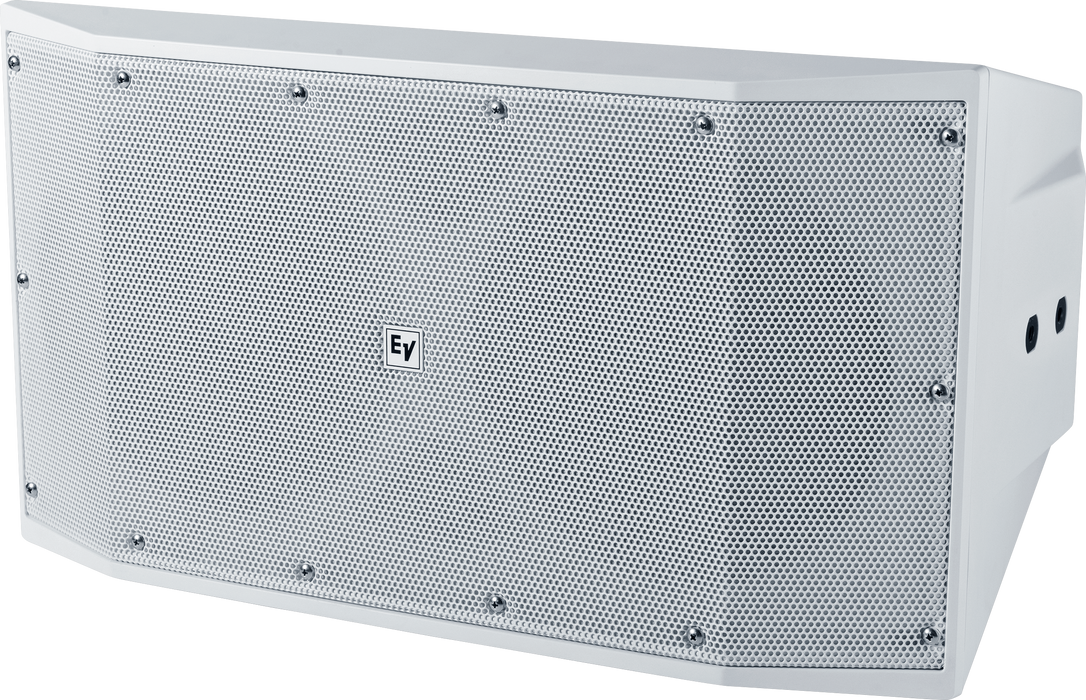

Electro-Voice EVID-S10.1D Dual 10" Passive IP54 Subwoofer 400W 4Ω/8Ω – Black or White

SKU ELEES101DB
Original price £749.00 (inc. VAT) - Original price £749.00 (inc. VAT)
Original price £749.00 (inc. VAT)
£749.00 (inc. VAT)
£749.00 (inc. VAT) - £749.00 (inc. VAT)
Current price £749.00 (inc. VAT)
Colour: Black
DETAILS

Powerful Low-Frequency Performance From Electro-Voice EVID-S10.1D.

The Electro-Voice EVID-S10.1D is a compact, high-performance dual 10" passive subwoofer, designed to deliver rich, powerful bass for commercial and professional sound installations. With 400W continuous power handling and a maximum SPL of 120 dB (126 dB peak), it is a reliable choice for adding impactful low-end extension to background and foreground music systems.

This subwoofer is built to perform in a wide range of indoor and outdoor environments, including bars, restaurants, patios, retail stores, gyms, hospitality venues, and theme parks. Rated IP54 for weather resistance and supplied with port plugs to achieve IP65 protection, the EVID-S10.1D withstands sun, salt, and moisture, making it equally suitable for outdoor and demanding installation conditions.

Engineered for flexibility, the EVID-S10.1D integrates seamlessly with other EVID loudspeakers, including surface-mount, ceiling, and in-wall models, allowing complete system design solutions. Optional accessories include a 70/100V transformer input panel and crossover panel, enabling both low-impedance and constant-voltage distributed audio system integration.

Electro-Voice EVID-S10.1D Key Features:

  • Dual 10" Woofers: High-excursion drivers deliver deep and impactful bass response.
  • Weather Resistant: IP54-rated as standard, upgradable to IP65 with included port plugs.
  • High Power Handling: 400W continuous / 1600W peak with a maximum SPL of 120 dB (126 dB peak).
  • Flexible System Integration: Compatible with optional 70/100V transformer and crossover accessories.
  • Rugged Design: Enclosure and grille engineered to resist sun, salt, and moisture.
  • Versatile Applications: Perfect for restaurants, bars, retail, fitness clubs, hospitality, and leisure venues.
  • Finish Options: Available in black or white to suit different environments.
SPECS & DOWNLOADS

Download the PDF Data Sheet HERE >

Electro-Voice EVID-S10.1D Specifications:

  • LF Transducer: Two 10" (254 mm) high-excursion woofers
  • Frequency Range (-10 dB): 33 Hz – 500 Hz
  • Power Handling (Continuous / Peak): 400W / 1600W
  • Maximum SPL: 120 dB (126 dB peak)
  • Sensitivity (1W/1m): 94 dB
  • Nominal Impedance: Stereo Mode: (2) 8Ω, Mono Mode: (1) 4Ω
  • Recommended High-Pass Frequency: 40 Hz
  • Environmental Specs: IP54 (standard), IP65 (with port plugs fitted)
  • Connector Type: Two removable locking 4-pin Euroblock connectors – Input and Output, max. wire size 12 AWG (2.5 mm)
  • Height: 356 mm
  • Width: 651 mm
  • Depth: 491 mm
  • Weight: 17.9 kg
  • Optional Accessories: 70/100V transformer input panel, crossover input panel
    }
