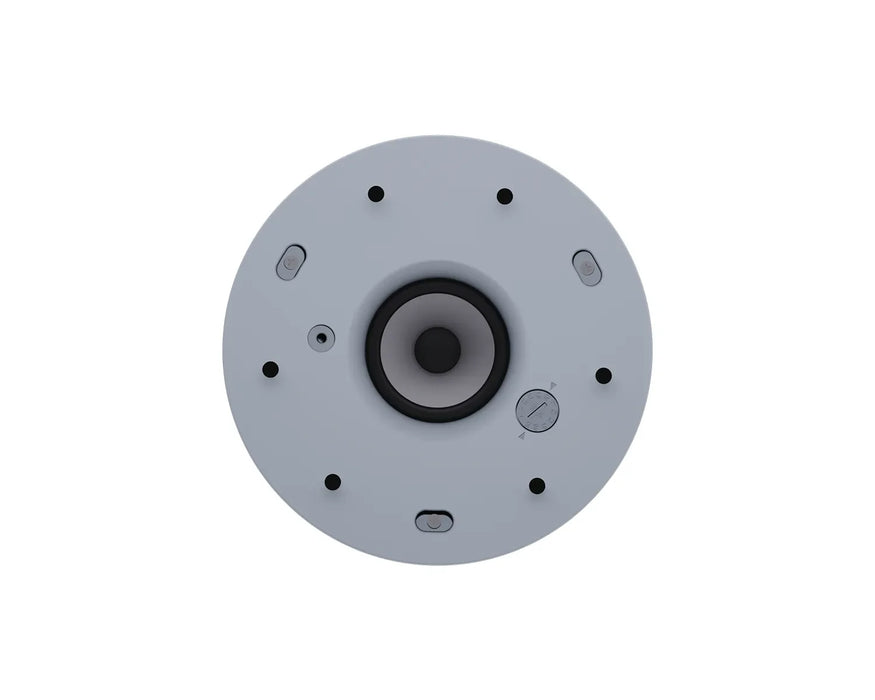

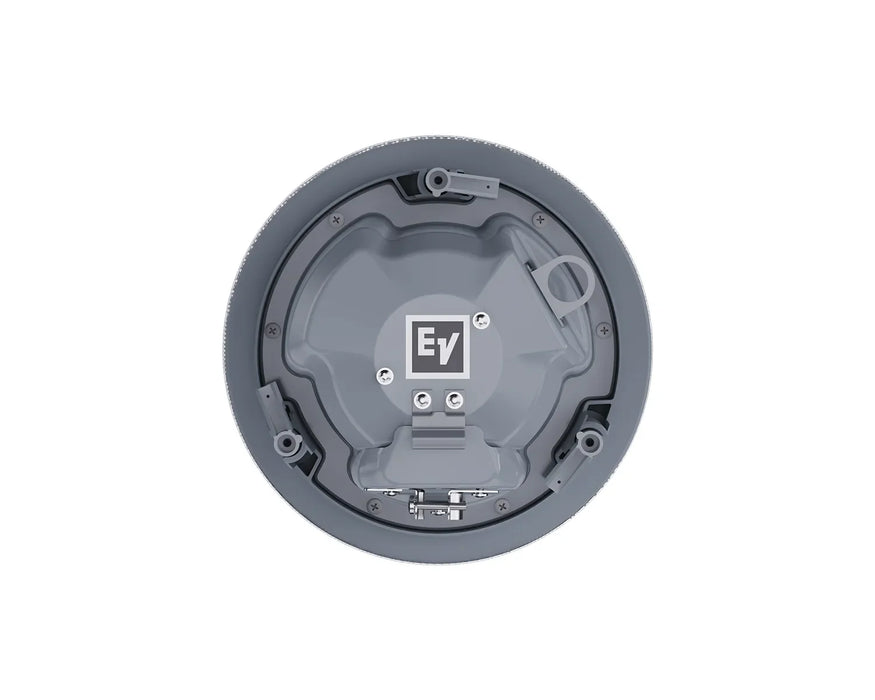

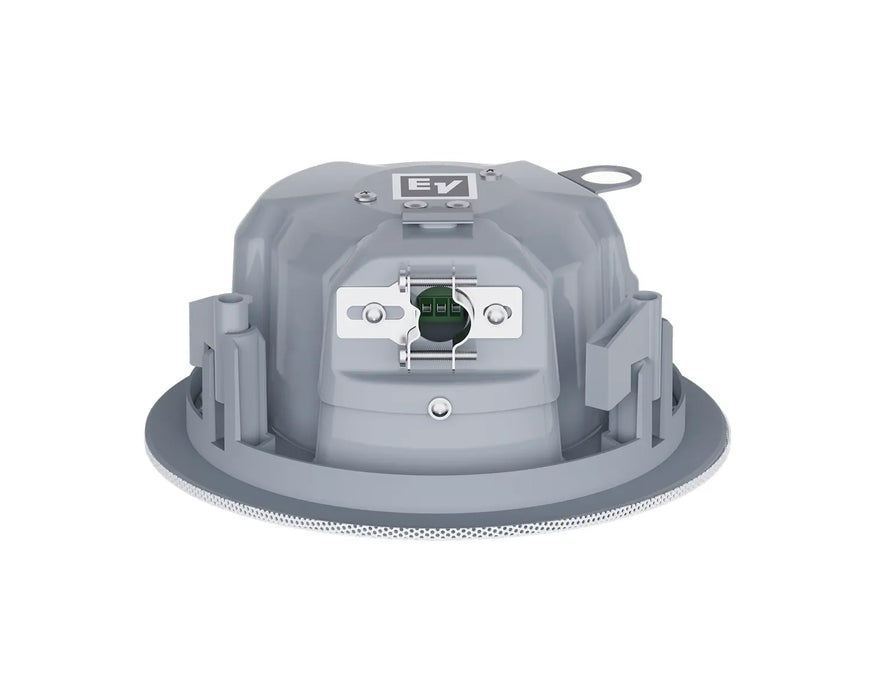

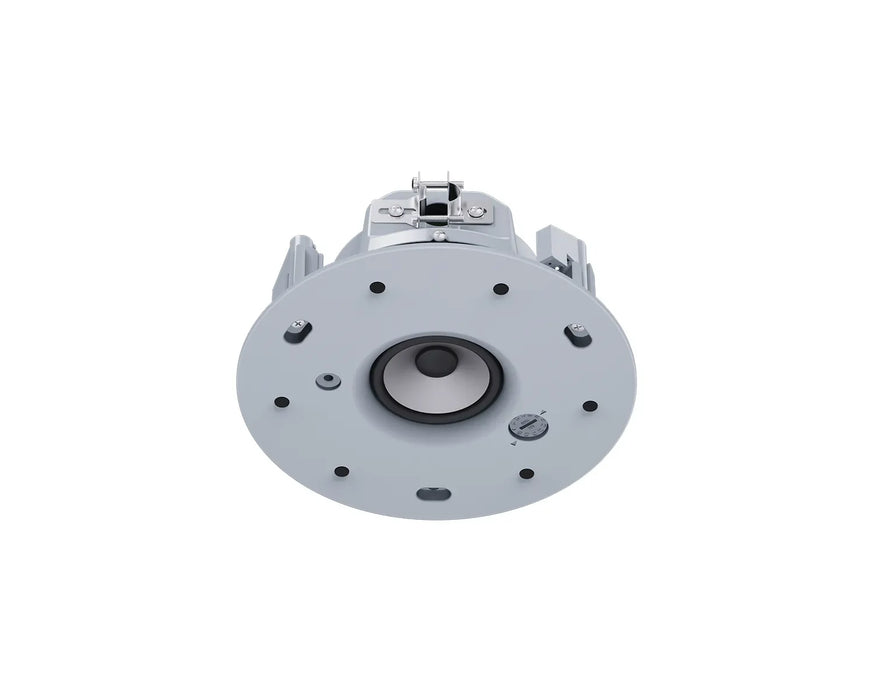

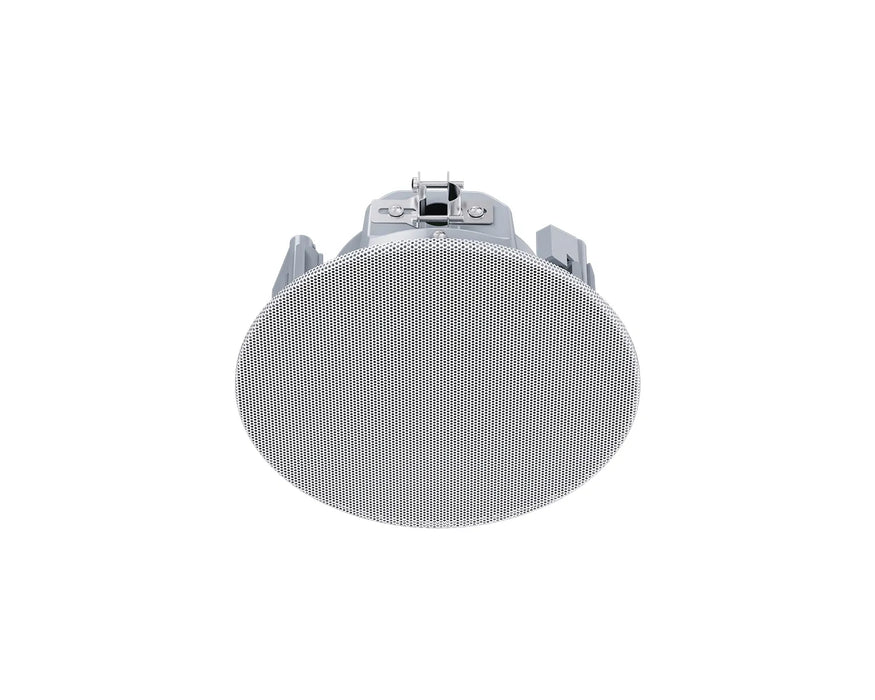

Electro-Voice EVID-EC3.1 3" Ceiling Speaker 100V/8Ω (Single) – White
DETAILS
The Electro-Voice EVID-EC3.1 is a compact 3" coaxial ceiling speaker designed for high-quality audio in bars, restaurants, and commercial spaces.
The Electro-Voice EVID-EC3.1 is a discreet ceiling speaker that combines excellent sound quality with reliable performance and a stylish, bezel-less design. Compact and versatile, it is ideal for hospitality environments such as bars, restaurants, and cafés where clear background music and voice reproduction are essential. It also suits a wide range of commercial installations, including offices, retail stores, schools, and public spaces.
Offering a frequency range of 90 Hz – 19 kHz and a wide 135° conical coverage pattern, the EVID-EC3.1 ensures even sound distribution across the room. A convenient front baffle wattage tap adjustment makes it easy to select between 70V/100V line operation or 8-ohm low-impedance use, giving flexibility for system integration.
Designed for straightforward installation, the speaker comes supplied with a tile bridge and C-ring for use in suspended ceilings. Its low-profile housing allows mounting in tight ceiling spaces, while the durable steel rear enclosure and powder-coated grille provide strength and longevity. With an IP45 rating and UL safety certifications, the EVID-EC3.1 is built to withstand demanding commercial environments.
Electro-Voice EVID-EC3.1 Key Features:
- Compact design : 3" coaxial ceiling speaker with a modern bezel-less grille
- Flexible power options : 70V/100V line with selectable taps or 8-ohm bypass
- Wide coverage : 135° conical dispersion for consistent sound across rooms
- Easy installation : Front baffle tap adjustment, tile bridge, and C-ring included
- Durable construction : Heavy-duty steel rear enclosure and powder-coated grille
-
Certified safety : UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 compliant
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
Electro-Voice EVID-EC3.1 Specifications:
- Frequency Range (-10 dB) : 90 Hz – 19,000 Hz
- Maximum SPL (Continuous/Peak) : 100 dB / 106 dB
- Sensitivity (1 W, 1 m) : 84 dB SPL
- Coverage Angle : 135° conical
- Power Handling (Continuous/Peak) : 40 W / 160 W
- Long Term Power Handling (Continuous/Peak) : 25 W / 100 W
- Nominal Impedance : 8 Ω
- Recommended High-Pass Filter : 110 Hz
- Transformer Taps 70 V Line : 15 W, 7.5 W, 3.75 W, 1.88 W, 0.9 W
- Transformer Taps 100 V Line : 15 W, 7.5 W, 3.75 W, 1.88 W
- LF Transducer Size : 3 in

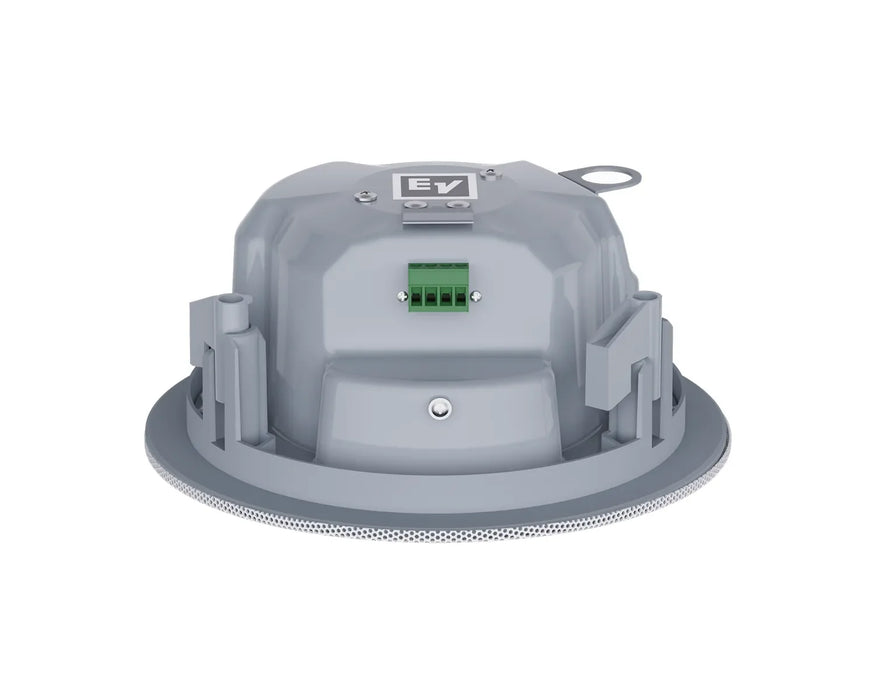

- Connector Type : 4-pin Euroblock, Input + Pass-through
- Max Wire Size : 12 AWG / 3.3 mm²
- Grille Material : Powder-coated steel
- Colour : White (RAL 9003 Signal White), custom colours available
- Mounting Cutout : 183 mm (7.2 in)
- Dimensions (Ø x D) : 212 mm x 98.3 mm (8.4 in x 3.9 in)
- Mounting Depth : 93 mm (3.7 in)
- Ceiling Thickness : 12.5 mm – 38 mm (0.5 in – 1.5 in)
- Weight : 2.1 kg (4.6 lb)
- IP Rating : IP45
-
Operating Temperature : 0 °C – 50 °C (32 °F – 122 °F)
