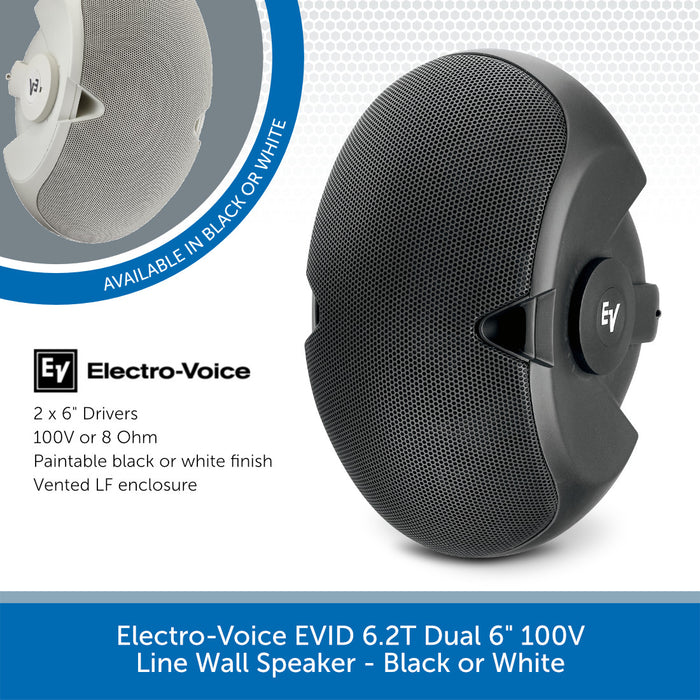

Electro-Voice EVID-6.2T Dual 6" Wall Speakers 100V/8Ω (Pair) – Black or White
DETAILS
Electro-Voice EVID-6.2T delivers extended-range sound for larger indoor and outdoor venues.
The Electro-Voice EVID-6.2T is a dual 6" extended-range wall-mount loudspeaker designed for installations that require powerful, high-quality sound in larger environments. Its extended bass response and smooth performance make it ideal for use in shopping malls, sports bars, health clubs, restaurants, and other commercial spaces where consistent, wide-area coverage is essential.
This model incorporates a three-dimensional elliptic baffle that houses two 6" low-frequency drivers alongside a centrally positioned 1" titanium high-frequency element with a Coherent Coverage Waveguide. The careful driver arrangement provides superior coverage control, delivering balanced sound with reduced lobing and interference across the listening area.
Constructed from weather-resistant ABS plastic with a curved grille, the EVID-6.2T is suitable for both indoor and outdoor installations. With an IP34 rating, it offers protection against humidity, UV, and light rain. The Strong-Arm Mount™ system allows for flexible installation with wide horizontal and vertical aiming options, while full-bandwidth overload protection ensures reliable performance.
The transformer-equipped “T” version supports 70V/100V distributed audio systems with selectable power taps, alongside an 8Ω bypass for low-impedance operation. Available in black or white, the enclosure can also be painted to blend seamlessly into any setting.
Electro-Voice EVID-6.2T Key Features:
- Dual 6" design: Extended-range two-way loudspeaker with enhanced low-end performance.
- High-frequency driver: 1" titanium diaphragm HF driver with neodymium magnet for clarity.
- Controlled coverage: Coherent Coverage Waveguide ensures 100° x 80° dispersion.
- Weather-resistant enclosure: ABS housing with curved grille, paintable in black or white.
- Flexible mounting: Strong-Arm Mount™ for versatile positioning (100° x 90°).
- Transformer version: Selectable 70V/100V power taps with 8Ω bypass option.
- Full protection: Built-in LF and HF overload protection for reliability.
- Installation ready: Includes Strong-Arm Mount™ and hex key for secure setup.
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
Electro-Voice EVID 6.2T Specifications
- Impedance: 8Ω
- Frequency Response (-10 dB): 62 Hz – 20 kHz
- Power Handling: 300 W continuous program / 600 W peak
- Maximum SPL: 118 dB
- Coverage (H x V): 100° x 80°
- Crossover Frequency: 1.6 kHz
- LF Transducer: 2 × 6" (150 mm)
- HF Transducer: 1" (25 mm) titanium diaphragm
- Protection: Full system overload protection
- Weather Resistance: IP34, MIL Spec 810 (humidity, salt spray, UV, temperature)
- Mounting Adjustment (Swing x Rotation): 100° × 90°
- Terminals: Phoenix connector
- Transformer Taps: 70V: 7.5 W, 15 W, 30 W, 60 W / 100V: 15 W, 30 W, 60 W / 8Ω bypass
- Enclosure Material: ABS plastic (paintable)
- Dimensions (H × W × D): 419 × 228 × 298 mm (16.5 × 9 × 11.75 in)
- Net Weight (each): 5.3 kg (12 lbs)
- Shipping Weight (pair): 12.3 kg (27 lbs)
-
Included Accessories: Strong-Arm Mount™, hex key
