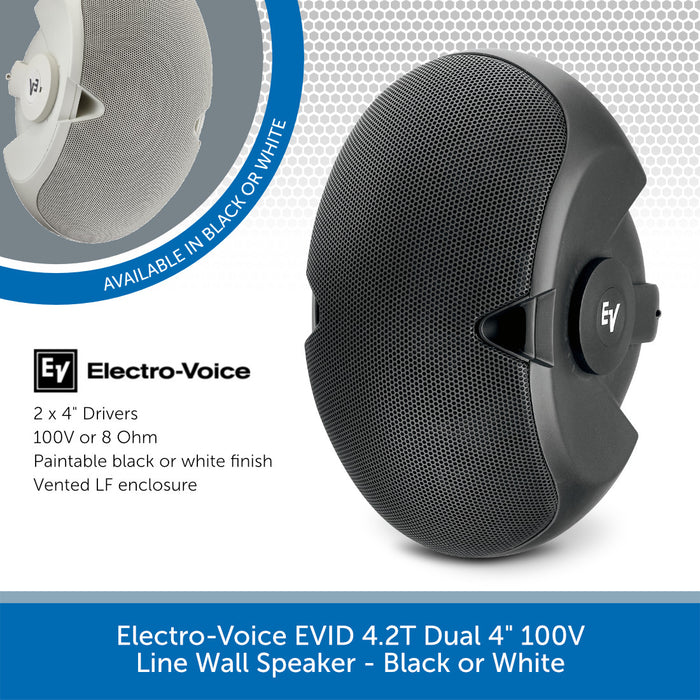

Electro-Voice EVID-4.2T Dual 4" Wall Speakers 100V/8Ω (Pair) - Black or White
DETAILS
Electro-Voice EVID-4.2T delivers compact, high-quality sound for indoor and outdoor installations.
The Electro-Voice EVID-4.2T is a dual 4" full-range surface-mount loudspeaker designed for high-performance background and foreground music, paging, and sound reinforcement. With its compact design, it is an excellent solution for restaurants, bars, patios, retail environments, and other venues that demand high-quality audio without compromising aesthetics.
Featuring a three-dimensional elliptic baffle, the EVID-4.2T integrates two 4" low-frequency drivers and a centrally positioned 1" titanium high-frequency element with a Coherent Coverage Waveguide. This configuration ensures consistent, controlled coverage with minimal interference, providing smooth and balanced sound across a wide listening area.
The enclosure is constructed from weather-resistant ABS with a curved grille, making it suitable for both indoor and outdoor use. With an IP34 rating, it offers protection against humidity, UV exposure, and light rain, while the Strong-Arm Mount™ system allows for precise and flexible installation with a wide range of aiming angles.
The transformer-equipped “T” version allows operation in 70V/100V distributed audio systems with selectable power taps, as well as an 8Ω bypass option for low-impedance use. Available in black or white and paintable to match décor, the EVID-4.2T is a versatile and discreet loudspeaker solution for commercial audio installations.
Electro-Voice EVID-4.2T Key Features:
- Dual 4" design: Compact two-way speaker system with extended LF response.
- High-frequency driver: 1" titanium diaphragm HF driver with neodymium magnet for clear highs.
- Wide coverage: Coherent Coverage Waveguide ensures 120° x 80° dispersion.
- Weather-resistant enclosure: Elliptical ABS housing with curved grille, paintable in black or white.
- Flexible mounting: Strong-Arm Mount™ system provides up to 100° x 90° adjustment.
- Transformer version: Selectable 70V/100V taps with 8Ω bypass for system flexibility.
- Durability: Full-bandwidth overload protection for LF and HF.
-
Video-friendly: Magnetically shielded for use near displays.
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
Electro-Voice EVID-4.2T Specifications
- Impedance: 8Ω
- Frequency Response (-10 dB): 65 Hz – 20 kHz
- Power Handling: 200 W continuous program / 400 W peak
- Maximum SPL: 113 dB
- Coverage (H x V): 120° x 80°
- Crossover Frequency: 2.2 kHz
- LF Transducer: 2 × 4" (100 mm)
- HF Transducer: 1" (25 mm) titanium diaphragm
- Protection: Full system overload protection
- Weather Resistance: IP34, MIL Spec 810 (humidity, salt spray, UV, temperature)
- Mounting Adjustment (Swing x Rotation): 100° × 90°
- Terminals: Phoenix connector
- Transformer Taps: 70V: 3.75 W, 7.5 W, 15 W, 30 W / 100V: 7.5 W, 15 W, 30 W / 8Ω bypass
- Enclosure Material: ABS plastic (paintable)
- Dimensions (H × W × D): 234 × 127 × 165 mm (12.2 × 6.9 × 8.5 in)
- Net Weight (each): 3.9 kg (8.5 lbs)
- Shipping Weight (pair): 8.6 kg (19 lbs)
-
Included Accessories: Strong-Arm Mount™, hex key
