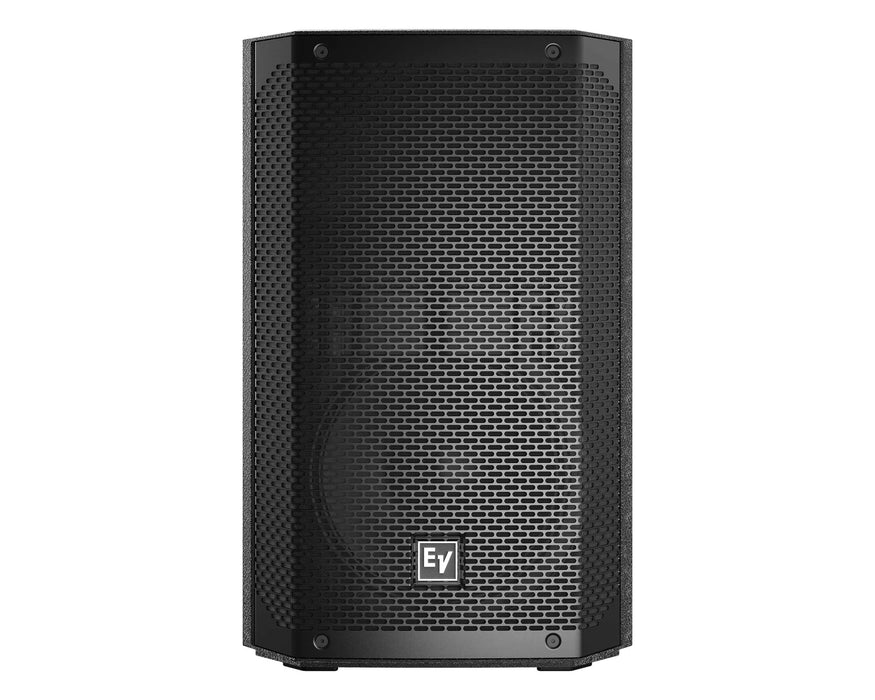

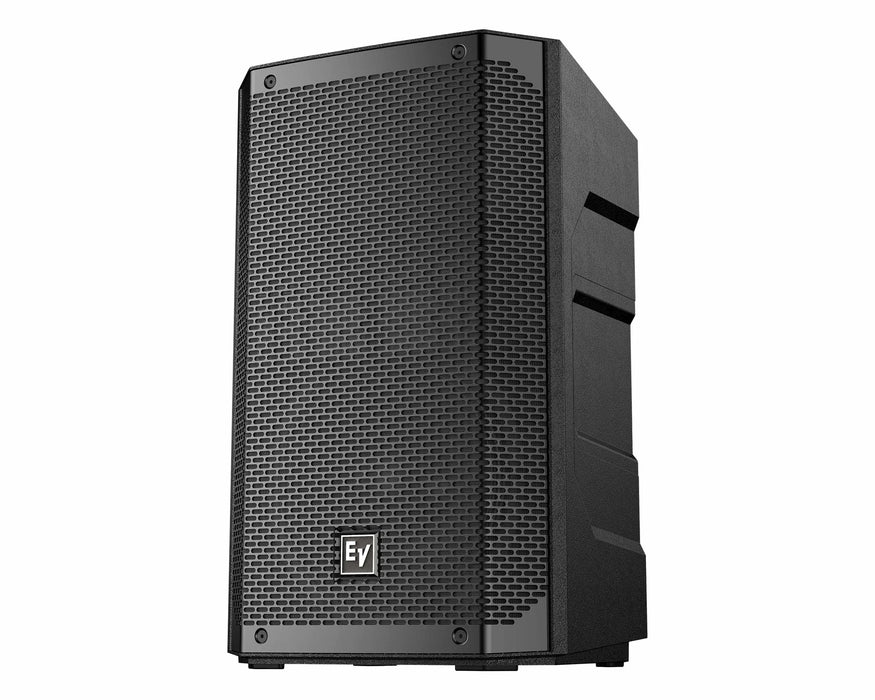

Electro-Voice ELX200-10 10" 2-Way Passive PA Speaker 8Ω (Black)

SKU ELEELX20010
Original price £349.00 (inc. VAT) - Original price £349.00 (inc. VAT)
Original price £349.00 (inc. VAT)
£349.00 (inc. VAT)
£349.00 (inc. VAT) - £349.00 (inc. VAT)
Current price £349.00 (inc. VAT)
DETAILS

Electro-Voice ELX200-10 Black is a compact, passive 10" PA speaker built for professional performance.

The Electro-Voice ELX200-10 Black is a versatile passive loudspeaker designed for small to medium-sized live sound applications, portable setups, and fixed installations.

Built with a high-strength composite enclosure and tested far beyond industry standards, this speaker delivers durability as well as excellent audio performance.

With a peak power handling of 1200W and a maximum SPL of 127 dB, the ELX200-10 Black provides clear, detailed sound at high volumes. The combination of a 10-inch EVS-10M woofer and 1-inch DH-1L titanium compression driver, coupled with Electro-Voice’s patented Signal Synchronized Transducers (SST) waveguide, ensures consistent coverage, extended frequency response, and reduced distortion.

Practical design features include a lightweight enclosure, ergonomic handles, integrated pole mounts, and three M10 suspension points for flexible installation. Rugged and reliable, the ELX200-10 Black is a professional-grade passive speaker suited to live music venues, rehearsal spaces, houses of worship, and corporate events.

Electro-Voice ELX200-10 Key Features:

  • Powerful Output: 1200W peak power handling with 127 dB maximum SPL.
  • Premium Drivers: EVS-10M woofer and DH-1L titanium compression driver.
  • SST Waveguide: Patented design ensures consistent coverage and low distortion.
  • Durable Build: Lightweight polypropylene composite cabinet with steel grille.
  • Flexible Mounting: Three M10 suspension points and integrated pole mount.
  • Professional Design: Ergonomic handles and rugged construction for portability.
  • Colour Options: Available in black or white finishes.
SPECS & DOWNLOADS

Download the PDF Data Sheet HERE >

Electro-Voice ELX200-10 Specifications:

    • Speaker Type: Full-range passive loudspeaker
    • Power Handling (Continuous/Peak): 300W / 1200W
    • Nominal Impedance: 8Ω
    • Minimum Impedance: 7.2Ω
    • Max SPL (Calculated): 127 dB
    • Axial Sensitivity: 90 dB (1 W/1 m)
    • Frequency Response (-3 dB): 65 Hz – 20 kHz
    • Frequency Range (-10 dB): 49 Hz – 22 kHz
    • Coverage (H x V): 90° x 60°
    • Crossover Frequency: 2 kHz
    • LF Driver: 10" EVS-10M woofer
    • HF Driver: DH-1L 1" titanium compression driver
    • Connectors: Dual NL4
    • Enclosure Material: Polypropylene composite
    • Grille: 18 AWG steel with powdercoat
    • Suspension: 3 x M10 mounting points
    • Dimensions (H x W x D): 531 x 330 x 319 mm
    • Weight: 13.4 kg (Net), 15.3 kg (Shipping)
    • Colour Options: Black or White
    }
