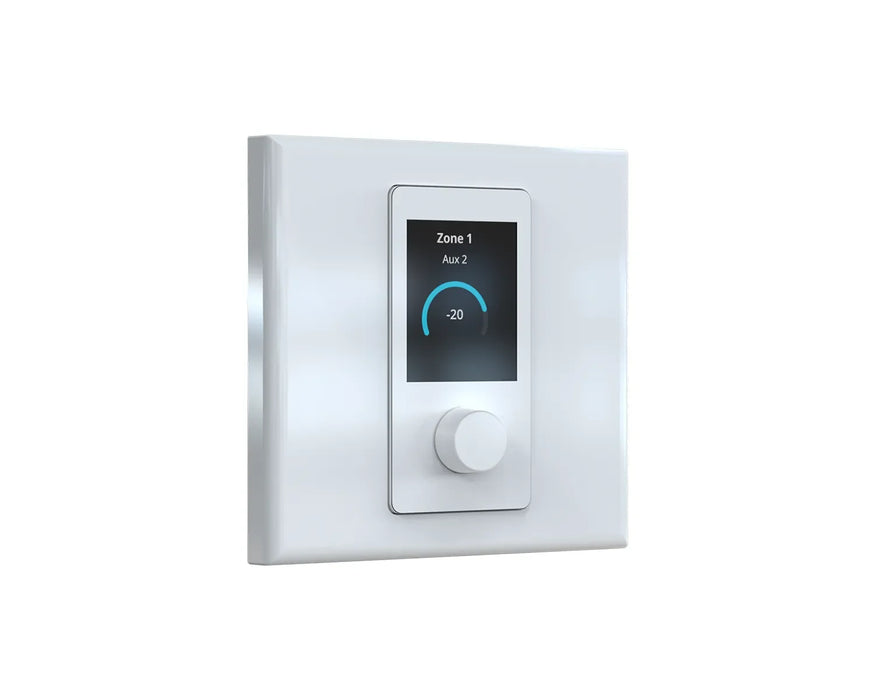

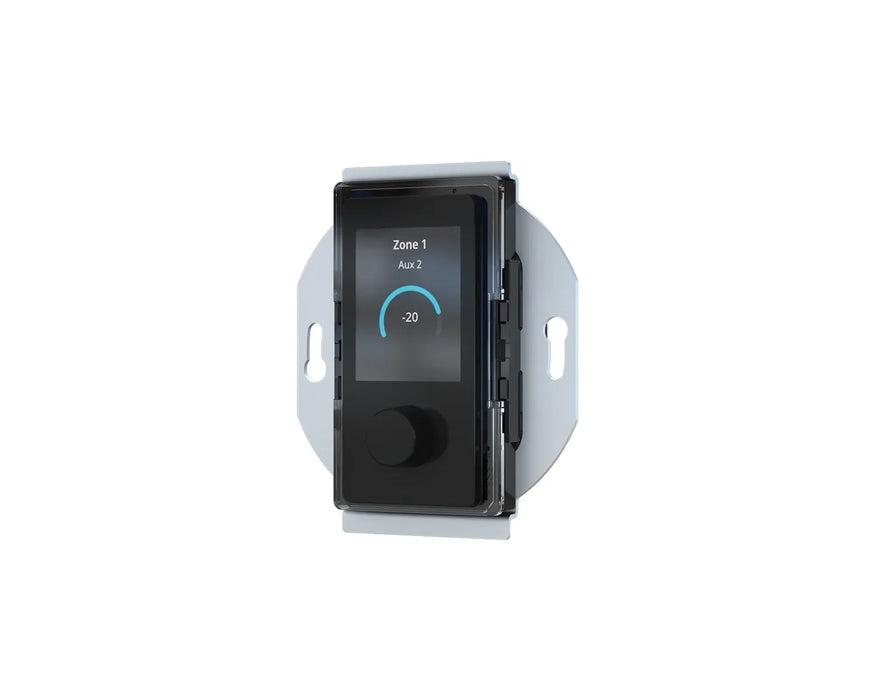

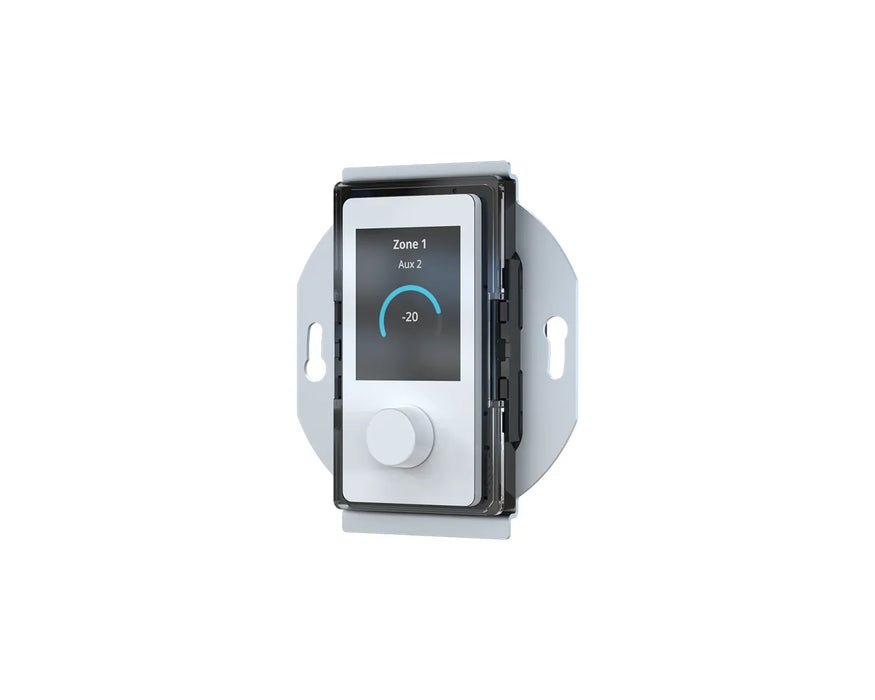

Dynacord VWP Wall Panel Controller with 1.77" Colour Display - Black & White Fascia
The Dynacord VWP is a Wall Panel Controller with a 1.77" colour TFT display and rotary encoder providing level, zone, source and media playback control — daisy-chainable up to 16 units, supplied with both black and white interchangeable fascias and powered directly from the VZX-8 accessory bus for seamless integration into the Dynacord V Series Zone Audio Platform.
The Dynacord VWP Wall Panel Controller is the local user interface component of the V Series Zone Audio Platform — providing intuitive, easy-to-use control of audio levels, zones, sources and media playback directly from any room or zone location within a commercial installation. Designed to work seamlessly with the VZX-8 Zone Audio Processor, the VWP connects directly to the VZX-8's accessory bus via RJ45 and is powered by the same connection — eliminating the need for separate power supplies or complex wiring at each controller location. Up to 16 VWP controllers can be connected to a single VZX-8 processor via daisy chain, providing local control at every zone in even the most extensive commercial installation.
Clear Colour TFT Display & Rotary Encoder
The VWP features an easy-to-read 1.77" colour TFT display at 160 x 128 pixel resolution with 480cd/m² brightness — providing clear, legible system status and control information in any ambient lighting condition. A 24-detent 360° continuous push-button rotary encoder provides smooth, precise and intuitive control of level, mute, zone, source and media player functions, with a user-friendly interface that requires minimal training for day-to-day operation by non-technical staff. Unicode support for over 150 languages ensures the VWP can display system information and labels in any language required for international and multilingual commercial environments.
Flexible Access Control & Security
The VWP can be configured with a 4-digit PIN lock and multiple user profiles providing different levels of access — allowing system administrators to restrict certain controls or functions to authorised users whilst giving general users access to the everyday level and source controls they need. This makes the VWP particularly practical in commercial environments such as hotels, restaurants and retail spaces where the audio system may be accessed by multiple staff members with different responsibilities.
Aesthetic Flexibility & Simple Installation
The VWP's front panel is available in white as standard and is interchangeable to black — ensuring aesthetic flexibility to match any interior décor without the need to order a different model. Wall mounting uses a standard 60mm diameter electrical back box (minimum 60mm deep) alongside a standard 1-gang Decora wall plate available from any electrical supply store, keeping installation hardware costs to a minimum. The VWP's daisy-chain RJ45 in and out connectors allow multiple controllers to be connected in sequence using standard CAT cable, with CAN termination plugs provided for correct bus termination at the last device on each accessory line.
Dynacord VWP Key Features:
- 1.77" Colour TFT Display: 160 x 128 pixel, 480cd/m² brightness — clear and legible in any ambient lighting condition.
- 24-Detent Rotary Encoder: Smooth, precise and intuitive control of level, mute, zone, source and media playback.
- Level, Zone, Source & Media Playback Control: Complete local audio system management from any room or zone location.
- Powered by VZX-8 Accessory Bus: No separate power supply required — RJ45 connection provides both data and power.
- Daisy-Chainable — Up to 16 Units: Connect up to 16 VWP controllers to a single VZX-8 processor via standard CAT cable.
- 4-Digit PIN Lock & User Profiles: Configurable access control for multi-user commercial environments.
- Unicode Support for 150+ Languages: Multilingual display support for international commercial installations.

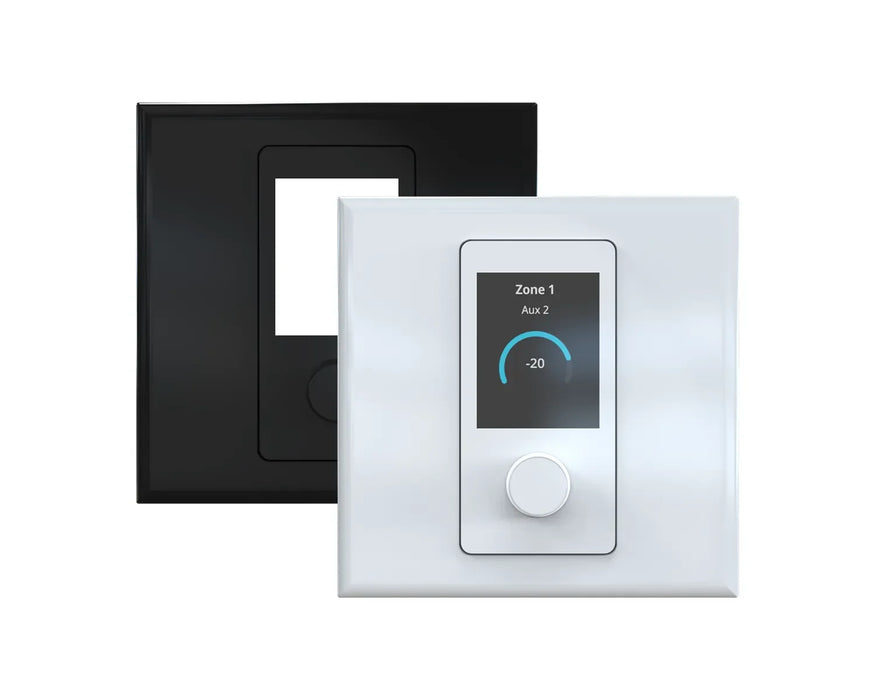

- Supplied with Black & White Interchangeable Fascias: Both colour options included as standard — no need to order separately.
- Standard Electrical Back Box Mounting: Compatible with standard 60mm diameter back boxes and 1-gang Decora wall plates.

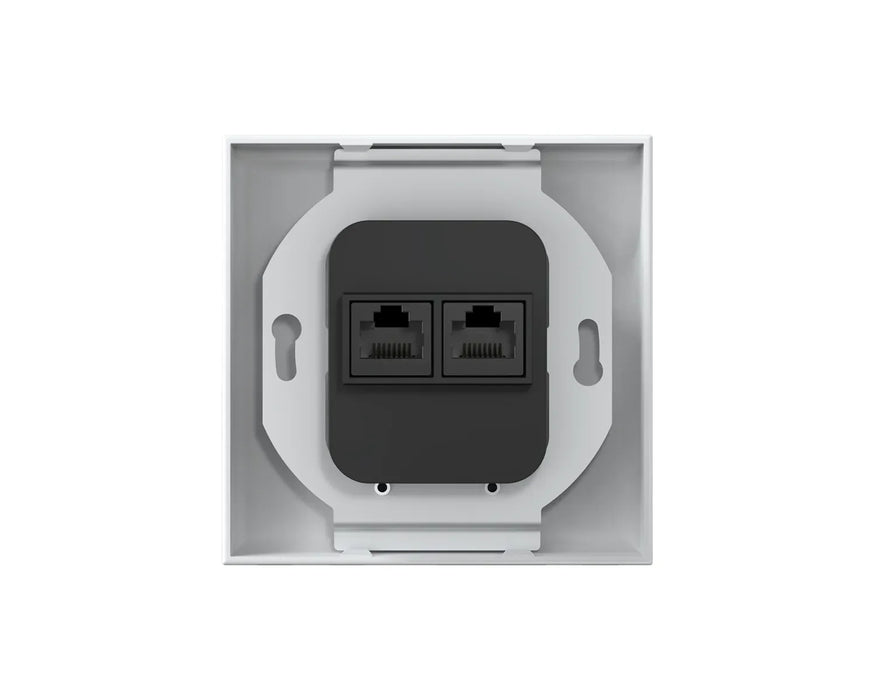

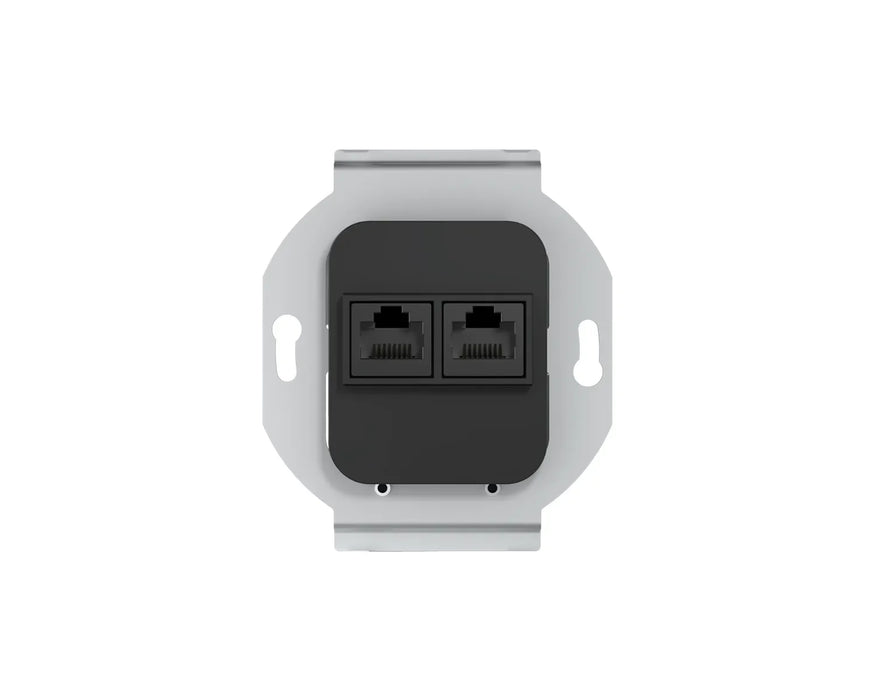

- RJ45 In & Out Connectors: Daisy-chain connectivity with included CAN termination plugs.
- Operating Temperature +5°C to +40°C: Suitable for a wide range of commercial indoor environments.
-
Seamless V Series Integration: Designed specifically for use with the Dynacord VZX-8 Zone Audio Processor.
