2 x Bose L1 Pro16 Portable Line Array Column PA Systems
DETAILS
The Bose L1 Pro16 Pair delivers powerful portable sound, extended bass, and flexible coverage for medium to large venues.

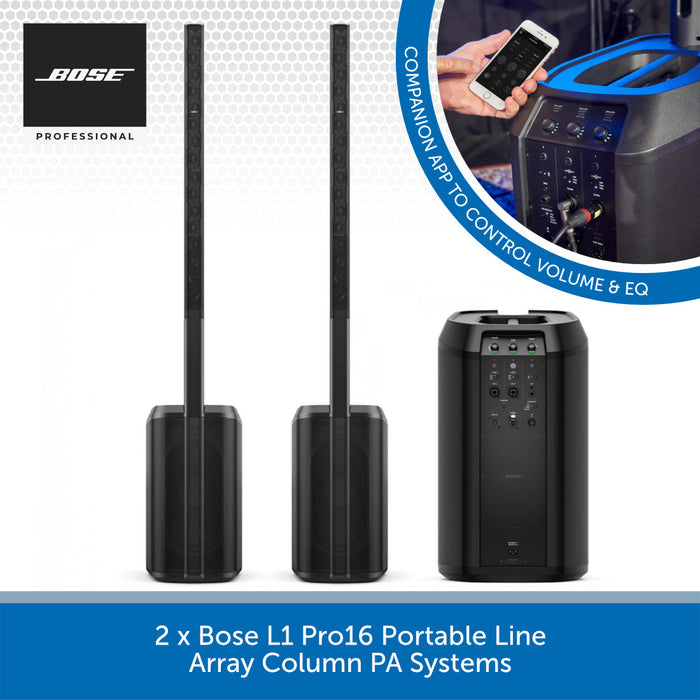

This package includes two Bose L1 Pro16 Portable Line Array Column PA Systems, offering performers, DJs, and small groups a powerful yet portable setup for larger events or for use as a stereo system. Having two units ensures wider coverage, more dynamic sound, and the flexibility to use them together or separately depending on the event size and venue.
Each L1 Pro16 features a J-shaped line array with 16 articulated 2-inch neodymium drivers. This design provides 180° horizontal coverage, with tight vertical control at the top and wide dispersion at the bottom, ensuring consistent sound whether the system is placed on the floor or on an elevated stage. When paired, the two systems deliver exceptional clarity across medium to large performance spaces such as live music venues, houses of worship, function rooms, and corporate events.
Both systems include a built-in subwoofer with Bose’s innovative 10" × 18" RaceTrack driver. This slim design produces bass performance comparable to a conventional 15-inch woofer but in a lighter, more compact enclosure. This means transporting and setting up the pair is easy, while still delivering powerful low-end response for DJs and performers who need impact and depth.
Each L1 Pro16 features a three-channel onboard mixer with two phantom-powered XLR/TRS combo inputs, 6.4 mm and 3.5 mm aux inputs, plus Bluetooth streaming. Illuminated rotary encoders provide quick control of volume, tone, and reverb. Additional sources can be connected through the ToneMatch port, allowing seamless integration with Bose T4S or T8S mixers for expanded setups.
With the Bose Music app, you can control both systems wirelessly from your smartphone or tablet. This makes it easy to adjust the sound in real time while moving around the venue, ensuring professional-quality results from every angle.
The 2 x Bose L1 Pro16 package is ideal for performers who need the flexibility of two professional PA systems — whether used together for maximum coverage or independently for separate events.
Bose L1 Pro16 Key Features:
- Complete PA Package: Includes 2 × Bose L1 Pro16 systems for stereo sound or dual-use setups.
- J-Shaped Line Arrays: Each system uses 16 articulated 2" drivers for 180° horizontal coverage.
- Built-In Subwoofers: 10" × 18" RaceTrack drivers deliver bass comparable to 15" woofers.
- Onboard 3-Channel Mixers: Connect microphones, instruments, aux devices, or stream via Bluetooth.
- Phantom Power: Available on channels 1 and 2 of each system.
- System EQ Presets: Optimised modes for live music, recorded playback, or speech.
- Wireless Control: Full real-time mixer control via the Bose Music app.
-
Portable & Practical: Easy to transport and set up, even with two systems.
SPECS & DOWNLOADS
Download the Owner's Guide HERE >
Bose L1 Pro16 Specifications
- Model Name: L1 Pro16
- Product Code: 840920-2100
- Frequency Response: 42Hz – 16kHz (-3dB)
- Frequency Range: 31Hz – 18kHz (-10dB)
- Horizontal Coverage: 180°
- Vertical Coverage: 0° / 30° (J-shape)
- Maximum SPL: 118dB Continuous / 124dB Peak @ 1m
- Crossover: 200Hz
- Low Frequency Driver: 1 × 10" × 18" RaceTrack woofer
- High/Mid Drivers: 16 × 2" articulated neodymium drivers
- Amplifier Type: Two-channel Class-D
- Amplifier Power: 1000W LF / 250W HF
- Inputs: 2 × XLR/TRS combo with phantom power, 1 × ¼", 1 × ⅛" (3.5mm), Bluetooth
- Mixer Controls: 3 × illuminated digital rotary encoders
- Wireless Control: Bose Music app (Bluetooth LE)
- Enclosure Material: High-impact polypropylene (stand), high-impact ABS (array/extension)
- Dimensions (H × W × D): 2011 × 355 × 456 mm
- Weight: 23kg
