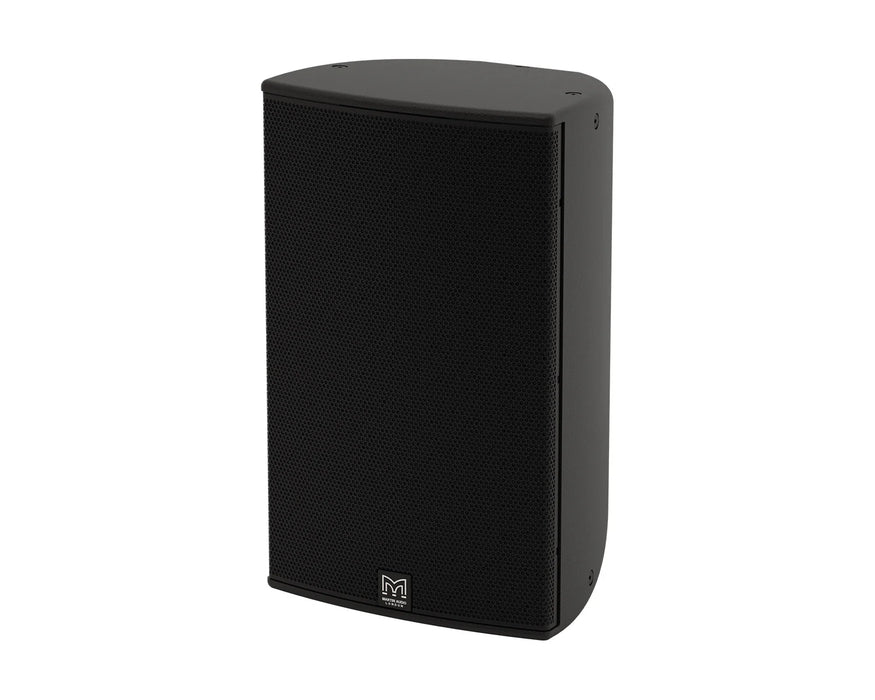

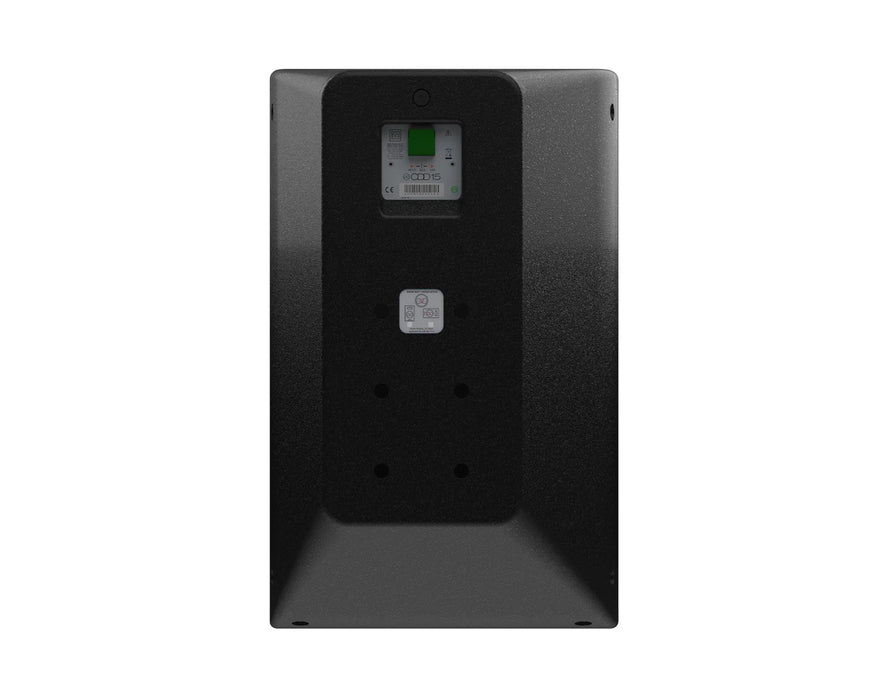

Martin Audio CDD15 15" High-Performance Wall Speaker, 400W 8 Ohm (Single)
DETAILS
The Martin Audio CDD15 is a high-output wall speaker delivering ultimate sonic performance for medium-to-large spaces.
The Martin Audio CDD15 is a high-output, passive two-way loudspeaker system designed for installations that demand exceptional fidelity and coverage from a single enclosure. Ideal for medium-to-large venues, it is perfect for live music clubs, nightclubs, bars, restaurants, museums, convention centres, hotels, retail spaces, leisure centres and houses of worship.
Featuring Martin Audio’s patented Coaxial Differential Dispersion™ (CDD) technology, the CDD15 ensures consistent audience coverage across the listening area. It projects relatively more output to the rear of the audience while maintaining wide horizontal coverage near the speaker, creating smooth, even sound across the venue.
The coaxial driver combines a 15” (380mm) low-frequency driver with a 3” (75mm) voice coil and a 1.4” exit high-frequency compression driver with a 3” (75mm) titanium diaphragm. The LF and HF drivers operate as a true point-source, eliminating off-axis frequency anomalies and delivering coherent sound throughout the coverage area. A static waveguide maintains high-frequency dispersion while reducing beaming.
The CDD15 is housed in a robust birch plywood enclosure with a visually distinctive design. The coaxial driver can be rotated for horizontal or vertical mounting by removing the screw-free grille. It can be suspended from the ceiling using integrated eyebolt points or an optional horizontal yoke bracket, providing flexible installation options for a variety of venues.
With a nominal impedance of 8 ohms and 400W AES power handling, the CDD15 is capable of delivering very high sound pressure levels, making it ideal for foreground music and demanding performance spaces. It is finished in black (RAL9005) or white (RAL9016) as standard, with custom RAL colours available to order.
Martin Audio CDD15 Key Features:
- High-output design: Delivers foreground-level performance for medium-to-large rooms
- CDD™ technology: Coaxial Differential Dispersion ensures consistent audience coverage
- Coaxial point-source driver: Smooth, coherent sound reproduction across the venue
- Titanium dome HF driver: Maintains high-frequency clarity and reduces distortion
- User-rotatable driver: Supports vertical or horizontal mounting
- Birch plywood enclosure: Durable, visually unobtrusive, and elegant
- Screw-free grille: Clean aesthetics with easy driver access
- Flexible mounting options: Eyebolts, yoke or wall bracket suspension
- High power handling: 400W AES for demanding music applications
-
Custom finish options: Available in black, white, or any RAL colour
SPECS & DOWNLOADS
Martin Audio CDD15 Specifications:
- Type: High-output Coaxial Differential Dispersion passive two-way system
- Frequency response: 55Hz–18kHz ±3dB, -10dB @ 45Hz
- Drivers: LF: 15” (380mm) / 3” (75mm) voice coil, long excursion, shared ferrite motor / HF: 1.4” exit / 3” (75mm) titanium dome compression driver
- Rated power: 400W AES, 1600W peak
- Sensitivity: 100dB
- Maximum SPL: 126dB continuous, 132dB peak
- Nominal impedance: 8 Ohms
- Dispersion (-6dB): 100°–60° horizontal, 60° vertical (user-rotatable)
- Crossover: 1.6kHz passive
- Enclosure: 68 litre birch plywood
- Finish: Black or White textured paint
- Protective grille: Perforated steel with scrim cloth backing
- Connectors: Low profile 20A push-lock
- Pin connections: Input +, Input -, Link -, Link +
- Fittings: 10 x M8 fly points
- Dimensions: 432mm (W) x 685mm (H) x 413mm (D)
-
Weight: 26kg
