Monacor EDL-62HQ 6.5" 2-Way Ceiling Speaker, 30W 100V & 8 Ohm (Single)
DETAILS
The Monacor EDL-62HQ is a 6.5" High-Performance 2-Way Ceiling Speaker offering 30W RMS output across both 100V line and 8 Ohm operation, delivering exceptional sound quality in a stylish, installer-friendly design perfect for restaurants, bars, cafes, shops and offices.
The Monacor EDL-62HQ has been engineered to deliver high-performance audio in a wide range of commercial environments — from busy bars and restaurants to retail spaces, offices and cafes. With a maximum output of 30W RMS and a wide frequency response of 50Hz to 20kHz, the EDL-62HQ provides more volume, greater depth and superior clarity compared to many alternatives in its class, making it an ideal choice for louder environments where standard ceiling speakers simply don't cut it.
Dual Operating Modes for Maximum Flexibility
One of the key strengths of the EDL-62HQ is its ability to operate in both 100V line and 8 Ohm low-impedance modes, making it compatible with a wide variety of new and existing audio systems. Four 100V line power tappings — 30W, 16W, 8W and 4W — allow precise level matching across distributed audio installations, whilst 8 Ohm operation is achieved simply by connecting the speaker wire directly to the red and black push terminals, bypassing the transformer entirely.
Superior Sound Quality

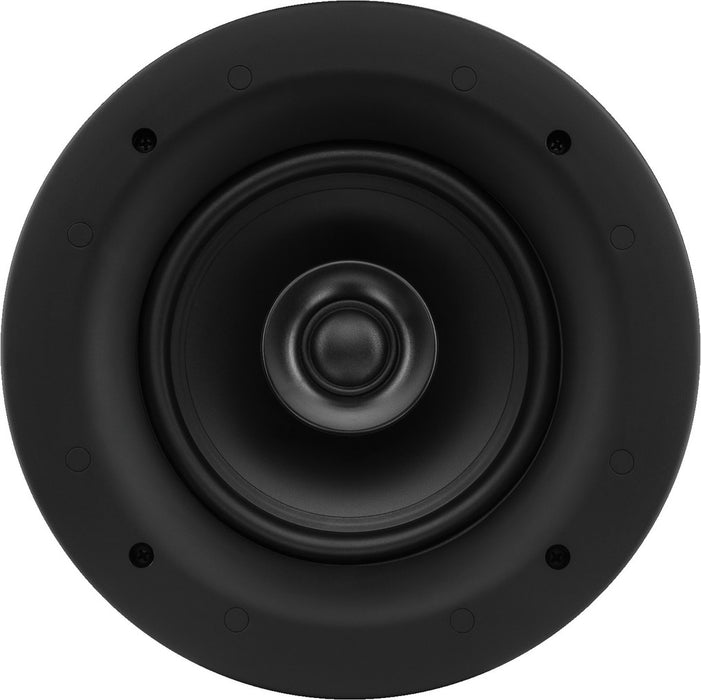

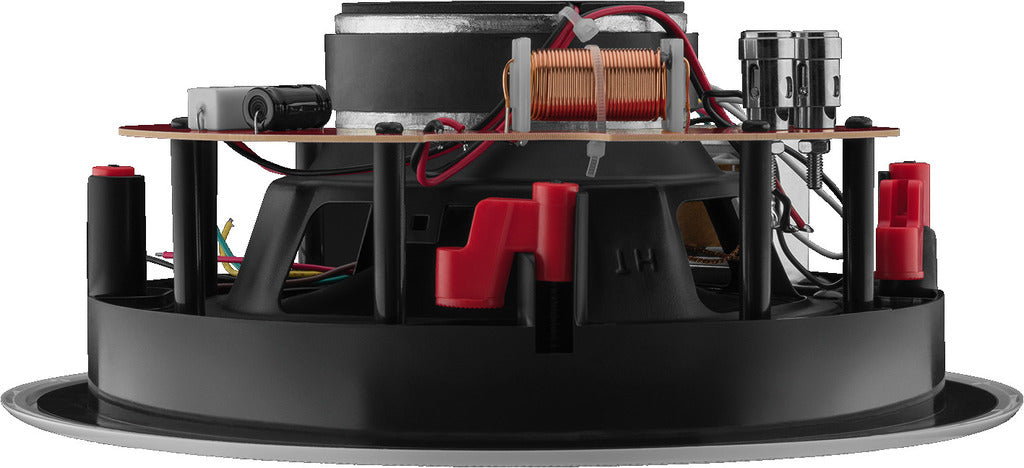

At the heart of the EDL-62HQ's excellent sound performance is a 2-way coaxial design featuring a pivoting dome tweeter mounted on a ball joint, allowing high frequencies to be directed precisely towards the listening area for optimal clarity and stereo imaging. A copper coil crossover reduces frequency bleed between the tweeter and woofer, resulting in a significantly cleaner, more accurate sound reproduction across the full frequency range.
Installer-Friendly Design

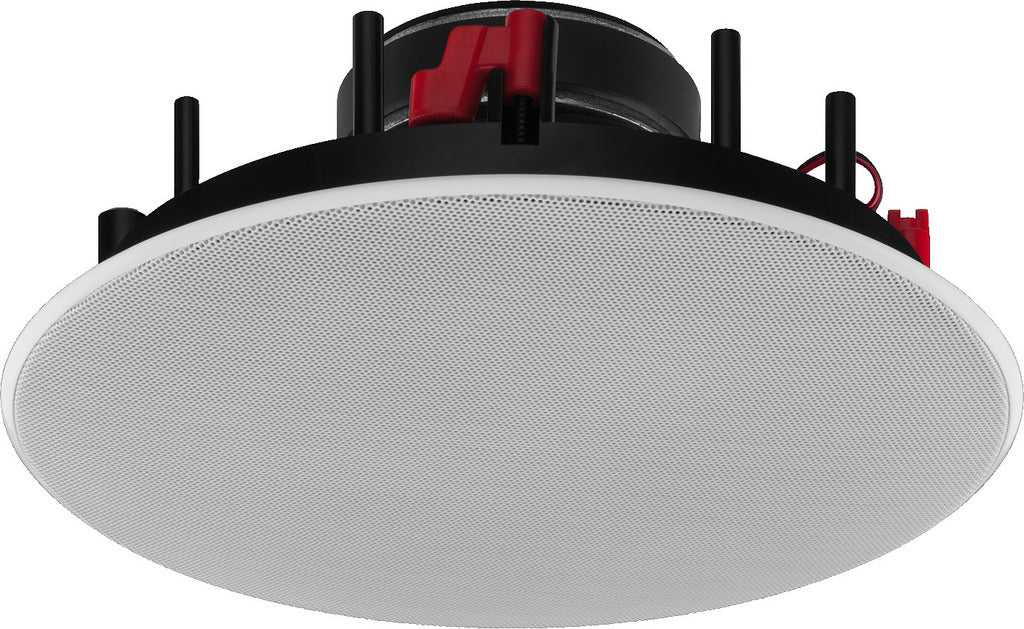

The EDL-62HQ has been thoughtfully designed with professional installers in mind. The magnetically attached metal grille can be easily removed for quick access to the adjustable tweeter inside, and can be painted to match any interior décor for a truly discreet finish. Dog leg mounting clips make ceiling installation fast and straightforward, whilst spring-loaded wire terminals ensure a secure and reliable cable connection every time. As with all Monacor products, the EDL-62HQ is backed by a 3-year manufacturer's warranty.
Monacor EDL-62HQ Key Features:
- 30W RMS Maximum Output: More powerful than many comparable ceiling speakers, delivering greater volume and depth for louder commercial environments.
- Dual Operating Modes: Compatible with both 100V line and 8 Ohm low-impedance systems for maximum installation flexibility across new and existing audio setups.
- Four 100V Line Power Tappings: 30W, 16W, 8W and 4W for precise level matching in distributed audio installations.
- 2-Way Coaxial Design: Dome tweeter and woofer in a coaxial arrangement for a wide, even frequency response from 50Hz to 20kHz.
- Pivoting Ball Joint Tweeter: Adjustable dome tweeter allows precise direction of high frequencies towards the listening position for optimal clarity.
- Copper Coil Crossover: Reduces frequency bleed between tweeter and woofer for a cleaner, more accurate sound reproduction.
- Magnetically Attached Metal Grille: Tool-free grille removal for quick and easy access to the tweeter adjustment and internal components.
- Paintable Grille: Metal grille can be painted to match any interior décor for a fully discreet, flush installation.
- Dog Leg Mounting Clips: Fast, secure and straightforward ceiling installation without specialist tools.
- Spring-Loaded Wire Terminals: Secure and reliable cable connection for a professional, long-lasting installation.
- 3-Year Manufacturer's Warranty: Backed by Monacor's standard 3-year warranty for complete peace of mind.
- Sold as a Single Unit

All Monacor products carry a industry leading 3 year warranty
SPECS & DOWNLOADS
Monacor EDL-62HQ Specifications:
-
Transmission method: 100 V
- Frequency range: 50-20,000 Hz
- Resonant frequency (fs): 60 Hz
- Power rating (RMS): 30/16/8/4 W
- Sensitivity: 89 dB/W/m

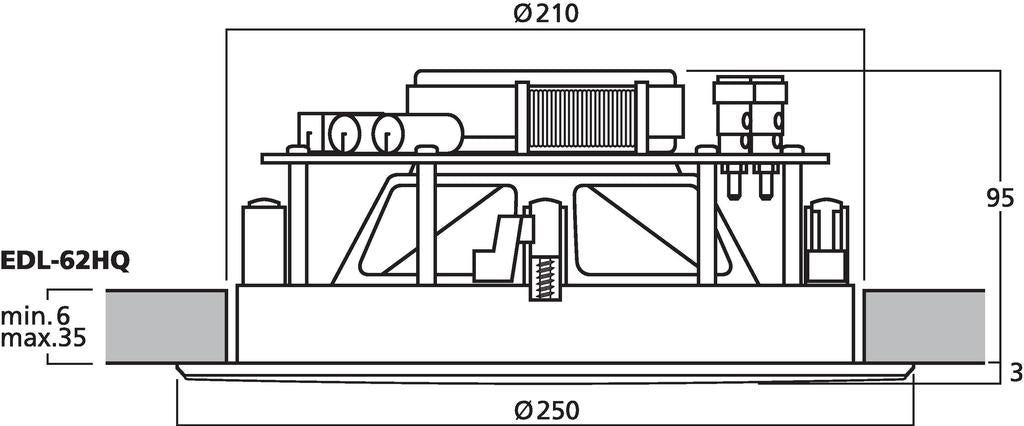

- Mounting cutout: Ø 210 mm
- Mounting depth: 95 mm
- Dimensions: Ø 250 mm x 98 mm
- Outside diameter: Ø 250 mm
- Width: Ø 250 mm
- Depth: 98 mm
- Admiss. ambient temp.: 0-40 °C
- Weight: 1.82 kg
- Packing unit: 1
- Type of speaker: 165
