Biamp CMX20DT 8" 2-Way Thin-Edge Ceiling Speaker 100V / 16 Ohms

by Biamp
SKU CMX20DT
Save 17% Save 17%
Original price £108.00 (inc. VAT)
Original price £108.00 (inc. VAT) - Original price £108.00 (inc. VAT)
Original price £108.00 (inc. VAT)
Current price £89.99 (inc. VAT)
£89.99 (inc. VAT) - £89.99 (inc. VAT)
Current price £89.99 (inc. VAT)
DETAILS

The Biamp CMX20DT is a discreet thin edged two-way speaker ideal for installing into hospitality venues such as cafes, bars and restaurants where a stylish look is required.

Equipped with a magnetic thin edge grille, the stylish CMX20DT is perfect for environments such as coffee shops and cafes, restaurants and bars, retail outlets etc. The 8" two way ceiling speaker produces a warm and deep sound perfect for speech and music.

The CMX20DT offers 100V, 70V and 16 ohm operation. When using the loudspeaker at 16 ohms you can connect up to 4 speakers in parallel per 4 ohm stable amplifier channel. For 100V or 70V operation there are multiple power tappings of 2.5, 5, 10 & 20W.

Biamp CMX20DT ceiling speaker

Biamp CMX20DT Key Features:

  • Warm and deep sound ideal for speech and music

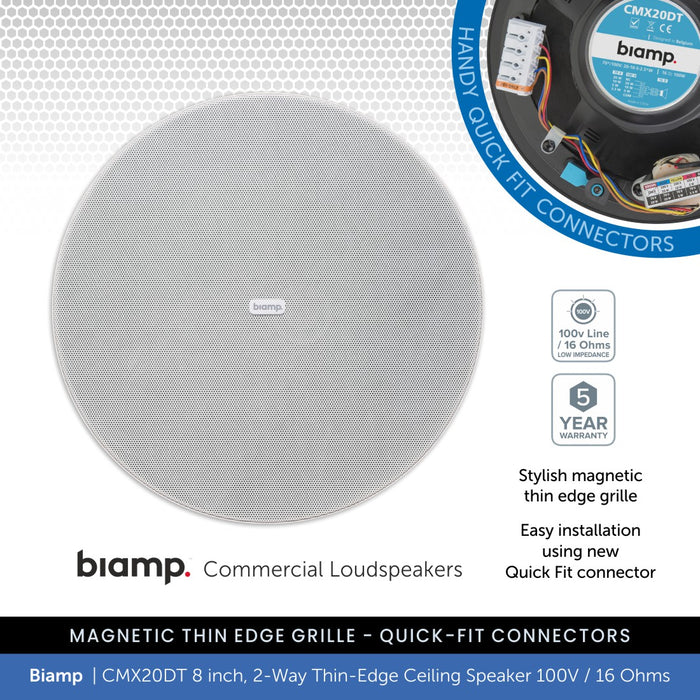

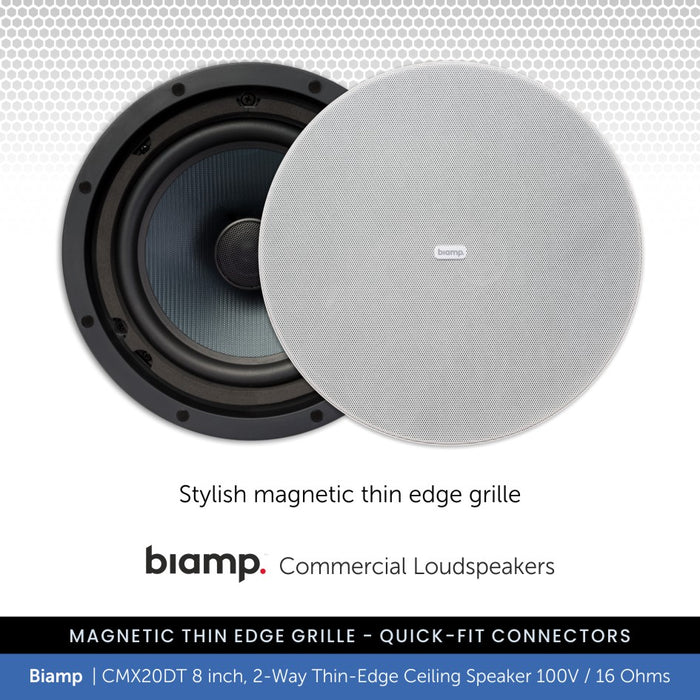

  • Stylish magnetic thin edge grille
  • 100V/ 70V and low impedance operation

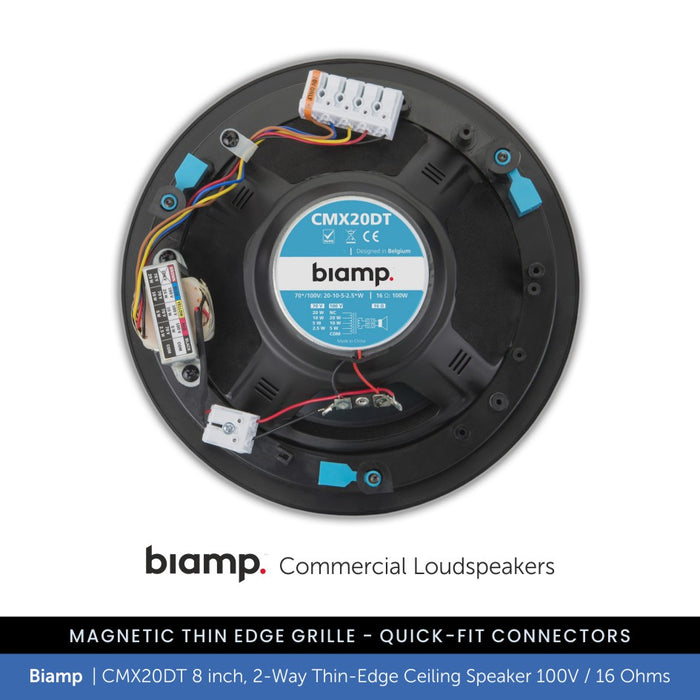

  • Easy installation using new Quick Fit connector

SPECS & DOWNLOADS

Biamp CMX20DT Specifications:

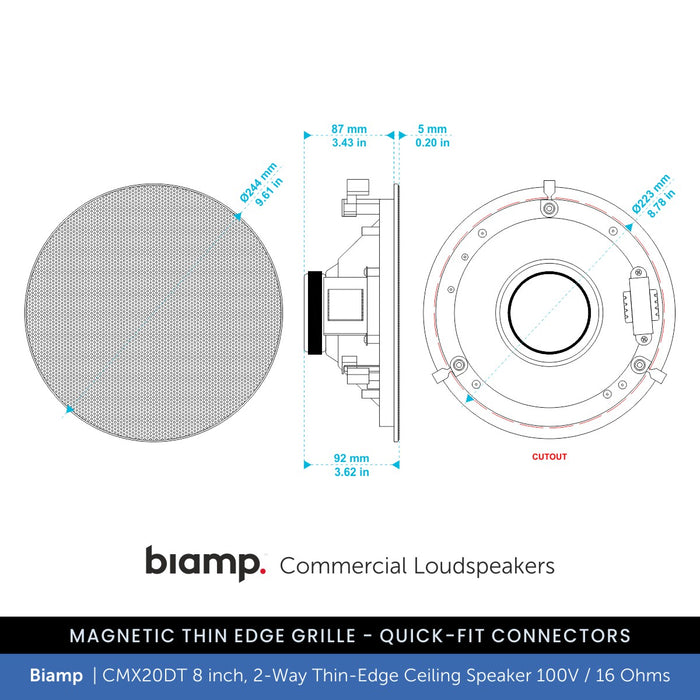

  • Outside Diameter: 250 mm
  • Depth: 87 mm
  • Cutout: 223 mm
  • Installation Grip Range: 6 - 29 mm
  • Loudspeaker System: 2-way

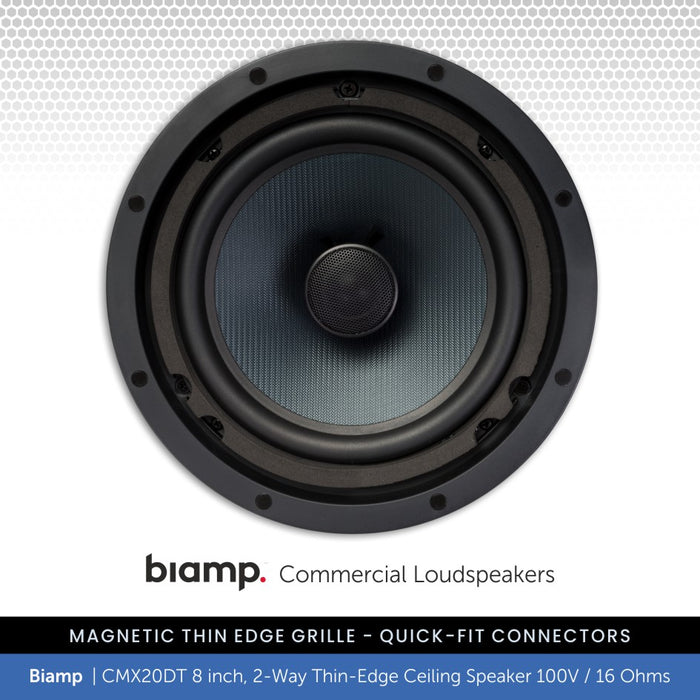

  • Woofer Size: 8 inch
  • Woofer Cone Material: polypropylene
  • Tweeter Size: 1 inch
  • Mounting System: 3 screws
  • 100V Transformer Power Taps: 20 - 10 - 5 watts
  • 70V Transformer Power Taps: 20 - 10 - 5 - 2.5 watts
  • Impedance: 16 ohms
  • Low Impedance Dynamic Power: 100 watts
  • Low Impedance RMS Power: 50 watts
  • SPL 1W/1m: 88 dB
  • Max SPL 1m: 108 dB
  • Frequency Response: 50 - 20K Hz
  • Main Construction Material: ABS plastic
  • Grille Main Material: aluminium
  • IP rating: 50
  • Applicable Low Impedance: yes
  • Applicable in 100V: yes
  • Vertical Dispersion Angle 1000 Hz: 180°
  • Closest RAL colour (subject to deviations): RAL9010 (W)
  • Net weight product: 1.45 kg
}
