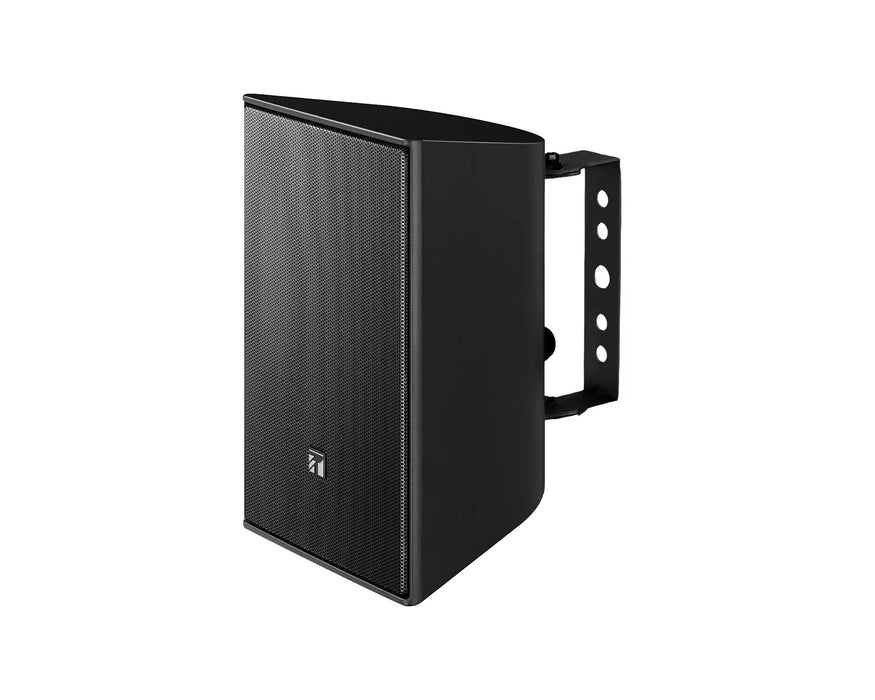

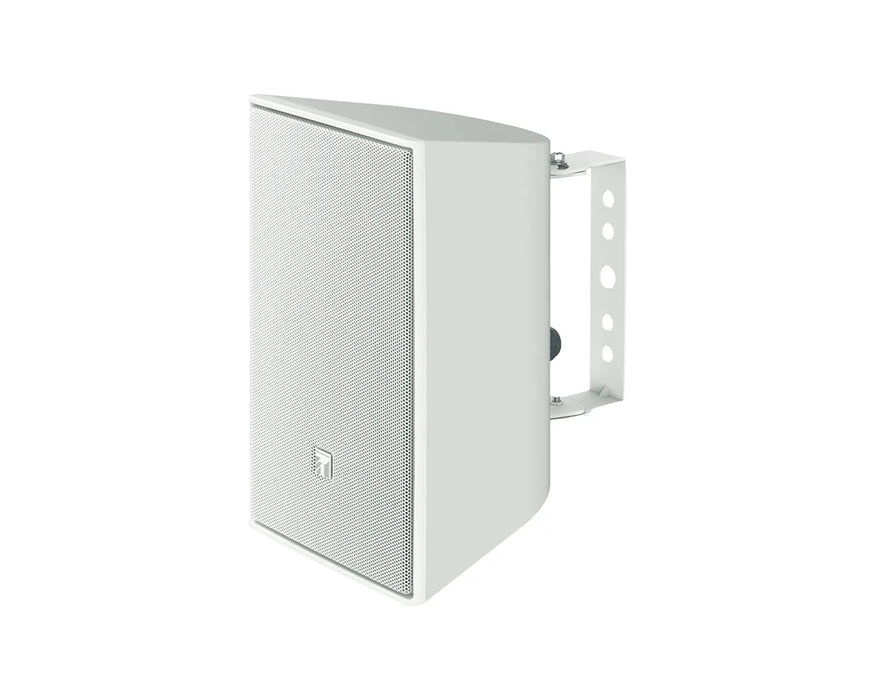

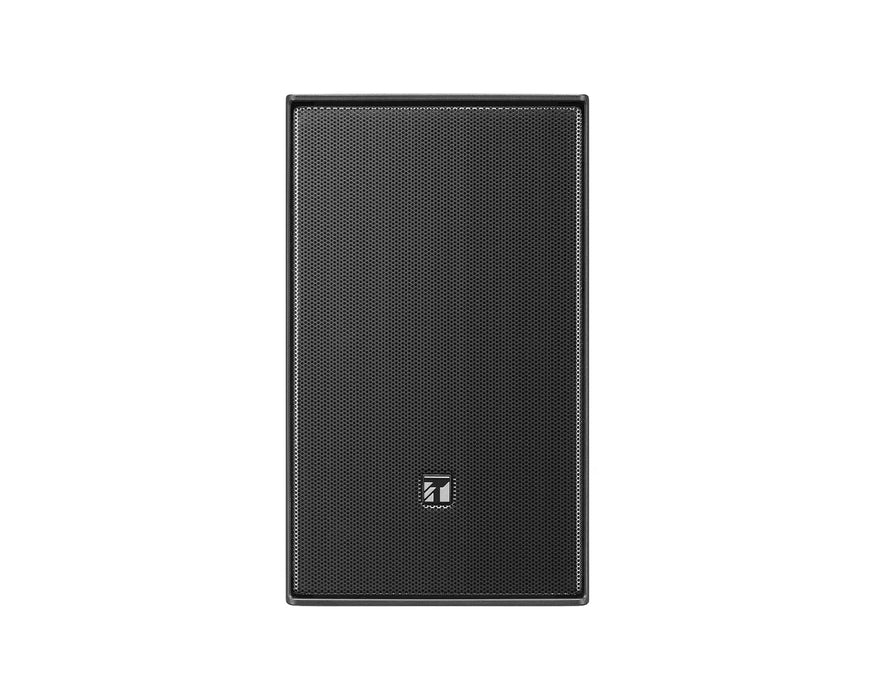

TOA F-05-WP-UE 5" Full-Range Wall Speaker EN54 & IP65 Rated 100V/8Ω (Single) - Black or White

by TOA
SKU F-05BT-WP-UE
Sold out
Original price £299.00 (inc. VAT) - Original price £299.00 (inc. VAT)
Original price £299.00 (inc. VAT)
£299.00 (inc. VAT)
£299.00 (inc. VAT) - £299.00 (inc. VAT)
Current price £299.00 (inc. VAT)
Colour: Black
DETAILS

TOA F-05BT-WP-UE / F-05WT-WP-UE delivers EN54-certified performance and IP65 protection with powerful 5" two-way sound.

The TOA F-05BT-WP-UE (black) and F-05WT-WP-UE (white) are 5-inch two-way wall speakers designed for installations requiring both superior sound and safety compliance. EN54-24 certified and IP65 rated, these models are ideal for voice evacuation systems, public address, and outdoor environments where reliability and weather resistance are essential.

Featuring a 5-inch polypropylene cone woofer paired with a 1-inch dome tweeter, the F-05 provides a wide frequency response of 80 Hz – 20 kHz, delivering clear voice reproduction and detailed music playback. With 30 W rated input for 100V line operation and 120 W continuous program handling at 8Ω, these speakers offer flexibility for both distributed sound systems and low-impedance applications.

Built with durability in mind, the F-05BT-WP-UE and F-05WT-WP-UE include a robust aluminium grille and weather-sealed terminals, ensuring dependable performance in exposed or demanding environments. Installation is simple and secure thanks to TOA’s refined bracket system, which allows for hands-free wiring and precise angle adjustments. Available in black or white, they integrate seamlessly into a variety of architectural spaces while maintaining TOA’s renowned sound quality.

TOA F-05-WP-UE Key Features:

  • EN54-24 Certified: Approved for use in emergency and voice evacuation systems.
  • Weather Resistant: IP65 rating ensures long-lasting performance in outdoor environments.
  • Two-Way Design: 5" polypropylene woofer and 1" dome tweeter for full, balanced sound.
  • Flexible Operation: Supports both 100V line (30 W max) and 8Ω low-impedance systems.
  • Wide Frequency Response: 80 Hz – 20 kHz, suitable for voice announcements and music.
  • Durable Build: Aluminium grille and sealed screw terminals for weather protection.
  • Colour Options: Available in black (F-05BT-WP-UE) or white (F-05WT-WP-UE).
    SPECS & DOWNLOADS

    TOA F-05-WP-UE  Specifications

    Download the Product Brochure HERE >

    • Frequency Range: 80 Hz – 20 kHz
    • Sensitivity (1 W, 1 m): 89 dB
    • Rated Input (100V): 30 W
    • Tappings (100V): 30 / 10 / 3 / 1 W
    • Rated Noise Power (Low Impedance): 60 W (8Ω)
    • Continuous Program: 120 W (8Ω)
    • Rated Impedance:
    • Speaker Components: 13 cm (5") PP cone woofer, 25 mm (1") dome tweeter

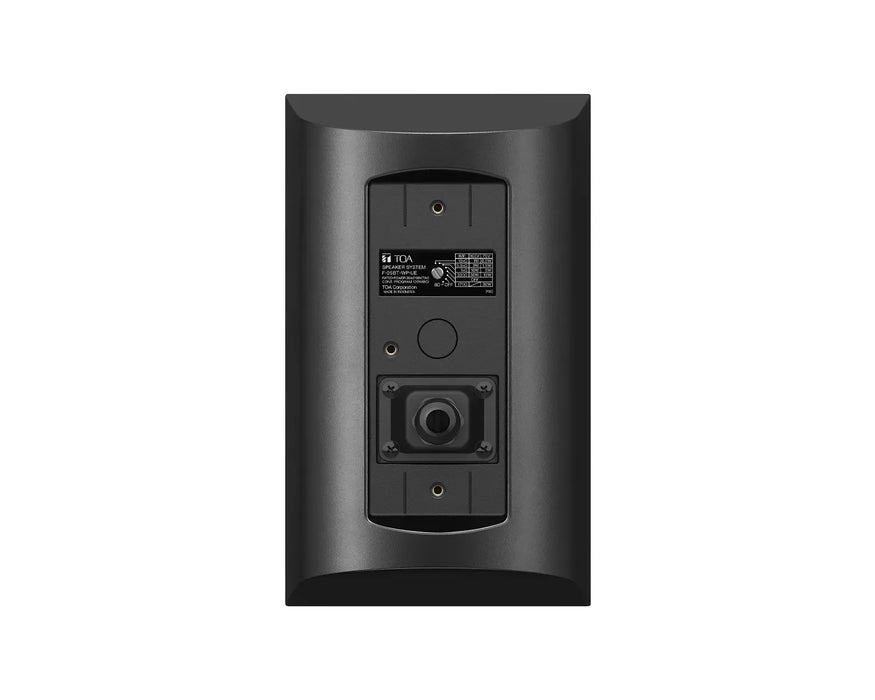

    • Connector: M4 screw terminal (9 mm barrier spacing)
    • IP Rating: IP65
    • Operating Temperature: -10 °C to +50 °C
    • Finish: Aluminium grille, black (RAL 9011) or white equivalent
    • Dimensions (W x H x D): 162 × 274 × 164 mm
    • Weight: 2.8 kg
      }
