Martin Audio CDD8 8" High-Performance Wall Speaker, 200W 8 Ohm (Single)
DETAILS
The Martin Audio CDD8 is a powerful, ultra-compact wall speaker designed for high-output architectural audio applications.
The Martin Audio CDD8 is an ultra-compact two-way passive loudspeaker system designed to deliver high-output, full-range performance from a discreet enclosure. It is well suited to a wide range of commercial environments including live music venues, nightclubs, bars, restaurants, museums, convention centres, hotels, retail outlets and houses of worship.
At the heart of the CDD8 is Martin Audio’s patented Coaxial Differential Dispersion™ (CDD) technology, which provides more consistent audience coverage than traditional fixed-dispersion loudspeakers. This design projects relatively more output towards the rear of the audience while maintaining wide horizontal coverage close to the speaker, ensuring even sound distribution throughout the space.
The CDD8 features an integrated 8” (200mm) low-frequency driver and a 1” exit high-frequency compression driver in a true coaxial configuration. This point-source design eliminates off-axis frequency anomalies associated with non-coaxial systems, delivering smooth and natural sound across the entire coverage area. The integrated static waveguide further enhances high-frequency dispersion, maintaining consistent coverage and reducing beaming at higher frequencies.
Housed in a sleek composite enclosure, the CDD8 can be mounted in either horizontal or vertical orientation, with the coaxial driver easily rotatable by removing the screw-free protective grille. Optional wall and ceiling brackets allow the speaker to be surface-mounted close to walls or ceilings, making it ideal for visually unobtrusive installations.

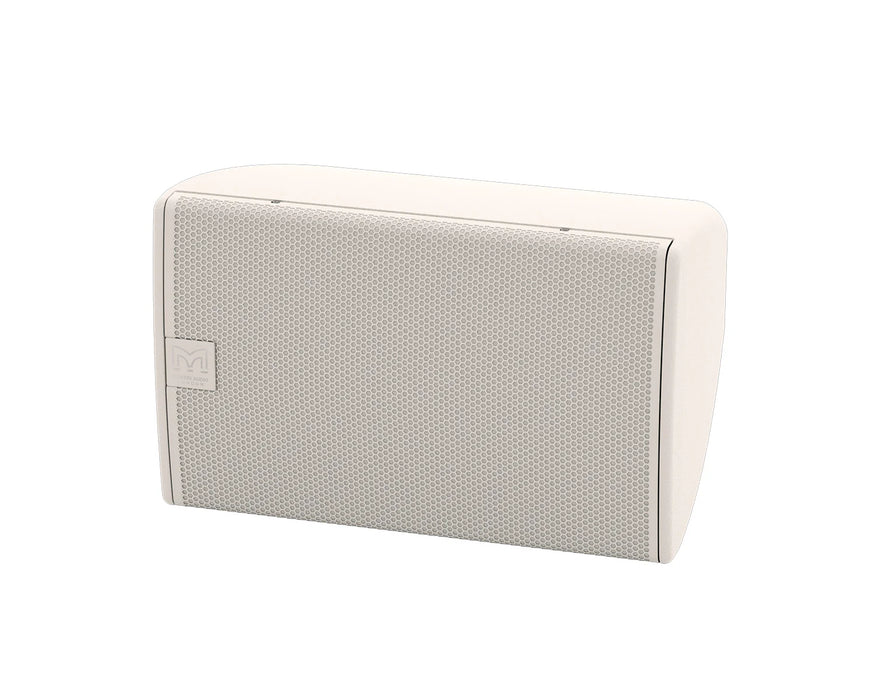

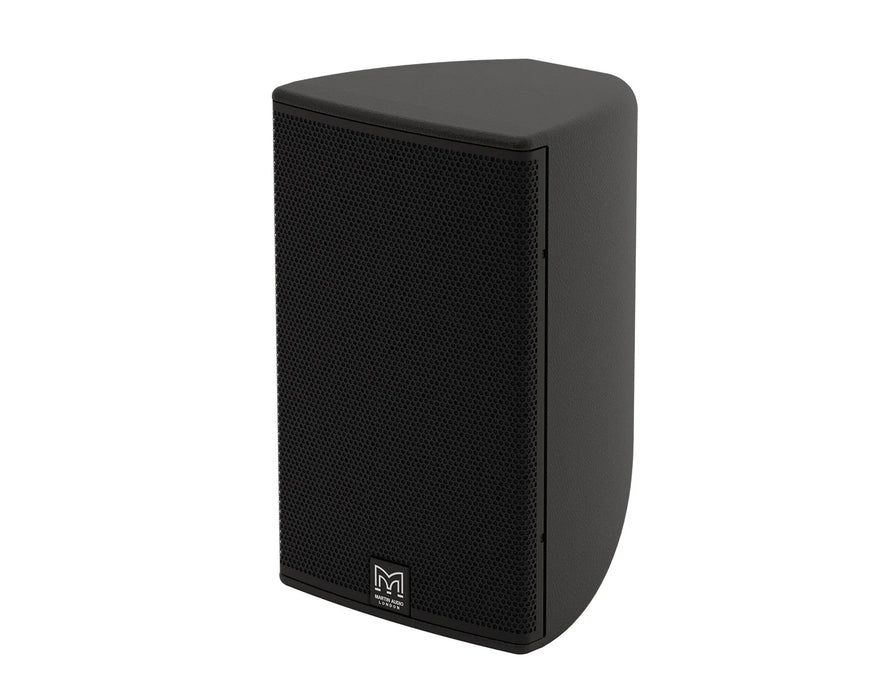

With a nominal impedance of 8 ohms and power handling of 200W AES, the CDD8 is suitable for both background and medium-to-high level foreground music applications. It can be used as a standalone loudspeaker or as an infill speaker in distributed systems alongside larger CDD models such as the CDD12 and CDD15. The CDD8 is finished in black (RAL9005) or white (RAL9016) as standard and can be supplied in any RAL colour to order.
Martin Audio CDD8 Key Features:
- High-output compact design: Powerful performance from a small enclosure
- CDD™ technology: Coaxial Differential Dispersion for consistent audience coverage
- Coaxial point-source driver: Smooth and accurate sound reproduction
- Integrated waveguide: Maintains dispersion and reduces HF beaming
- User-rotatable driver: Supports vertical or horizontal mounting
- Composite enclosure: Sleek and durable low-profile design
- Screw-free grille: Clean aesthetics and easy access to the driver
- High power handling: 200W AES for demanding foreground applications
-
Custom finish options: Available in black, white, or any RAL colour
SPECS & DOWNLOADS
Martin Audio CDD8 Specifications:
- Type: Ultra-compact Coaxial Differential Dispersion passive two-way system
- Frequency response: 70Hz–20kHz ±3dB, -10dB @ 55Hz
- Drivers: LF: 8” (200mm) / 2” (50mm) voice coil, long excursion, shared ferrite motor / HF: 1” exit / 1.4” (38mm) voice coil, polyimide dome compression driver
- Rated power: 200W AES, 800W peak
- Sensitivity: 94dB
- Maximum SPL: 117dB continuous, 123dB peak
- Nominal impedance: 8 Ohms
- Dispersion (-6dB): 110°–80° horizontal, 60° vertical (user-rotatable)
- Crossover: 2.3kHz passive
- Enclosure: 14 litre composite material
- Finish: Black or White textured paint
- Protective grille: Perforated steel with scrim cloth backing
- Connectors: Low profile 13A push-lock
- Pin connections: Input +, Input -, Link -, Link +
- Fittings: 6 x M6 inserts for wall/ceiling brackets
- Dimensions: 256mm (W) x 410mm (H) x 252mm (D)
-
Weight: 9.5kg
