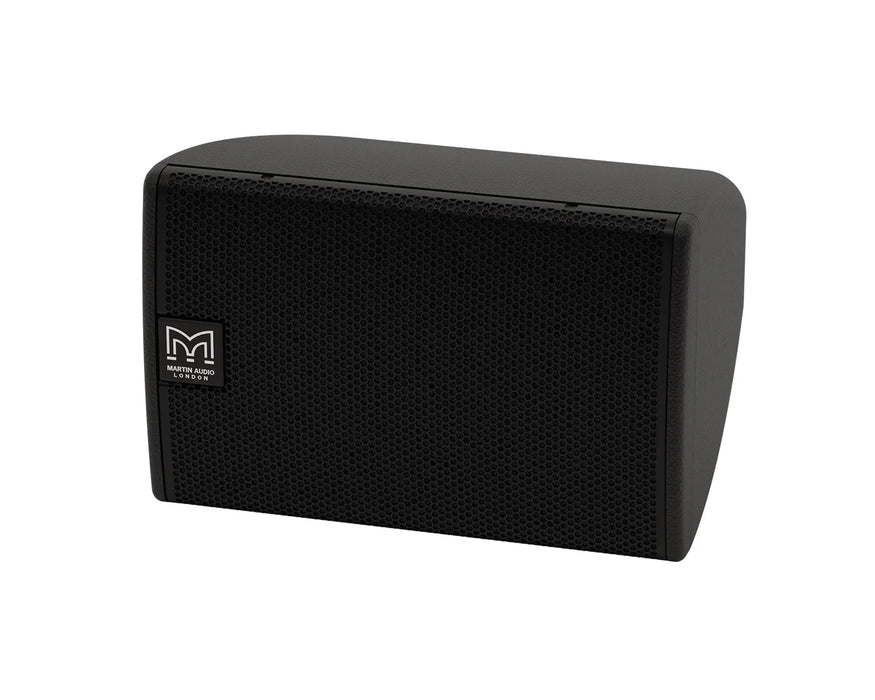

Martin Audio CDD6TX-WR 6.5" High-Performance Outdoor Wall Speaker, 100V & 8 Ohm (Single)
DETAILS
Martin Audio CDD6TX-WR is a compact weatherised wall speaker for sheltered outdoor and indoor installations.
The Martin Audio CDD6TX-WR is an ultra-compact two-way passive loudspeaker incorporating a 70V/100V line transformer and 8 ohm operation, making it suitable for both distributed and low-impedance audio systems. It is designed for discreet positioning in architectural environments such as bars, museums, foyers, concourses and exhibition centres, as well as sheltered outdoor applications where changing environmental conditions are present but direct exposure to the elements is avoided.
Despite its compact size, the CDD6TX-WR is capable of reproducing high sound pressure levels and is well suited for foreground music and speech systems. It can also be used effectively as a fill speaker alongside larger CDD Series loudspeakers, making it a flexible solution for hospitality venues, leisure centres, houses of worship and transport hubs.
Using Coaxial Differential Dispersion technology, the CDD6TX-WR delivers consistent front-to-back audience coverage, helping maintain even sound levels across listening areas. This makes it particularly effective in wide or irregular spaces where uniform audio coverage is required.
The weatherised composite enclosure is environmentally tested to IP54 and suitable for operating temperatures between -20°C and +70°C. A water and particle resistant steel grille and dual cable glands allow for reliable outdoor performance and straightforward daisy-chaining without the need for external junction boxes.
The speaker can be installed in either horizontal or vertical orientation, with a user-rotatable coaxial driver and discreet weatherised mounting accessories. Finished in black (RAL9005) or white (RAL9016) as standard, custom RAL colours are available to match architectural requirements. For system protection, the CDD6TX-WR should be used with a compatible controller and appropriate limiter settings.
Martin Audio CDD6TX-WR Key Features:
- Ultra-compact two-way system: Discreet loudspeaker for indoor and sheltered outdoor use.
- Coaxial Differential Dispersion technology: Provides even front-to-back sound coverage.
- 100V and 8 ohm operation: Suitable for distributed and low-impedance systems.
- Weatherised enclosure: Composite cabinet rated to IP54.
- Wide operating temperature: Suitable for environments from -20°C to +70°C.
- High output capability: Ideal for foreground music and speech applications.
- User-rotatable driver: Allows horizontal or vertical mounting orientation.
- Dual cable glands: Enables easy daisy-chaining without external junction boxes.
- Water-resistant steel grille: Zinc-plated and powder coated for durability.
-
Colour options: Black or white as standard, custom RAL colours available.
SPECS & DOWNLOADS
Martin Audio CDD6X-WR Specifications:
- Type: Ultra-Compact, Coaxial Differential Dispersion passive two-way system
- Frequency Response: 80Hz – 20kHz ±3dB, -10dB @ 70Hz
-
Driver: LF: 6.5" (165mm) / 1.5" (38mm) voice coil
HF: 1" (25mm) fabric dome compression driver - Rated Power: 150W AES, 600W peak
-
Transformer Settings:
- 100V: 12.5W, 25W, 50W
- 70V: 6.5W, 12.5W, 25W, 50W
- Sensitivity: 91dB
- Maximum SPL: 113dB continuous, 119dB peak
- Nominal Impedance: 8Ω
- Dispersion: 110°–80° horizontal, 80° vertical (user-rotatable)
- Crossover: 2.5kHz passive
- Enclosure: 9 litre composite material

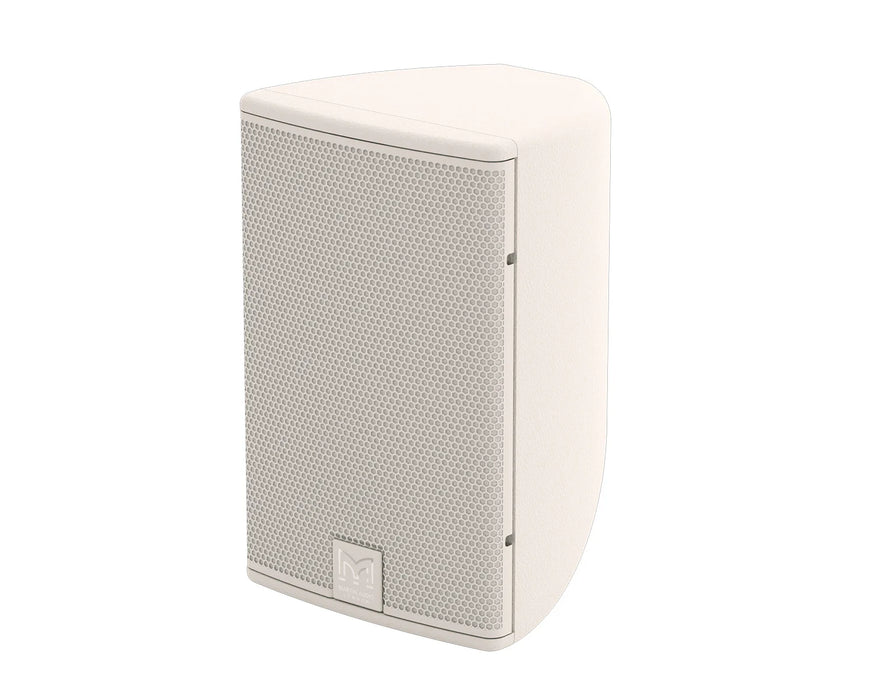

- Finish: Black or white as standard (custom RAL available)
- Protective Grille: Zinc-plated mild steel with powder coated finish
- Environmental Rating: IP54
- Connectors: Low profile 13A push-lock with weatherproof input panel
- Fittings: 4 x M6 inserts for wall/ceiling brackets
- Dimensions: (W) 210mm x (H) 325mm x (D) 210mm
-
Weight: 6.77kg
