Martin Audio CDD5TX-WR 5.25" High-Performance Outdoor Wall Speaker, 100V & 8 Ohm (Single)

SKU MAUCDD5BTX
Save 17% Save 17%
Original price £360.00 (inc. VAT)
Original price £360.00 (inc. VAT) - Original price £360.00 (inc. VAT)
Original price £360.00 (inc. VAT)
Current price £299.00 (inc. VAT)
£299.00 (inc. VAT) - £299.00 (inc. VAT)
Current price £299.00 (inc. VAT)
Colour: Black
DETAILS

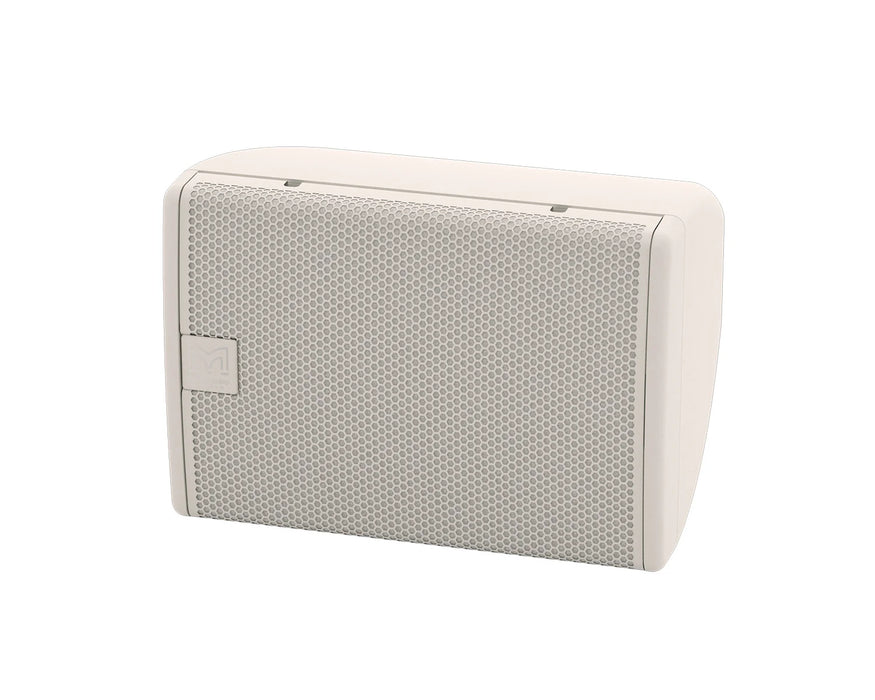

Martin Audio CDD5TX-WR is a compact weatherised wall speaker designed for sheltered outdoor and indoor installations.

The Martin Audio CDD5TX-WR is an ultra-compact two-way passive loudspeaker incorporating a 70V/100V line transformer and 8 ohm operation, making it suitable for both distributed and low-impedance systems. It is designed for discreet positioning in architectural environments such as bars, museums, foyers, concourses and exhibition centres, as well as sheltered outdoor areas where protection from direct exposure to the elements is required.

Using Coaxial Differential Dispersion technology, the CDD5TX-WR delivers consistent front-to-back audience coverage, providing even sound levels across listening areas. This makes it particularly effective for hospitality venues, transport hubs, theme parks and outdoor dining areas where uniform audio coverage is essential.

The rigid ABS moulded enclosure is environmentally tested to IP54 and suitable for operating temperatures between -20°C and +70°C. A water and particle resistant grille and dual cable glands allow for reliable outdoor performance and simple daisy-chaining without the need for external junction boxes.

Supplied with a dedicated omni-directional weatherised pan-and-tilt mounting bracket, the CDD5TX-WR can be installed in either horizontal or vertical orientation, with a user-rotatable coaxial driver for flexible coverage control. Finished in black (RAL9005) or white (RAL9016) as standard, custom RAL colours are also available to suit architectural requirements.

Martin Audio CDD5TX-WR Key Features:

  • Ultra-compact two-way system: Discreet loudspeaker for indoor and sheltered outdoor use.
  • Coaxial Differential Dispersion technology: Provides consistent and even sound coverage.
  • 100V and 8 ohm operation: Suitable for distributed or low-impedance systems.
  • Weatherised enclosure: ABS cabinet rated to IP54 for outdoor reliability.
  • Wide operating temperature: Suitable for environments from -20°C to +70°C.
  • User-rotatable driver: Allows horizontal or vertical mounting orientation.
  • Supplied weatherised bracket: Pan-and-tilt mount included for flexible positioning.
  • Dual cable glands: Enables easy daisy-chaining without external junction boxes.
  • Water-resistant steel grille: Zinc-plated and powder coated for durability.
  • Colour options: Black or white as standard, custom RAL colours available.
    SPECS & DOWNLOADS

    Martin Audio CDD5TX-WR Specifications:

    • Type: Ultra-Compact, Coaxial Differential Dispersion passive two-way system
    • Frequency Response: 100Hz – 20kHz ±3dB, -10dB @ 70Hz
    • Driver: LF: 5.25" (130mm) / 1.25" (32mm) voice coil
      HF: 0.75" (19mm) fabric dome compression driver
    • Rated Power: 100W AES, 400W peak
    • Transformer Settings:
      • 100V: 6W, 12.5W, 25W
      • 70V: 3W, 6W, 12.5W, 25W
    • Sensitivity: 90dB
    • Maximum SPL: 110dB continuous, 116dB peak
    • Nominal Impedance:
    • Dispersion: 120°–90° horizontal, 80° vertical (user-rotatable)
    • Crossover: 2.5kHz passive
    • Enclosure: 3 litre ABS
    • Finish: Black or white as standard (custom RAL available)
    • Protective Grille: Zinc-plated mild steel with powder coated finish
    • Environmental Rating: IP54
    • Connectors: Low profile 13A push-lock with weatherproof input panel
    • Fittings: 6 x M5 inserts for wall/ceiling brackets
    • Dimensions: (W) 160mm x (H) 230mm x (D) 149mm
    • Weight: 3.4kg
    }
