Martin Audio CDD5 5" High-Performance Wall Speaker + Bracket, 100W 8 Ohm (Single)

SKU MAUCDD5B
Save 14% Save 14%
Original price £288.00 (inc. VAT)
Original price £288.00 (inc. VAT) - Original price £288.00 (inc. VAT)
Original price £288.00 (inc. VAT)
Current price £249.00 (inc. VAT)
£249.00 (inc. VAT) - £249.00 (inc. VAT)
Current price £249.00 (inc. VAT)
Colour: Black
DETAILS

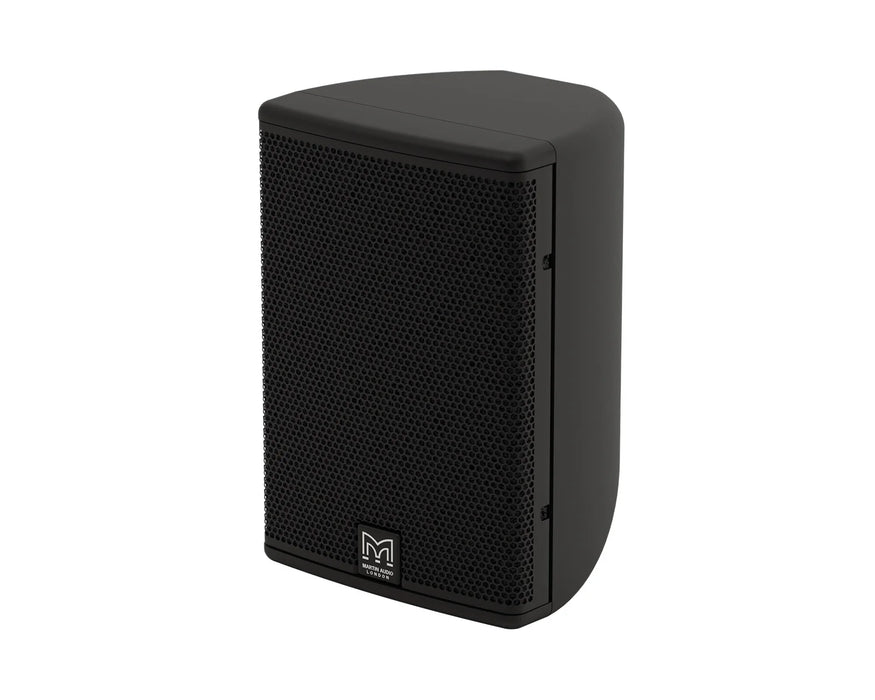

The Martin Audio CDD5 is an ultra-compact, high-performance wall speaker designed for discreet architectural audio installations.

The Martin Audio CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural environments such as bars, museums, foyers, concourses, exhibition centres and houses of worship, where high-quality sound is required from a compact and visually unobtrusive enclosure.

Utilising Martin Audio’s patented Coaxial Differential Dispersion™ (CDD) technology, the CDD5 delivers more consistent audience coverage than traditional fixed-dispersion systems. This design projects more energy towards the rear of the audience while maintaining wide horizontal coverage close to the speaker, ensuring even sound distribution across the listening area.

The CDD5 features a 5.25” (130mm) low-frequency driver and a 0.75” (19mm) high-frequency fabric dome driver in a true coaxial configuration. This point-source design eliminates off-axis frequency anomalies around the crossover region, resulting in smooth and natural sound reproduction throughout the coverage area.

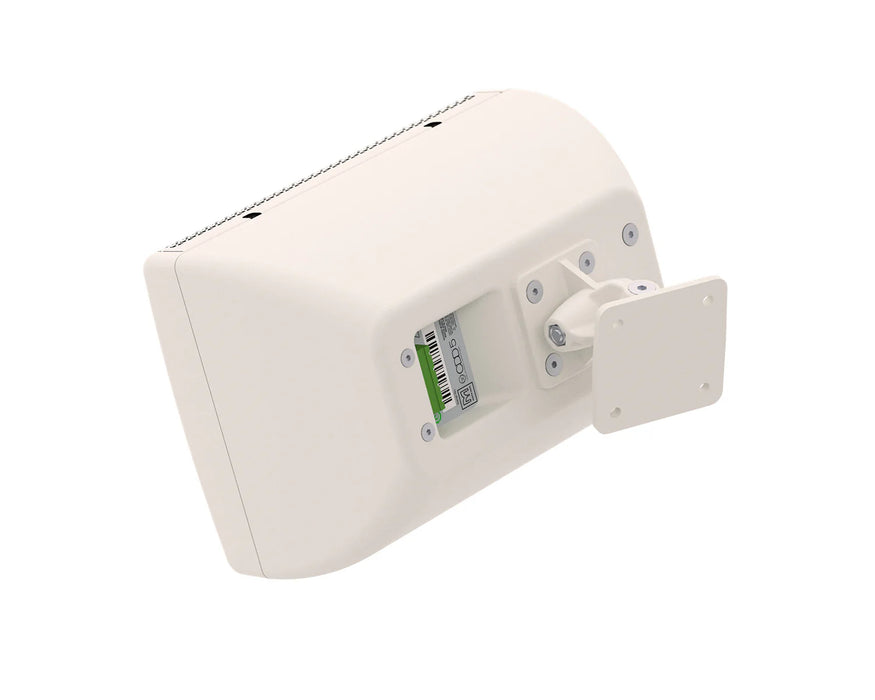

Its visually distinctive curved ABS enclosure can be mounted in either horizontal or vertical orientation, with the coaxial driver easily rotatable by removing the screw-free protective grille. The supplied omni-directional mounting bracket allows surface mounting close to walls or ceilings, making the CDD5 ideal for low-profile installations where aesthetics are important.

With a nominal impedance of 8 ohms and power handling of 100W AES, the CDD5 is suitable for both background and light foreground music applications in commercial environments. It is finished in black (RAL9005) or white (RAL9016) as standard and can be supplied in any RAL colour to special order for seamless integration into bespoke interiors.

Martin Audio CDD5 Key Features:

  • Ultra-compact design: Discreet micro speaker for architectural installations
  • CDD™ technology: Coaxial Differential Dispersion for consistent audience coverage
  • Coaxial point-source driver: Smooth and natural frequency response
  • User-rotatable driver: Supports both vertical and horizontal mounting
  • Omni-directional bracket: Supplied for flexible wall or ceiling installation
  • Screw-free grille: Clean aesthetics and easy access to the driver
  • High power handling: 100W AES, suitable for background and light foreground audio
  • Custom finish options: Available in black, white, or any RAL colour
    SPECS & DOWNLOADS

    Martin Audio CDD5 Specifications:

    • Type: Ultra-compact Coaxial Differential Dispersion passive two-way system
    • Frequency response: 100Hz–20kHz ±3dB, -10dB @ 70Hz
    • Drivers: LF: 5.25” (130mm) / 1.25” (32mm) voice coil, long excursion, ferrite motor / HF: 0.75” (19mm) fabric dome, neodymium motor
    • Rated power: 100W AES, 400W peak
    • Sensitivity: 90dB
    • Maximum SPL: 110dB continuous, 116dB peak
    • Nominal impedance: 8 Ohms
    • Dispersion (-6dB): 120°–90° horizontal, 80° vertical (user-rotatable)
    • Crossover: 2.5kHz passive
    • Enclosure: 3 litre ABS
    • Finish: Black or White
    • Protective grille: Perforated steel with scrim cloth backing
    • Connectors: Low profile 13A push-lock
    • Pin connections: Input +, Input -, Link -, Link +
    • Fittings: 6 x M5 inserts for wall/ceiling brackets
    • Dimensions: 160mm (W) x 230mm (H) x 149mm (D)
    • Weight: 3kg
    }
