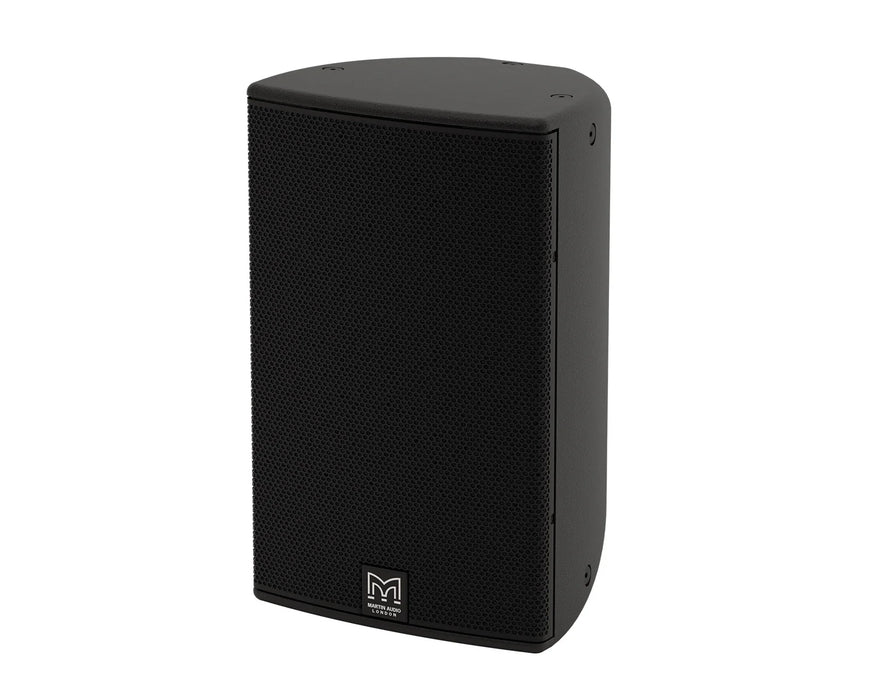

Martin Audio CDD10-WR 10" High-Performance Outdoor Wall Speaker, 250W 8 Ohm (Single)
DETAILS
Martin Audio CDD10-WR is a compact weatherised wall speaker designed for high-output low-impedance outdoor installations.
The Martin Audio CDD10-WR is a very compact two-way passive loudspeaker engineered for outdoor applications where environmental conditions may vary, but direct exposure to the elements is avoided. Operating at 8 ohms, it is designed for use with conventional low-impedance amplifiers and is well suited to standalone systems or larger multi-speaker installations requiring higher output levels.
Despite its relatively small enclosure, the CDD10-WR delivers powerful and controlled sound, making it ideal for foreground music and speech reinforcement in outdoor hospitality areas, hotel terraces, transport hubs, concourses and themed environments. It can also be used as a high-performance infill or delay loudspeaker in larger distributed systems, complementing other models within the CDD Series.
Using Coaxial Differential Dispersion technology, the CDD10-WR provides consistent front-to-back audience coverage by projecting relatively more output towards the rear of the listening area while maintaining wide horizontal dispersion at close range. This point-source design ensures uniform frequency response and improved intelligibility across wide or irregular spaces.
The visually distinctive composite enclosure can be installed in either horizontal (landscape) or vertical (portrait) orientation, with the coaxial driver easily rotated by removing the screw-free protective grille. The curved cabinet allows surface mounting close to a wall using an optional weatherised wall bracket, or suspension from a ceiling via integrated eyebolt points or a horizontal yoke.

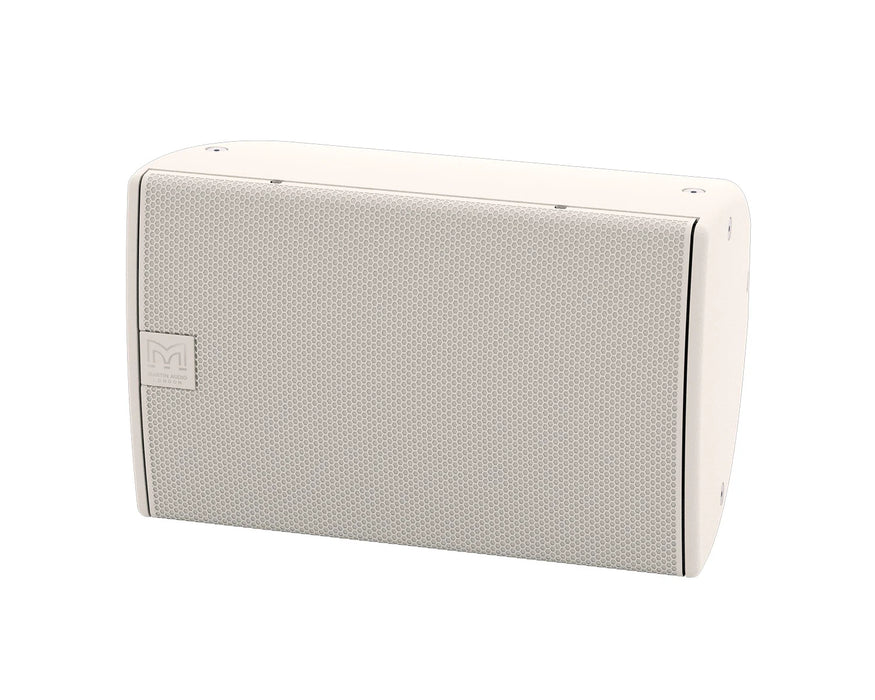

The enclosure is environmentally tested to IP54 and suitable for operating temperatures between -20°C and +70°C. A zinc-plated mild steel grille with powder-coated finish provides protection against water and particles, ensuring reliable long-term performance in sheltered outdoor conditions. The CDD10-WR is finished in black (RAL9005) or white (RAL9016) as standard, with custom RAL colours available for architectural integration.
Martin Audio CDD10-WR Key Features:
- Compact two-way system: High-performance loudspeaker for low-impedance outdoor use.
- Coaxial Differential Dispersion technology: Delivers even front-to-back sound coverage.
- 8 ohm operation: Designed for use with conventional low-impedance amplifiers.
- Weatherised enclosure: Composite cabinet rated to IP54.
- Wide operating temperature range: Suitable for environments from -20°C to +70°C.
- High output capability: Ideal for demanding foreground music and speech systems.
- User-rotatable coaxial driver: Supports horizontal or vertical mounting.
- Screw-free protective grille: Water and particle resistant steel grille.
- Multiple mounting options: Wall bracket, eyebolt suspension or horizontal yoke.
-
Colour options: Black or white as standard, custom RAL colours available.
SPECS & DOWNLOADS
Martin Audio CDD10-WR Specifications:
- Type: Compact, Coaxial Differential Dispersion passive two-way system
- Frequency Response: 65Hz – 20kHz ±3dB, -10dB @ 55Hz
-
Driver:
- LF: 10" (250mm) / 2.5" (63.5mm) voice coil, long excursion
- HF: 1" (25mm) exit / 1.4" (38mm) voice coil compression driver
- Rated Power: 250W AES, 1000W peak
- Sensitivity: 96dB
- Maximum SPL: 120dB continuous, 126dB peak
- Nominal Impedance: 8Ω
- Dispersion: 110°–75° horizontal, 60° vertical (user-rotatable)
- Crossover: 2kHz passive
- Enclosure: 28 litre composite material
- Finish: Black or white as standard (custom RAL available)
- Protective Grille: Zinc-plated mild steel with powder-coated finish
- Environmental Rating: IP54
- Connectors: Low profile 20A push-lock, weatherproof input panel
- Pin Connections: Input+, Input -, Link -, Link +
- Fittings: 6 x M8 inserts for wall bracket, 10 x M8 fly points
- Dimensions: (W) 323mm x (H) 513mm x (D) 310mm
-
Weight: 15.5kg
