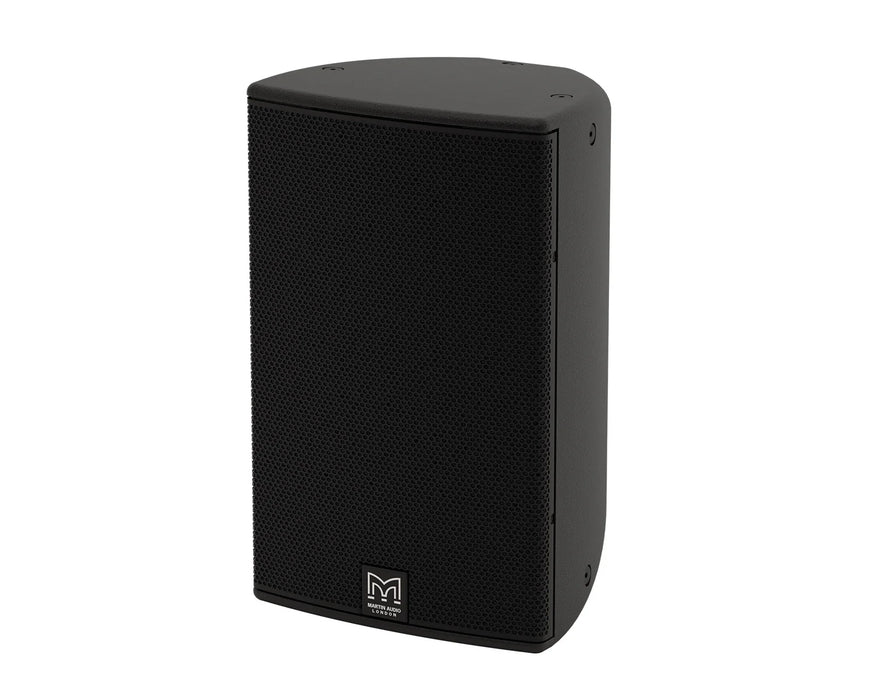

Martin Audio CDD10TX 10" High-Performance Wall Speaker, 120W 100V (Single)

SKU MAUCDD10TXB
Save 7% Save 7%
Original price £1,440.00 (inc. VAT)
Original price £1,440.00 (inc. VAT) - Original price £1,440.00 (inc. VAT)
Original price £1,440.00 (inc. VAT)
Current price £1,340.00 (inc. VAT)
£1,340.00 (inc. VAT) - £1,340.00 (inc. VAT)
Current price £1,340.00 (inc. VAT)
Colour: Black
DETAILS

The Martin Audio CDD10TX is a compact high-output wall speaker designed for professional 100V installations.

The Martin Audio CDD10TX is a very compact two-way passive loudspeaker system incorporating a 70V/100V line transformer, making it ideal for commercial environments that require efficient power distribution and multiple speakers on a single amplifier channel. Despite its compact size, the CDD10TX delivers impressive output and clarity, making it suitable for demanding foreground audio applications.

Designed for architectural and commercial AV installations, the CDD10TX uses Coaxial Differential Dispersion technology to provide consistent audience coverage, reducing level drop-off across listening areas. This makes it particularly effective in venues such as bars, restaurants, retail spaces, hotels and places of worship, where even sound distribution is essential.

The composite enclosure allows for both horizontal and vertical mounting, with a user-rotatable coaxial drive unit for flexible orientation. Installation options include surface mounting via an optional wall bracket or suspension using eyebolts or a horizontal yoke, making the CDD10TX adaptable to a wide range of venue layouts.

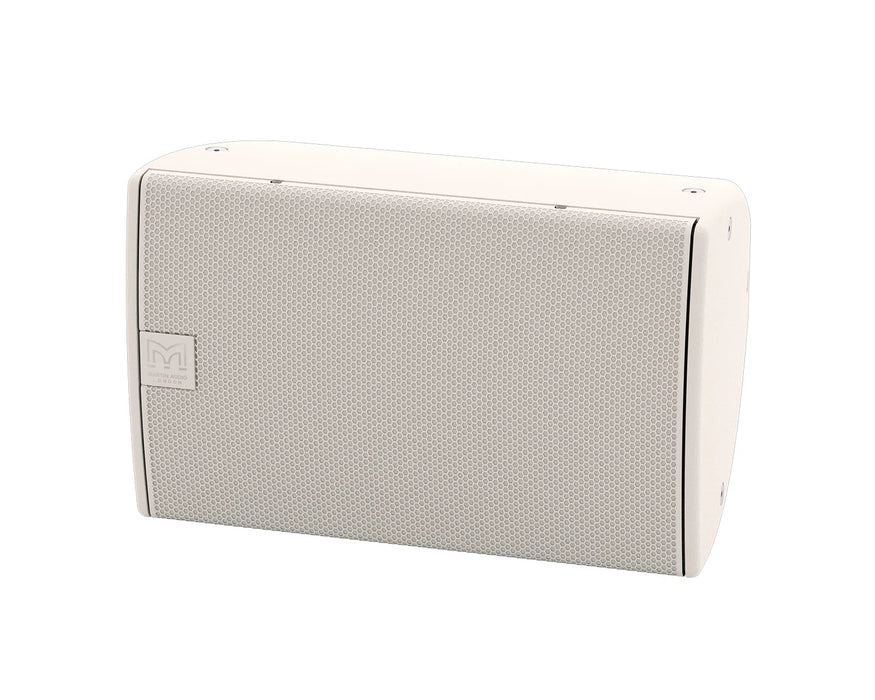

Finished in black (RAL9005) or white (RAL9016) as standard, the CDD10TX can also be supplied in custom RAL colours, making it easy to integrate into visually sensitive environments.

Martin Audio CDD10TX Key Features:

  • Compact two-way system: High-performance passive loudspeaker in a space-efficient enclosure.
  • Coaxial Differential Dispersion technology: Delivers consistent and even coverage across the listening area.
  • 100V line operation: Integrated transformer for efficient multi-speaker installations.
  • User-rotatable driver: Allows vertical or horizontal orientation to suit venue design.
  • Flexible mounting options: Suitable for wall mounting or suspension via eyebolts or yoke.
  • Composite enclosure: Lightweight and visually discreet for architectural spaces.
  • Screw-free steel grille: Clean appearance with easy access for driver rotation.
  • Colour options: Available in black or white as standard, with custom RAL colours on request.
    SPECS & DOWNLOADS

    Martin Audio CDD10TX Specifications:

    • Type: Compact, Coaxial Differential Dispersion passive two-way system
    • Frequency Response: 65Hz – 20kHz ±3dB, -10dB @ 55Hz
    • Driver: LF: 10" (250mm) / 2.5" (63.5mm) voice coil
      HF: 1" (25mm) exit / 1.4" (38mm) voice coil compression driver
    • Rated Power: 120W AES, 240W peak
    • Transformer Settings:
      • 70V: 120W, 60W, 30W, 15W
      • 100V: 120W, 60W, 30W
    • Sensitivity: 96dB
    • Maximum SPL: 117dB continuous, 123dB peak
    • Nominal Impedance: Line taps: 42, 83, 166, 333 ohms
    • Dispersion: 110°–75° horizontal, 60° vertical (user-rotatable)
    • Crossover: 2kHz passive
    • Enclosure: 28 litre composite
    • Finish: Black or white textured paint
    • Protective Grille: Perforated steel with scrim backing
    • Connectors: Terminal block with spring connections
    • Fittings: 6 x M8 inserts for wall bracket, 10 x M8 fly points
    • Dimensions: (W) 323mm x (H) 513mm x (D) 310mm
    • Weight: 16.9kg
    }
