AUDAC SMQ350 - WaveDynamics™ 4 x 350W Quad-Channel Power Amplifier 4-8Ω
DETAILS
The Audac SMQ350 delivers 4 x 350W Class-D amplification with WaveDynamics™ DSP for flexible professional audio installations.

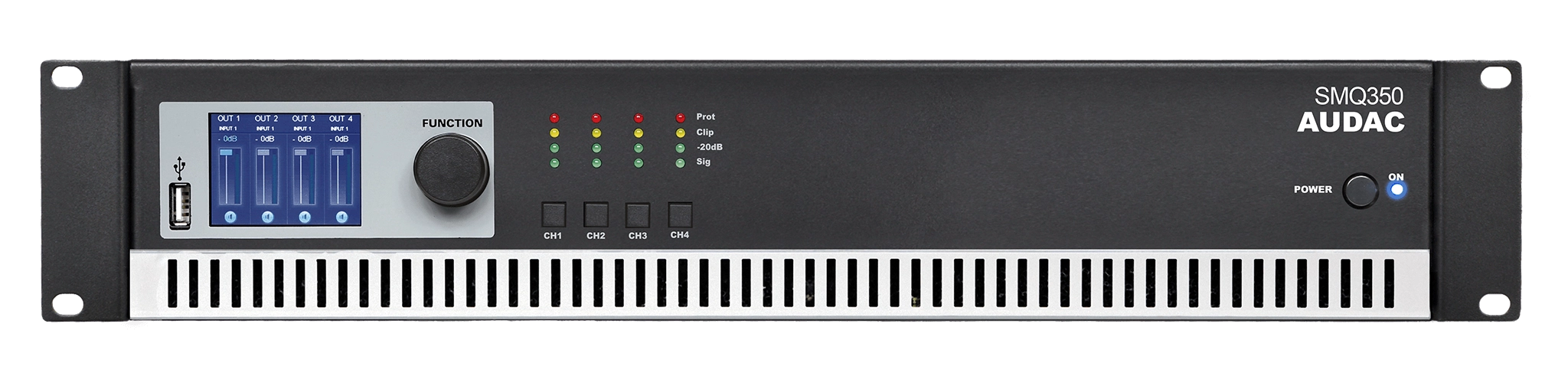

The Audac SMQ350 is a lightweight quad-channel (4-channel) Class-D power amplifier designed for both fixed and mobile audio installations. Its WaveDynamics™ DSP processor and intuitive 2.5” LCD display provide a user-friendly interface for fast and accurate system configuration.
Ideal for schools, conference rooms, houses of worship, retail spaces, and entertainment venues, the SMQ350 offers flexible output power and advanced DSP features. Acoustic optimization is achieved through Butterworth, Bessel, and Linkwitz-Riley filters with selectable roll-off, a 7-band equalizer with adjustable frequencies and Q-factor, delay, and dynamic bass boost. Settings can be configured via the front panel with two access levels (User & Administrator) using password or USB-key protection.

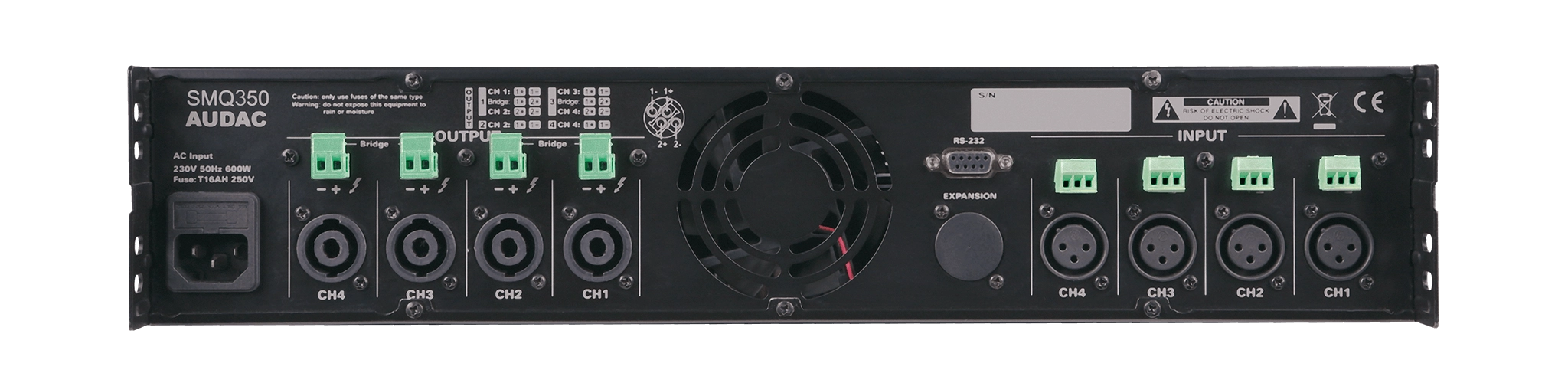

Loudspeaker protection is ensured via configurable output power limiters per channel and USB-loadable presets for optimal system performance. Input selection is highly flexible, combining XLR and terminal block connections with link-through capabilities, while outputs include SpeakON-compatible and terminal block connectors. RS232 integration allows simple control system connectivity, and optional Dante™/AES67 expansion provides low-latency, high-quality audio over Ethernet networks.
Compatible with TouchLink™ and AUDAC Touch™, the SMQ350 allows full WaveDynamics™ control from mobile devices, tablets, or computers. Scroll-Push™ control provides intuitive operation of volume, EQ, and source selection while maintaining a clean front panel design.
AUDAC SMQ350 Key Features:
- Quad-Channel Amplification: Provides 4 x 350W output with bridgeable 2 x 700W capacity.
- WaveDynamics™ DSP: Advanced loudspeaker management for optimal acoustic performance.
- Advanced Filters & EQ: Butterworth, Bessel, Linkwitz-Riley filters and 7-band EQ for precise audio tuning.
- Flexible Connectivity: XLR and terminal block inputs with link-through, SpeakON-compatible and Euro terminal outputs.
- RS232 Control: Seamless integration with third-party control systems.
- Optional Dante™/AES67 Expansion: Networked audio for low-latency, high-quality streaming.
- AUDAC Touch™ & TouchLink™ Compatible: Full system control via mobile devices or tablets.
- Scroll-Push™ Interface: Easy configuration of volume, EQ, and source selection.
-
Loudspeaker Protection: Configurable power limiter and USB-loadable presets for safe operation.
SPECS & DOWNLOADS
Download the Product Data Sheet HERE >
AUDAC SMQ350 Specifications:
- Amplifier Type: Class-D
- Channels: 4, Bridgeable to 2 x 700W
- Output Power (AES): 4 x 350W @ 4Ω, 4 x 220W @ 8Ω, 2 x 700W @ 8Ω bridge
- Frequency Response: 20 Hz – 20 kHz (±3 dB)
- Signal-to-Noise Ratio: >95 dB
- THD+N: <0.05% (1/2 Rated Power)
- Crosstalk: >70 dB (@1 kHz)
- Inputs Sensitivity: -19.5 dB ~ 27 dB
- Input Impedance: 10 kΩ balanced
- Input Connector: XLR & 3-pin Euro Terminal Block (3.81 mm)
- Output Connector: SpeakON & 2-pin Euro Terminal Block (5.08 mm)
- Common Mode Rejection: 70 dB
- Damping Factor: >200
- Protection: DC, short circuit, overheat, overload, signal limiting, power limiter per channel
- Access Levels: User & Administrator via password / USB-key
- Cooling: Temperature-controlled fan
- Operating Temperature: 0° ~ 40° @ 95% humidity
- Power Supply: Switching mode AC 100–120V / 220–240V, 50/60Hz
- Dimensions: 482 x 88 x 420 mm (W x H x D)
- Weight: 8.1 kg
- Mounting: 19” rack, 2 HE
- Construction: Steel
-
Colour: Black
