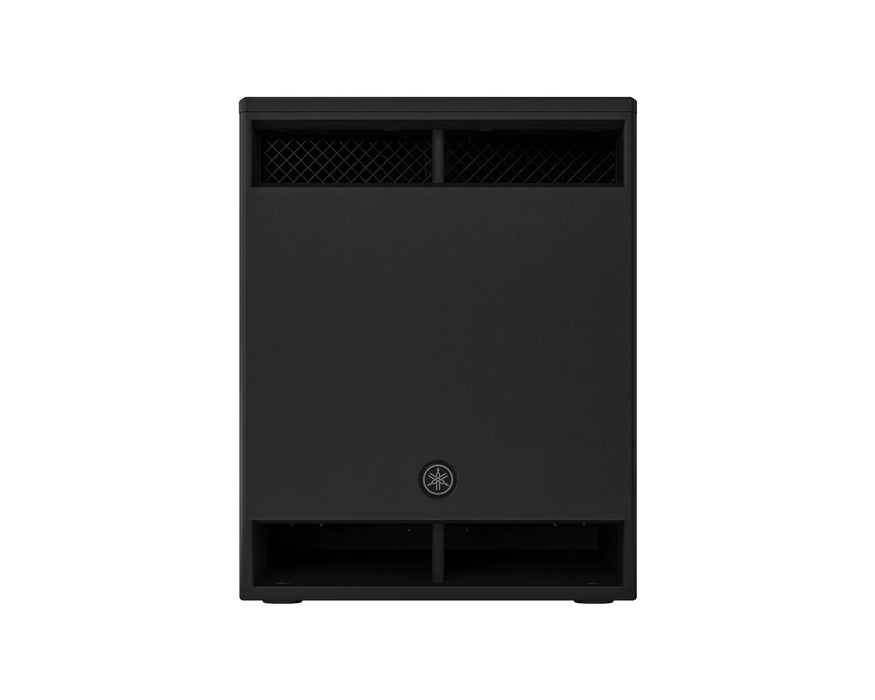

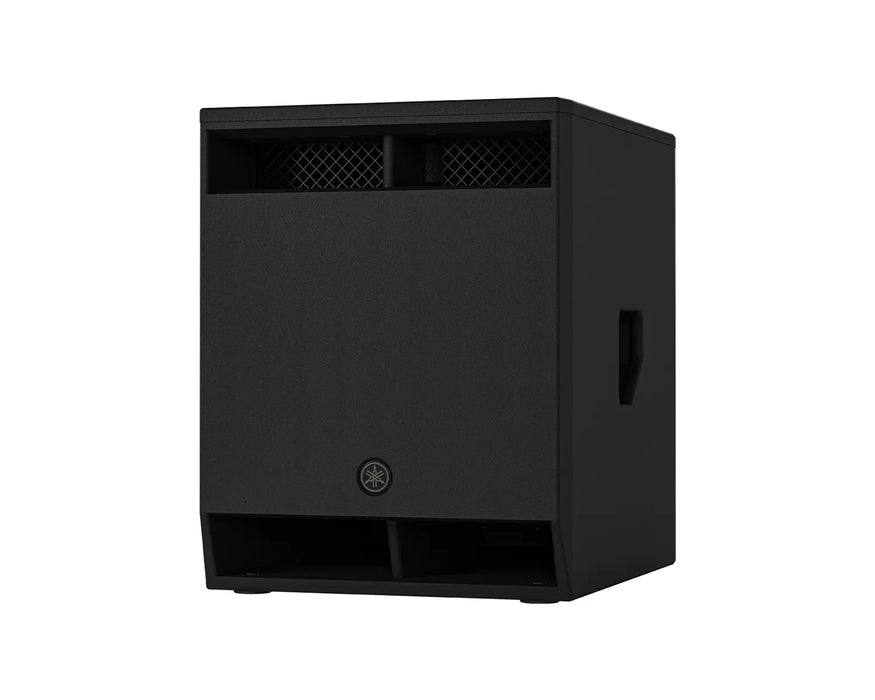

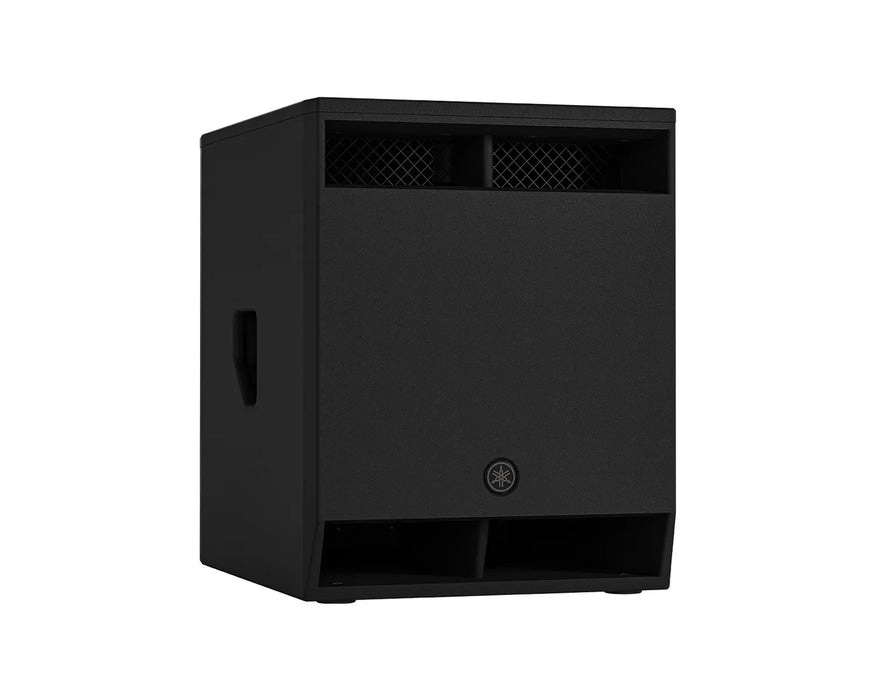

Yamaha DXS15 MK3 15" Band-Pass Active Subwoofer, 1250W
The Yamaha DXS15 MK3 is a mid-size 15" 1250W Band-Pass Active Subwoofer delivering 133dB peak SPL and 2500W Class-D amplification, featuring D-XSUB processing with extended low-frequency response down to 35Hz, Bluetooth 5.0 and wireless remote control.
The Yamaha DXS15 MK3 is the mid-size model in Yamaha's latest generation of DXS series powered subwoofers, delivering deep, clear and remarkably powerful ultra-low bass performance that steps up from the compact DXS12 MK3 with a larger 15" driver for greater low-frequency extension and output capability.
Built around a proprietary 15" high-durability transducer, a newly developed 2500W Class-D amplifier and an ideal bandpass cabinet structure that eliminates unwanted cabinet noise, the DXS15 MK3 provides a more powerful and extended low-frequency foundation for professional live music, DJ events, corporate events and any application where deep, controlled bass reinforcement is essential. When paired with the DXR MK3 series loudspeakers, the DXS15 MK3 enables users to build a seamlessly integrated and perfectly matched sound system with unparalleled impact.
High-Performance Bandpass Design
The DXS15 MK3's bandpass cabinet design is central to its exceptional bass performance. By enclosing the 15" driver within an acoustically optimised bandpass enclosure — housed in a durable, acoustically optimised plywood cabinet with scratch-resistant Polyurea coating — the DXS15 MK3 maximises bass output efficiency and eliminates the cabinet coloration and unwanted resonances that can affect vented or sealed designs. The step up to a 15" driver compared to the DXS12 MK3 delivers a noticeably deeper and more powerful bass response, with a peak SPL of 133dB — one decibel above the DXS12 MK3 — and a low-frequency extension down to 35Hz in XTENDED LF mode, three Hertz lower than the DXS12 MK3, for the most demanding bass-heavy applications.
D-XSUB Processing & Advanced DSP
The DXS15 MK3 is equipped with onboard 32-bit/96kHz DSP including Yamaha's proprietary D-XSUB processing, which extends the low-frequency response down to 35Hz in XTENDED LF mode for applications requiring the deepest possible bass reproduction. Extremely flexible crossover settings are available via the DSP, with a selectable HPF between 50Hz and 118Hz at 12–48dB/octave for precise integration with full-range loudspeakers across different system configurations. A cardioid mode provides effective bass management for on-stage applications, reducing low-frequency energy behind the subwoofer for cleaner stage sound and more controlled front-of-house bass projection.
Flexible Control & Connectivity

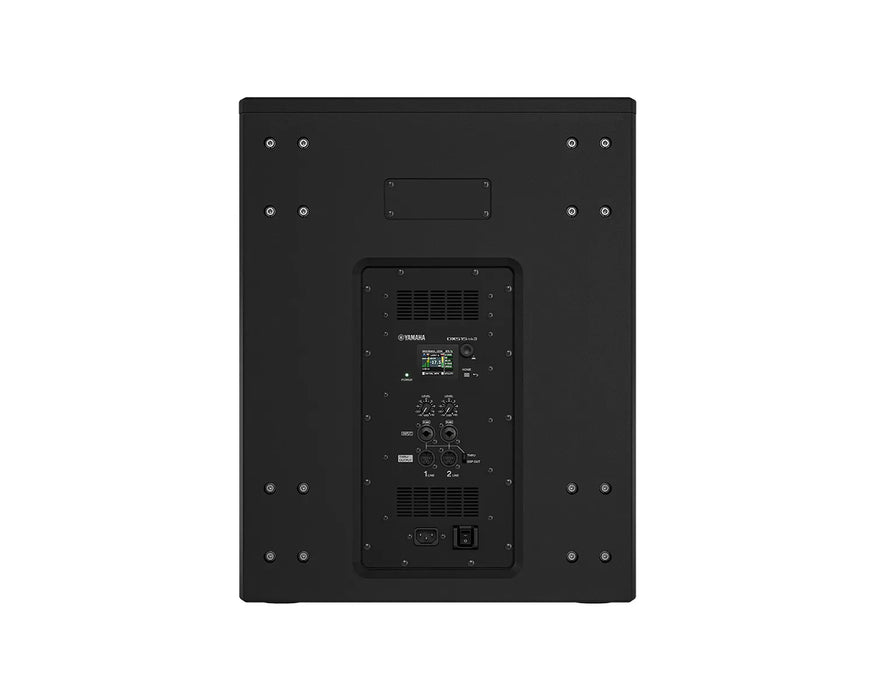

Two combo input connectors accept balanced and unbalanced sources at up to +24dBu, whilst two XLR outputs provide thru and DSP out options for seamless integration with full-range loudspeakers in a complete system. Bluetooth 5.0 (A2DP, SBC/AAC, Class 1) enables wireless audio streaming from smartphones and compatible devices. The D-Remote app for iOS and Android provides full wireless remote control of all DSP parameters, monitoring and system management for up to ten devices simultaneously with grouping for unified level and mute control. Five-speed fan cooling ensures optimal amplifier temperature throughout extended high-power use.
Practical Design & Deployment
The DXS15 MK3's durable plywood cabinet with Polyurea coating provides excellent long-term reliability in demanding professional environments. Two side handles make transportation practical, whilst dual pole sockets — a 35mm socket (80mm depth) and an M20 threaded socket (25mm threaded depth) — provide flexible satellite speaker mounting options for full-range loudspeakers such as the DXR MK3 series. An optional speaker wheel kit (SPW-1) and speaker cover (SPCVR-DXS153) are available for enhanced portability and protection.
Yamaha DXS15 MK3 Key Features:
- 15" Proprietary High-Durability Driver: 3" voice coil transducer engineered for deep, powerful and reliable low-frequency reproduction with greater output and extension than the DXS12 MK3.
- 2500W Class-D Amplifier / 1250W RMS: Newly developed high-efficiency Class-D amplification for powerful, sustained bass output.
- 133dB Peak SPL: One decibel above the DXS12 MK3 for even greater output capability in demanding applications.
- Ideal Bandpass Cabinet Design: Eliminates unwanted cabinet noise for tight, clean and powerful low-frequency performance.
- D-XSUB Processing: Extends low-frequency response down to 35Hz in XTENDED LF mode for deep, authoritative bass reproduction.
- 32-bit/96kHz DSP: Advanced onboard processing with flexible crossover settings for precise system integration.
- Cardioid Mode: Reduces low-frequency energy behind the subwoofer for effective on-stage bass management.
- Bluetooth 5.0 (SBC & AAC): Wireless audio streaming from smartphones and compatible devices.
- D-Remote App (iOS & Android): Full wireless remote control for up to ten devices simultaneously with grouping.
- 2 x Combo Inputs: Balanced and unbalanced source connectivity at up to +24dBu.
- 2 x XLR Outputs: Thru and DSP out for seamless integration with full-range loudspeakers.
- Five-Speed Fan Cooling: Ensures optimal amplifier temperature throughout extended high-power use.
- Dual Pole Sockets: 35mm and M20 threaded sockets for flexible satellite speaker mounting.
- Durable Plywood Cabinet: Acoustically optimised with scratch-resistant Polyurea coating for long-term reliability.
- Seamless DXR MK3 Integration: Perfectly matched for use with DXR MK3 series loudspeakers as a complete integrated sound system.
- Optional Speaker Wheels (SPW-1): Enhanced portability for transport between venues.
-
Optional Speaker Cover (SPCVR-DXS153): Protection during transport, storage and outdoor use.
