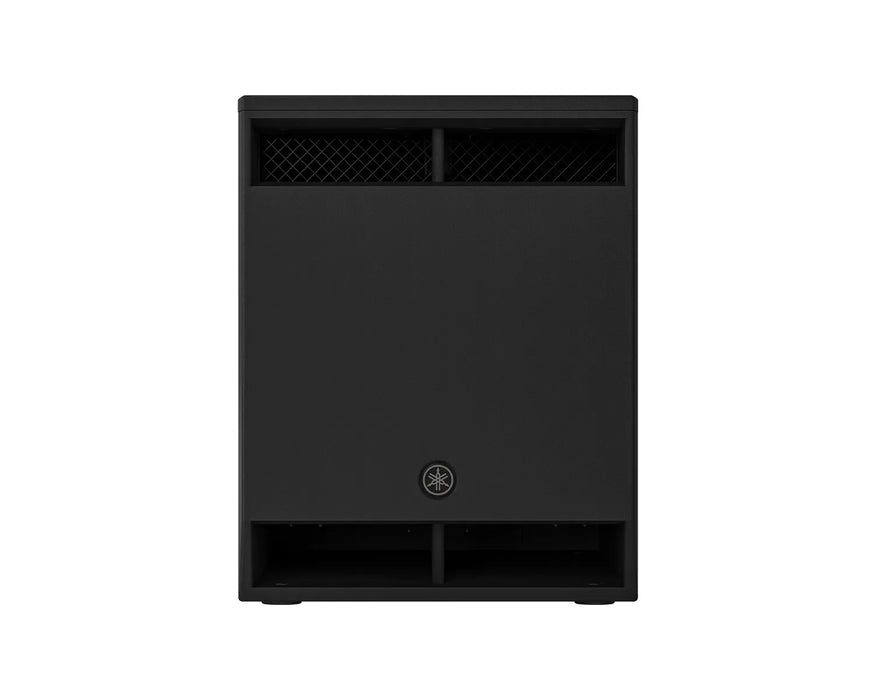

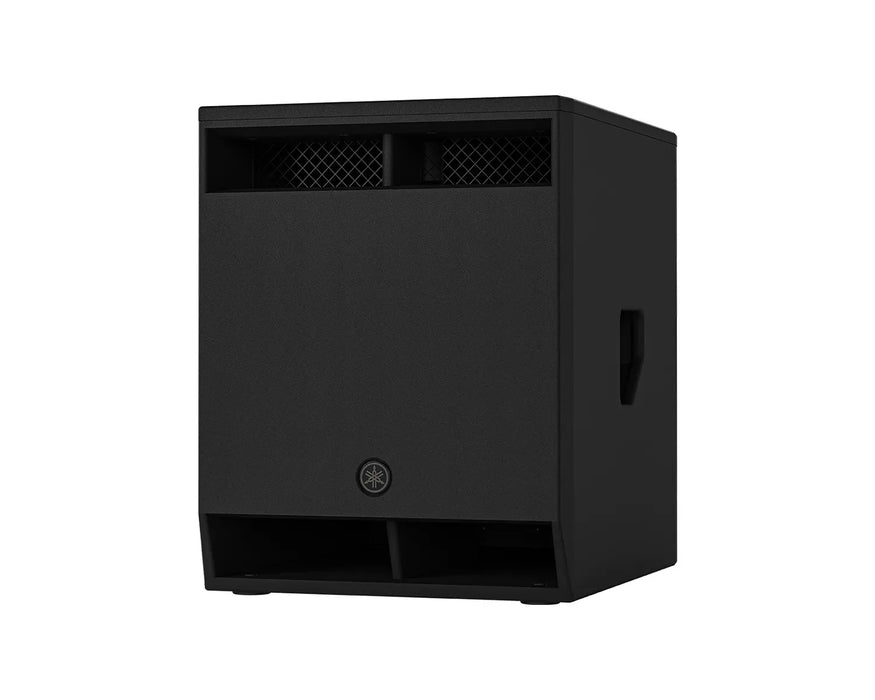

Yamaha CXS15 MK3 15" Band-Pass Passive Subwoofer, 650W 4 Ohm
The Yamaha CXS15 MK3 is the mid-size 15" 650W Band-Pass Passive Subwoofer in the CXS MK3 series, delivering deeper low-frequency extension and greater output than the CXS12 MK3.
The passive counterpart to the DXS15 MK3, purpose-built for professional installation and fixed system applications demanding powerful, controlled bass reinforcement.
The Yamaha CXS15 MK3 is the mid-size model in Yamaha's latest generation of CXS series passive subwoofers, stepping up from the compact CXS12 MK3 with a larger 15" driver for greater low-frequency extension and output capability. As the passive counterpart to the acclaimed DXS15 MK3 active subwoofer, the CXS15 MK3 shares the same proprietary high-durability transducer technology and bandpass cabinet design in an unpowered format — primarily intended for installation, fixed system and corporate event applications where a compatible amplifier infrastructure is already in place or where nearby power sources may be limited.
When used with Yamaha PX and PC-D Series amplifiers with dedicated speaker processor tuning settings, or paired with compatible DSP processors, the CXS15 MK3 can achieve an extended frequency response down to 35Hz — three Hertz deeper than the CXS12 MK3's extended specification — for the most demanding bass applications. When paired with the CXR MK3 series loudspeakers in particular, the CXS15 MK3 enables users to build a seamlessly integrated and perfectly matched passive sound system with unparalleled impact.
High-Performance Bandpass Design
The CXS15 MK3's bandpass cabinet design delivers greater low-frequency depth and output than the CXS12 MK3, with a passive frequency response extending down to 40Hz and a sensitivity of 95dB at 1W/1m — one decibel above the CXS12 MK3 — alongside a calculated peak SPL of 126dB. By enclosing the 15" driver with 3" voice coil within an acoustically optimised bandpass enclosure — housed in a durable plywood cabinet with scratch-resistant Polyurea coating — the CXS15 MK3 maximises bass output efficiency and eliminates the unwanted cabinet noise and resonances that can affect vented or sealed passive designs. The result is a tight, clean and powerfully impactful low-frequency response that makes the CXS15 MK3 a compelling choice wherever deeper bass and greater output headroom are required compared to the CXS12 MK3.
Flexible Connectivity & Deployment

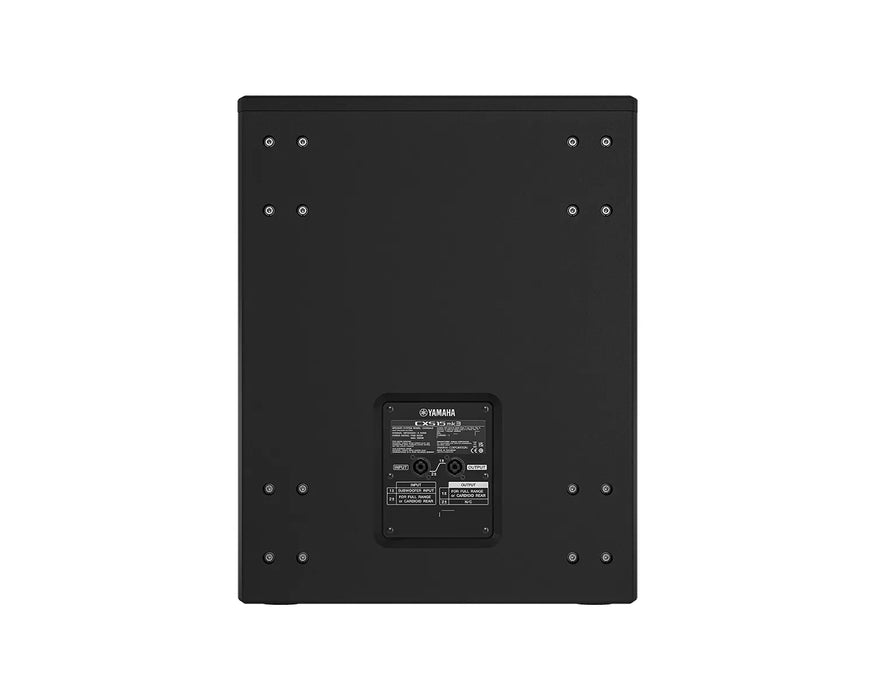

The CXS15 MK3 features two Speakon NL4MP connectors — one input and one output — for secure, professional-grade speaker connectivity and easy system integration with compatible amplifiers and full-range loudspeakers. The 4 Ohm nominal impedance and 650W program power handling make the CXS15 MK3 compatible with a wide range of professional amplifiers capable of delivering the necessary output for demanding bass reinforcement applications.
Dual pole sockets — a 35mm socket (80mm depth) and an M20 threaded socket (25mm threaded depth) — provide flexible satellite speaker mounting options for full-range loudspeakers such as the CXR MK3 series. Two side handles assist with practical transportation, and an optional speaker wheel kit (SPW-1) and speaker cover (SPCVR-DXS153) are available for enhanced portability and protection.
Yamaha CXS15 MK3 Key Features:
- 15" Proprietary High-Durability Driver: 3" voice coil transducer delivering greater low-frequency extension and output than the CXS12 MK3.
- 650W Program / 1300W Peak Power Handling: Robust power handling for professional bass reinforcement from compatible amplification.
- 95dB Sensitivity / 126dB Peak SPL: Higher sensitivity and peak SPL than the CXS12 MK3 for more powerful and efficient bass output.
- 4 Ohm Nominal Impedance: Compatible with a wide range of professional amplifiers for demanding bass reinforcement applications.
- Ideal Bandpass Cabinet Design: Eliminates unwanted cabinet noise for tight, clean and powerful low-frequency performance.
- Passive Frequency Response: 40Hz–180Hz (-10dB) with extension to 35Hz–140Hz when used with compatible DSP processing.
- Speakon NL4MP Input & Output: Secure, professional-grade connectivity with easy system integration and signal routing.
- Dual Pole Sockets: 35mm and M20 threaded sockets for flexible satellite speaker mounting.
- Durable Plywood Cabinet: Acoustically optimised with scratch-resistant Polyurea coating for long-term professional reliability.
- Seamless CXR MK3 Integration: Perfectly matched for use with CXR MK3 series loudspeakers as a complete passive sound system.
- Yamaha PX & PC-D Series Compatible: Takes full advantage of dedicated Yamaha speaker processor tuning settings for extended 35Hz response.
- 2 x Side Handles: Practical carry handles for comfortable transportation.
- Optional Speaker Wheels (SPW-1): Enhanced portability for transport between venues.
-
Optional Speaker Cover (SPCVR-DXS153): Protection during transport, storage and outdoor use.
