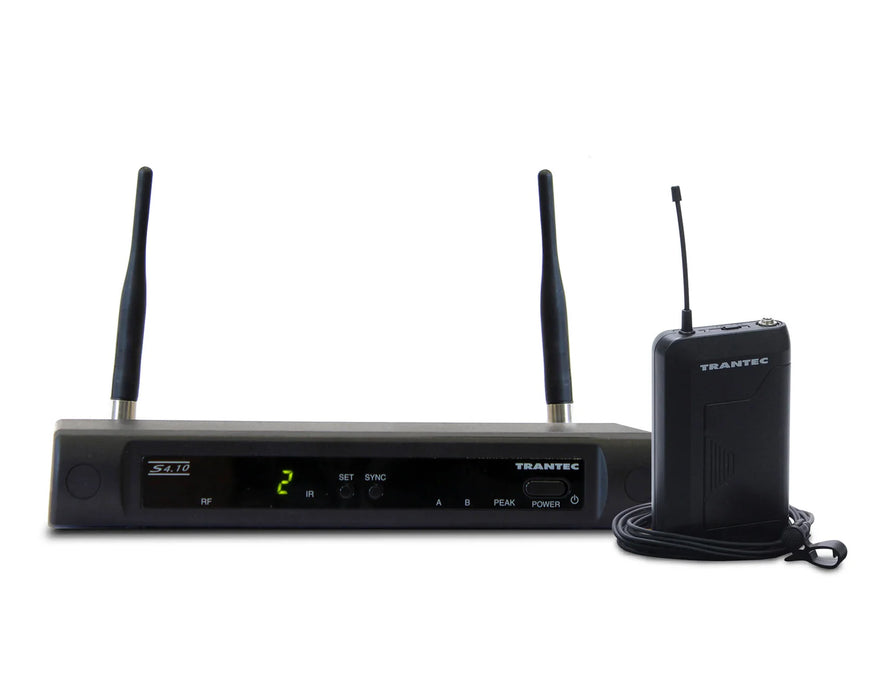

Trantec S4.10L UHF Wireless Beltpack & Lapel Microphone System with 16 Frequencies - CH38 or CH70
The Trantec S4.10L is a professional UHF Wireless Beltpack and Lapel Microphone System with 16 selectable frequencies, fully synthesised PLL quartz tuning and antenna diversity reception — available in Channel 38 or Channel 70, delivering reliable hands-free wireless audio for presentations, fitness instruction, theatre and events.
The Trantec S4.10L is a robust and reliable professional UHF wireless beltpack microphone system designed for any application where hands-free wireless audio is required — including presentations, conferences, fitness instruction, theatrical productions, houses of worship, schools and a wide range of event and installation applications. Built around Trantec's fully synthesised PLL quartz tuning technology, the S4.10L delivers stable, interference-free UHF wireless performance with 16 selectable frequencies and support for up to 10 simultaneous channels — making it equally well suited to single microphone applications and larger multi-channel setups requiring several wireless systems operating concurrently.
The S4.10L is available in two frequency variants — Channel 70 and Channel 38 — please select your required version before adding to basket. Channel 70 operates within the licence-free UHF band, requiring no PMSE licence for use in the UK. Channel 38 offers an alternative frequency option and requires a PMSE licence for operation. Both variants deliver the same professional performance and feature set.
Reliable Diversity Reception

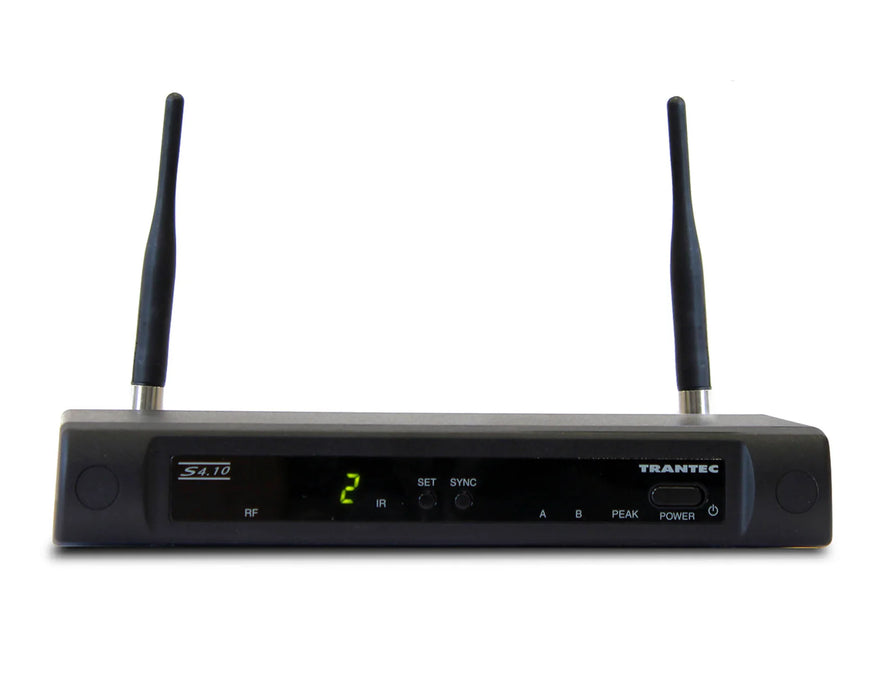

The S4.10L receiver features antenna diversity operation with a detachable antenna, ensuring consistent signal reception and minimising dropouts as the performer or presenter moves around the stage or venue. Receiver LEDs provide clear real-time monitoring of AF peak level, RF level and diversity channel A or B status — giving the operator a clear and instant overview of system performance at all times. Three squelch systems — Tone SQ, Carrier SQ and Noise SQ — work together to ensure a clean, noise-free output signal. The compact professional metal receiver chassis measures 215 x 39 x 102mm and can be used freestanding or rack-mounted in a standard 19" rack enclosure, with options for single or dual receiver mounting for permanent venue installations.
Compact Beltpack Transmitter

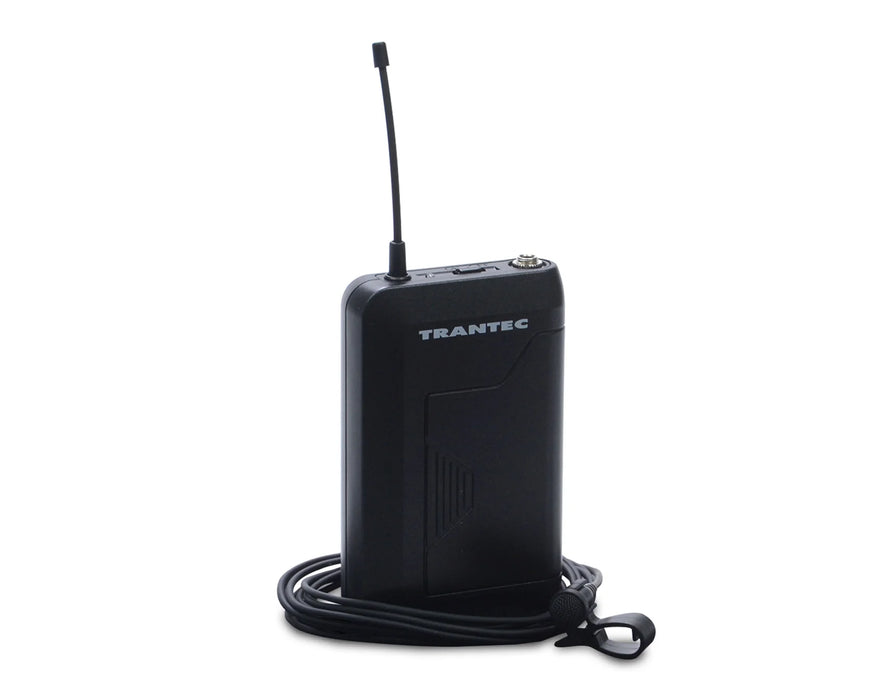

The S4.10L beltpack transmitter is an exceptionally compact and lightweight unit, measuring just 62 x 100 x 25mm and weighing only 85g with battery — small and light enough to be worn comfortably throughout an entire performance, presentation or fitness session without distraction. Powered by a single AA alkaline battery, the beltpack provides approximately 10 hours of continuous use on a single battery — more than sufficient for a full day of back-to-back sessions without interruption. The transmitter delivers 10mW of RF carrier power for stable wireless transmission.
Versatile Receiver Connectivity
The S4.10L receiver provides both balanced XLR (-20dBu) and unbalanced ¼" jack (+10dBu) audio outputs for straightforward connection to a wide range of PA amplifiers, mixers and installed audio systems, making it compatible with virtually any professional audio setup.
Trantec S4.10L Key Features:
- 16 Selectable Frequencies: Comprehensive frequency selection for interference-free operation in busy RF environments.
- Up to 10 Simultaneous Channels: Supports multi-microphone environments with up to 10 channels operating concurrently.
- Fully Synthesised PLL Quartz Tuning: Stable, reliable and interference-free UHF wireless performance.
- Antenna Diversity Reception: Minimises dropouts and ensures consistent signal reception across the performance or event space.
- Three Squelch Systems: Tone SQ, Carrier SQ and Noise SQ for a clean, noise-free output signal.
- Channel 70 or Channel 38 Available: Licence-free Channel 70 or Channel 38 (PMSE licence required) — select your required version before adding to basket.
- Approximately 10 Hours Battery Life: Single AA alkaline battery in the beltpack for a full day of performances or sessions.
- Compact Lightweight Beltpack: Just 85g with battery and 62 x 100 x 25mm for comfortable all-day wear.
- Balanced XLR & Unbalanced Jack Outputs: Flexible receiver connectivity for PA systems, mixers and installed audio.
- Receiver LED Monitoring: AF peak level, RF level and diversity channel A/B status indicators.
- Professional Metal Receiver Enclosure: Robust construction for reliable long-term use in professional environments.
-
19" Rack Mountable: Single or dual receiver rack mounting option for permanent venue installations.
