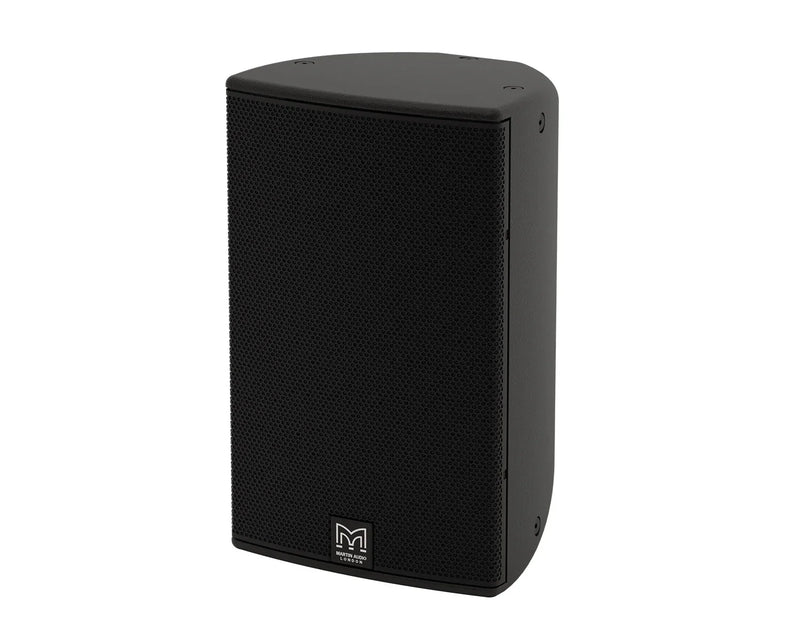

Martin Audio CDD10TX-WR 10" High-Performance Outdoor Wall Speaker, 120W 100V (Single)
Martin Audio CDD10TX-WR is a compact weatherised wall speaker designed for high-output outdoor installations.
The Martin Audio CDD10TX-WR is a compact two-way passive loudspeaker incorporating a 70V/100V line transformer, making it ideal for larger distributed outdoor audio systems where amplifier efficiency and loudspeaker daisy-chaining are required. It is designed for sheltered outdoor applications where environmental conditions may vary, such as hospitality terraces, concourses, transport hubs and theme parks, while remaining protected from direct exposure to the elements.
Despite its relatively compact enclosure, the CDD10TX-WR delivers high sound pressure levels and is well suited to foreground music and speech reinforcement in medium to large outdoor spaces. The integrated 10” LF and 1” HF Coaxial Differential Dispersion driver provides a point-source design, ensuring consistent tonal balance and uniform coverage across wide and irregular listening areas.
Using Martin Audio’s Coaxial Differential Dispersion technology, the CDD10TX-WR projects more output towards the rear of the audience while maintaining wide near-field horizontal coverage. This results in even front-to-back sound distribution, making it particularly effective for outdoor restaurants, hotel areas, nearfield systems in outdoor stadia and public concourse environments.
The visually distinctive composite enclosure can be installed in either horizontal or vertical orientation, with the coaxial driver easily rotated by removing the screw-free protective grille. The curved cabinet design allows surface mounting close to a wall using an optional weatherised wall bracket, or suspension from a ceiling using eyebolts or a horizontal yoke, offering flexible installation options for a wide range of architectural applications.

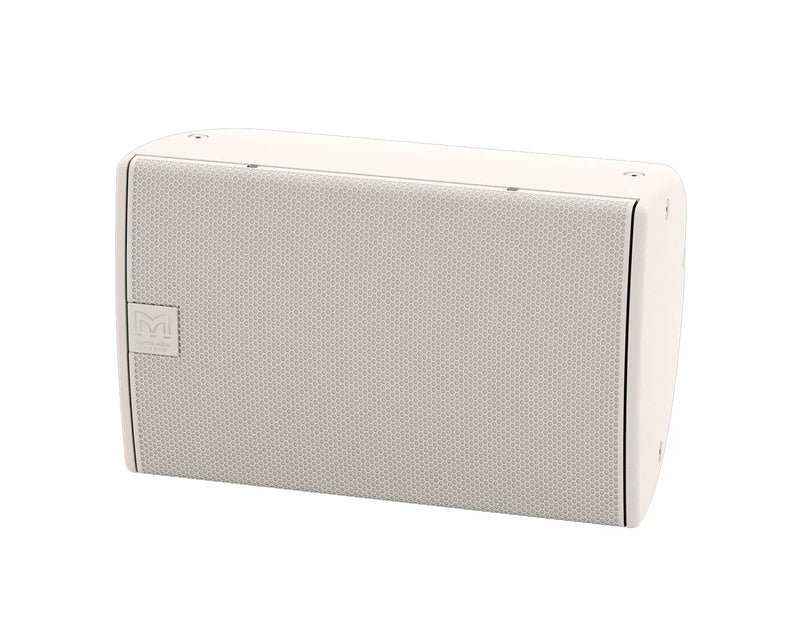

The enclosure is environmentally tested to IP54 and suitable for operating temperatures between -20°C and +70°C. A zinc-plated mild steel grille with powder-coated finish and stainless steel fixings ensure long-term reliability in sheltered outdoor conditions. The CDD10TX-WR is finished in black (RAL9005) or white (RAL9016) as standard, with custom RAL colours available to match specific architectural requirements.
Martin Audio CDD10TX-WR Key Features:
- Compact two-way system: High-output passive loudspeaker for larger outdoor areas.
- Coaxial Differential Dispersion technology: Provides consistent front-to-back sound coverage.
- 70V/100V operation: Optimised for distributed line systems (no low impedance mode).
- Weatherised enclosure: Composite cabinet rated to IP54 for sheltered outdoor use.
- Wide operating temperature range: Suitable for environments from -20°C to +70°C.
- High output capability: Ideal for foreground music and speech applications.
- User-rotatable coaxial driver: Allows horizontal or vertical mounting orientation.
- Screw-free protective grille: Water and particle resistant steel grille.
- Eyebolt suspension points: Integral M8 inserts for flown installations.
- Discreet mounting accessories: Optional weatherised wall and yoke brackets.
-
Colour options: Black or white as standard, custom RAL colours available.
Specifications:
