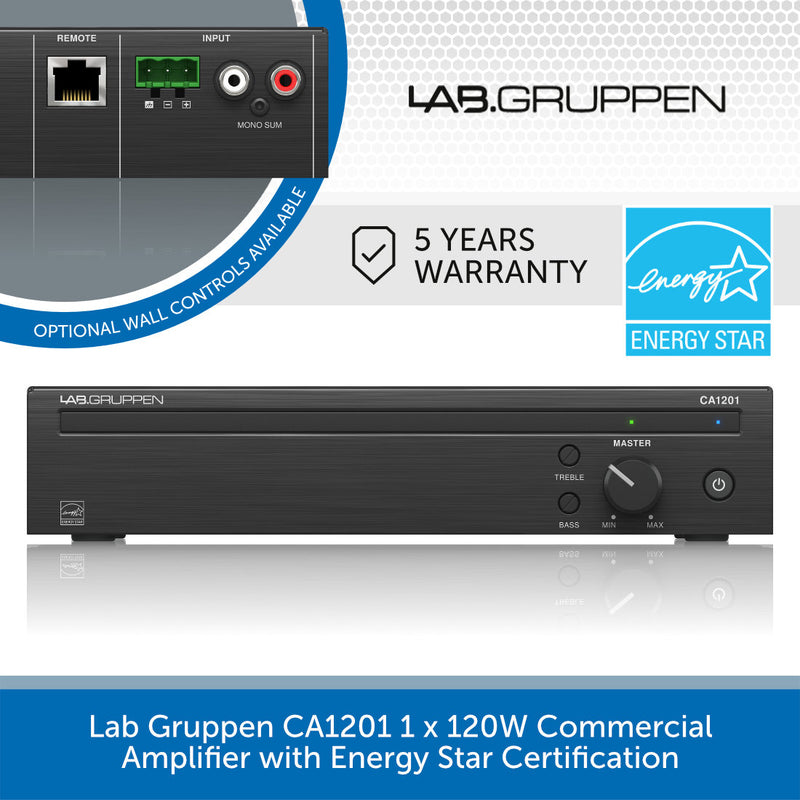

Lab Gruppen CA1201 1 x 120W Commercial Amplifier with Energy Star Certification
The Lab Gruppen CA1201 is the ideal solution for commercial and industrial audio applications, delivering powerful sound with energy efficiency.
Designed to meet the demands of diverse environments such as bars, restaurants, retail spaces, hotels, corporate offices, and educational institutions, this 120-watt amplifier combines reliability with advanced features for exceptional performance.
The Lab Gruppen CA1201 1 x 120W Commercial Amplifier combines high-quality audio performance, energy efficiency, and user-friendly operation in one robust package.
Ideal for any setting requiring background music or a public address system, the CA1201 offers exceptional versatility and ease of integration for a variety of commercial applications.
Lab Gruppen CA1201 Key Features:
-
Flexible Output Options: The CA1201 supports both Low-Z (4/8 Ohm) and High-Z (70/100 V) loudspeaker configurations. The intuitive dipswitches adjacent to the rear panel Euroblock output connector allow easy selection of output settings and gain adjustment, while an individual control engages the built-in high-pass filter to maintain sound integrity.
-
Automatic Power On/Off: Featuring a flexible power scheme, the CA1201 automatically powers on/off based on input signal presence. If no signal is detected for 20 minutes, the system enters sleep mode, significantly reducing power consumption. The Auto Ramp circuit instantly powers the system back on upon detecting a signal, ensuring seamless operation. The front panel power button also allows for manual standby and activation.
-

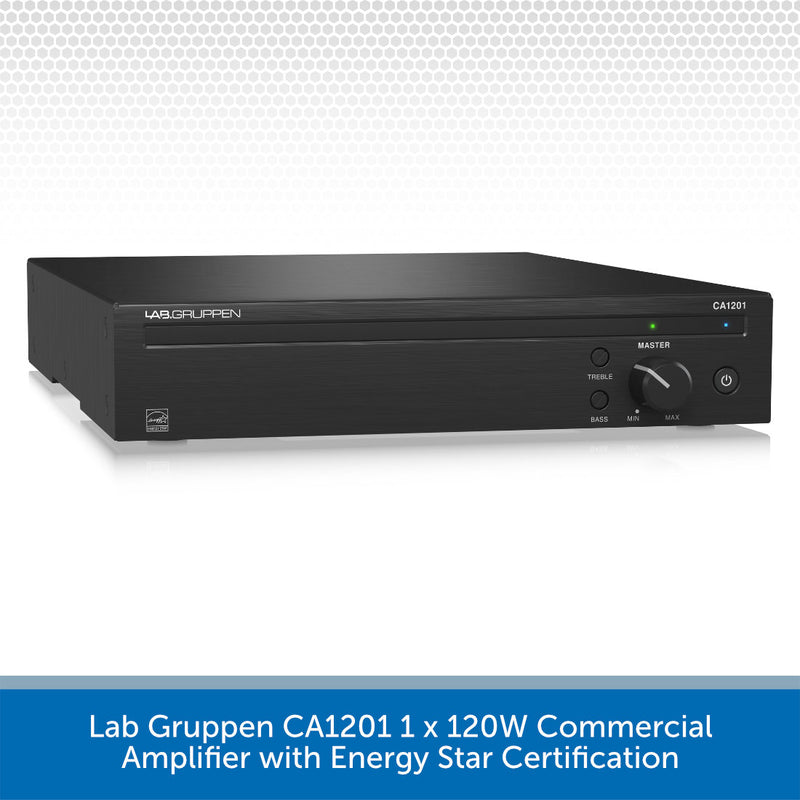

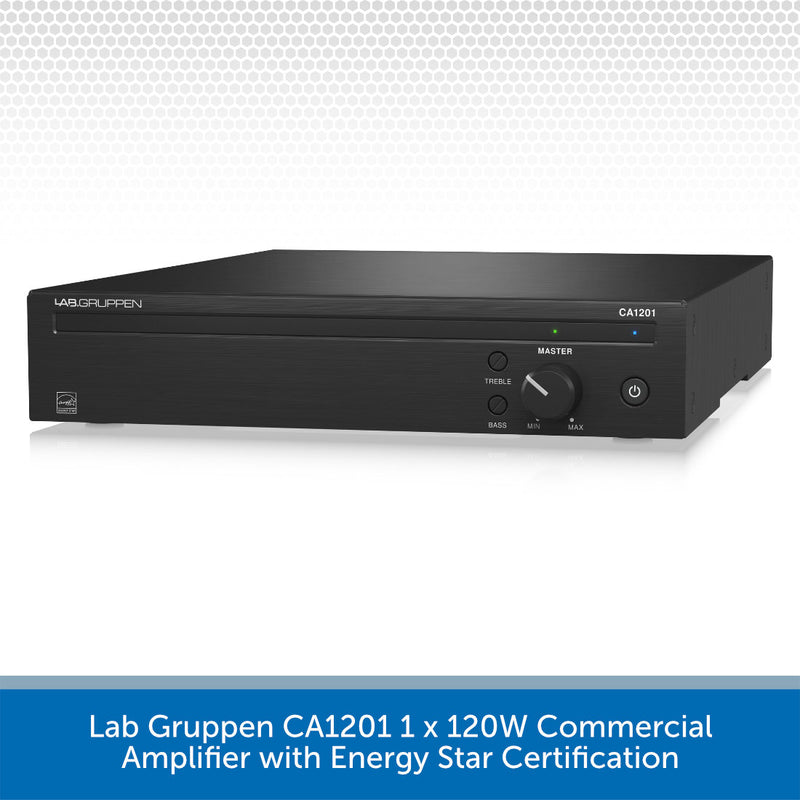

Sublimely Simple Controls: The CA1201's intuitive front panel features a power button and master volume knob for easy access, allowing quick adjustments by virtually anyone. Bass and treble controls are available for fine-tuning and require a tool for changes, ensuring consistent settings.
-

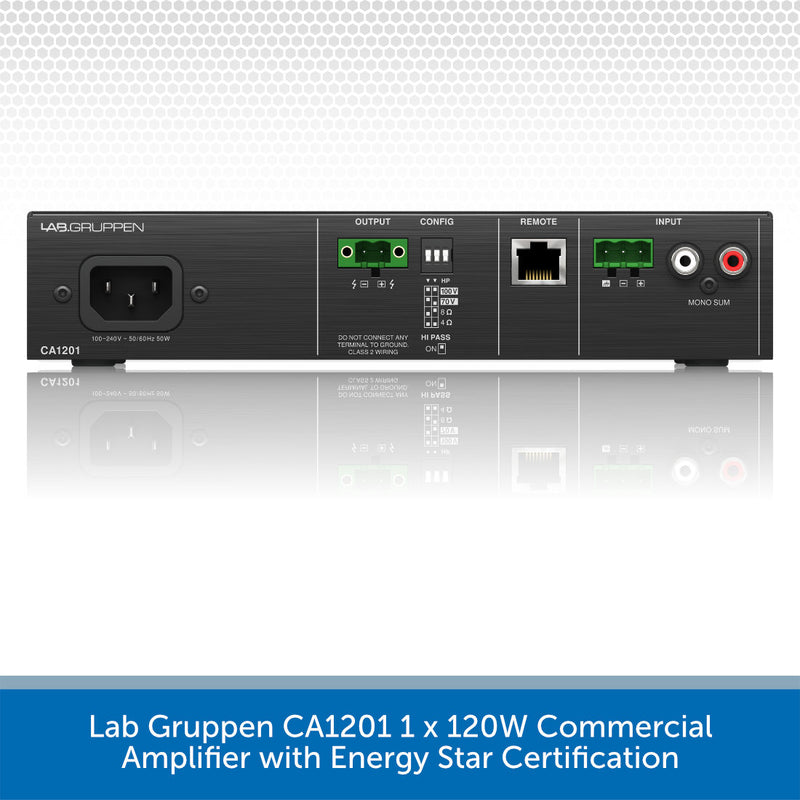

Easy to Hook Up: Connecting audio sources is straightforward with the standard 3-pin Euroblock input socket for balanced sources like mixers or audio processors. For unbalanced stereo sources such as players, phones, or computers, RCA connections are available, summed to mono for compatibility. The system should use only one input source at a time, and a standard 2-pin Euroblock socket is provided for loudspeaker output.
-
Expandable Remote Control: The RJ45 receptacle on the rear panel allows for extensive remote control options, including the CRC-V Series wall controllers and the stylish LAB.LEVEL tabletop controller. These can be interconnected using affordable and readily available Ethernet cabling, providing versatile control possibilities.
-
System Scalability: The CA1201 is part of a family of products designed for scalability, offering both single and dual-zone solutions to accommodate growing and changing installations. With individual zone volume and remote control capabilities, the CA1201 serves as a flexible building block for a dynamic audio system.
-
Real-World Energy Savings: With features like Auto Ramp and direct drive constant power technology, the CA1201 is Energy Star certified and capable of delivering significant energy savings, making it a cost-effective choice that can pay for itself in virtually no time.
-
Robust Build Quality and Warranty: Manufactured in Lab Gruppen's state-of-the-art Music Tribe factory, the CA1201 boasts a low product failure rate due to enhanced production workflows and sophisticated quality assurance. This reliability is backed by a generous warranty program, ensuring peace of mind for users.
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
Lab Gruppen CA1201 Specifications
Maximum Output Power
- 4 Ω per channel: 120 W
- 8 Ω per channel: 120 W
- 70 V per channel: 120 W
- 100 V per channel: 120 W
Number of Output Channels
- Number: 1
Minimum Load Impedance
- 4 Ω mode: 4 Ω
- 8 Ω mode: 8 Ω
- 70 V output mode: 41 Ω
- 100 V output mode: 82 Ω
Limiter Voltage / Amp Gain
- 4 Ω mode: 31 Vpeak / 25 dB
- 8 Ω mode: 44 Vpeak / 28 dB
- 70 V output mode: 100 Vpeak / 35 dB
- 100 V output mode: 141 Vpeak / 38 dB
Controls
- Front: Power standby button, gain control, tone controls - bass and treble
- Rear: Load config - (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter
Tone Controls
- Bass: ±10 dB @ 100 Hz
- Treble: ±10 dB @ 10 kHz
Indicators
- Power: On (blue), force standby (red), sleep (yellow)
- Master
- Signal (green LED): >12.3 mV (-36 dBu)
- Limit (red LED): Input clip, output limit
- Fault (red LED): Overheat, DC fault, over current, etc
System
- Inputs:
- 1 x 3-pin 5.08 mm Euroblock connector
- 1 x RCA stereo summed
- Input impedance: 10 kΩ unbalanced and RCA, 20 kΩ balanced
- Input sensitive: Balanced: 1.23 V (+4 dBu)
- RCA: 0.62 V (-2 dBu) each for mono sum RCA
- Maximum input level: 9.75 V (+22 dBu)
- Outputs: 1 x 2-pin 5.08 mm Euroblock connector
- Output circuit type: Class D
- Remote connector: 1 x RJ45 connector
Performance
- Distortion, 1/8 rated power: <0.05%
- Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
- Crosstalk (2 channel models): >85 dB
- Signal-to-noise: >97 dBA
- High-pass filter: 80 Hz HPF
Circuit Protection
- Cooling: Convection-cooled, fanless
- Amplifier protection: Thermal protection, over current protection, DC protection, high frequency protection
- Load protection: Controlled start and shutdown behaviour, DC-fault protection
Power Supply, Voltage (Fuse)
- Main voltage: 100-240 V~, 50/60 Hz
- Fuse: T 3.15 A L 250 V
- Power consumption 1/8th rated power @ 4 Ω: 50 W
- Mains connector: Standard IEC connector
Physical and Dimensions
- Dimensions (H x W x D): 44 x 218 x 299 mm (1.7 x 8.6 x 11.8")
- Weight: 2.3 kg (5.1 lbs)
- Finish: Brushed black anodized aluminium chassis with black painted steel bottom
- Approvals: CE, cTUVus, PSE, CCC, RoHS, FCC part 15 Class B and Energy Star 3.0
