Electro-Voice EVID-EC6.2 6.5" Ceiling Speaker 100V/8Ω (Single) – White

SKU ELEEVIDEC62
Original price £137.00 (inc. VAT) - Original price £137.00 (inc. VAT)
Original price £137.00 (inc. VAT)
£137.00 (inc. VAT)
£137.00 (inc. VAT) - £137.00 (inc. VAT)
Current price £137.00 (inc. VAT)

Electro-Voice EVID-EC6.2 Ceiling Speaker Delivers High-Quality Sound and Easy Installation.

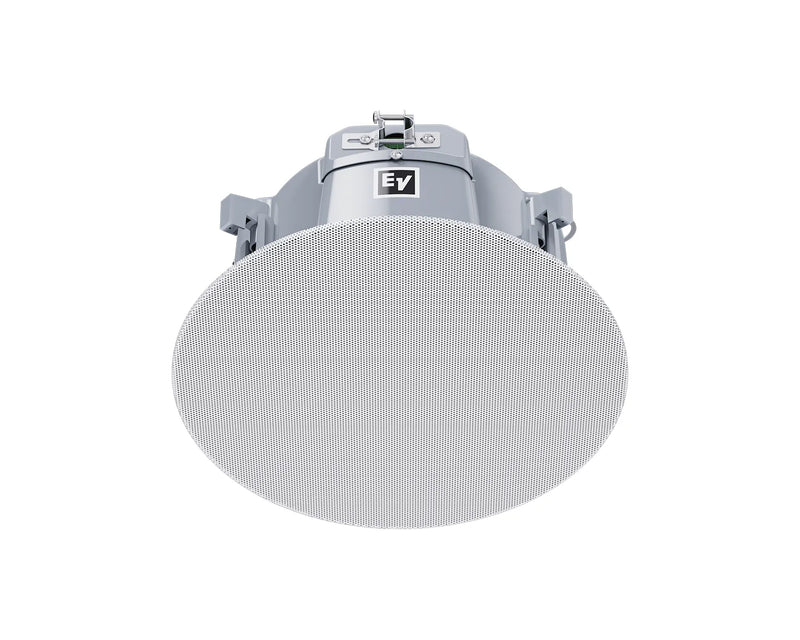

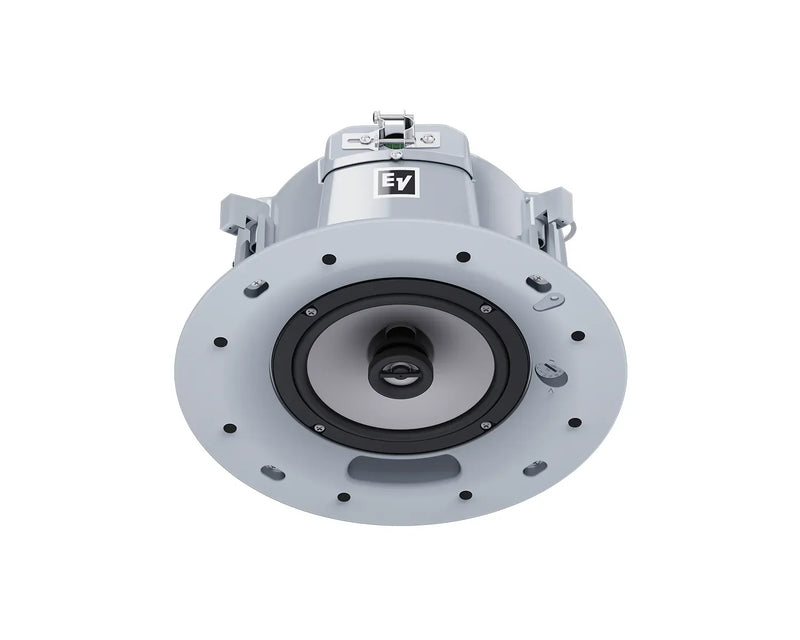

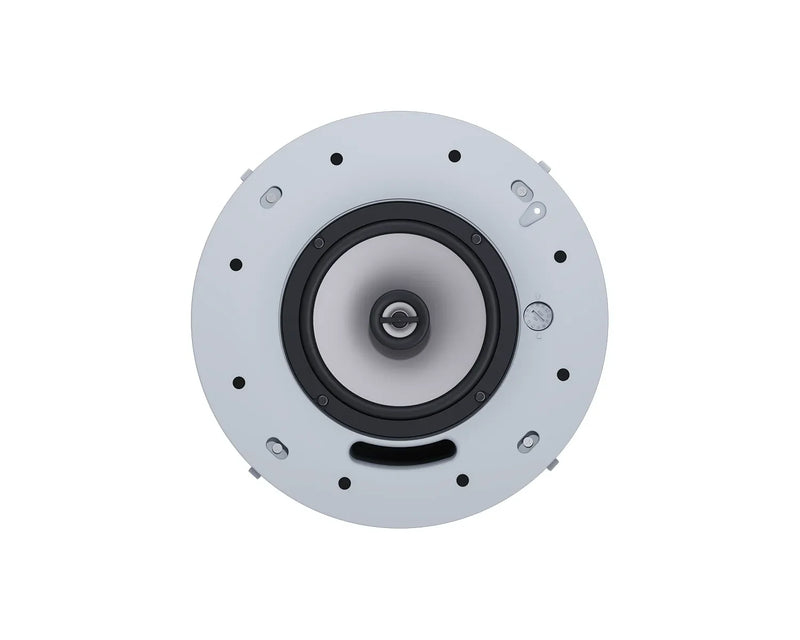

The Electro-Voice EVID-EC6.2 is a 6.5-inch coaxial two-way ceiling speaker designed for exceptional sound quality, reliability, and sleek aesthetics. Its low-profile, bezel-less design makes it ideal for bars, restaurants, and other hospitality venues, while also being suitable for schools, offices, and retail spaces.

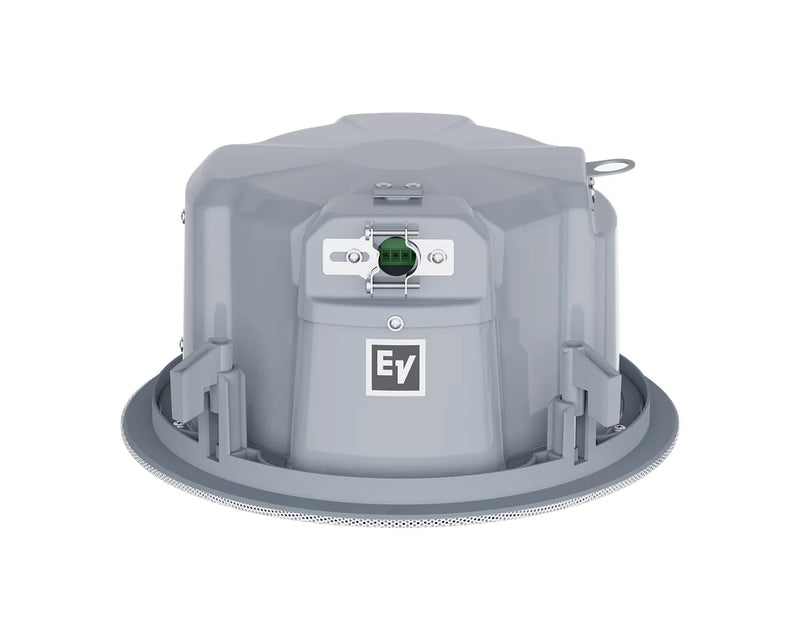

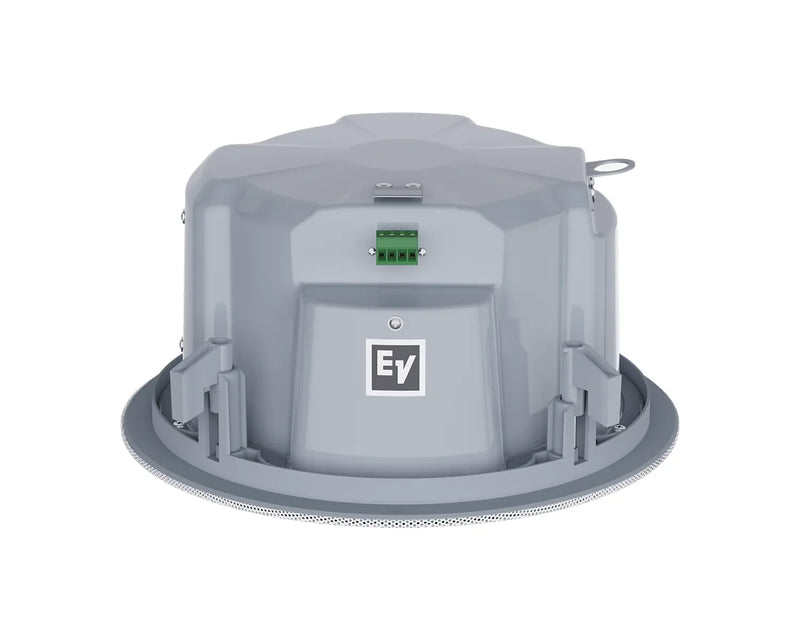

This versatile speaker features a front baffle wattage tap adjustment, allowing power selection via 70-V or 100-V lines, or an 8-ohm bypass. Its perforated grille is finished in semi-gloss white powder-coated enamel, while the baffle is made from UL 94V-0 rated ABS and the rear enclosure from heavy-gauge coated steel. The compact design allows installation in tight ceiling spaces, with a 4-pin terminal block enabling simple connection and pass-through to additional speakers.

Installation is straightforward thanks to the included mounting ring and tile bridge, which safely support the speaker in drop ceilings using mineral wool or other fibre-based tiles. The EVID-EC6.2 is fully compatible with other EVID ceiling, surface-mount, and in-wall speakers, allowing seamless integration into larger audio systems. It is certified to UL 1480A, UL 2043, CSA C22.2 No. 205, and IEC 62368-1 standards.

Electro-Voice EVID-EC6.2 Key Features:

  • Bezel-less Design: Provides a modern, unobtrusive look for any ceiling.
  • Front Baffle Wattage Tap Adjustment: Easy power selection for 70V, 100V, or 8-ohm operation.
  • Easy Installation: Includes tile bridge and C-ring for secure drop ceiling mounting.
  • High-Quality Sound: 6.5" coaxial two-way speaker delivers clear, reliable audio.
  • Durable Construction: Steel rear enclosure and ABS baffle ensure long-lasting performance.
  • Wide System Compatibility: Works with other EVID ceiling, surface-mount, and in-wall speakers.
  • Certified Safety Standards: UL 1480A, UL 2043, CSA C22.2 No. 205, and IEC 62368-1.

Manuals & Data Sheets:

Electro-Voice EVID-EC6.2 Data Sheet

Specifications:

  • Frequency Range: 80 Hz – 20,000 Hz (-10 dB)
  • Maximum SPL (Continuous/Peak): 110 dB / 116 dB
  • Sensitivity (1 W, 1 m): 92 dB SPL
  • Coverage Angle: 110° conical
  • Power Handling (Continuous/Peak): 60 W / 240 W
  • Long-Term Power Handling: 40 W / 160 W
  • Nominal Impedance: 8 Ω
  • Recommended High Pass: 70 Hz
  • Transformer Taps 70V: 30 W, 15 W, 7.5 W, 3.75 W, 1.88 W
  • Transformer Taps 100V: 30 W, 15 W, 7.5 W, 3.75 W
  • LF Transducer Size: 6 in
  • HF Transducer Size: 1 in
  • Material: Steel
  • Grille Material: Powder-coated steel
  • Connector Type: 4-pin Euroblock, input + pass-through
  • Wire Size: Up to 12AWG / 3.3 mm²
  • Colour: White (RAL 9003 Signal White)
  • Mounting Cutout: 10.7 in / 272 mm
  • Dimensions (Ø x D): 11.9 in x 6.1 in / 302 mm x 153.8 mm
  • Mounting Depth: 5.9 in / 149 mm
  • Ceiling Thickness: 0.5 in – 1.5 in / 12.5 mm – 38 mm
  • Weight: 7.9 lb / 3.6 kg
  • Shipping Weight: 21.4 lb / 9.7 kg
  • IP Rating: IP34
  • Weatherization: Indoor use
  • Operating Temperature: 0 °C – 50 °C / 32 °F – 122 °F
