Cloud BT-2E Bluetooth Facility Input Wall Plate for DCM1/DCM1e (Black or White)
The Cloud BT-2E Enables Seamless Bluetooth Audio Streaming to DCM1 and DCM1e Digital Control Mixers.
The Cloud BT-2E is a wall-mounted Bluetooth facility input panel designed specifically for the Cloud DCM1 and DCM1e Digital Control Zone Mixers. It provides a convenient way for users to stream audio wirelessly from smartphones, tablets, and laptops directly into the installed zone, making it ideal for commercial audio environments such as restaurants, hotels, offices, and leisure spaces.
Installation is quick and simple. The BT-2E connects to a DCM1 or DCM1e via a single screened Cat 5 cable, which carries both power and balanced audio. This connection is made using the mixer’s RJ45 Extension Port, allowing for a neat, reliable, and low-maintenance installation. The module features a single-button pairing mode for secure Bluetooth operation, and can alternatively be configured in an unsecured mode during setup if required.
The BT-2E delivers stereo audio to the host mixer, giving users full-quality Bluetooth streaming capability across connected zones. For installations that exceed the number of Extension Ports available, an optional FPA-1 adaptor can be used to configure the BT-2E as a global line input, offering even greater system flexibility.
Available in black (BT-2EB) or white (BT-2EW), the BT-2E combines professional-grade performance with elegant design, integrating seamlessly into a variety of commercial interior styles.
Cloud BT-2E Key Features:
- Wireless Audio Streaming: Provides Bluetooth audio input from smartphones, tablets, and laptops to DCM1/DCM1e mixers.
- Stereo Audio Output: Routes stereo audio directly to the host unit for high-quality playback.
- Simple Installation: Connects to the host unit’s Extension Port via a single screened Cat 5 cable.
- Secure or Unsecured Pairing: Configurable Bluetooth modes for controlled or open connectivity.

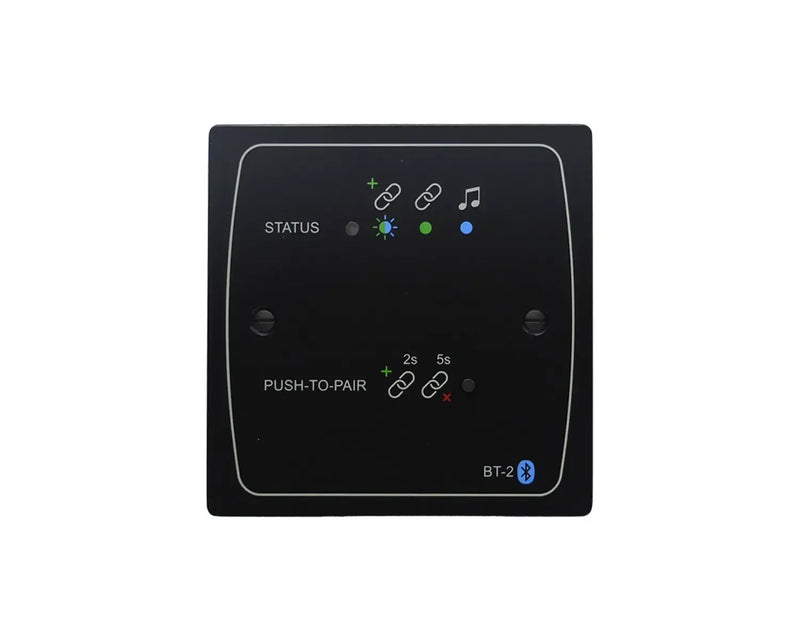

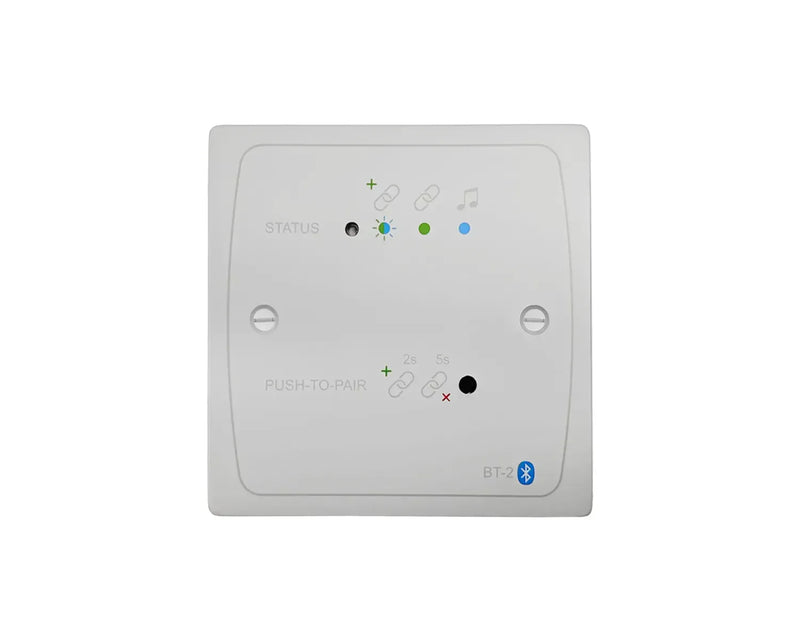

- LED Status Indicator: Bi-colour LED shows connection progress and streaming status.

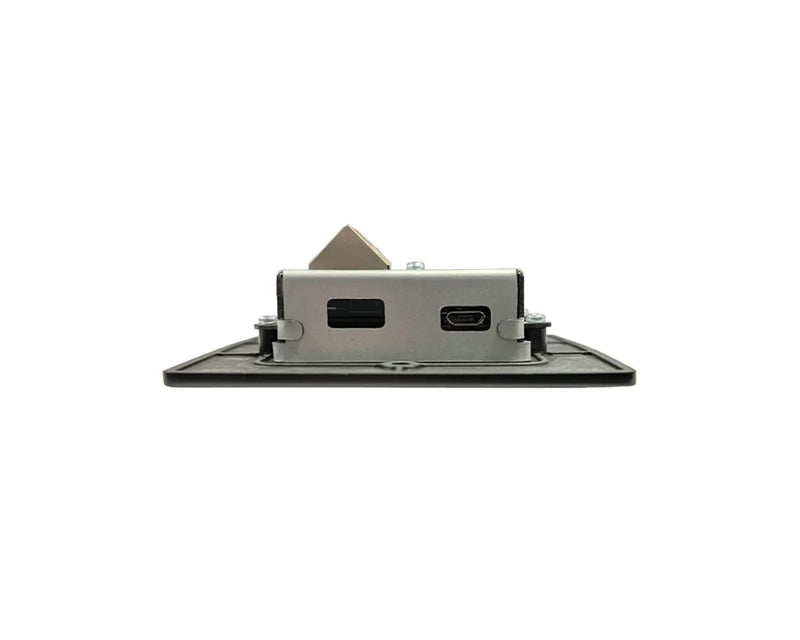

- Micro USB Port: Allows for plate naming and system identification.
- Expandable Configuration: Can be daisy-chained with LM-2 remote modules or RSL-6/RL-1 control plates.
- RF Power Adjustment: Adjustable transmission strength to prevent unwanted cross-room connections.
- Flexible Integration: Compatible with Cloud DCM1 and DCM1e Digital Control Mixers.
-
Professional Design: Supplied in black or white, fits standard UK single-gang back boxes (minimum depth 35mm).
Specifications:
