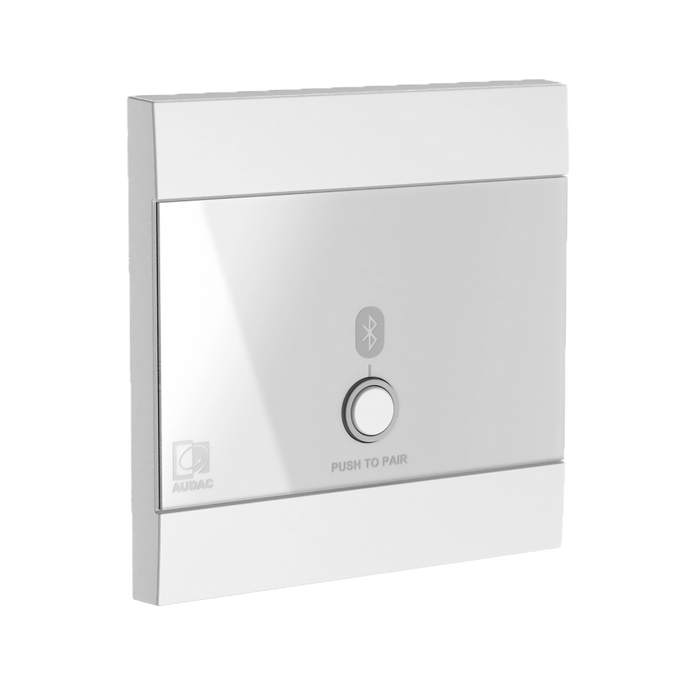

AUDAC WP220 Bluetooth Wall Panel Remote Input Module (Black or White)

by AUDAC
SKU WP220/B
Original price £159.00 (inc. VAT) - Original price £159.00 (inc. VAT)
Original price £159.00 (inc. VAT)
£159.00 (inc. VAT)
£159.00 (inc. VAT) - £159.00 (inc. VAT)
Current price £159.00 (inc. VAT)
Colour: Black
DETAILS

The AUDAC WP220 is a sleek Bluetooth wall panel designed for effortless wireless audio input.

The AUDAC WP220 is a compact in-wall Bluetooth receiver panel designed to provide an easy and reliable wireless audio input for commercial audio systems. Ideal for offices, hospitality venues, classrooms, retail spaces and leisure facilities, it allows users to instantly connect their phones, tablets or laptops and stream high-quality audio into the connected amplifier or matrix system.

Compatible with a wide range of AUDAC devices including the ARES5A, MTX Series and AMP523, the WP220 enables long-distance audio transmission using standard CAT5e or better cabling. This ensures a clean and interference-resistant signal path, making it practical for installations where equipment racks are positioned away from the listening area.

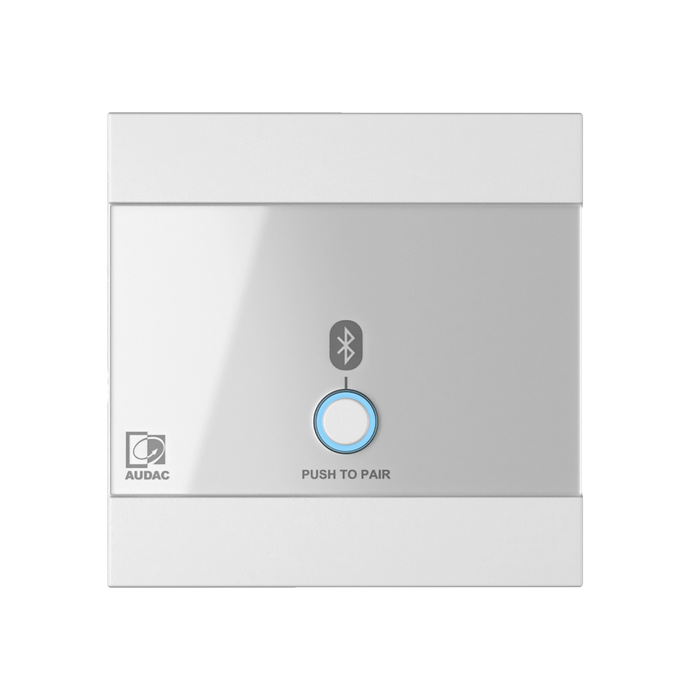

The front panel features a Bluetooth pairing button with LED status indicator, allowing users to check pairing status at a glance. The Bluetooth name can be customised by the installer, and the unit supports all major platforms including iPhone, iPad, Android devices, PCs and laptops.

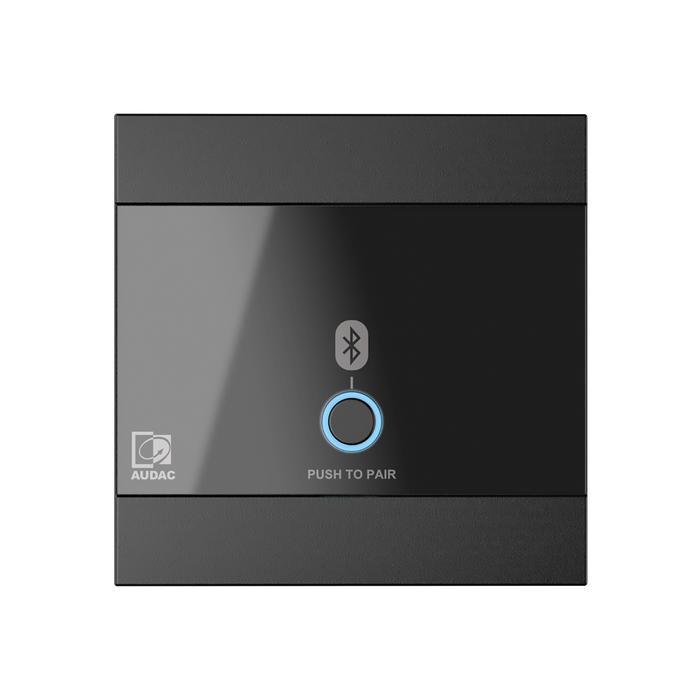

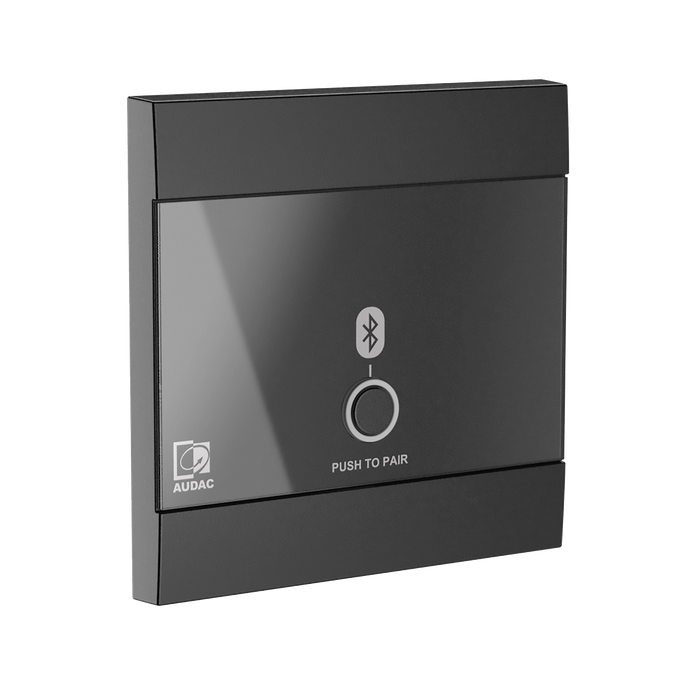

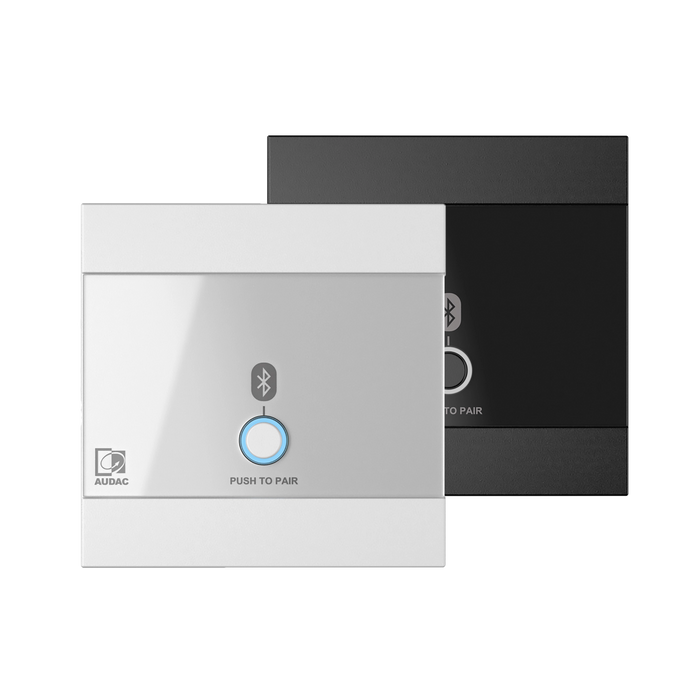

Available in Black (RAL9005) or White (RAL9003), the WP220 features an elegant ABS panel with glass finish and is designed to match EU-standard 80 x 80 mm installation boxes. Optional surface-mount and flush-mount back boxes are available for maximum installation flexibility.

AUDAC WP220 Key Features:

  • Sleek Wall-Mount Design: Elegant ABS and glass finish blends seamlessly into modern interiors.
  • Bluetooth 5.0 Receiver: Enables high-quality wireless audio streaming from smartphones, tablets and computers.
  • Customisable Bluetooth Name: Allows installers to set a recognisable device name for easy pairing.
  • Long-Distance Audio Transmission: Uses CAT5e or better cabling for interference-free signal transfer across extended distances.
  • Simple User Controls: Bluetooth pairing button with LED indicator on the front panel.
  • Flexible Installation: Fits 80 x 80 mm EU wall boxes; optional surface-mount and flush-mount boxes available.
  • Compatible Hardware: Works with AUDAC ARES5A, MTX Series, AMP523 and other supported devices.

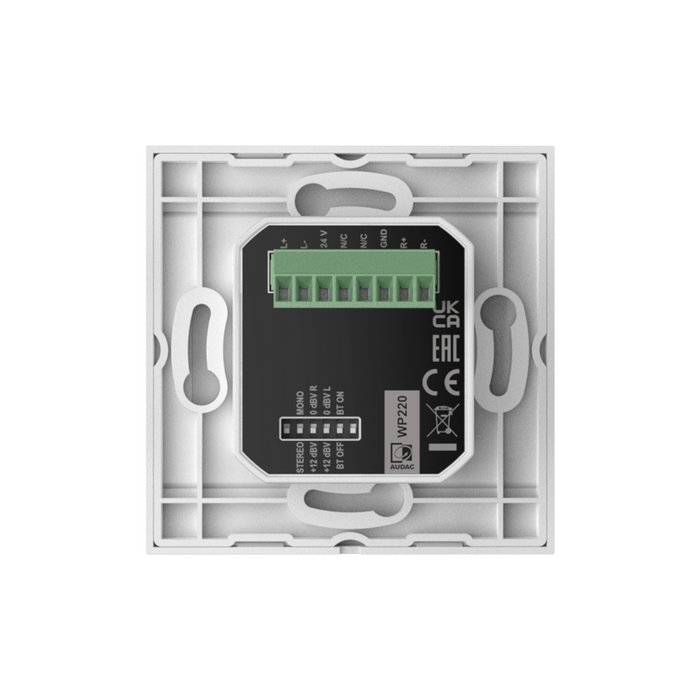

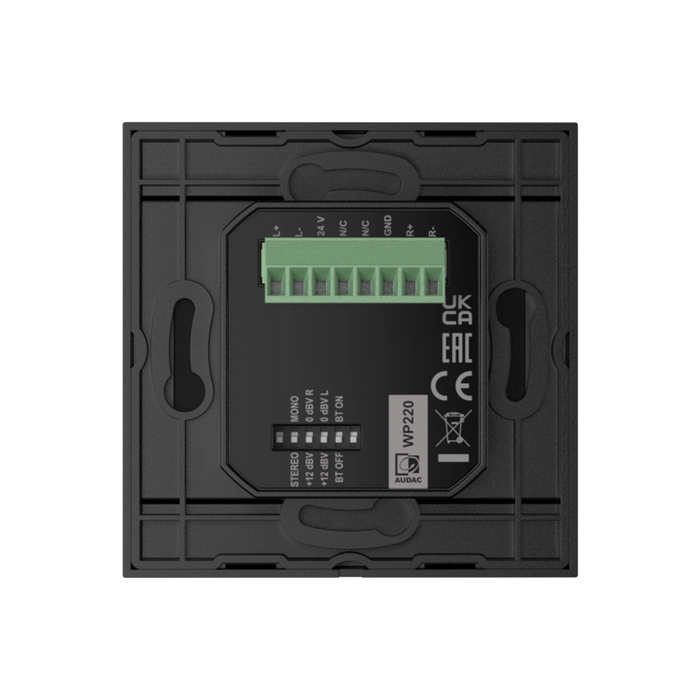

  • Rear DIP Switch Settings: Control mono/stereo mode, Bluetooth enable/disable and output level adjustments.
SPECS & DOWNLOADS

Download the PDF Data Sheet HERE >

AUDAC WP220 Specifications:

  • Control: Bluetooth pairing button with LED indicator
  • Output Level: +12 dBV enable/disable (rear DIP switch)
  • Bluetooth Enable: Switchable via rear DIP switch
  • Mono/Stereo Selection: Switchable via rear DIP switch
  • Input Type: Bluetooth receiver (Version 5.0)
  • Output Levels: +12 dB or 0 dB
  • Output Connection: 8-pin terminal block (3.81 mm pitch)
  • Dimensions: 80 x 80 mm (W x H)
  • Colours: Black (RAL9005) or White (RAL9003)
  • Front Finish: ABS front panel with glass
  • Installation Standard: Compatible with EU installation materials and US 1-gang (WP220US)
  • Optional Accessories: WB200 surface-mount box; WB45SI/FS solid-wall flush box; WB45S/FG hollow-wall flush box
}
