AUDAC WP210 Mic/Line Input Wall Panel Remote Module (Black or White)
DETAILS
The AUDAC WP210 is a compact mic/line wall panel that offers simple local audio input and mixing.
The AUDAC WP210 is a versatile in-wall mic/line input panel designed for installations where a local audio source or microphone input is required. Suitable for classrooms, meeting rooms, hospitality venues, leisure facilities and commercial spaces, it allows users to connect a microphone or a stereo device such as a smartphone, tablet, laptop or music player, and mix the two signals directly from the wall.
Designed for use with compatible AUDAC hardware including the ARES5A, MTX Series and AMP523, the WP210 converts line-level or microphone-level signals into a differential signal suitable for long-distance transmission over CAT5e or better cabling. This ensures clean, interference-resistant audio across extended cable runs, ideal for installations where equipment racks are located remotely.

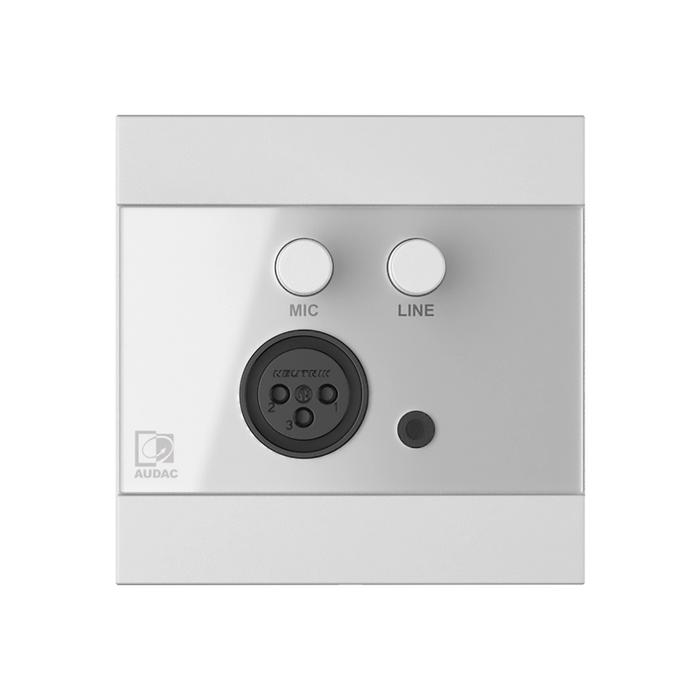

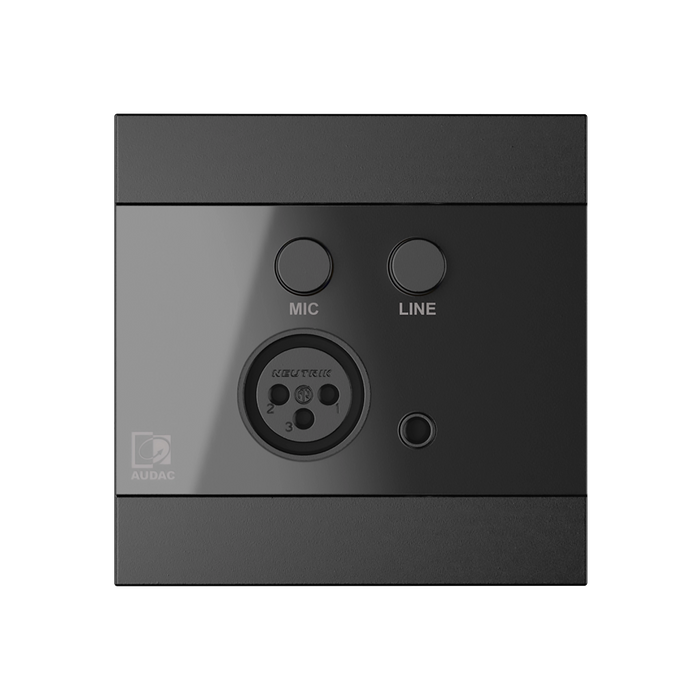

On the front panel, the WP210 provides a 3.5 mm stereo input and a balanced XLR microphone input, each with its own dedicated level control. Phantom power, mono/stereo mode and a low-cut filter for the microphone input can all be adjusted via rear DIP switches, offering extra flexibility during installation.

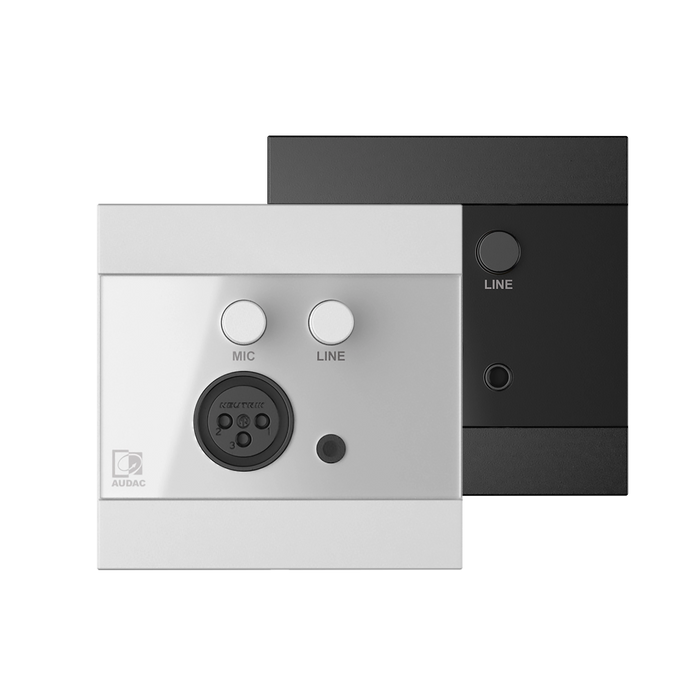

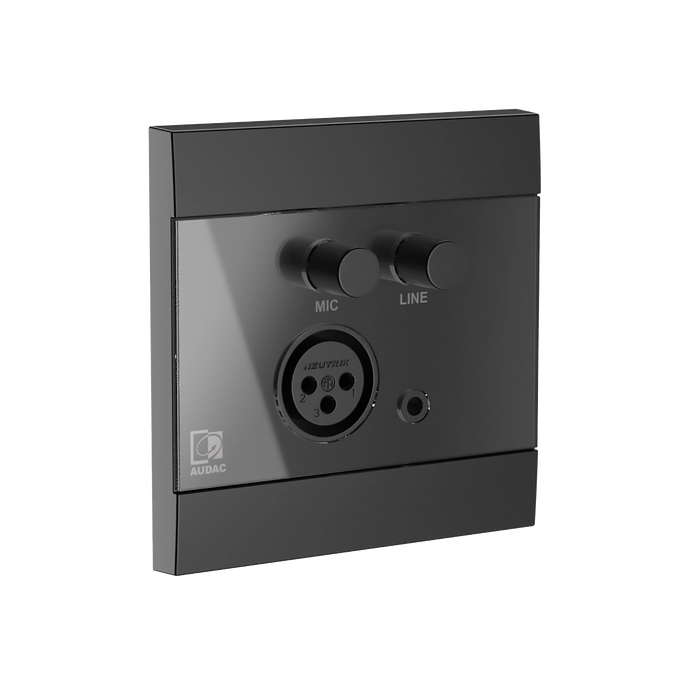

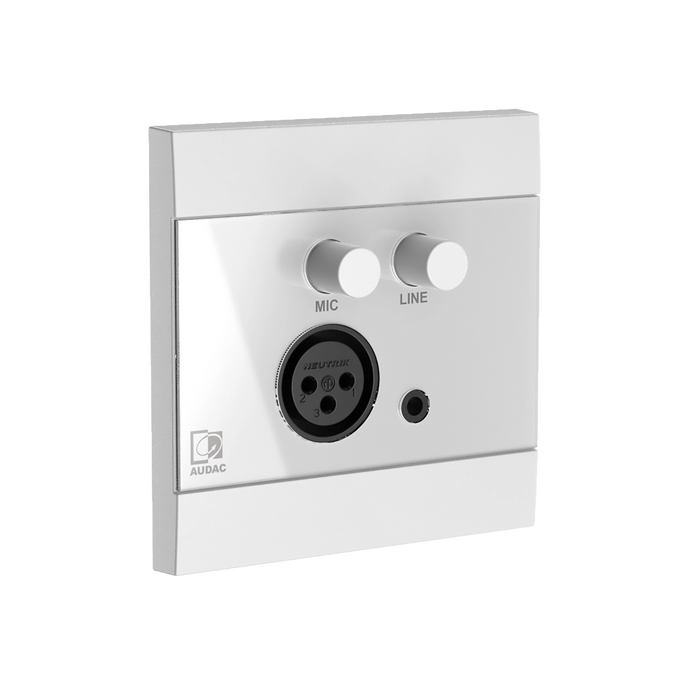

Available in White (RAL9003) or Black (RAL9005), the WP210 features an elegant ABS and glass finish that blends seamlessly into modern interiors. It fits standard EU 80 x 80 mm wall boxes, with optional surface-mount and flush-mount back boxes also available.
Please note: This wall panel is designed for fixed installation environments. It is not suitable for DJ mixers or high-level signal setups, as it is intended for balanced audio connections and general-purpose signal distribution.
AUDAC WP210 Key Features:
- Dual Input Wall Panel: Provides a 3.5 mm stereo input and balanced XLR microphone input.
- Built-In Mixer: Independent level controls allow mic and line signals to be mixed locally.
- Long-Distance Signal Transmission: Converts audio to a differential signal suitable for CAT5e or better cabling.
- Rear Installation Inputs: Includes mic and line terminal block inputs for permanent wiring.
- Flexible Configuration: DIP switches for phantom power, mono/stereo mode and low-cut filtering.
- Elegant Design: ABS and glass finish available in white or black, blending into any installation.
- Easy Compatibility: Works with ARES5A, MTX Series, AMP523 and other supported AUDAC devices.
-
EU Standard Fitting: Designed for 80 x 80 mm EU wall boxes with optional surface or flush mount accessories.
SPECS & DOWNLOADS
Download the PDF Data Sheet HERE >
AUDAC WP210 Specifications:
- Output Levels: +12 dB or 0 dB
- Inputs: 3.5 mm stereo line input, XLR microphone input

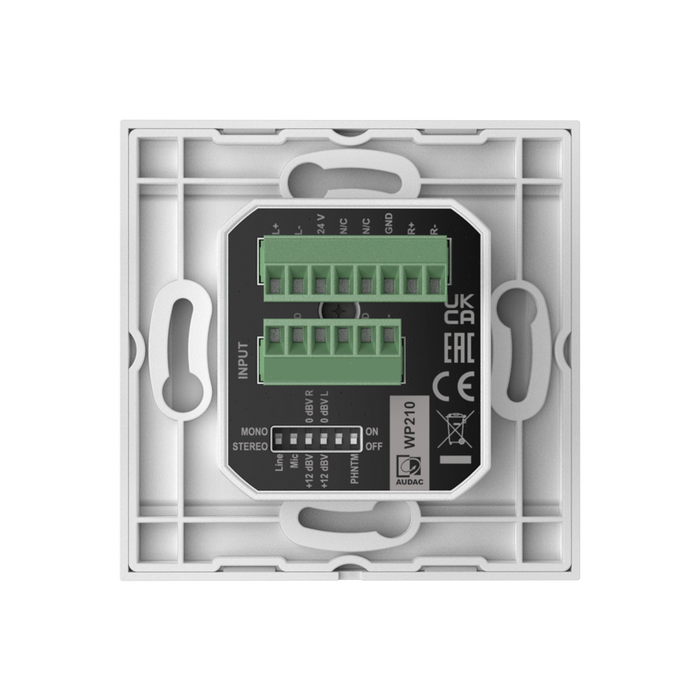

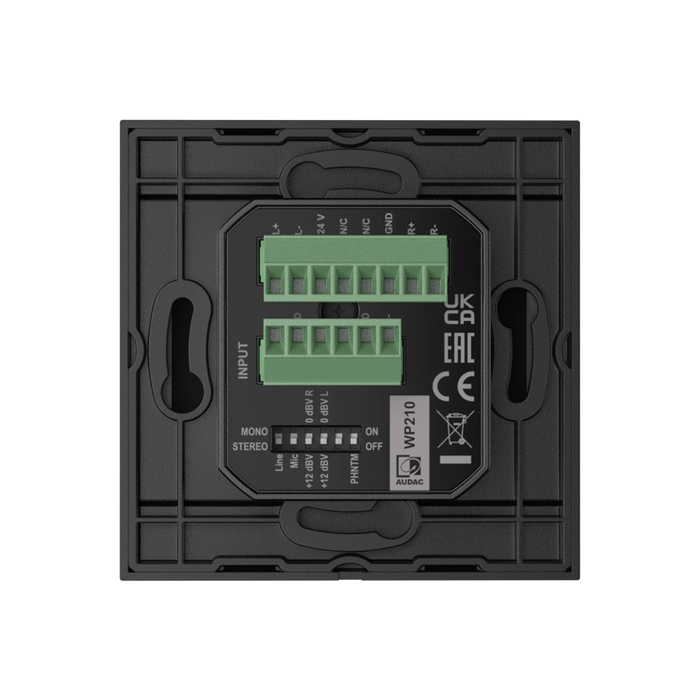

- Rear Inputs: 6-pin terminal block for duplicated mic & line connections
- Output Connection: 8-pin terminal block (3.81 mm pitch)
- Controls: Individual mic and line level knobs
- Phantom Power: Switchable via rear DIP switch
- Low-Cut Filter: Enable/disable via rear DIP switch
- Mono/Stereo: Switchable via rear DIP switch
- Dimensions: 80 x 80 mm (W x H)
- Colours: Black (RAL9005) or White (RAL9003)
- Front Finish: Elegant ABS panel with glass finish
- Installation Standard: Compatible with EU wall boxes; US 1-gang option (WP210US) available
-
Optional Accessories: WB200 surface box, WB45SI/FS solid-wall flush box, WB45S/FG hollow-wall flush box
