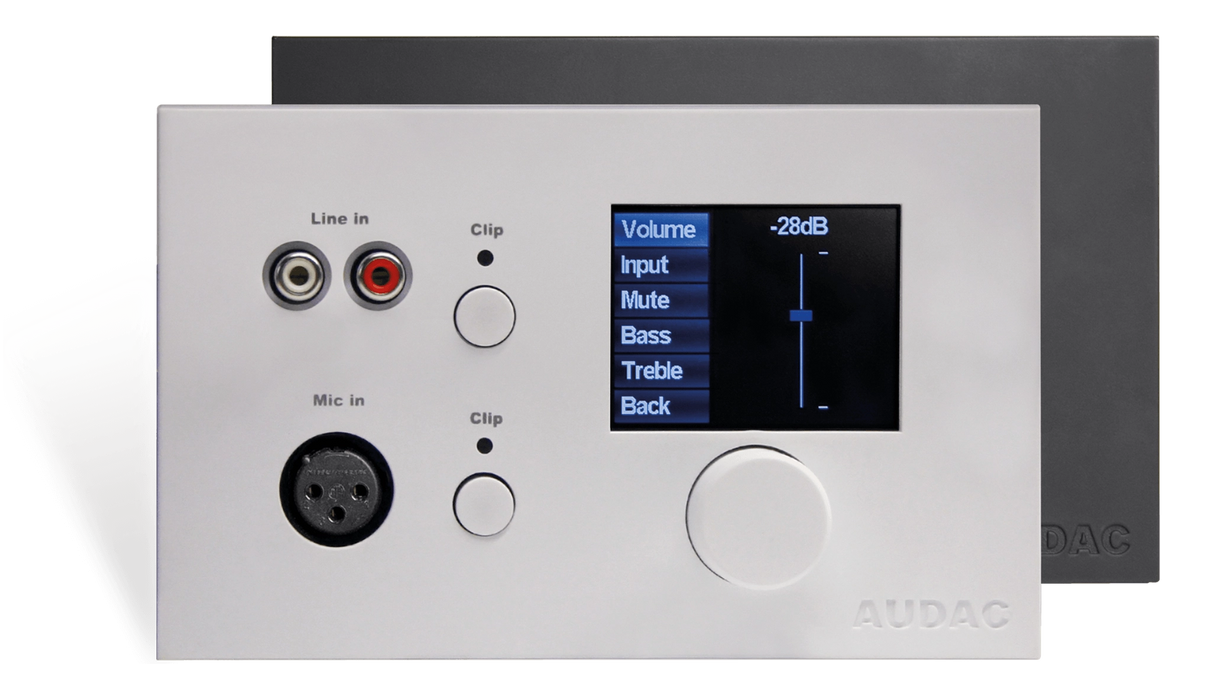

AUDAC MWX65 All-in-One Wall Panel Zone Controller (Black or White)

by AUDAC
SKU MWX65/W
Original price £249.00 (inc. VAT) - Original price £249.00 (inc. VAT)
Original price £249.00 (inc. VAT)
£249.00 (inc. VAT)
£249.00 (inc. VAT) - £249.00 (inc. VAT)
Current price £249.00 (inc. VAT)
Colour: White
DETAILS

The AUDAC MWX65 is an intuitive all-in-one wall panel for controlling MTX audio zones.

The AUDAC MWX65 is a multifunctional wall panel designed for seamless control of a single zone within AUDAC’s MTX series multi-zone audio matrix systems. It provides users with local control over input selection, volume and two-band tone adjustment, making it an ideal interface for hospitality venues, offices, schools, meeting rooms, and community buildings.

Featuring a bright 2.5" full-colour graphical display, the MWX65 delivers a simple and intuitive user experience. A single push-dial allows access to source selection, volume control and tone adjustment. The panel also includes both a microphone input (via XLR) and a stereo line input (via RCA), enabling users to add local audio sources such as music players, laptops or microphones directly into the connected zone. Individual push-lock potentiometers allow fine adjustment of each local input, while 12V phantom power for the microphone can be enabled via software.

The MWX65 connects to the MTX matrix using standard CAT5 cabling, which carries audio, control signals and power over distances up to 300 metres. Its clean, modern design ensures it blends effortlessly into contemporary installations, offering an elegant and user-friendly solution for distributed audio systems.

AUDAC MWX65 Key Features:

  • All-in-One Zone Controller: Complete control over source selection, volume and tone for a single MTX zone.
  • Integrated 2.5" Display: Full-colour graphical LCD for clear and intuitive navigation.
  • Local Audio Inputs: RCA stereo input and XLR microphone input for local music or announcements.
  • Push-Dial Operation: Single rotatable push-dial for source, volume and tone adjustments.
  • Input Mixing: Local mic and line inputs feature individual push-lock potentiometer controls.
  • Phantom Power: 12V phantom power available for microphones (software controlled).
  • Long-Distance Connectivity: Uses CAT5 cabling up to 300m for power, audio and control.
  • Simple Integration: Designed specifically for use with AUDAC MTX multi-zone matrix systems.
SPECS & DOWNLOADS

Download the PDF Data Sheet HERE >

AUDAC MWX65 Specifications:

  • Control Protocol: RS-485
  • Audio Transfer: Analogue differential (dual mono)
  • Phantom Power: 12 V DC (software enabled)
  • Cabling Requirement: CAT5, up to 300 metres
  • Display: 2.5" full-colour graphical LCD
  • Power Consumption: 1.8 W (75 mA @ 24 V)
  • Connectors: 8-pin Euro terminal block
  • Stereo Line Input:
    • Connector: RCA
    • Sensitivity: –12 dBV to +12 dBV
    • THD+N: < 0.05%
    • S/N Ratio: 85 dB
  • Microphone Input:
    • Connector: XLR female
    • Sensitivity: –50 dBV to –15 dBV
    • THD+N: < 0.1%
    • S/N Ratio: 75 dB
}
