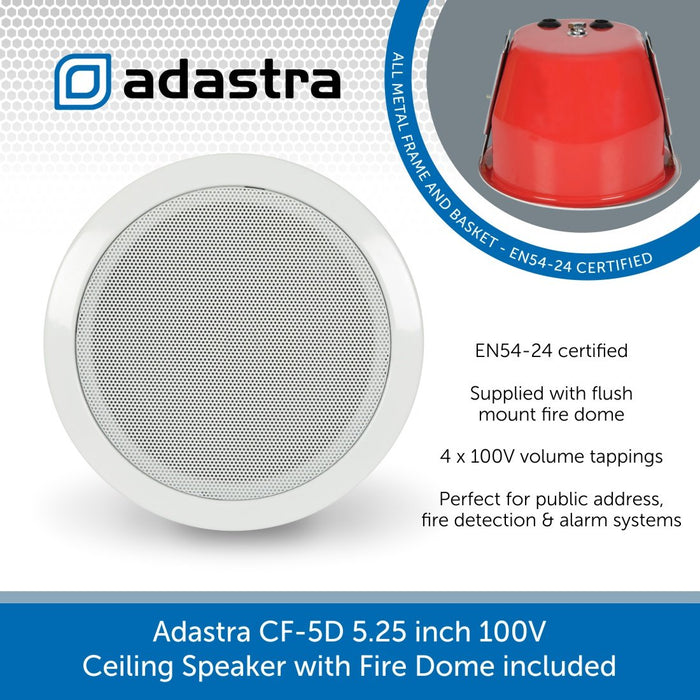

Adastra CF-5D 5.25" 100V EN54 Ceiling Speaker with Fire Dome

by Adastra
SKU 952.205
Save 27% Save 27%
Original price £44.99 (inc. VAT)
Original price £44.99 (inc. VAT) - Original price £44.99 (inc. VAT)
Original price £44.99 (inc. VAT)
Current price £32.99 (inc. VAT)
£32.99 (inc. VAT) - £32.99 (inc. VAT)
Current price £32.99 (inc. VAT)
DETAILS

The Adastra CF-5D is a 100V Line ceiling speaker with a rear fire dome housing that provides an effective barrier against fire.

This makes the Adastra CF-5D perfect for public address, fire detection and alarm systems in any public building/residence such as libraries, care homes, hotels, retail stores, supermarkets, etc.

The dome can be removed from the speaker unit for convenient installation into a ceiling cavity with spring-loaded wire fitting for the speaker unit to pull into the dome for a neat flush fit. Screw terminals on the speaker unit offer 4 volume tappings at 100V.

Certified to EN54 standard for compliance with fire detection and alarm systems requirements.

Key Features

  • EN54-24 certified
  • Supplied with flush mount fire dome
  • 4 x 100V volume tappings
  • Spring-loaded speaker retainers
  • All metal frame and basket
  • Fire-resistant cable to 95°C
  • Ceramic screw terminals
SPECS & DOWNLOADS

Adastra CF-5D Specifications

  • 100V line tappings: 0.75W, 1.5W, 3W, 6W

  • Fire rating: EN54-24
  • SPL @ 1W/1m: 92dB
  • Frame material: Steel (powder coated)
  • Frequency response: 130Hz - 15kHz
  • Cutout: 160mmØ
  • Driver: 135mmØ (5.25") reinforced paper cone

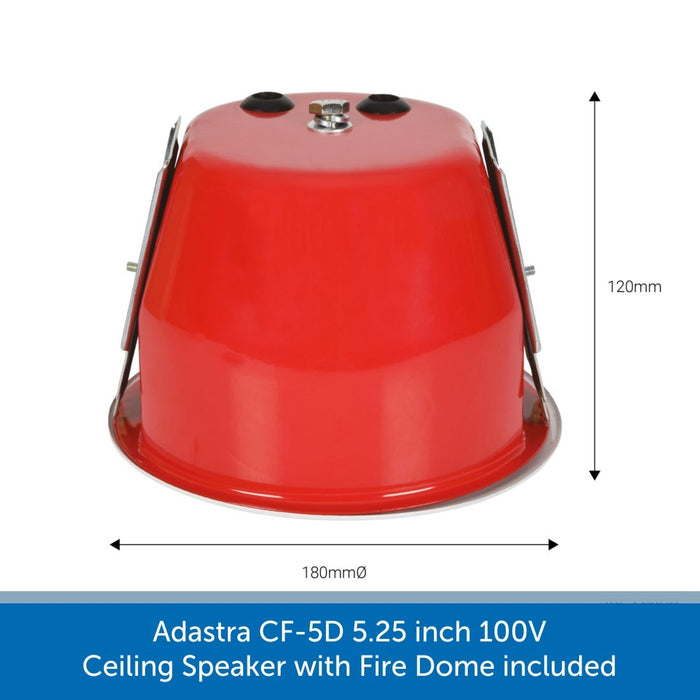

  • Dimensions: 120 x 180mmØ
  • Weight: 1.23kg
}
